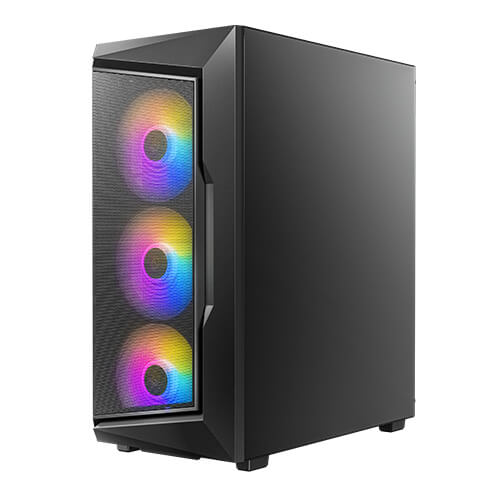

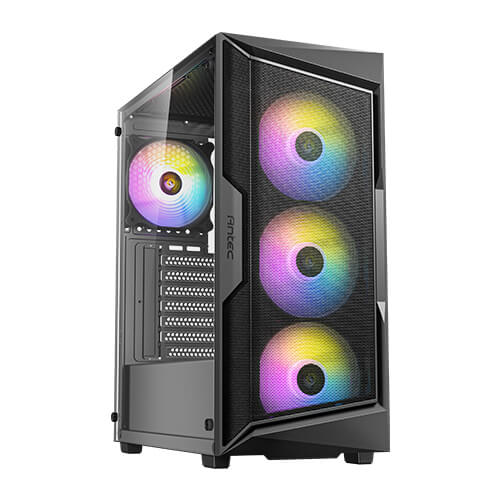

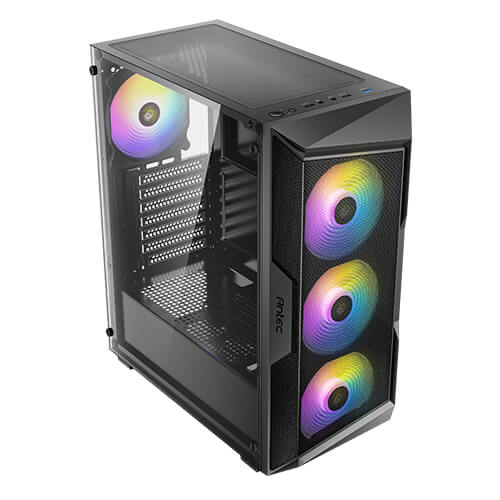

Unique Design & Powerful Heat Dissipation
The front panel adopts an ample mesh design with geometrical styling for increasing airflow and dust prevention.
The ARGB lighting creates various visual effects.

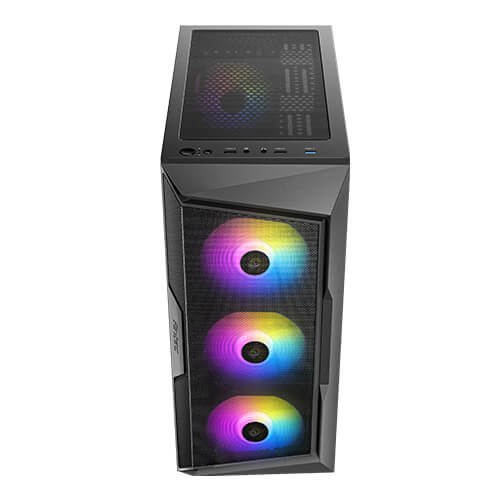

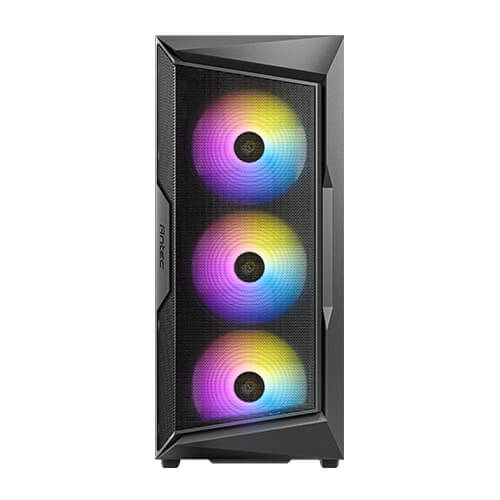

High-Airflow Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front and bottom ensure outstanding heat dissipation.
Pre-Installed 4 x 120mm ARGB fans
Work in sync with the motherboard.

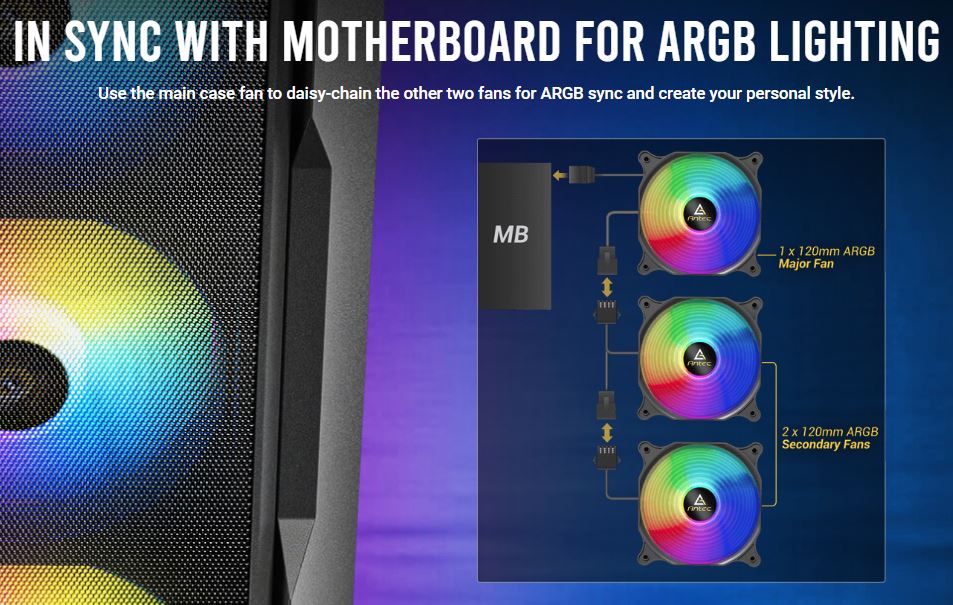

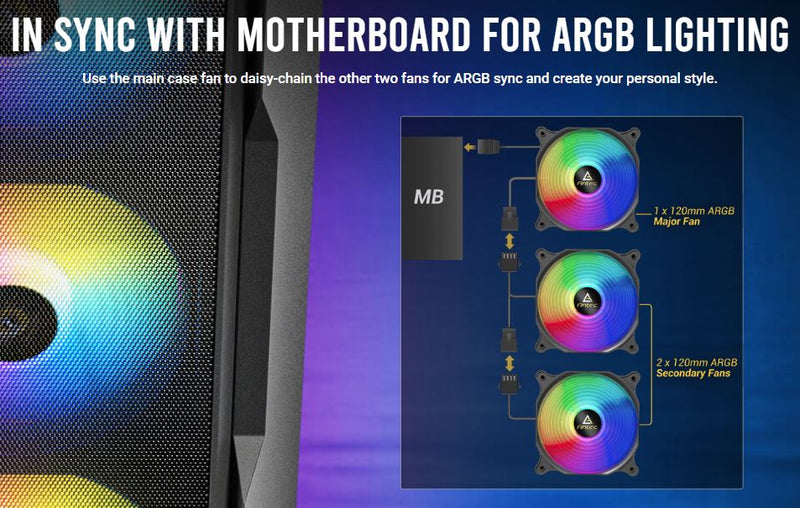

In Sync with Motherboard for ARGB Lighting
Use the main case fan to daisy-chain the other two fans for ARGB sync and create your personal style.

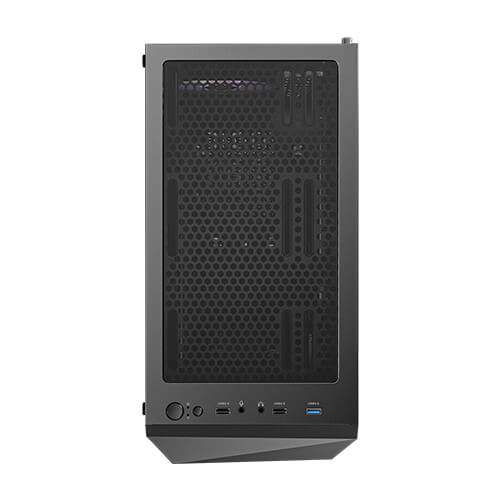

I/O Panel
Power, LED Control Button, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1

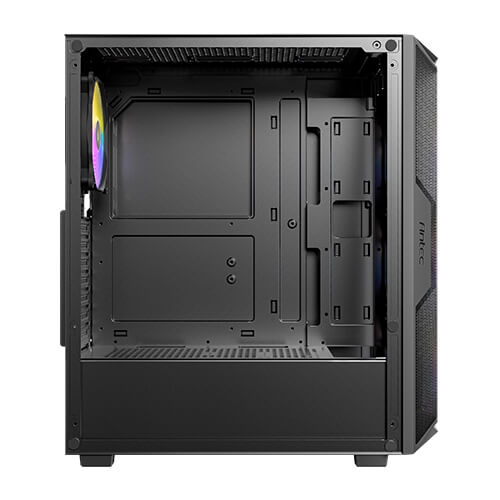

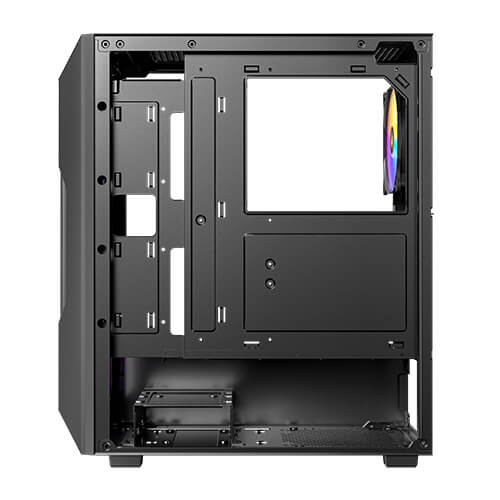

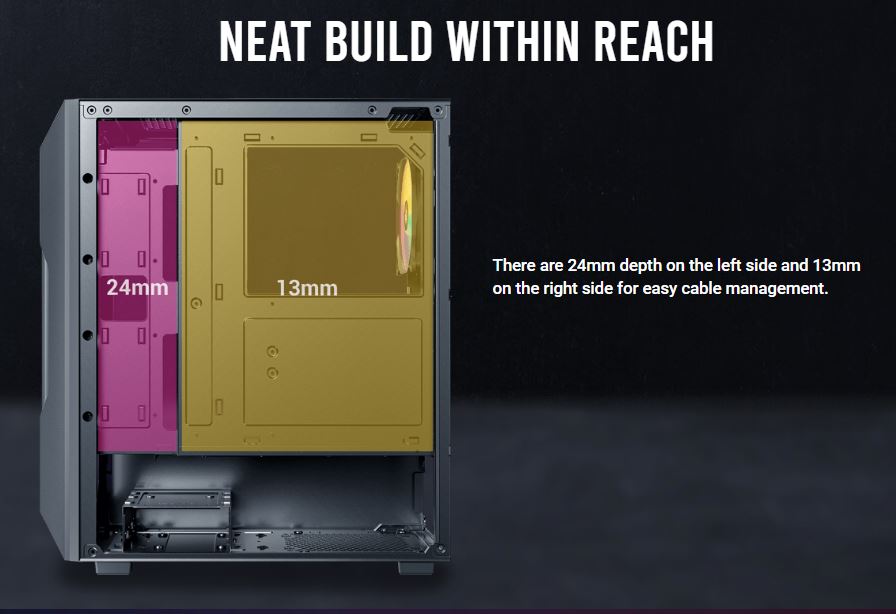

Neat Build within Reach
There are 24mm depth on the left side and 13mm on the right side for easy cable management.

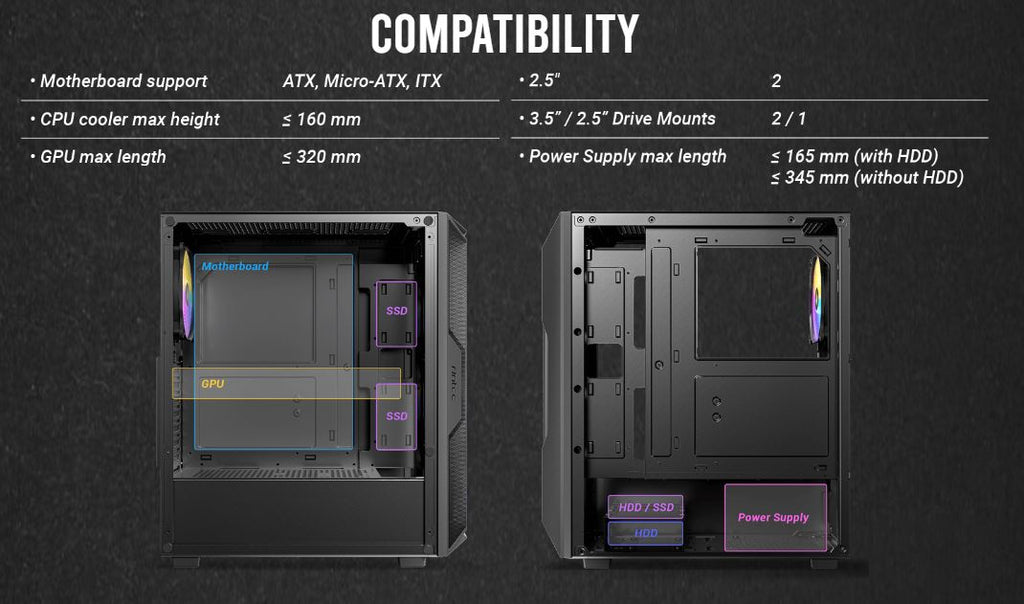

Powerful Cooling Compatibility
Max. CPU Cooler Height : 160mm. Supports most of the high-end air coolers.
.
.
SPECIFICATIONS
.
| main spec |
| Dimensions |
405 x 200 x 449mm (DWH) |
| Form Factor |
Mid Tower |
| Materials |
Steel + Plastic |
| Mainboard Support |
ATX, Micro-ATX, ITX |
| Front Access & Controls |
Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0 , HD-AUDIO |
| Side Panel |
4MM Tempered glass |
|
| Drive Bays |
| Expansion Slots |
7 |
| 3.5" /2.5" |
2/1 |
| 2.5" |
2 |
|

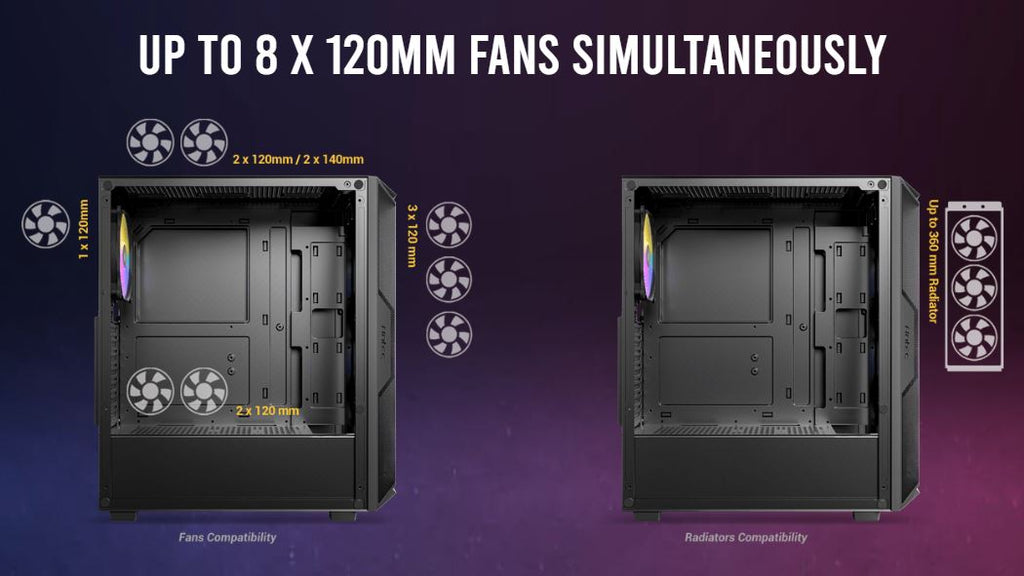

| Fan Support |
| Front |
3 x 120mm |
| Top |
2 x 120mm / 2 x 140mm |
| Power supply |
2 x 120mm |
| Rear |
1 x 120mm |
| Included Fan(s) |
3 x 120mm ARGB fans in front + 1x 120mm ARGB fan in rear |
|
| Radiator Support |
|
|

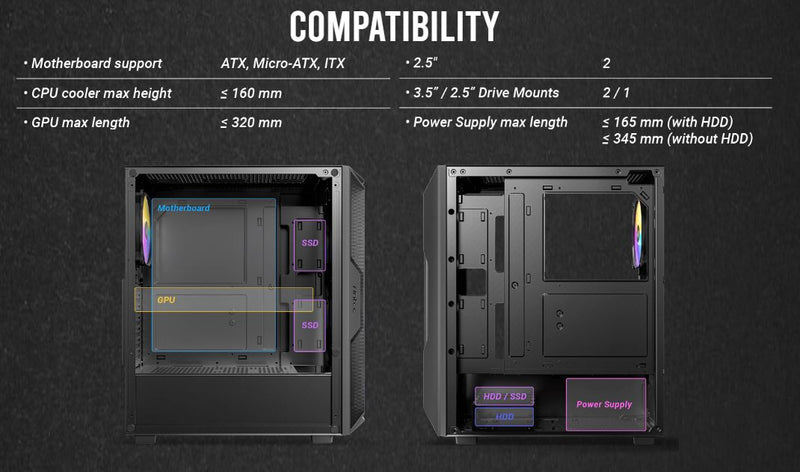

| Clearance |
| Max GPU Length |
≤ 320mm |
| Max CPU Cooler Height |
≤ 160mm |
| Max PSU Length |
(Include cable) ≤ 165mm(with HDD)
(Include cable) ≤ 345mm(without HDD) |
|
| Miscellaneous |
| Dust Filter |
Top / Bottom |
| Net Weight |
4.84 Kgs |
| Gross Weight |
5.62 Kgs |
| Warranty |
1 Year |
| UPC# |
0-761345-10069-4 |
|
