NX500M - Mid-Tower M-ATX Gaming Case
- NX500M (Pre-installed 1 x 120mm regular fan in rear)
- NX500M ARGB (Pre-installed 2 x 120mm ARGB fans in front & 1 x 120mm ARGB fan in rear)
- NX500M ARGB Elite(Pre-installed 3 x 120mm ARGB fans in front & 1 x 120mm ARGB fan in rear)
Unique Design & Powerful Heat Dissipation
The NX500M features a unique design and excellent cooling performance. The half-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 6 x 120mm fans can be installed simultaneously.
Sleek Design with Massive Air Intake
The sleek & elegant exterior design provides ample airflow to your system for maximum cooling while ensuring minimal dust intake. The panel comes equipped with a Type-C port for added convenience in use.
Powerful Cooling
Supports a 360mm (Length ≤ 397mm) Radiator at the front and a 240mm radiator at the top.
Powerful Fan Compatibility
Supports 3 x 120mm fans at the front.

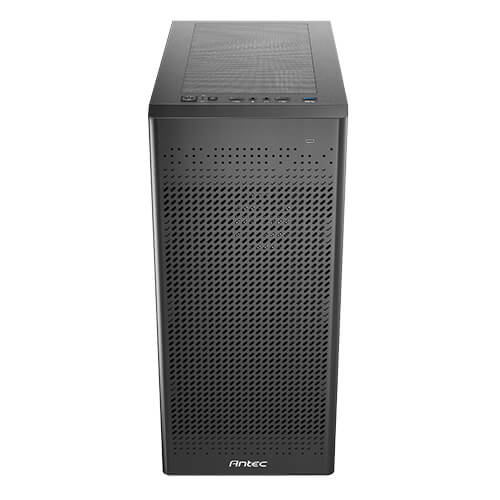

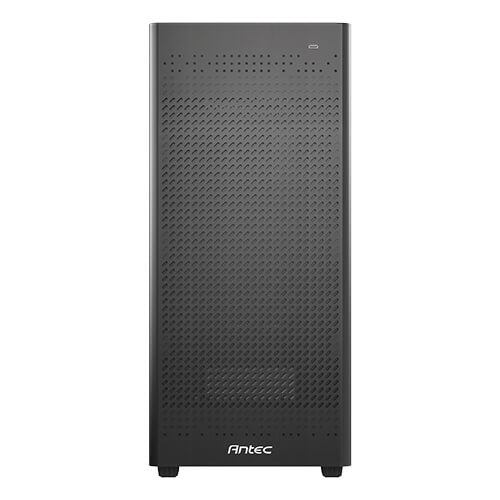

High-Airflow
Mesh Front Panel
Massive air intake at the front provides ample airflow.
Pre-installed1 x 120mm fan

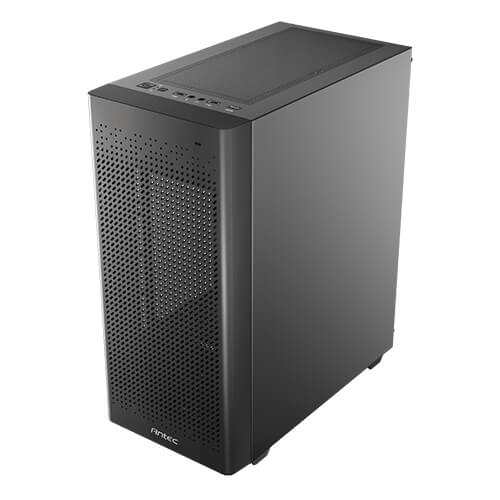

I/O Panel
Power, LED control button (NX500M ARGB & NX500M ARGB Elite), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO

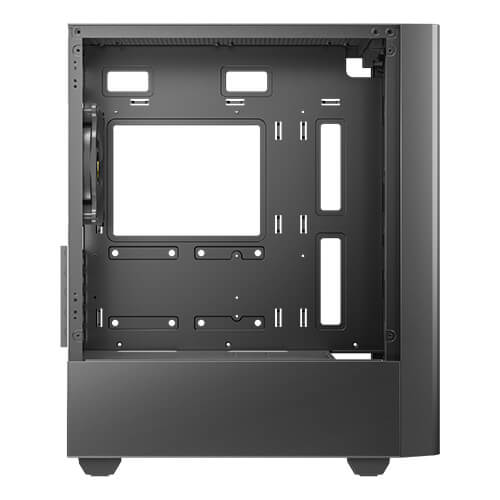

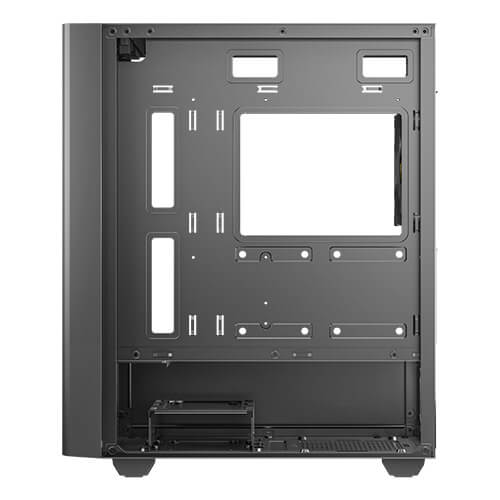

Neat Build within Reach
20 mm space for cable management ensures your PC build looks neat.

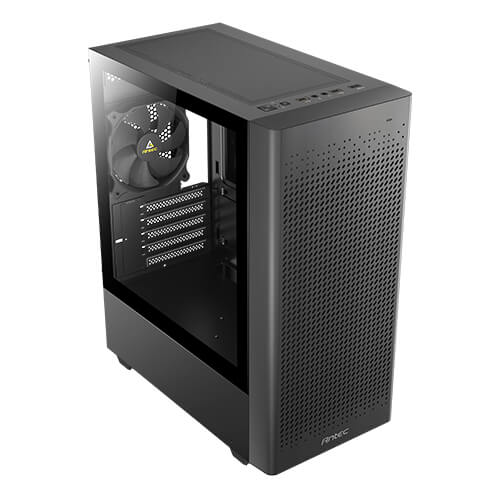

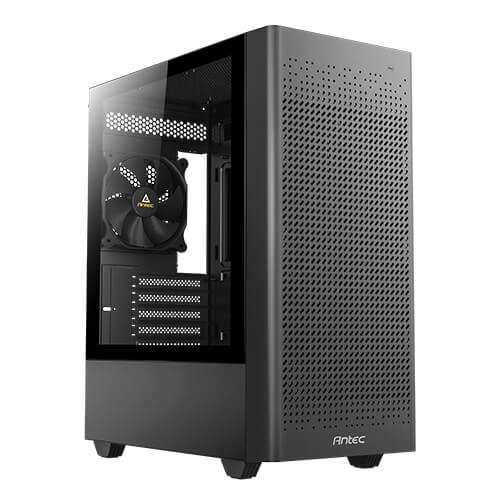

Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system.
Removable HDD Drive Cage
The HDD drive cage is removable to increase PSU installation space. With the drive cage installed, the PSU compartment can accommodate PSUs up to 165mm in length. With the drive cage removed, the PSU compartment can accommodate PSUs up to 325mm in length.
SPECIFICATIONS
| Fan |
| Dimensions |
384 x 200 x 451mm (DWH) |
| Form Factor |
Mini Tower |
| Materials |
Steel + Plastic |
| Mainboard Support |
Micro-ATX, ITX |
| Front Access & Controls |
Power, Reset (NX500M), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO
Power, LED control button (NX500M ARGB), Type-C 3.2 Gen 2 x 1, USB3.0 x 1, USB2.0 x 2 , MIC/HD-AUDIO |
| Side Panel |
Tempered Glass Side Panel |
|
| Drive Bays |
| Expansion Slots |
5 |
| 3.5" /2.5" |
2/3 (with HDD cage)
2/2 (without HDD cage) |
| 2.5" |
2 |
|
| Fan |
| Front |
3 x 120mm / 2 x 140mm |
| Top |
2 x 120mm / 2 x 140mm |
| Rear |
1 x 120mm |
| Included Fan(s) |
1 x 120mm regular fan in rear (NX500M)
2 x 120mm ARGB fans in front & 1 x 120mm ARGB fan in rear (NX500M ARGB)
3 x 120mm ARGB fans in front & 1 x 120mm ARGB fan in rear (NX500M ARGB Elite) |
|
| Radiator Support |
| Front |
120 / 140 / 240 / 280 / 360 (Length≤397mm)mm |
| Top |
120 / 240mm |
| Rear |
120mm |
|
| Clearance |
| Max GPU Length |
≤ 300mm(with front fan)
≤ 320mm(without front fan) |
| Max CPU Cooler Height |
≤ 155mm |
| Max PSU Length |
≤ 165mm(with HDD)
≤ 325mm(without HDD) |
|
| Miscellaneous |
| Dust Filter |
Top / Bottom |
| Net Weight |
3.7 Kg (NX500M) / 4 Kg (NX500M AGB) / 4.25 Kg (NX500M ARGB Elite) |
| Gross Weight |
4.45 Kg (NX500M) / 4.7 Kg (NX500M AGB) / 5 Kg (NX500M ARGB Elite) |
|
