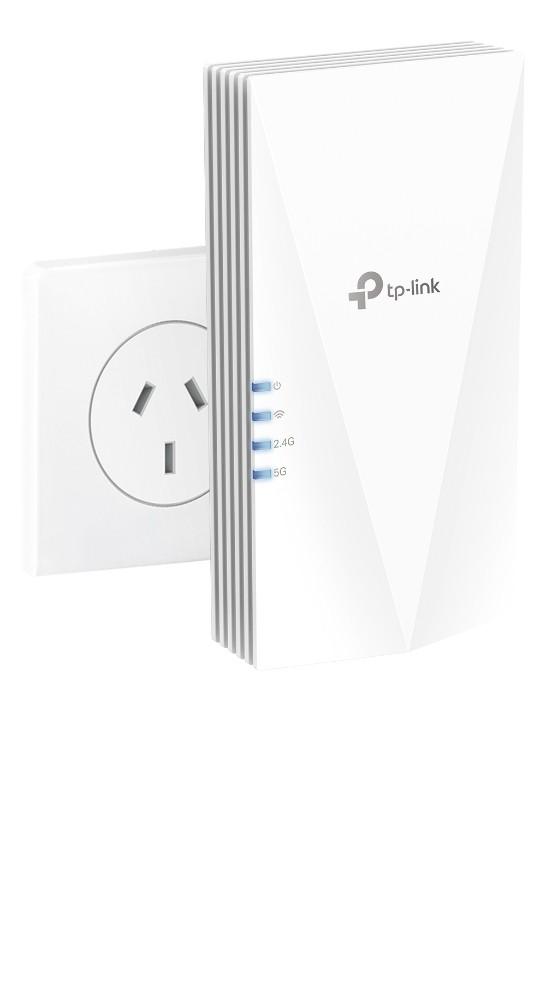

TP Link AX1500 Wi-Fi 6 Range Extender RE500X
AX1500 Wi-Fi Range Extender RE500X
- RE500X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
- Creates a Mesh network by connecting to an OneMesh router for seamless whole-home coverage.
- Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
| HARDWARE FEATURES |
| Ports |
1 Gigabit Ethernet Port |
| Button |
WPS Button, Reset Button |
| Power Consumption |
10W |
| Dimensions ( W x D x H ) |
2.9×1.8×4.9 in. (74.0×46×124.8 mm) |
| Antenna |
2 External Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz |
| Signal Rate |
300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| Reception Sensitivity |
5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm
2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm |
| Transmit Power |
CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA-PSK2 encryptions |
| OTHERS |
| Package Contents |
Wi-Fi Range Extender RE500X
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Certifications |
FCC, RoHS |
