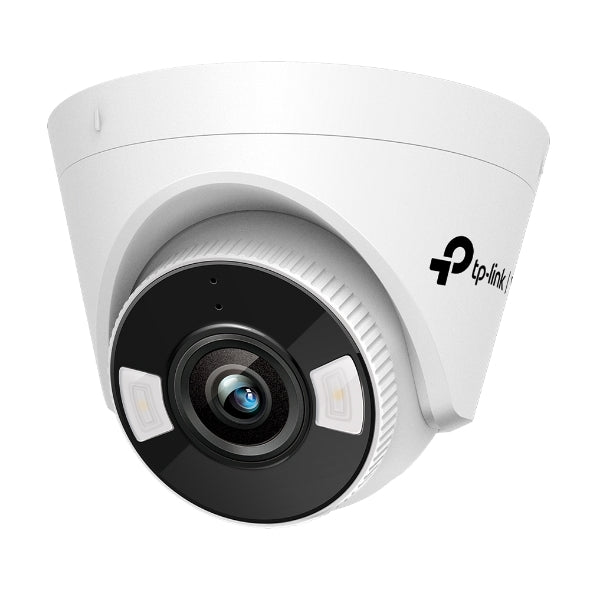

VIGI C430
VIGI 3MP Full-Color Turret Network Camera
-
3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
-
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
-
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
-
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
-
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
-
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
-
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
-
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
-
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
| CAMERA |
| Image Sensor |
1/2.8” Progressive Scan CMOS |
| Lens |
2.8 mm/ 4 mm |
| Aperture |
2.8 mm: F1.6
4 mm: F1.6 |
| Lens Mount |
M12 |
| Viewing Angle |
2.8mm: 107.5°/57.2°/128.7°(H/V/D)
4mm: 89.1°/45.1°/106.9°(H/V/D) |
| Day/Night Mechanism |
IR Cut Filter |
| IR Working Distance |
30m |
| Minimum Illumination |
Color: 0.005 Lux; 0 Lux with IR/White Light |
| Digital Noise Reduction |
3D DNR |
| WDR |
DWDR |
| NETWORK |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS |
| API |
ONVIF |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, VIGI NVR, Web |
| GENERAL |
| Package Contents |
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories |
| Operating Temperature |
-30–60 °C |
| Certifications |
CE/BSMI/VCCI/ONVIF |
| Dimensions( H X W X D ) |
123 × 123 × 83 mm |
| Material |
Plastic |
| General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
|
| Power Consumption |
12V DC: Max 4.2W
PoE: Class 0 |
| VIDEO/IMAGE |
| Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions |
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240 |
| Max. Resolution |
3MP (2304 × 1296) |
| Video Streaming |
Main Stream
Sub-Stream |
| Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Video Bit Rate |
64 Kbps to 4 Mbps |
| Day/Night Switch |
Day/Night/Auto/Schedule |
| SMART FEATURE-SET |
| Smart Event |
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event |
Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
| Linkage Method |
Trigger Notification: ONVIF, HTTPS |
| Region of Interest |
1 Region |
| INTERFACES |
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Button |
- |
| Video Output |
- |
| Built-in Microphone |
Yes |
†Picture for reference only.
