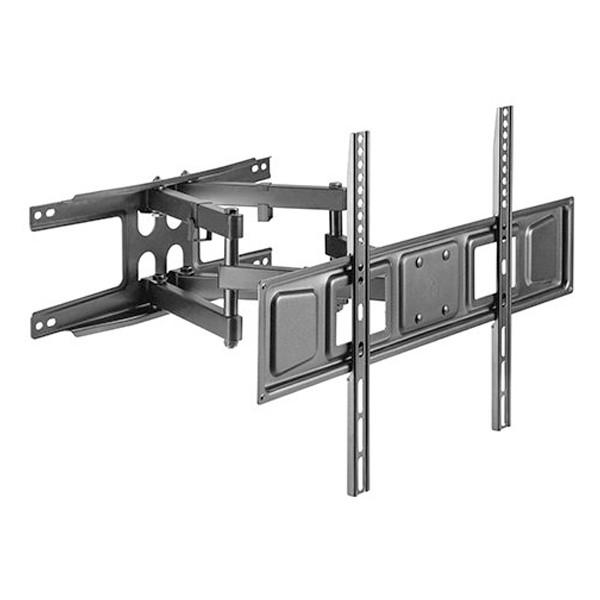

The LPA63-466 economical full-motion TV mount accommodates most 37"-80" flat-panel TVs up to 40kg/88lbs. Its full-motion capabilities allow a +5 degrees to -15 degrees tilting and a +60 degrees to -60 degrees swiveling of your TV, which maximizes the flexibility for easy viewing from different angles in the room. The +3 degrees to -3 degrees leveling adjustment ensures the TV is perfectly positioned, and the integrated cable clip keeps cables organized and protected.
FEATURES
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Built-In Level Adjustment: ensures perfect positioning
●Cable Management: elegantly hides any cables that are attached to displays
SPECIFICATION
|
|
Full-motion TV Wall Mount
|
|
|
Economy
|
|
|
Steel
|
|
|
Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Bracket Arm THK=1.5mm cold-rolled sheet (Wall Plate THK=0.079" cold-rolled sheet,VESA Panel THK=0.071" cold-rolled sheet,Bracket Arm THK=0.059" cold-rolled sheet)
|
|
|
30x20x1.5mm Square Steel Tube (1.2"x0.79"x0.059" Square Steel Tube)
|
|
|
Powder Coating
|
|
|
Fine Texture Black
|
|
|
468x655x420mm (18.4"x25.8"x16.5")
|
|
|
37"-80"
|
|
|
Yes
|
|
|
VESA & Universal
|
|
|
75x75,100x100,100x150,100x200,150x100,150x150,200x100,200x200,300x200,300x300,400x200,400x300,400x400,600x400
|
|
|
600x404mm
|
|
|
40kg (88lbs)
|
|
|
2 Times Approved
|
|
|
62 - 468mm (2.4" - 18.4") |
| Tilt Range: |
+5 degree to -15 degrees |
| Swivel Range: |
+60 degrees to -60degrees |
| Screen Level: |
+3 degrees to -3 degrees |
| Screen Freely Tilting: |
No |
| Installation: |
Solid Wall, Double Stud(406mm/450mm) |
| Panel Type: |
Detachable Panel |
| Wall Plate Type: |
Fixed Wall Plate |
| AV Component Shelf: |
No |
| Direction Indicator: |
Yes |
| Cable Management: |
Yes |
| Anti-theft: |
No |
| Bubble Level: |
No |
| Accessory Kit Package: |
Normal/Ziplock Polybag, Compartment Polybag |
