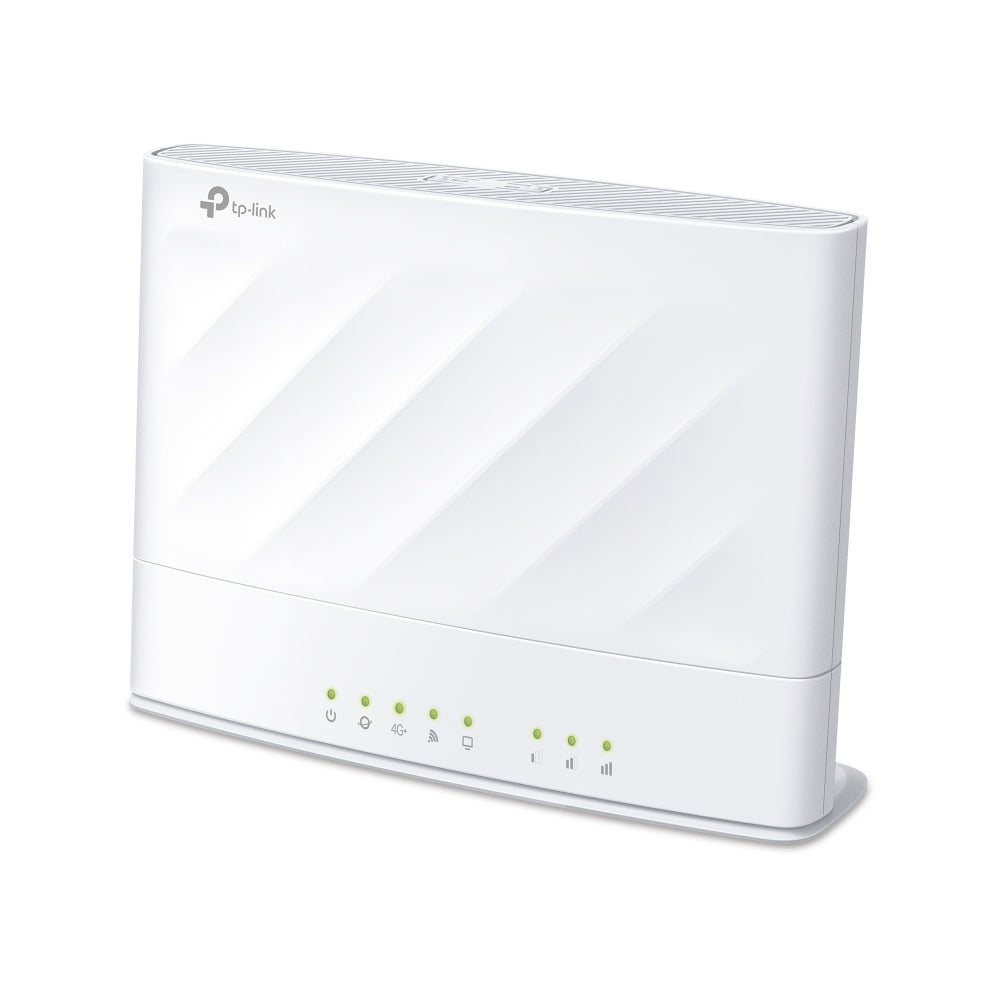

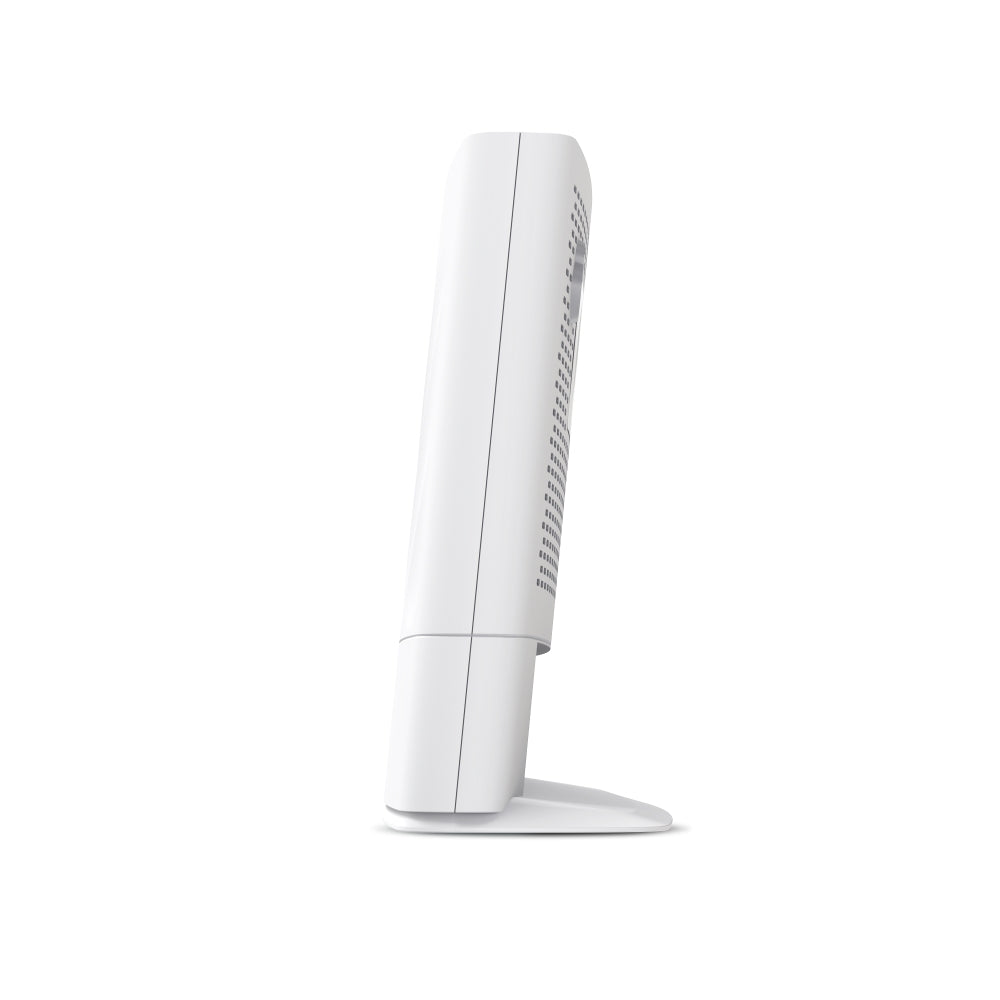

4G+ AX1500 Dual Band Wi-Fi LTE Router
-
Enjoy 4G+ internet everywhere: supports 4G+ Cat6 up to 300 Mbps download speed.
-
Dual band Wi-Fi 6 Speed : 1201 Mbps on 5 GHz + 300 Mbps on 2.4 GHz**
-
Plug and Play: Internet setup made simple. Just plug in an activated SIM card and ready to browse. *
-
Up to 128 Concurrent Devices: Ensures robust, reliable connectivity for households or offices.
-
EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.†
-
Full Gigabit Ports for Internet access: provides outstanding speed, ensuring an enhanced networking experience.
-
Simplified Setup: Easily set up and manage your network with the Tether app.
|
5G/4G/3G
|
| Network Mode |
4G：
FDD:B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz )
TDD:B38/B40/B41 (2600/2300/2500 MHz)
3G：
B1/B5/B8 (2100/850/900 MHz) |
| Speed |
4G+ Cat 6：
300 Mbps Download Speed
50 Mbps Upload Speed
|
| SIM Type |
Nano SIM Card |
|
HARDWARE FEATURES
|
| Interface |

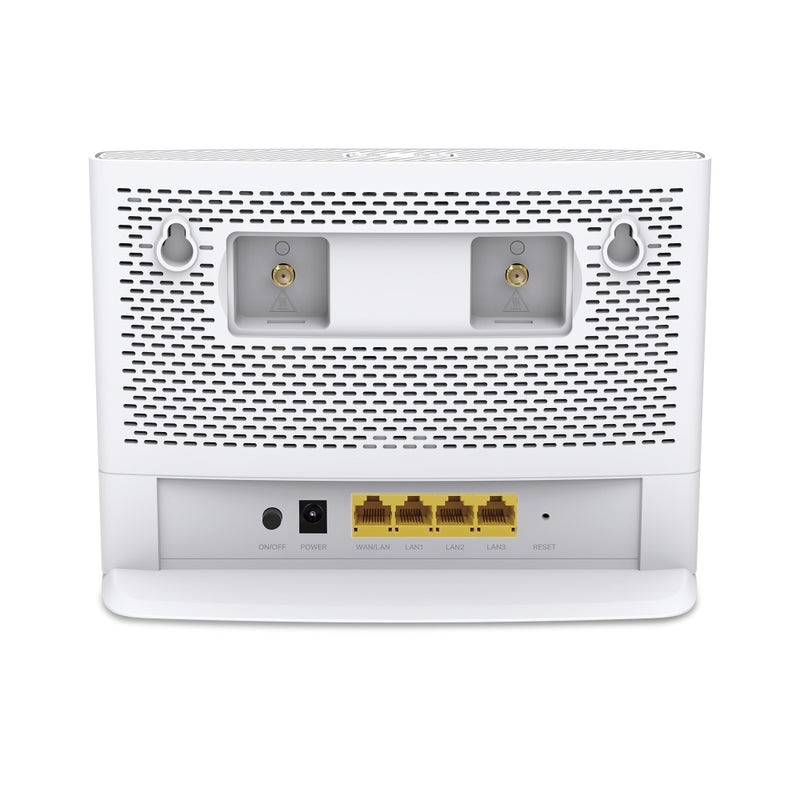

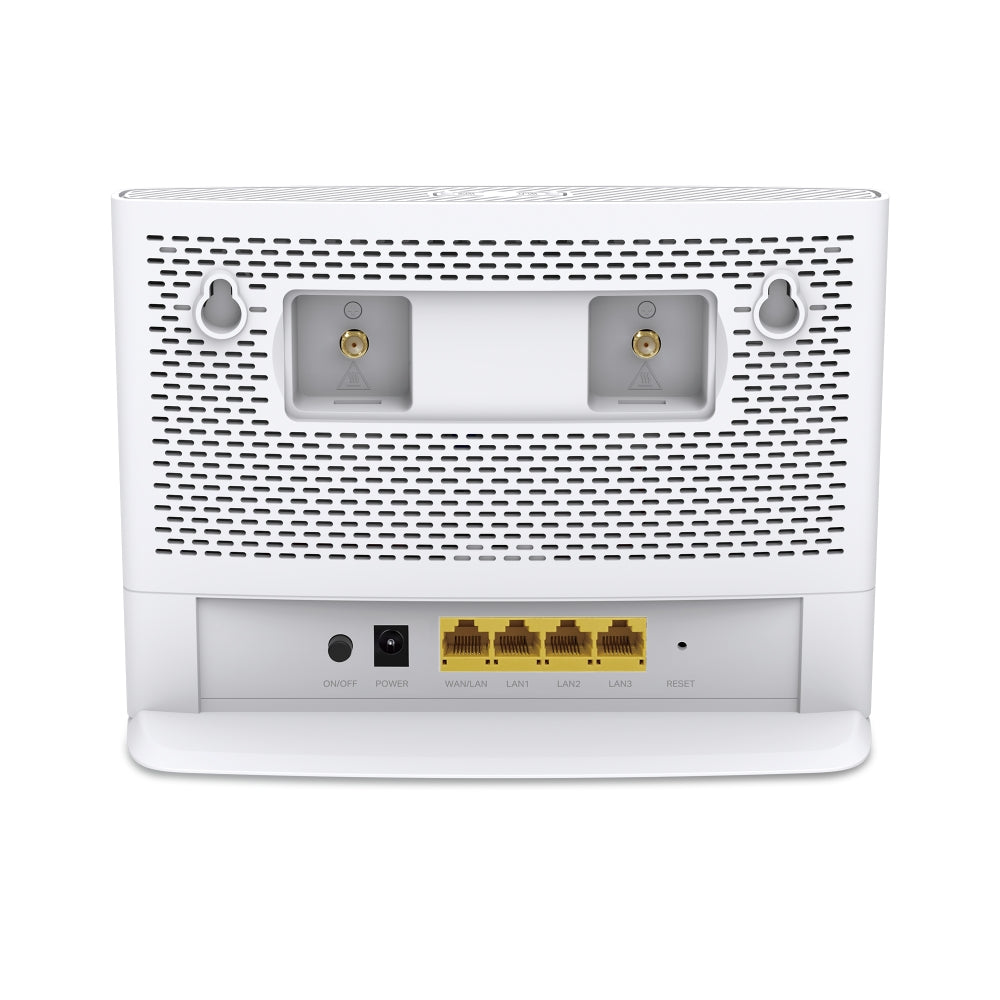

1× Gigabit LAN/WAN Port + 3× Gigabit LAN Ports |
| Dimensions ( W x D x H ) |
7.86×5.85×2.66 in (199.7×148.6×67.5 mm) |
| Antenna |
2× Internal 4G/3G Antennas + 2× Internal Wi-Fi Antennas + 2× External Antenna Ports |
|
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity |
5 GHz:
11a 54M: -77 dBm
11ax HE20:-64 dBm
11ax HE40: -61 dBm
11ax HE80:-59 dBm
11ac VHT20: -69 dBm
11ac VHT40: -66 dBm
11ac VHT80 : -63 dBm
11n HT20: -74 dBm
11n HT40: -71 dBm
2.4 GHz:
11g 54M: -78 dBm
11n HT20: -75 dBm
11n HT40: -72 dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM |
| Wireless Security |
64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise, WPA/WPA3 Personal |
|
SOFTWARE FEATURES
|
| Quality of Service |
Bandwidth Control |
| Security |
IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features |
TP-Link Cloud, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Administration |
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
|
OTHERS
|
| Certification |
CE, RoHS |
| Package Content |
4G+ Cat6 300 Mbps LTE AX1500 Wireless Dual Band Gigabit Router Archer MX700
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser
*You are recommended to use the latest version |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
