Omada 2.5G PoE+ Splitter
- IEEE 802.3af/at compliant
- Selectable power output
- 2.5 Gigabit speed support
- Plug-and-Play, no configuration required

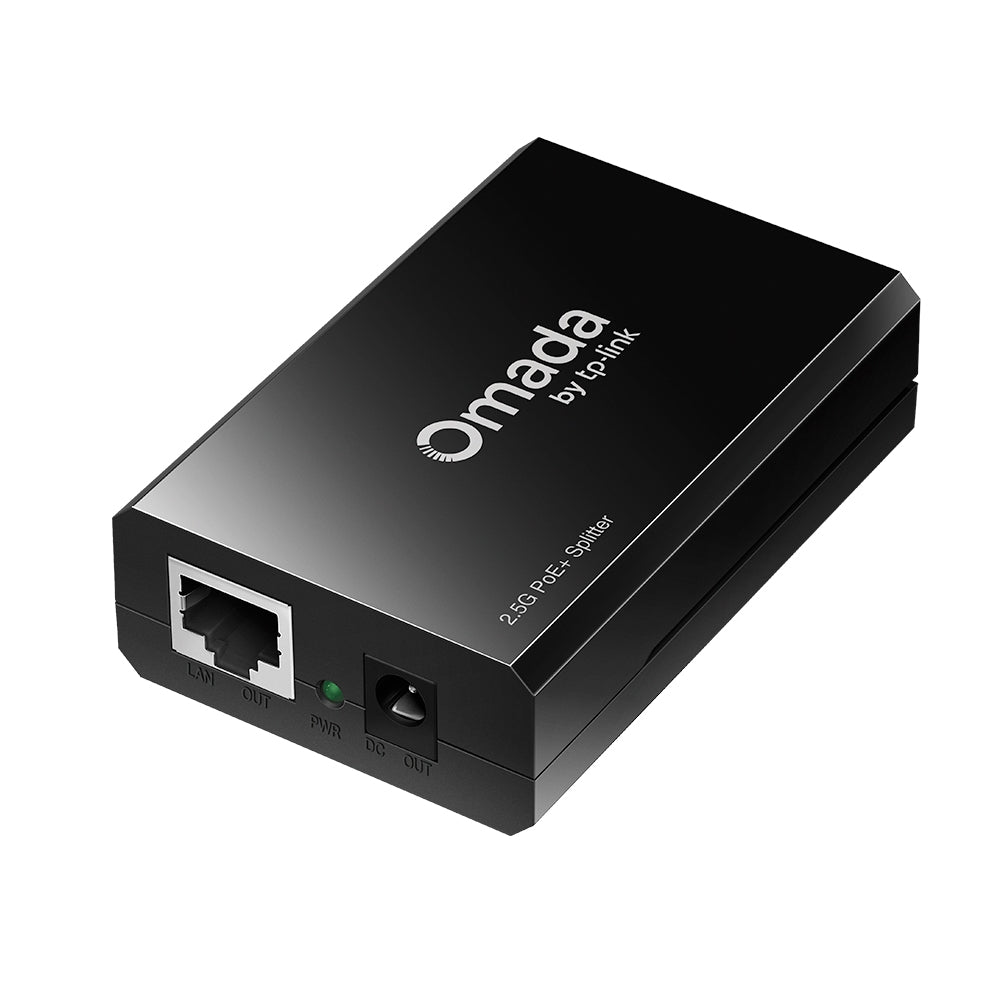

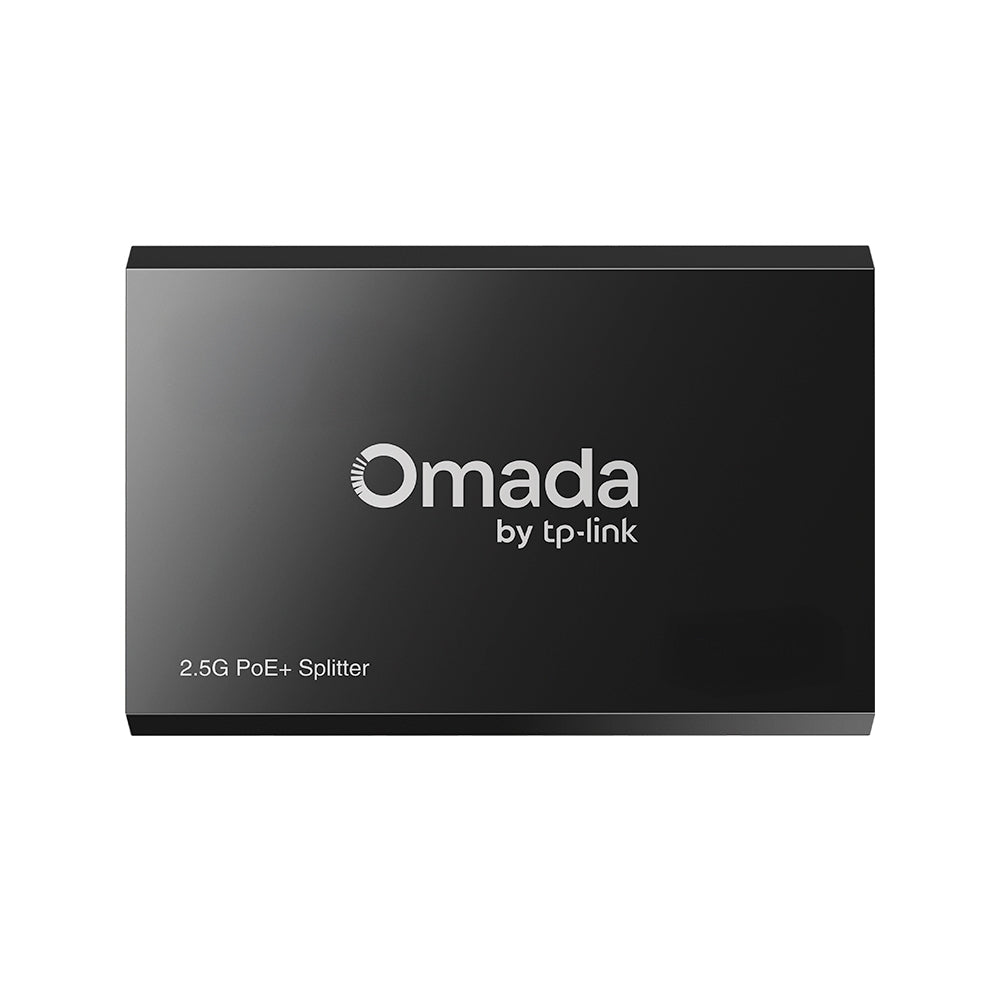

The POE260R is a 2.5 Gigabit PoE+ splitter that delivers high-speed data and converts standard PoE+ input into a flexible 12V/9V/5V DC output, powering various devices over existing network cables without requiring a separate power adapter.
| HARDWARE FEATURES |
| Interface |
• 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port
• 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
• 12V / 9V / 5V DC OUT Power Output Port |
| Network Media |
• 10BASE-T:2-pair UTP/STP of Cat. 3,4,5 (maximum 100 m)
• 100BASE-TX:2-pair UTP/STP of Cat. 5 or above (maximum 100 m)
• 1000BASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m)
• 2.5GBASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m) |
| Power Supply |
12VDC/ 2A,9VDC/ 2A or 5VDC/ 2A |
| Basic Function |
• Compatible With IEEE 802.3af/at Compliant PSEs
• Delivers Power Up To 100 Meters
• Optional 12VDC, 9VDC or 5VDC Power Output |
| LED |
PWR |
| Dimensions ( W x D x H ) |
3.2 × 2.1 × 0.9 in. (80.8 × 54 × 24 mm) |
| SOFTWARE FEATURES |
| Basic Function |
• Compatible With IEEE 802.3af/at Compliant PSEs
• Delivers Power Up To 100 Meters
• Optional 12VDC, 9VDC or 5VDC Power Supply
|
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Content |
• POE260R
• Power Cord
• Installation Guide |
| Environment |
• Operating Temperature:-5℃~45℃ (23℉~113℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
