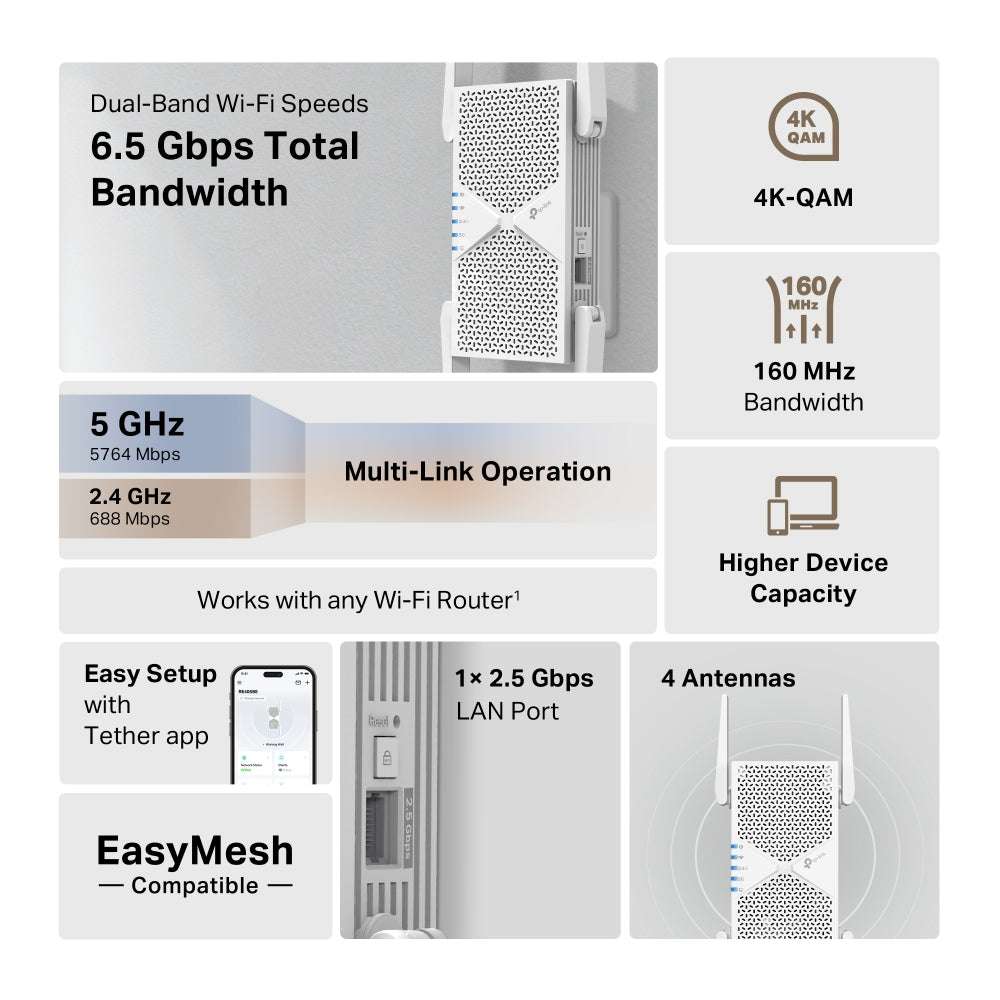

BE6500 Dual-Band Wi-Fi 7 Range Extender
-

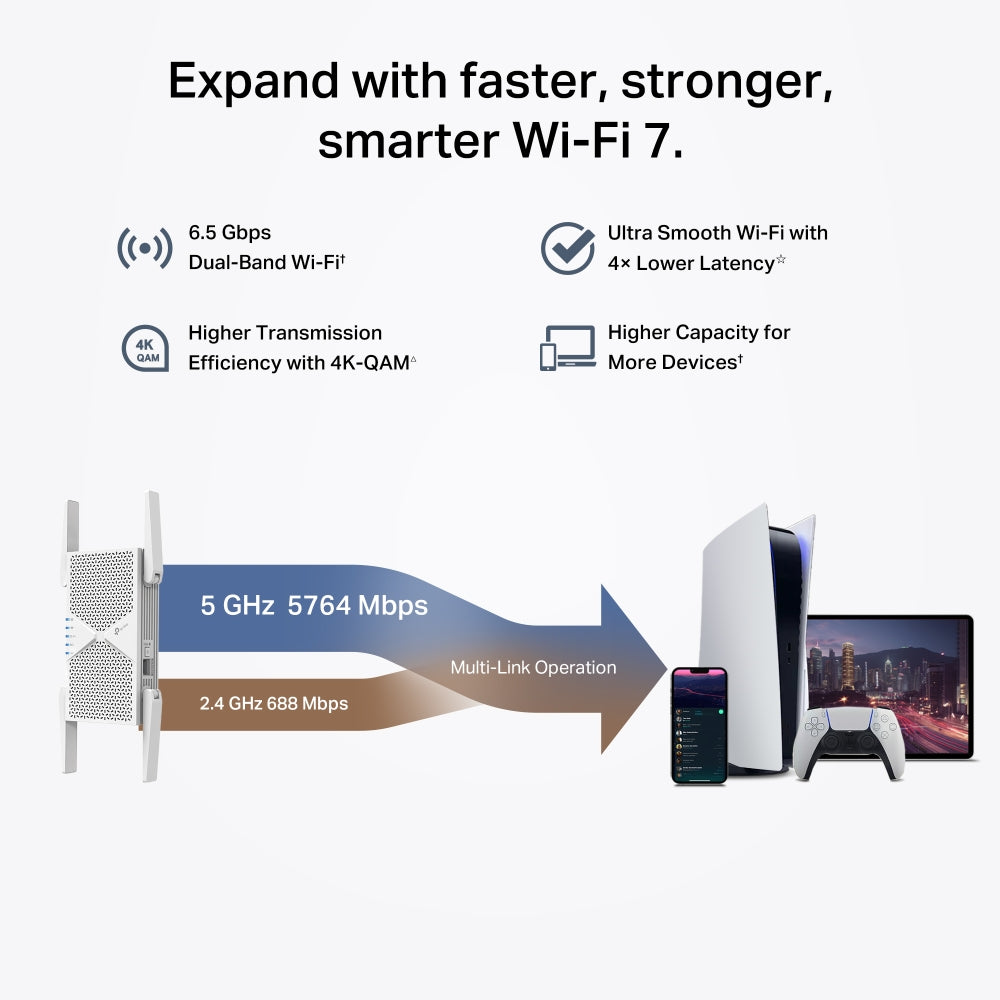

Lightning-Fast 6.5 Gbps Dual-Band Wi-Fi 7: 5764 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
-
Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
-
2.5G Multi-Gigabit Ethernet Port: 1× 2.5 Gbps port ensures max flexibility and boosted throughput.
-

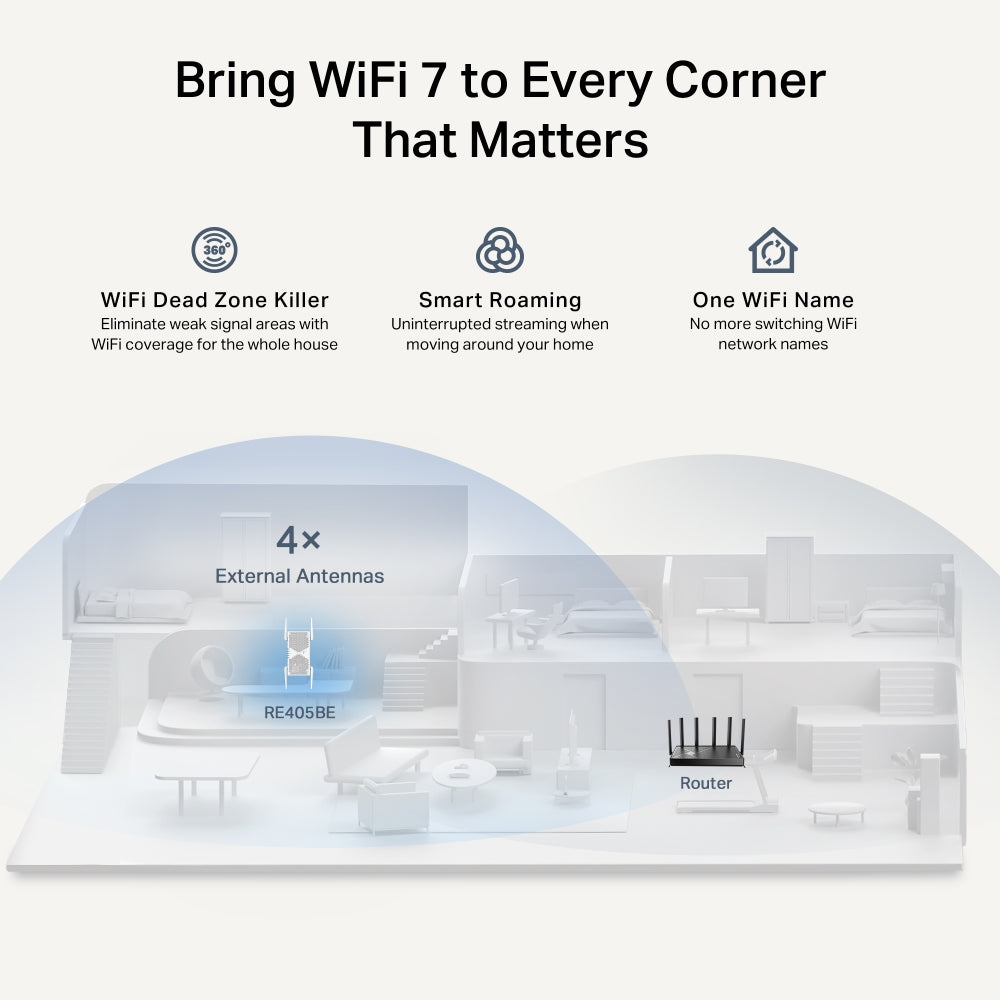

Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
-
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.*
-

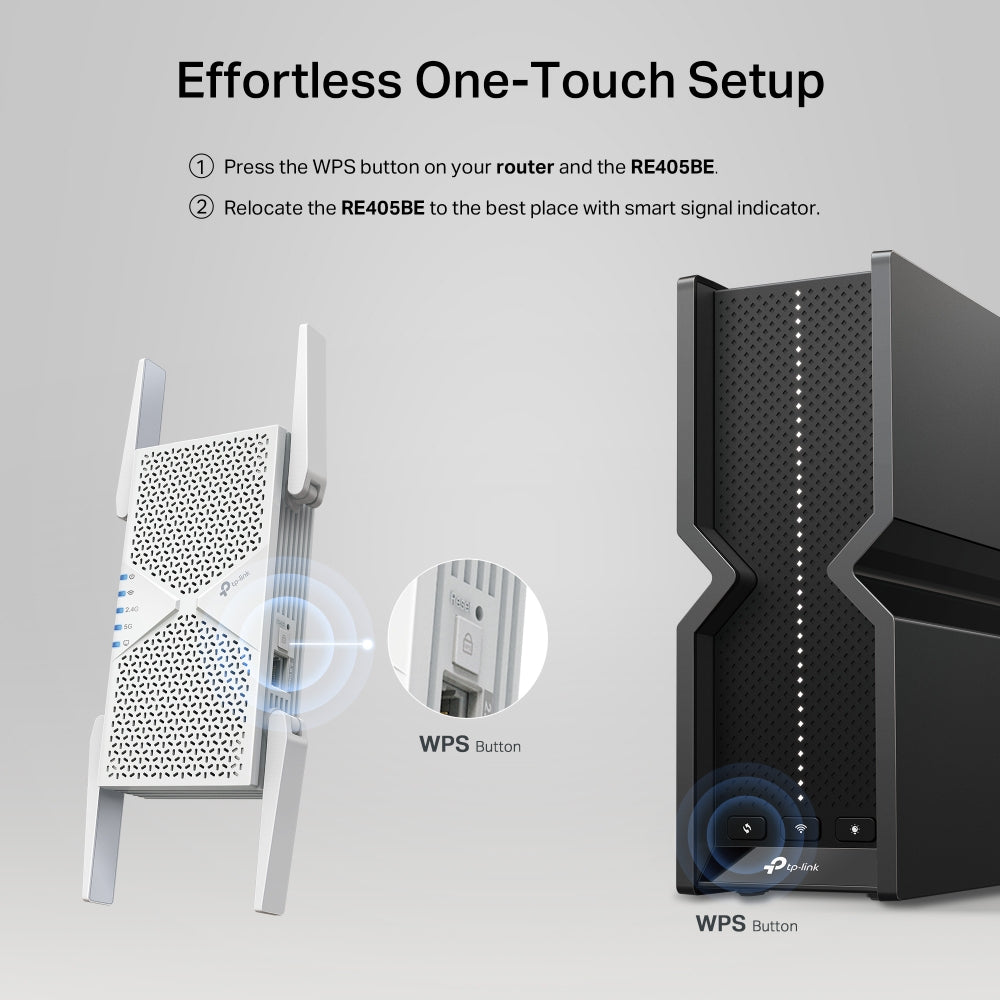

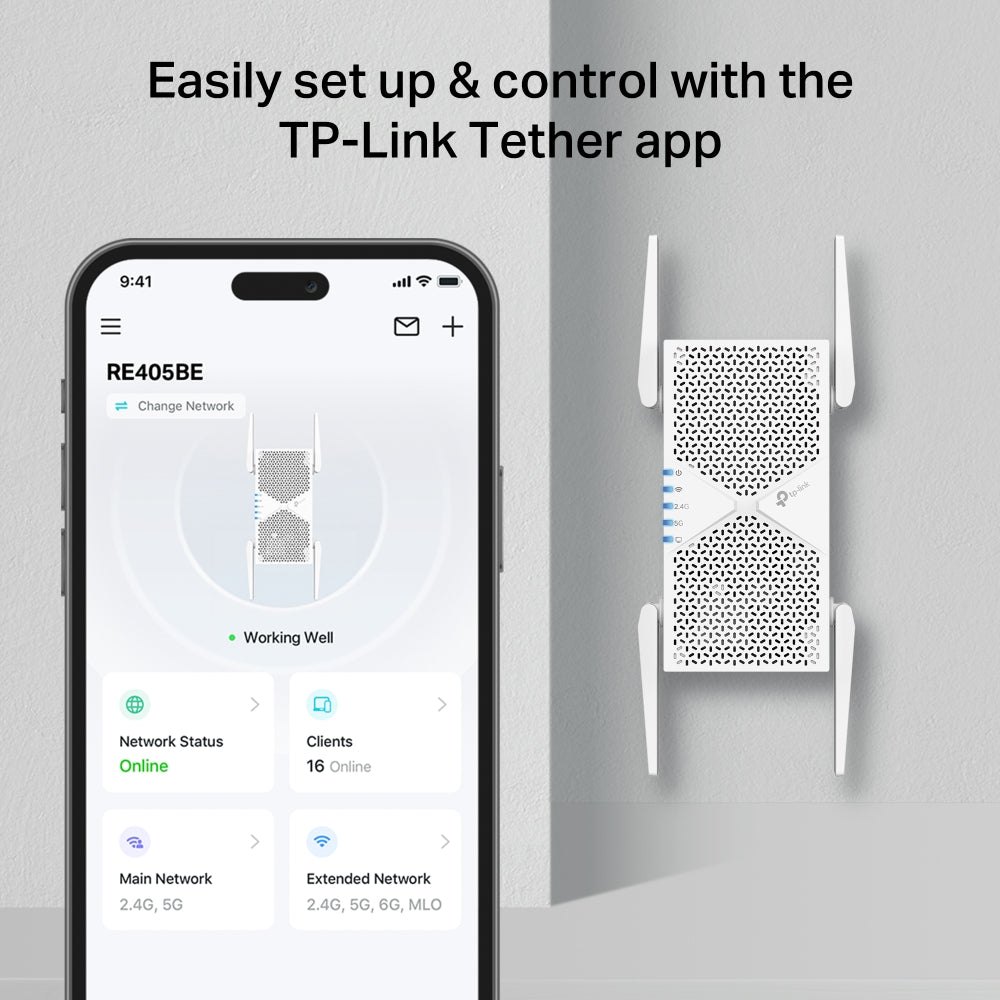

Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
-
Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.***
|

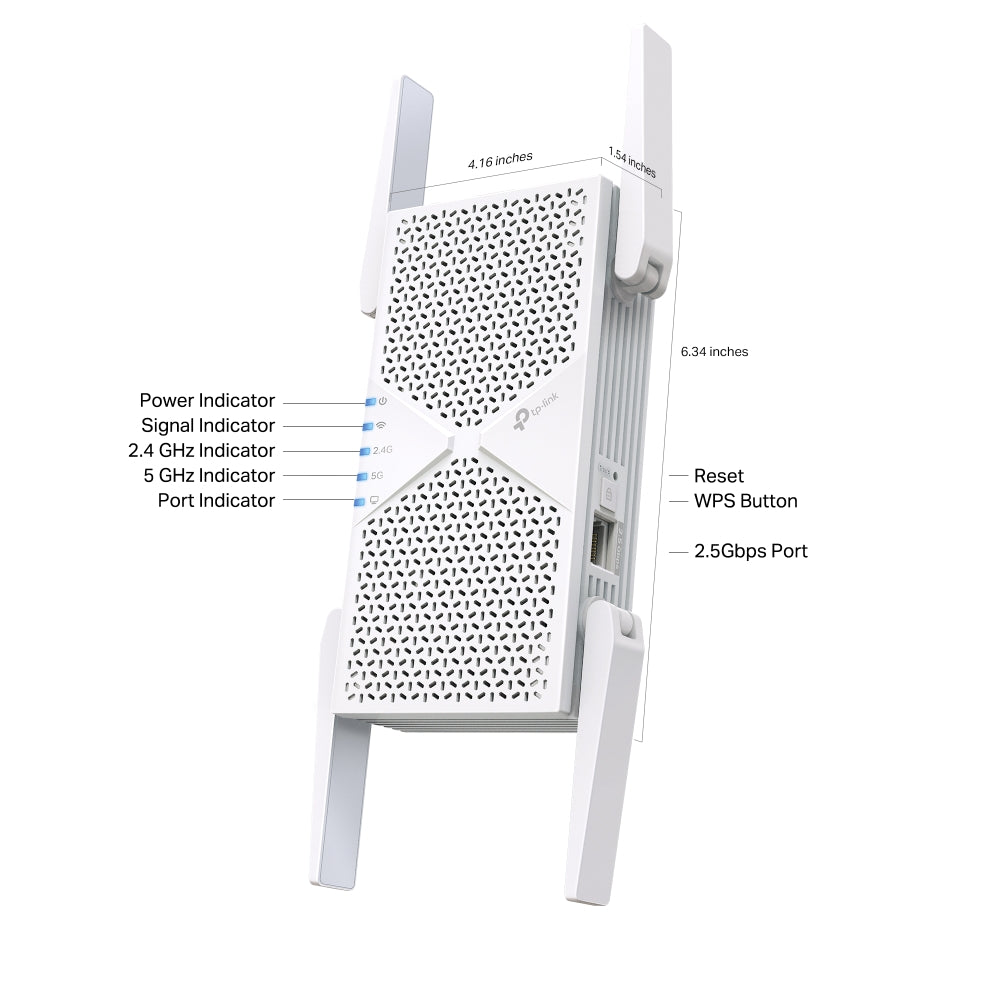

HARDWARE FEATURES
|
| Interface |
1× 2.5 Gbps Ethernet Port |
| Button |
• WPS Button
• Reset Button |
| Input Power |
100-240V~50/60Hz 0.3A |
| Max. Power Consumption |
15W |
| Antenna |
4 External Antennas |
|
WIRELESS FEATURES
|
| Wireless Standards |
Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz |
| Frequency |
• 5 GHz
• 2.4 GHz |
| Signal Rate |
• 5764 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz |
| Working Modes |
Range Extender/Access Point |
| Reception Sensitivity |
5GHz:
11be EHT20 MCS0:-96dBm
11be EHT40 MCS0:-94dBm
11be EHT80 MCS0:-91dBm
11be EHT160 MCS0:-88dBm
11be EHT20 MCS13:-59dBm
11be EHT40 MCS13:-57dBm
11be EHT80 MCS13:-54dBm
11be EHT160 MCS13:-51dBm
2.4GHz:
11be EHT20 MCS0:-95dBm
11be EHT40 MCS0:-93dBm
11be EHT20 MCS13:-58dBm
11be EHT40 MCS13:-56dBm |
| Wireless Functions |
• LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage |
| Wireless Security |
• WPA/WPA2-PSK encryptions
• WPA2/WPA3 |
| Advanced Features |
• Multi-Link Operation (MLO)
• 160 MHz Channel
• 4K-QAM
• Multi-RUs |
| Transmission Power |
FCC:
• 2.4GHz < 30dBm
• 5GHz < 30dBm |
| Mesh Technology |
EasyMesh-Compatible |
|
OTHER
|
| Network Services Enabled by Default |
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP
|
|
OTHERS
|
| Certification |
FCC, RoHS |
| Package Content |
• Wi-Fi 7 Range Extender RE405BE
• Quick Installation Guide |
| System Requirements |
Internet Explorer, Firefox, Chrome, Safari, or other
JavaScript-enabled browser |
| Environment |
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
