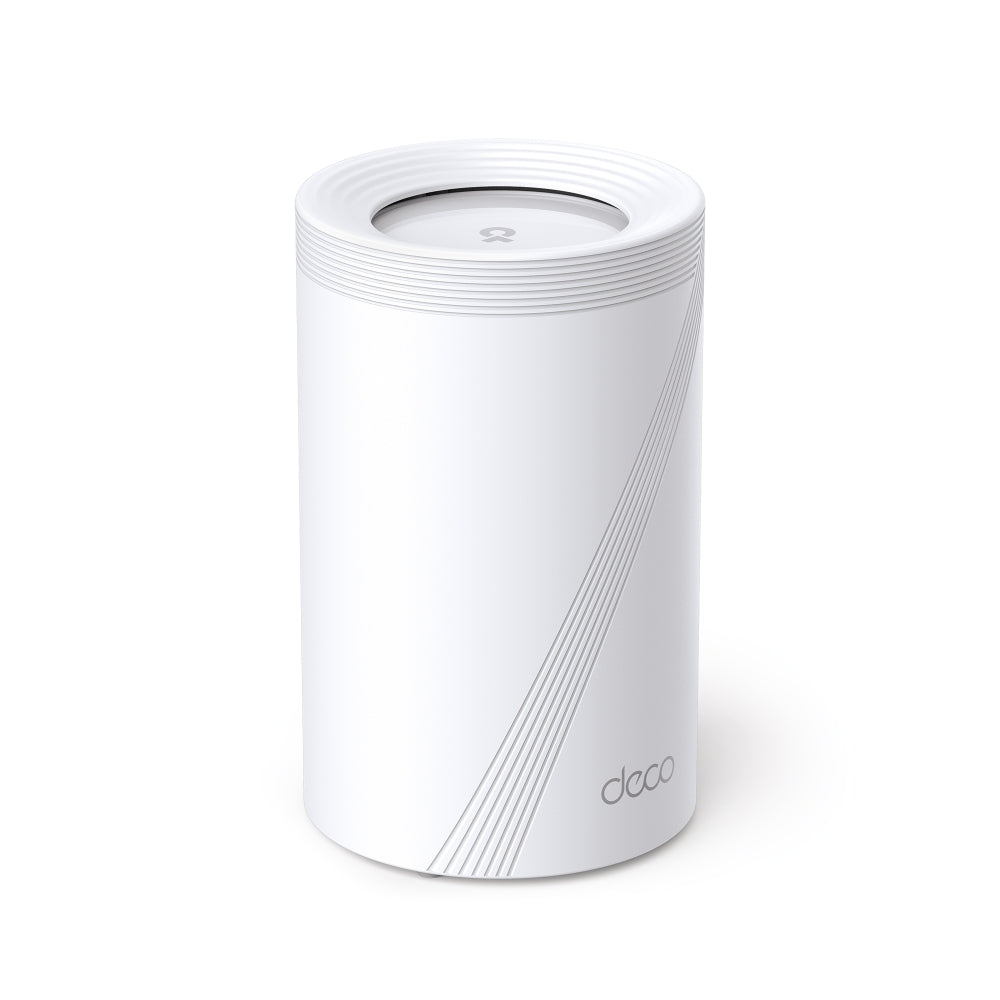

BE11000 Whole Home Mesh Wi-Fi 7 System
-

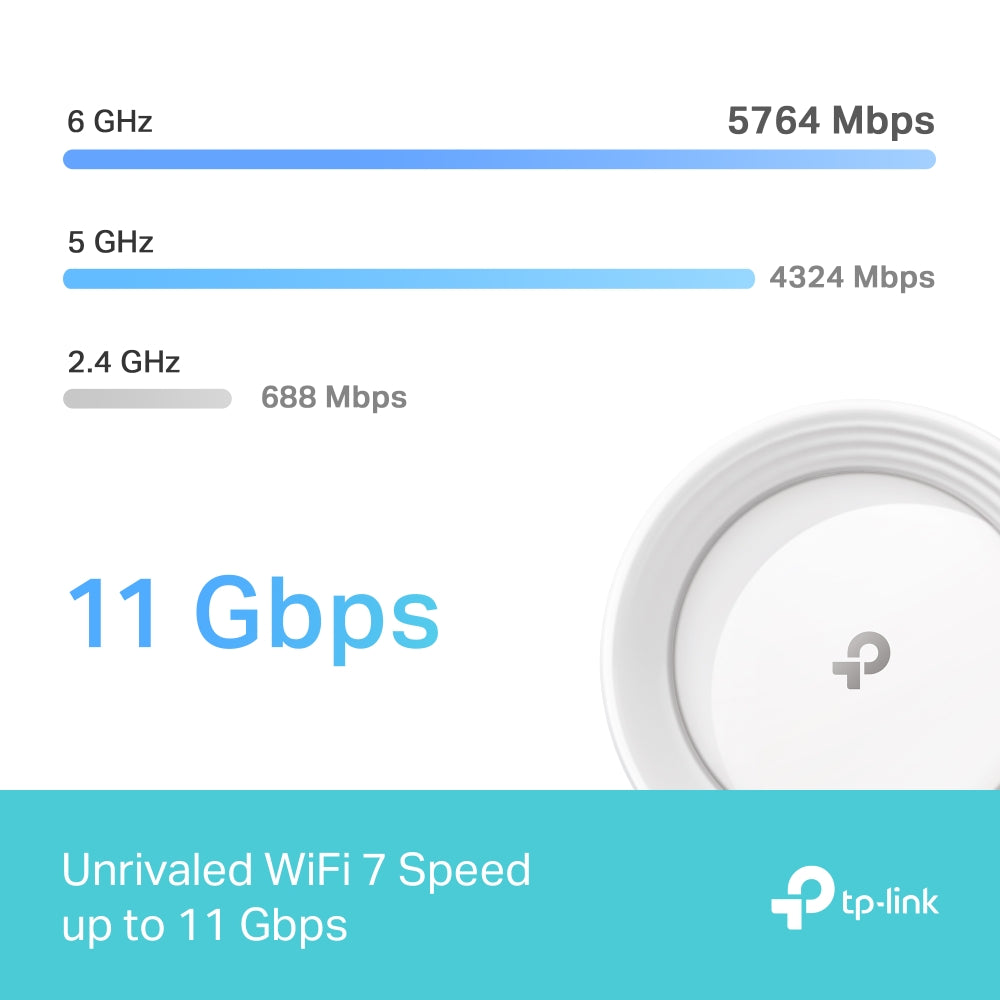

11 Gbps Tri-Band Wi-Fi – 5764 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz).†
-

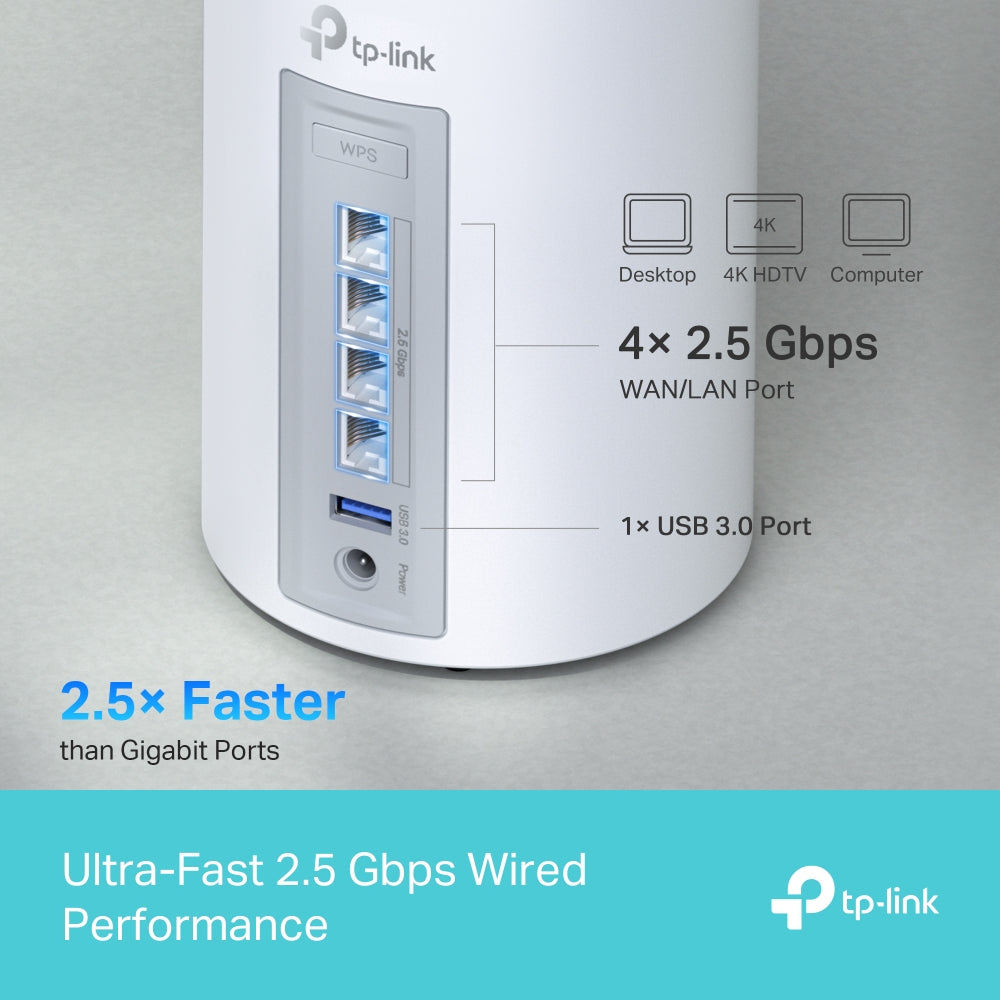

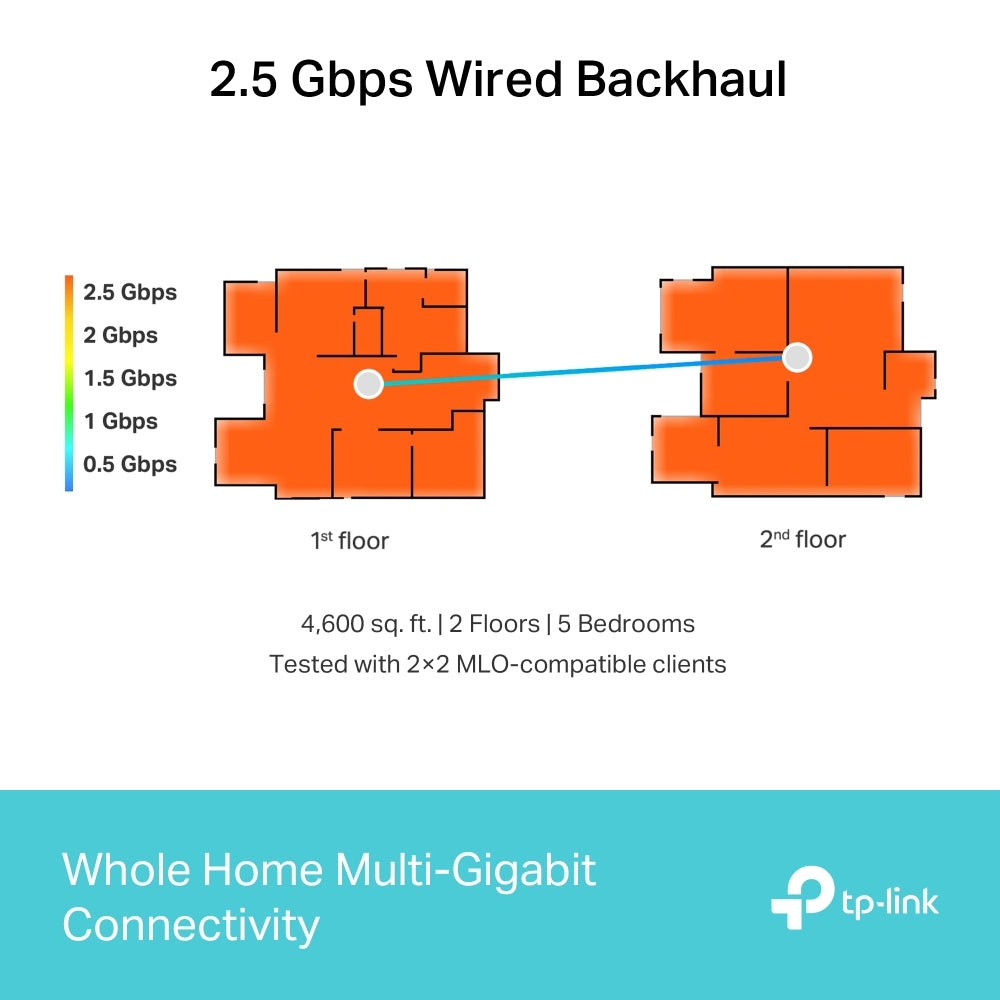

2.5 Gbps Wired Connections – 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
-

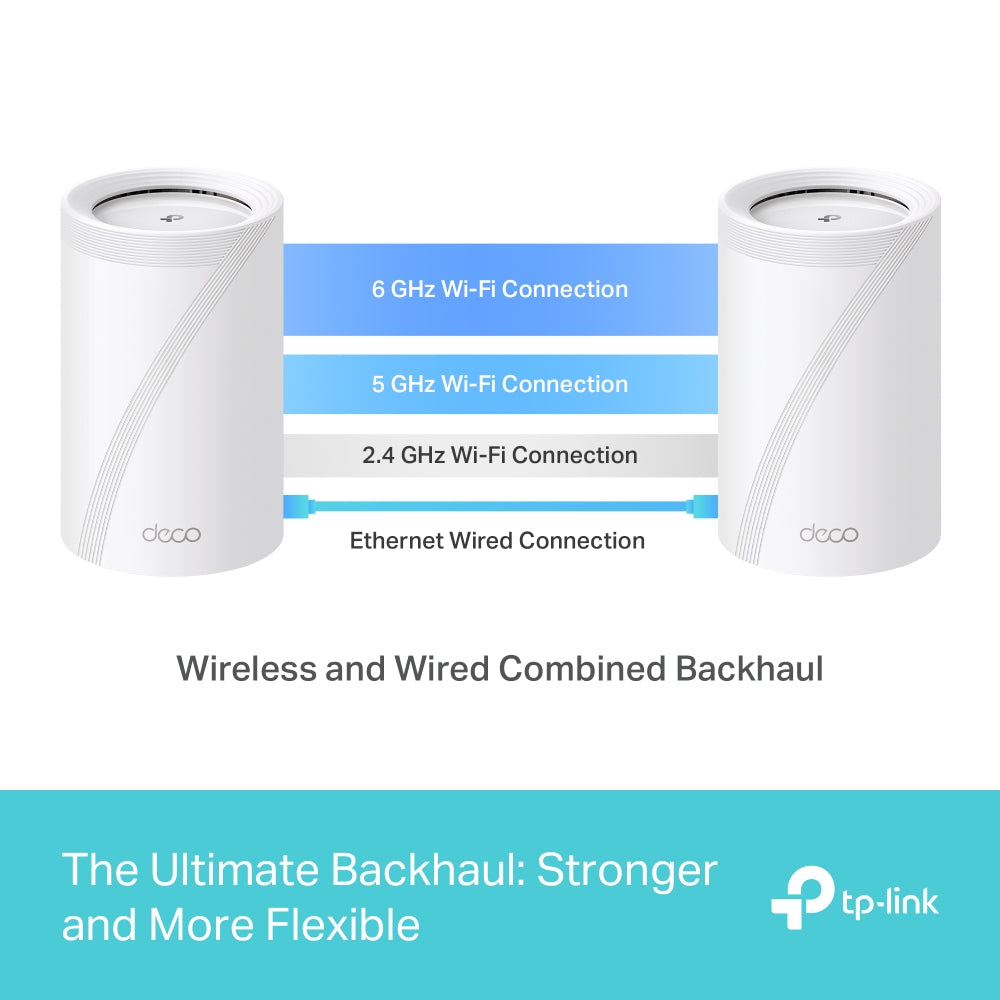

Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
-
Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimises congestion with greenfield spectrum, delivering robust high-speed connections.△
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
-
Universal Compatibility – Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.
SPECIFICATIONS
|
WIRELESS
|
| Standards and Protocols |
Wi-Fi 7
IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz |
| WiFi Speeds |
BE11000
6 GHz: 5765 Mbps (802.11be)
5 GHz: 4324 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be)
* The 240MHz bandwidth may be unavailable in the 5G band in Australia due to regulatory restrictions. |

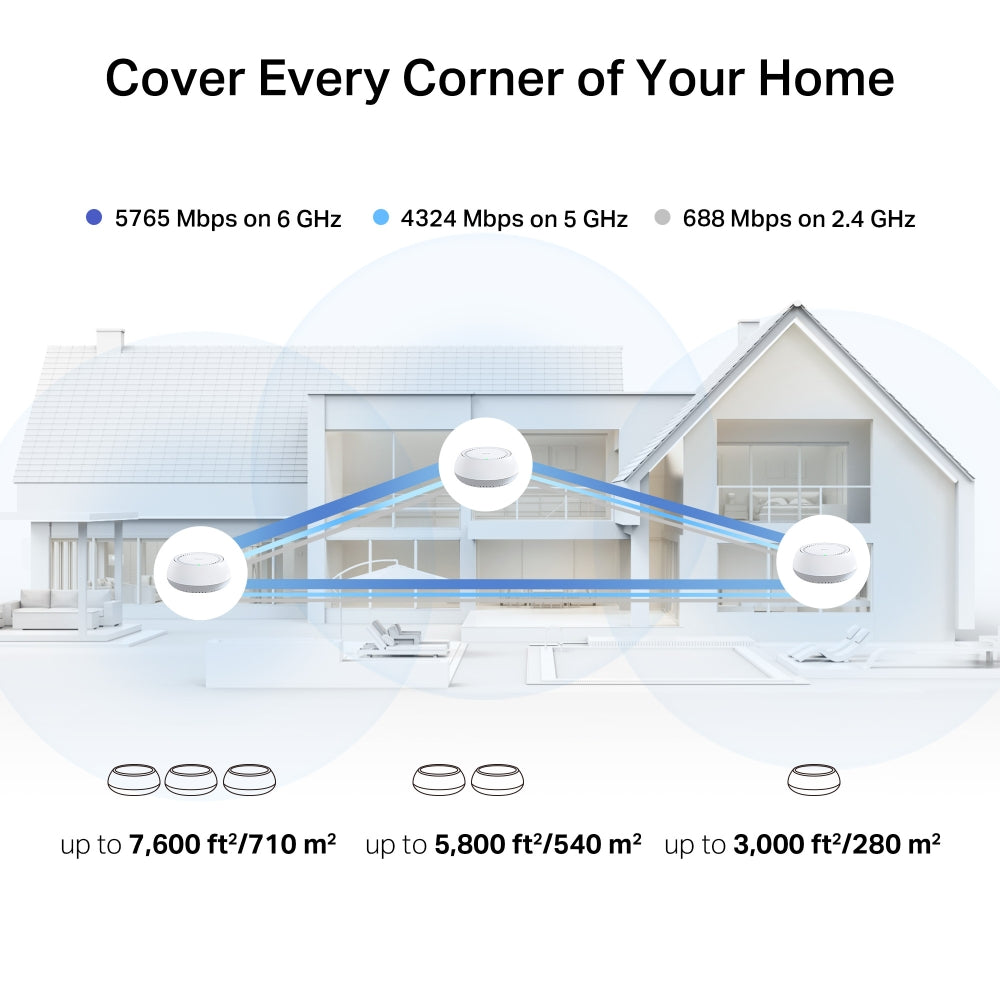

| WiFi Range |
Broader Whole Home Coverage
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
4× High-Performance Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds |
| WiFi Capacity |
Very High
Tri-Band
Distribute devices to different bands for optimal performance
2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 7 clients
6 Streams
More than enough bandwidth for connected devices |
| Working Modes |
Router Mode
Access Point Mode |
| Advanced Features |
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant |
|
SECURITY
|
| Network Security |
SPI Firewall
Access Control
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network |
1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Effective Time
Bandwidth Control |
| VPN Server |
• OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server |
| VPN Client |
• OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client |
| WiFi Encryption |
WPA-Personal
WPA2-Personal
WPA3-Personal |
|
HARDWARE
|

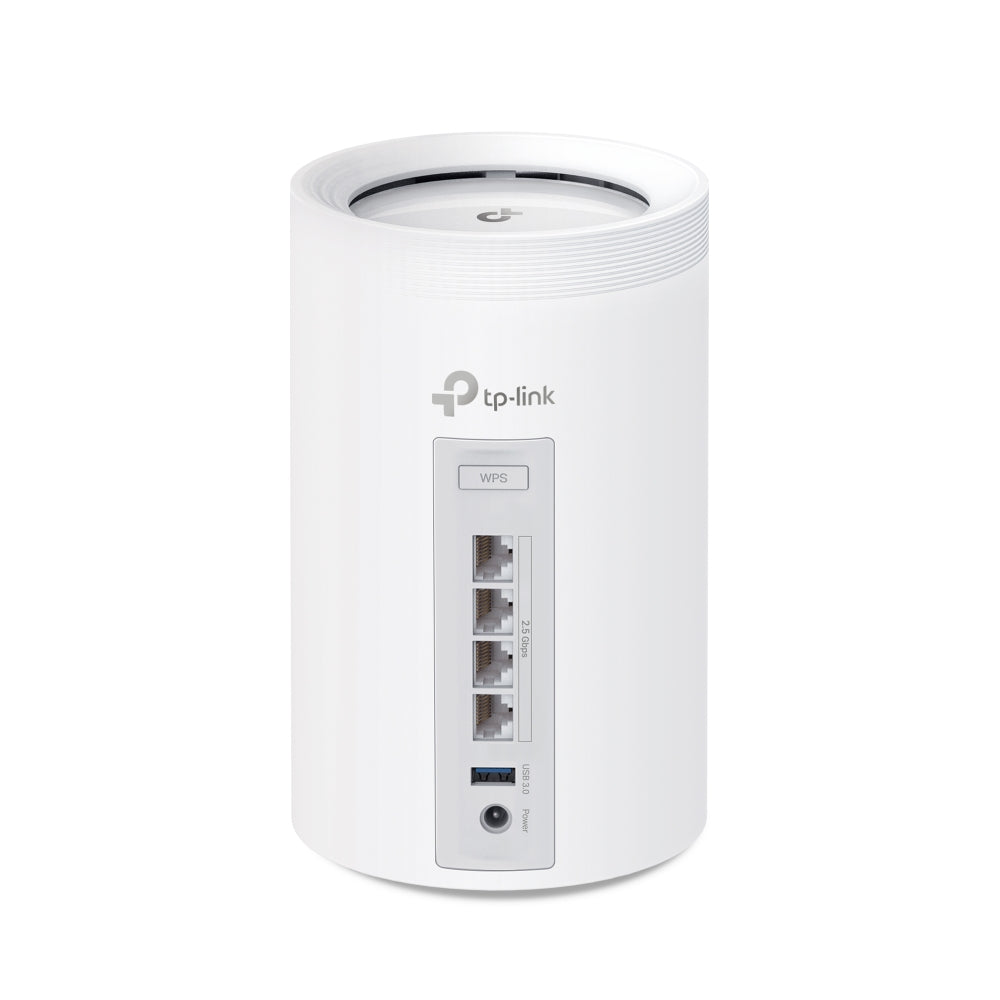

| Ethernet Ports |
• 4× 2.5 Gbps
*Per Deco Unit
Supports WAN/LAN auto-sensing |
| USB Support |
1× USB 3.0 Port
FTP Server
Media Server
Samba Server |
| Buttons |
1× Reset Button
1× WPS |
|
SOFTWARE
|
| Advanced Features |
• Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference |
| Protocols |
IPv4
IPv6 |
| Service Kits |
HomeShield
Learn More>
|
| Parental Controls |
HomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
HomeShield QoS
QoS by Device |
| Cloud Service |
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link |
| Management Features |

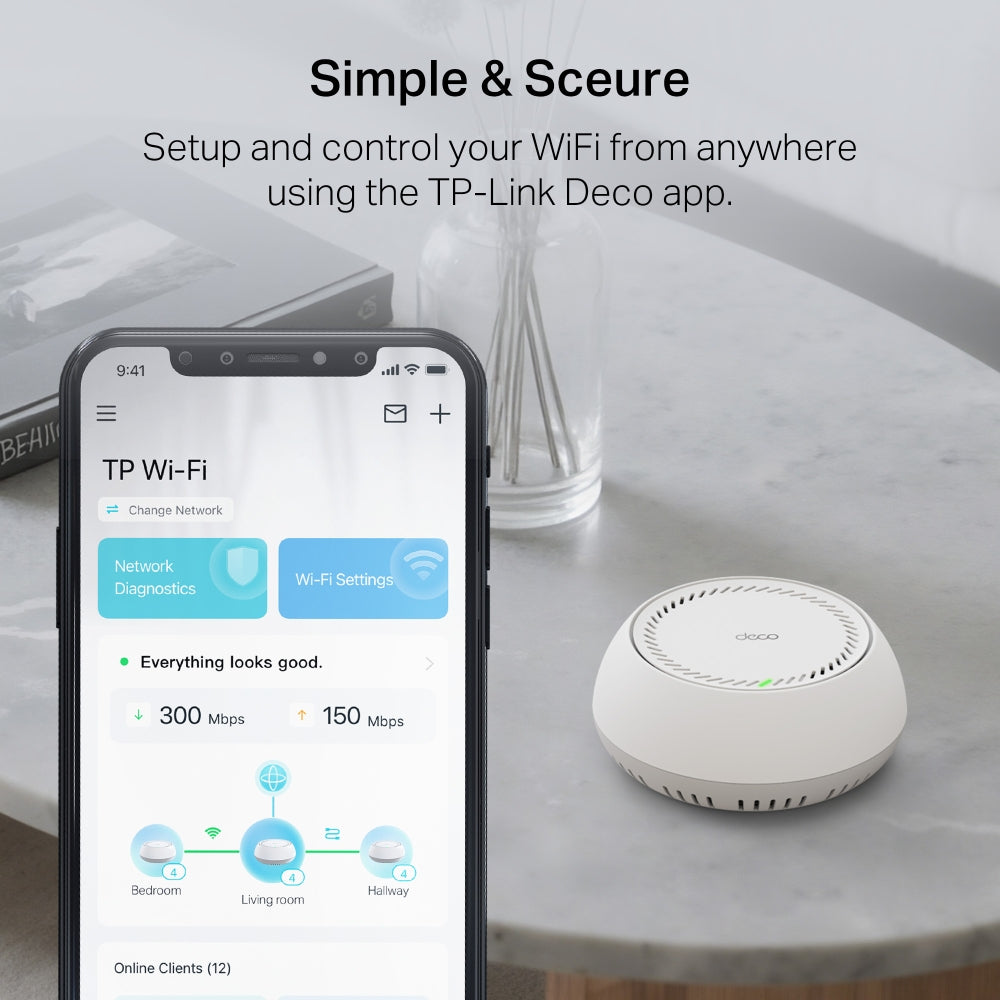

Deco App |
|
OTHER
|
| Network Services Enabled by Default |
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 22 Protocol: TCP
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP |
|
PHYSICAL
|
| Dimensions (W×D×H) |
4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm) |
| Package Content |
Deco BE65 (3-pack)
3 Deco BE65 units
1 RJ45 Ethernet cable
3 Power adapters
Quick Installation Guide
Deco BE65 (2-pack)
2 Deco BE65 units
1 RJ45 Ethernet cable
2 Power adapters
Quick Installation Guide
Deco BE65 (1-pack)
1 Deco BE65 unit
1 RJ45 Ethernet cable
1 Power adapter
Quick Installation Guide |
|
OTHERS
|
| Certifications |
CE, FCC, RoHS |
| Environment |
Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH |
