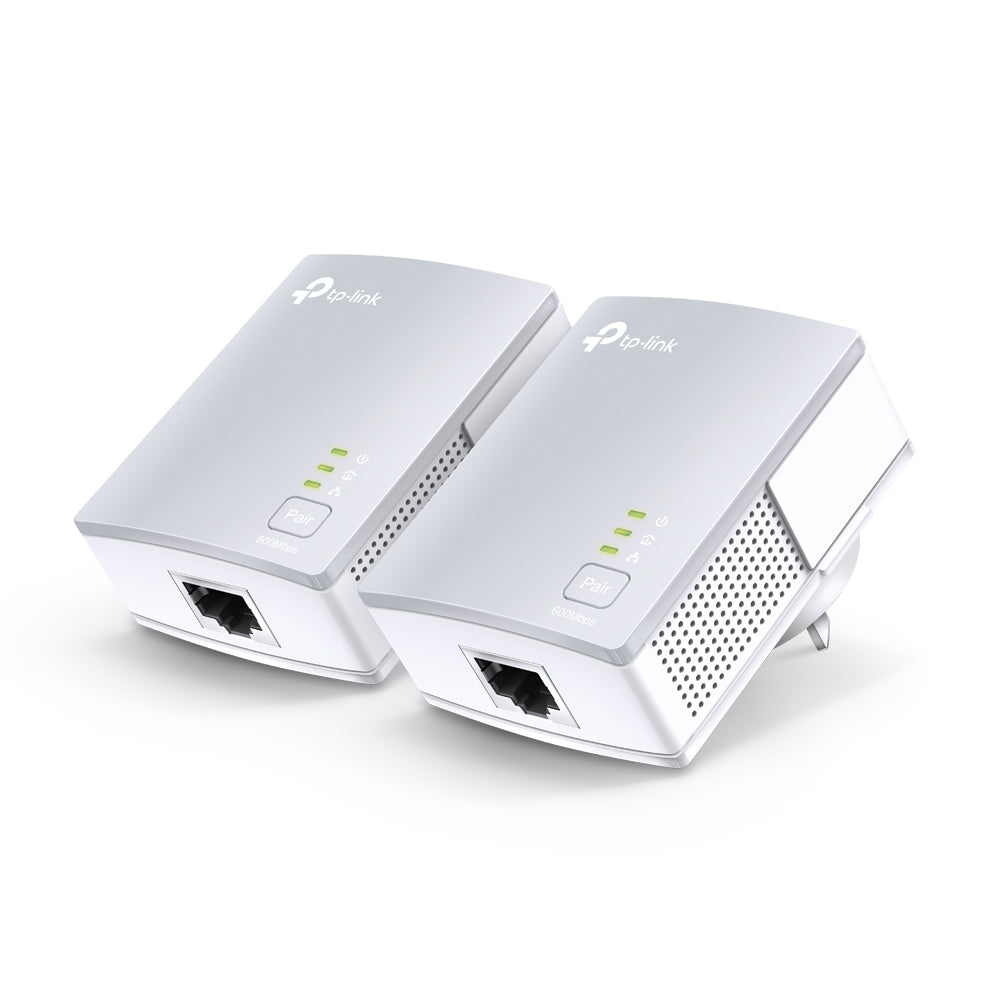

AV600 Powerline Starter Kit
- HomePlug AV standard compliant, high-speed data transfer rates of up to 600 Mbps1
- Miniature design, smaller than most powerline adapters at the market, blends discreetly in front of any power outlet

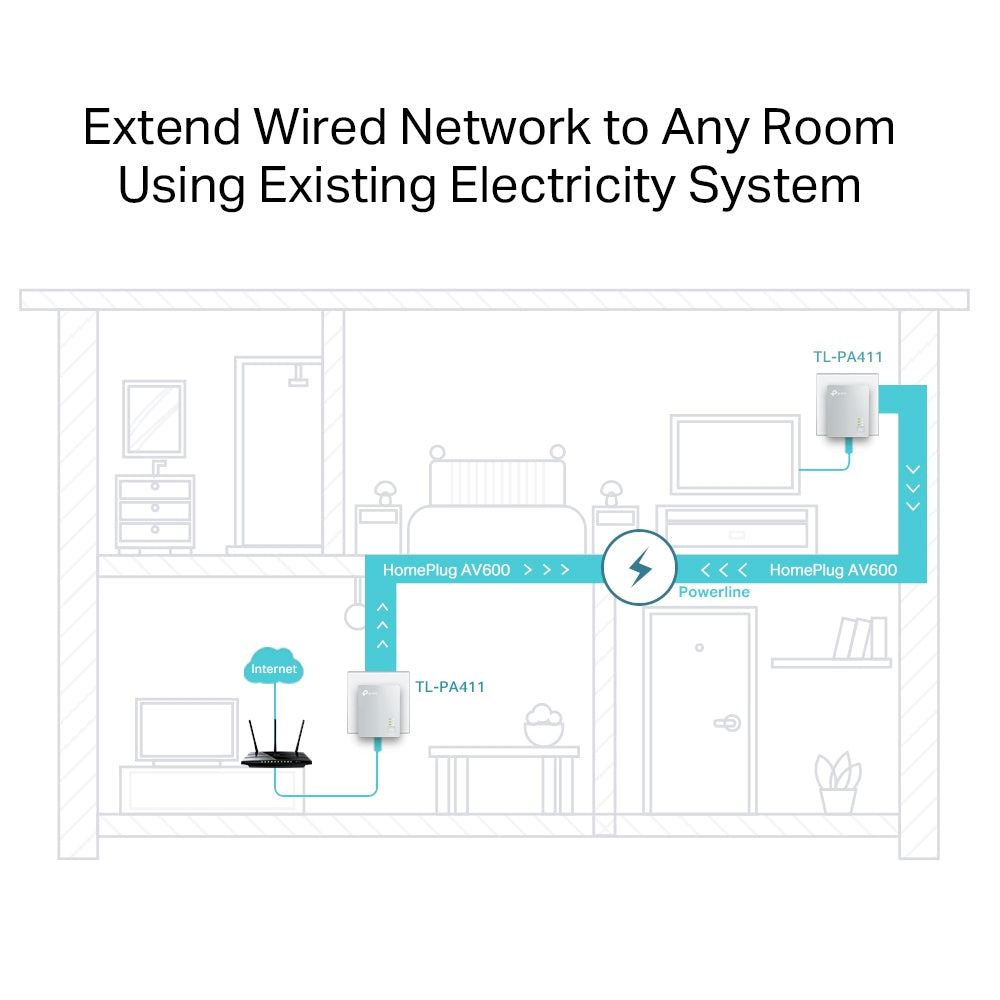

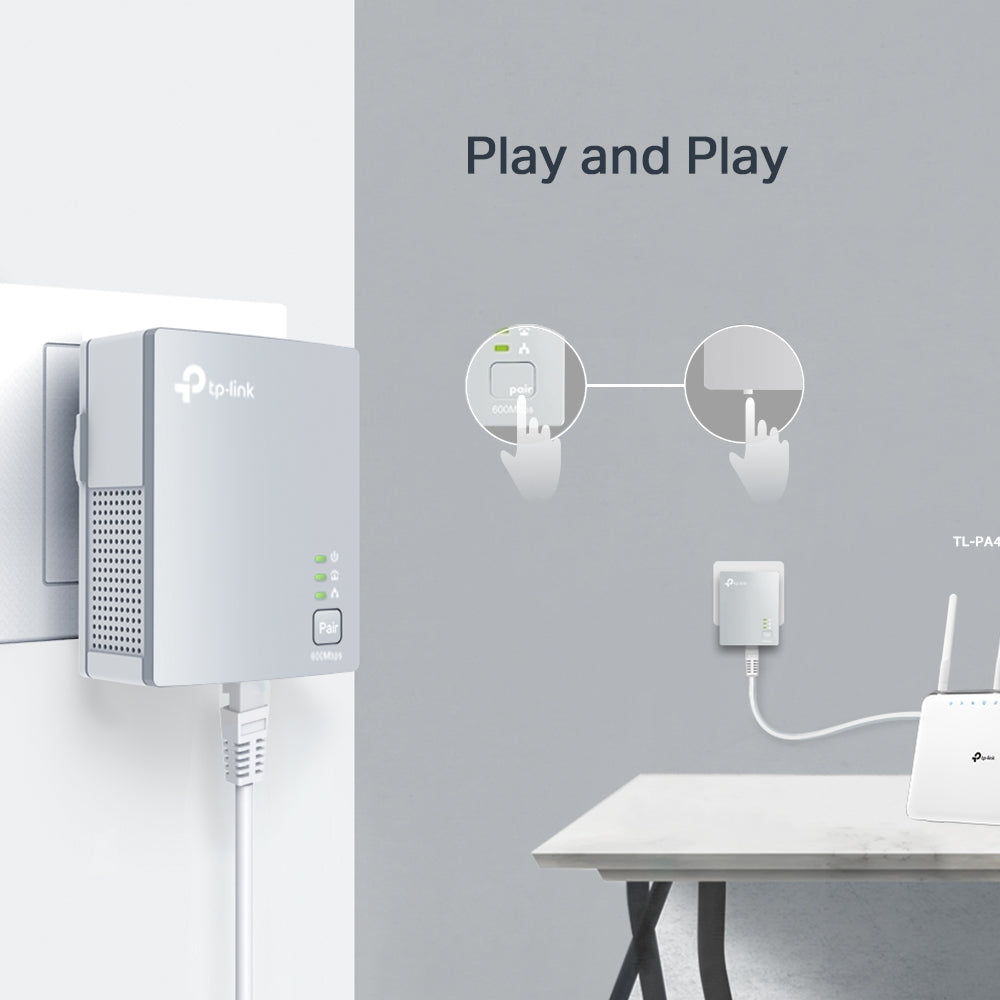

- No new wires, easy Plug and Play operation, and no configuration required
- Power-Saving Mode automatically reduces power consumption by up to 85%2
|
HARDWARE FEATURES
|
| Standards and Protocols |
HomePlug AV, IEEE802.3, IEEE802.3u |
| Plug Type |
EU |
| Interface |
1× 10/100 Mbps Ethernet Port |
| Button |
Pair Button |
| Max. Power Consumption |
Maximum: 2.5W (220V/50Hz) Typical: 2.3W (220V/50Hz) Standby: 0.36W (220V/50Hz) |
| LED |
PWR, PLC, ETH |
| Dimensions ( W x D x H ) |
2.6 × 2.0 × 1.1 in (65 × 52 × 28.5 mm) |
| Range |
Up to 300 meters/1000 feet over existing electrical wiring |
|
SOFTWARE FEATURES
|
| Modulation Technology |
OFDM |
| Encryption |
128-bit AES Encryption |
|
OTHERS
|
| Certification |
CE, FCC, RoHS |
| Package Content |
● AV600 Powerline Adapters 2 × TL-PA411 ● Ethernet Cable (RJ45) ● Quick Installation Guide
|
| System Requirements |
Windows 10/8/7/Vista/XP/2000, Mac, Linux |
| Environment |
Operating Temperature: 0~40° (32~104℉) Storage Temperature: -40~70°(-40~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
1. The theoretical maximum channel data transfer rate is derived from HomePlug AV2 specifications. Actual data transfer rate will vary from network environment including: distance, network traffic, noise on electrical wires, building material and construction, quality of electrical installation and other adverse conditions.
2. The Power Saving feature takes effect when your appliances are disconnected or turned off. Actual power saving data will vary in different network conditions and environments.
3. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
