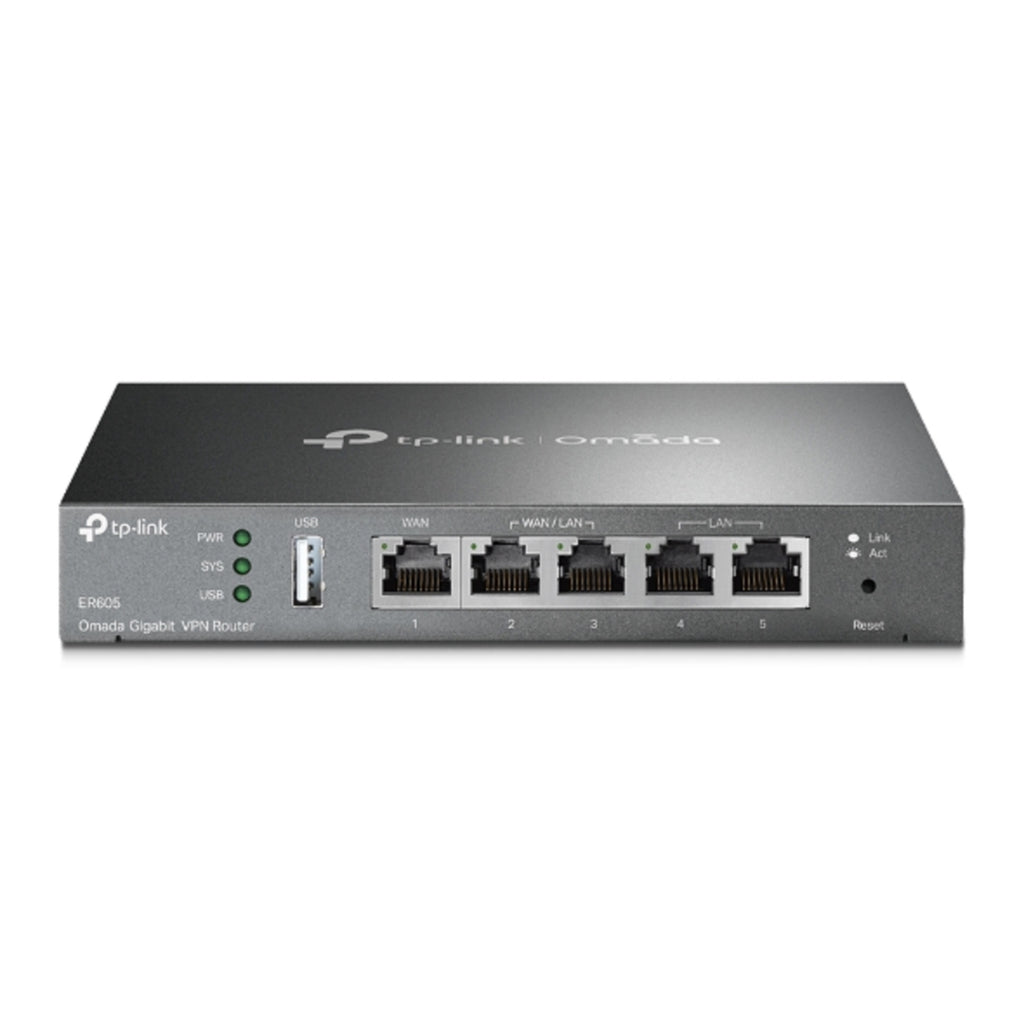

TP-Link SafeStream Gigabit Multi-WAN VPN Router
Omada Gigabit VPN Router
-
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
-
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
-
Five Gigabit Ports: High-speed wired connectivity.
-
Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
-
Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
-
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Three freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

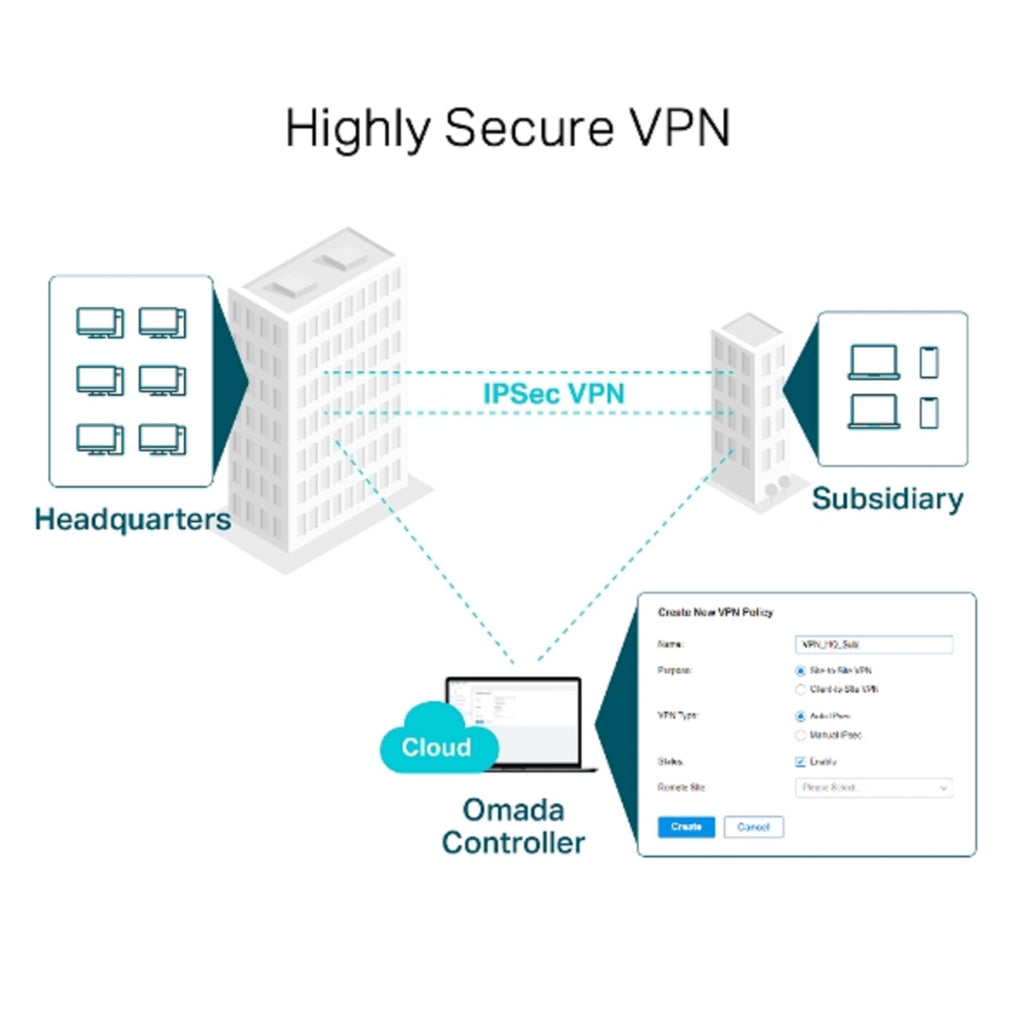

Highly Secure VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20× LAN-to-LAN IPSec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| HARDWARE FEATURES |
| Standards and Protocols |
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface |
• 1 Fixed Gigabit WAN Port
• 1 Fixed Gigabit LAN Port
• 3 Changeable Gigabit WAN/LAN Ports |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button |
Reset Button |
| Power Supply |
External 9V/0.9A DC Adapter |
| Flash |
SPI 16MB |
| DRAM |
128 MB |
| LED |
PWR, SYS, WAN, LAN |
| Dimensions ( W x D x H ) |
6.2 × 4.0 × 1.0 in.
(158 × 101 × 25mm) |
| PERFORMANCE |
| Concurrent Session |
25,000 |
| IPsec VPN Throughput |
41.5 Mbps |
| BASIC FUNCTIONS |
| WAN Connection Type |
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP |
| DHCP |
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces* |
| MAC Clone |
Modify WAN/LAN MAC Address†
|
| IPTV |
IGMP v2/v3 Proxy |
| VLAN |
802.1Q VLAN |
| ADVANCED FUNCTIONS |
| ACL |
IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing |
• Static Routing
• Policy Routing |
| Bandwidth Control |
• IP/Port-based Bandwidth Control
• Guarantee & Limited Bandwidth |
| Load Balance |
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection |
| NAT |
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security |
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management |
| Session Limit |
IP-based Session Limit |
| VPN |
| IPsec VPN |
• 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2*
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller |
| PPTP VPN |
• PPTP VPN Server
• 10 PPTP VPN Clients
• 16 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN |
• L2TP VPN Server
• 10 L2TP VPN Clients
• 16 Tunnels
• L2TP over IPSec |
| OpenVPN |
• OpenVPN Server*
• 10 OpenVPN Clients*
• 16 OpenVPN Tunnels* |
| SECURITY |
| Attack Defense |
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
| Filtering |
WEB Group Filtering§
URL Filtering
Web Security§
|
| ARP Inspection |
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
|
| Access Control |
Source/Destination IP Based Access Control |
| AUTHENTICATION |
| Web Authentication |
• No Authentication
• Simple Password*
• Hotspot（Local User / Voucher* / SMS* / Radius*）
• External Radius Sever
• External Portal Sever*
• Facebook* |
| MANAGEMENT |
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Cloud Access |
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Maintenance |
• Time Setting
• Diagnostic
• Firmware Upgrade
• Factory Defaults/Reboot
• Backup&Restore
• System Log
• Remote Management
• Statistics
• Controller Settings
• SNMP |
| Management Features |
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• ZTP (Zero-Touch Provisioning)** |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
• Gigabti VPN Router ER605
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
*These functions requires the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
† LAN MAC Address can be modified only in Standalone Mode.
‡ IPv6 is being developed and will be updated in the following software versions.
§ These functions are supported only in Standalone Mode.
