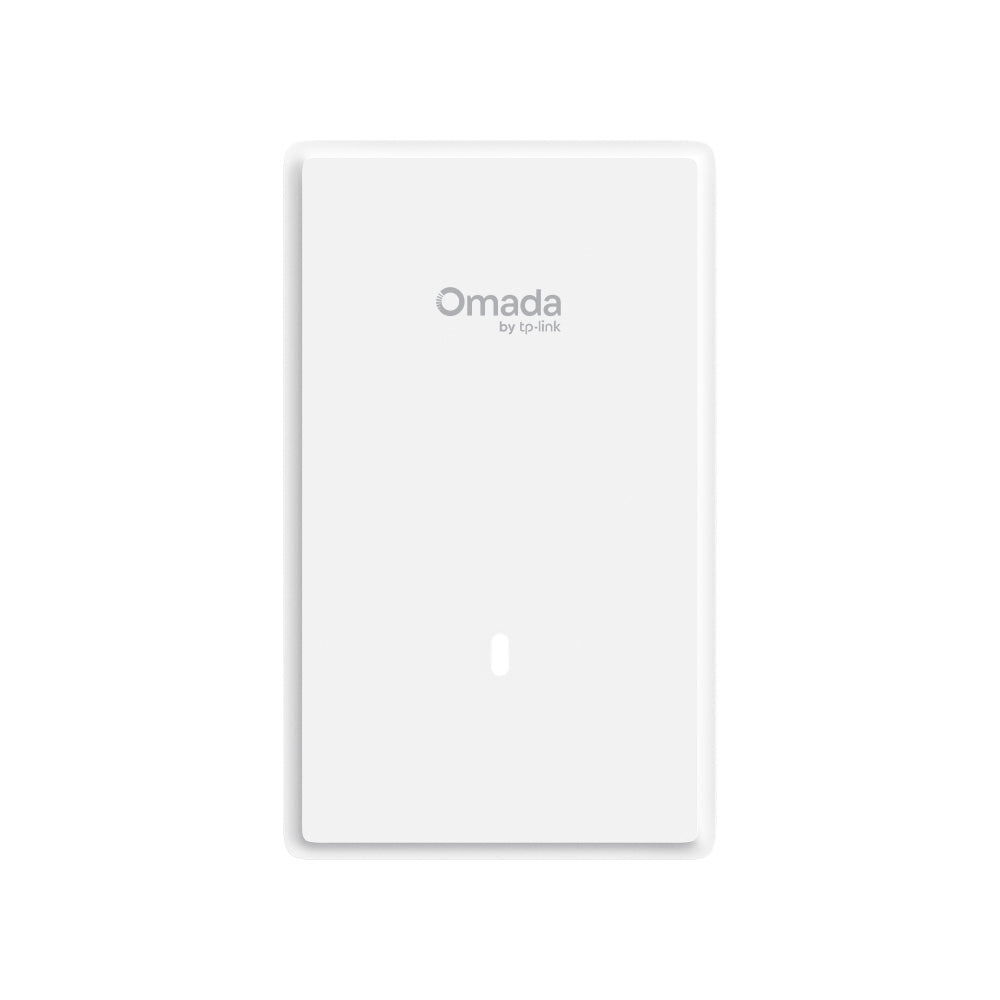

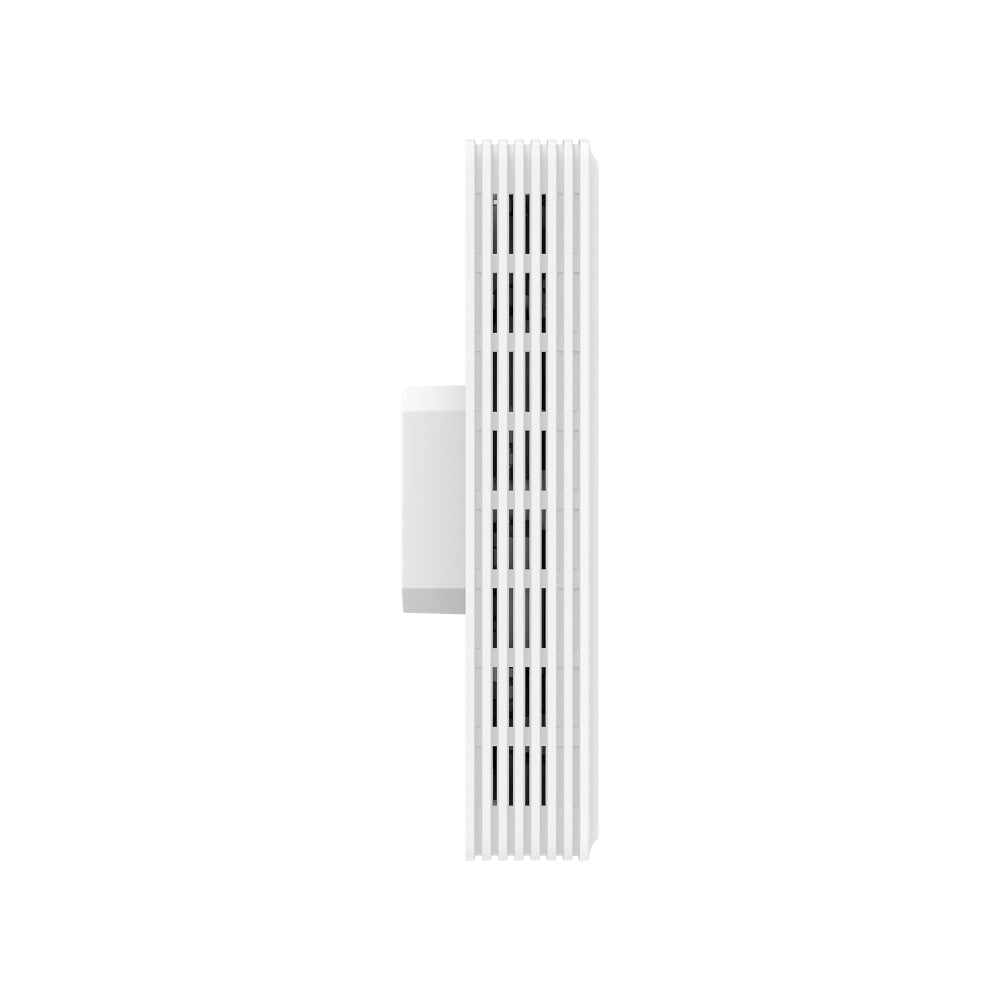

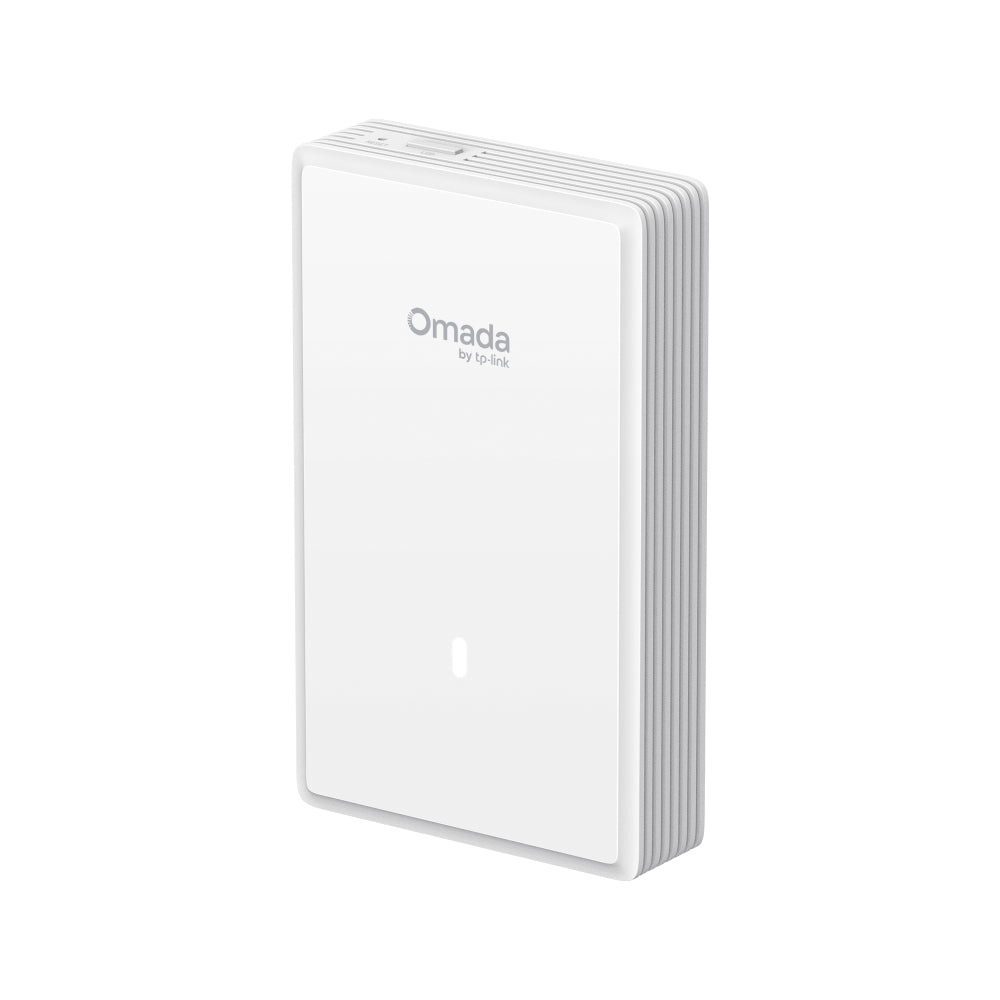

BE3600 Wall Plate Wi-Fi 7 Access Point
-
Dual-Band Wi-Fi 7: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz†
-
Versatile Ports with PoE Flexibility: 1× 2.5G PoE Input port, 1× 2.5G PoE pass-through port, and 2× Gigabit downlink ports.
-
Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
-
Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 750ft² (70 ㎡).*
-
Flexible Deployment and Easy Setup: Supports 802.3at/bt PoE for flexible installation with Omada SDN for one-click setup.
-
Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming.△
-
More Connections: Supports 250+ concurrent connections
| HARDWARE FEATURES |
| Interface |

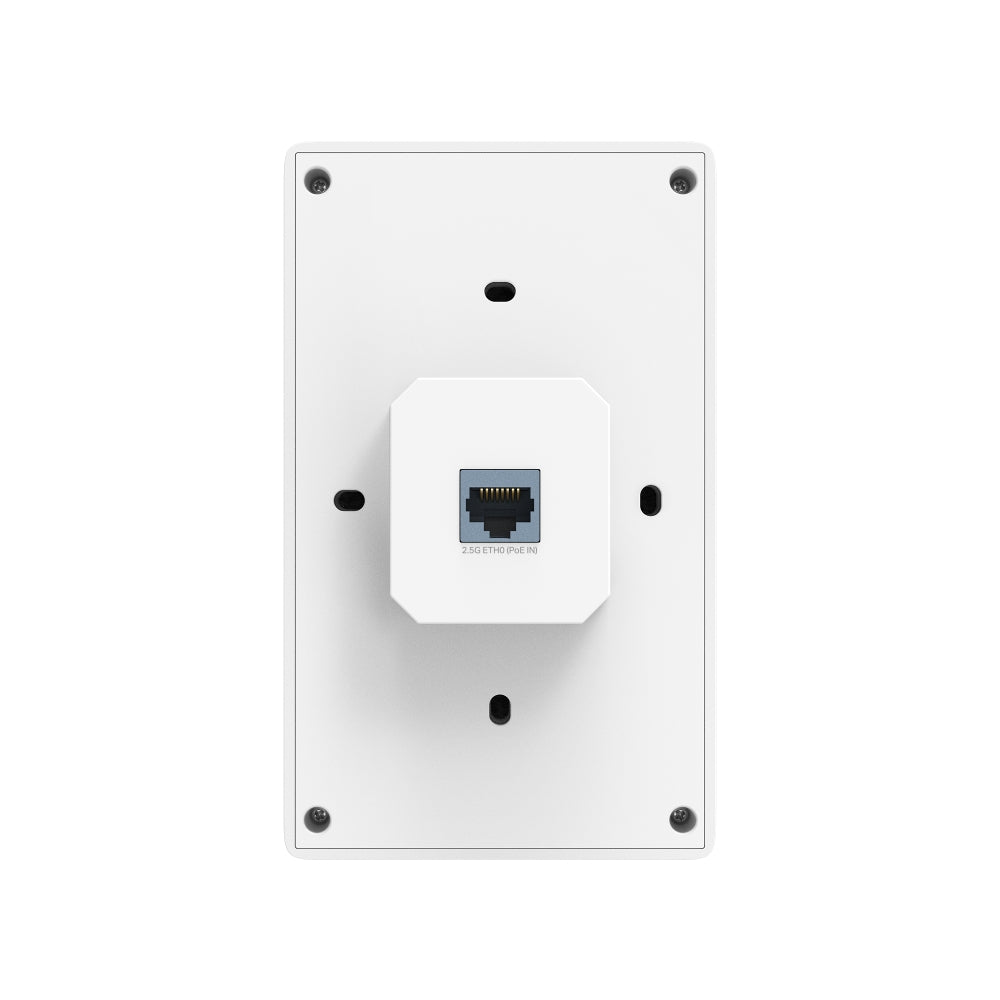

• Uplink: 1× 2.5G Ethernet Port

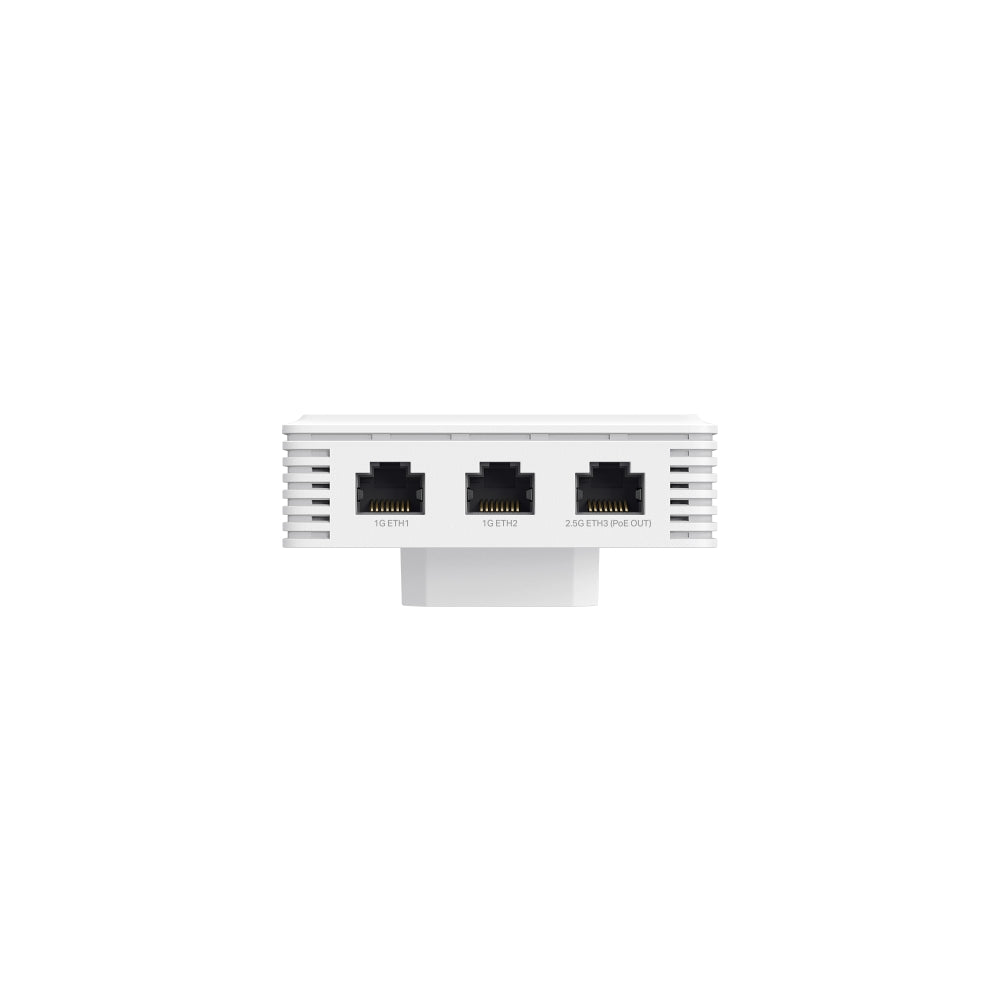

• Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through.)
|
| Physical Security Lock |
No |
| Button |
Reset, LED |
| Power Supply |
802.3at/bt PoE |
| PoE Out |
PoE Passthrough (Pins 1,2-; 3,6+)
The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input. |
| Max. Power Consumption |
• 802.3bt: 17W (PoE Out support 15.4W)
• 802.3at: 17W (PoE Out support 7W) |
| Dimensions ( W x D x H ) |
143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna |
4× Internal Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi |
| Bluetooth |
V5.2 |
| Mounting |
Wall Mounting (Screws included) |
| WIRELESS FEATURES |
| Coverage |
750ft² (70 ㎡)*
|
| Concurrent Clients |
250+**
|
| Wireless Standards |
IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
• 5 GHz: Up to 2882 Mbps
• 2.4 GHz: Up to 688 Mbps |
| Wireless Functions |
• MLO‡
• 4K-QAM‡
• Multi-RUs‡
• 160 MHz Bandwidth‡
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming△
• Beamforming
• Rate Limit (Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP |
| Wireless Security |
• Captive Portal Authentication△
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
4-22 dBm (2.4GHz)
4-22 dBm (5GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3/ISM) |
| Management Features |
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
|
| Cloud Access |
Yes. Require the use of an Omada controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
System Log |
| SSH |
Yes |
| Web-based Management |
Yes |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS |
| Certification |
FCC, RoHS |
| Package Content |
• EAP725-Wall
• Installation Guide
• Mounting Screws |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
