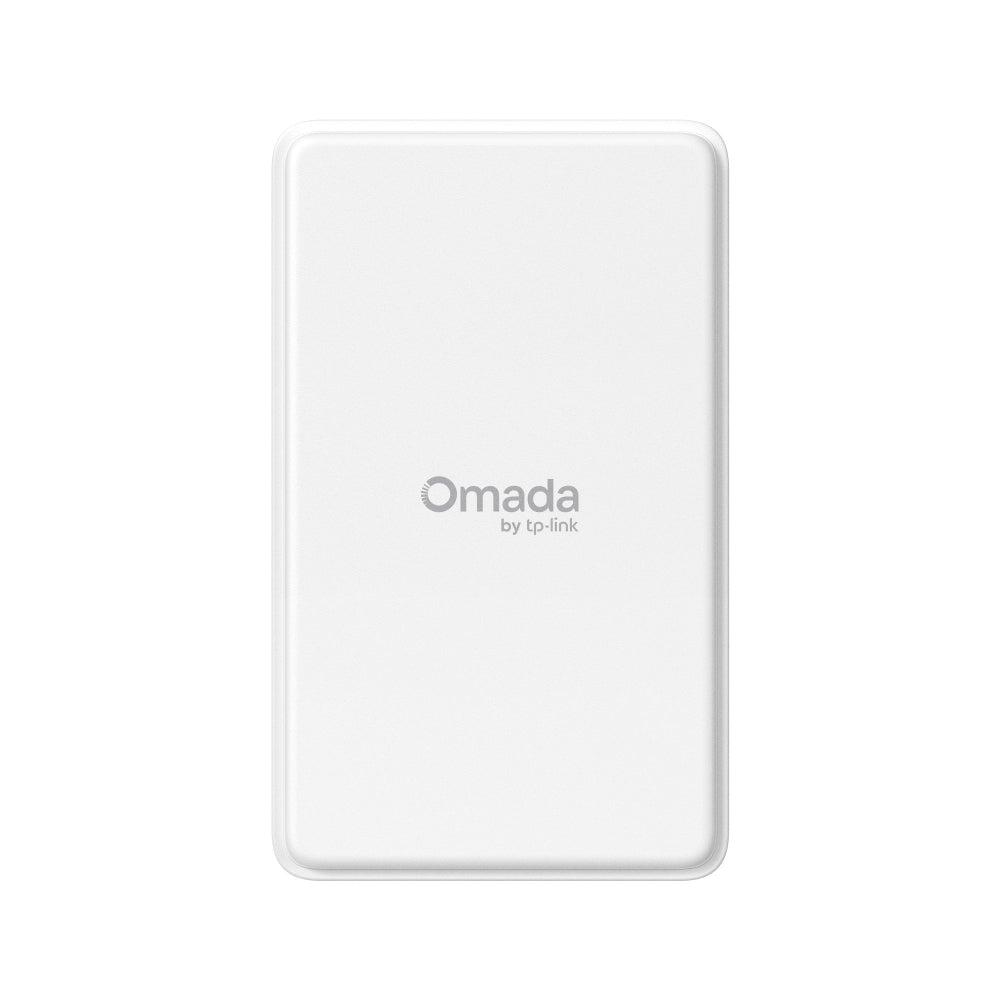

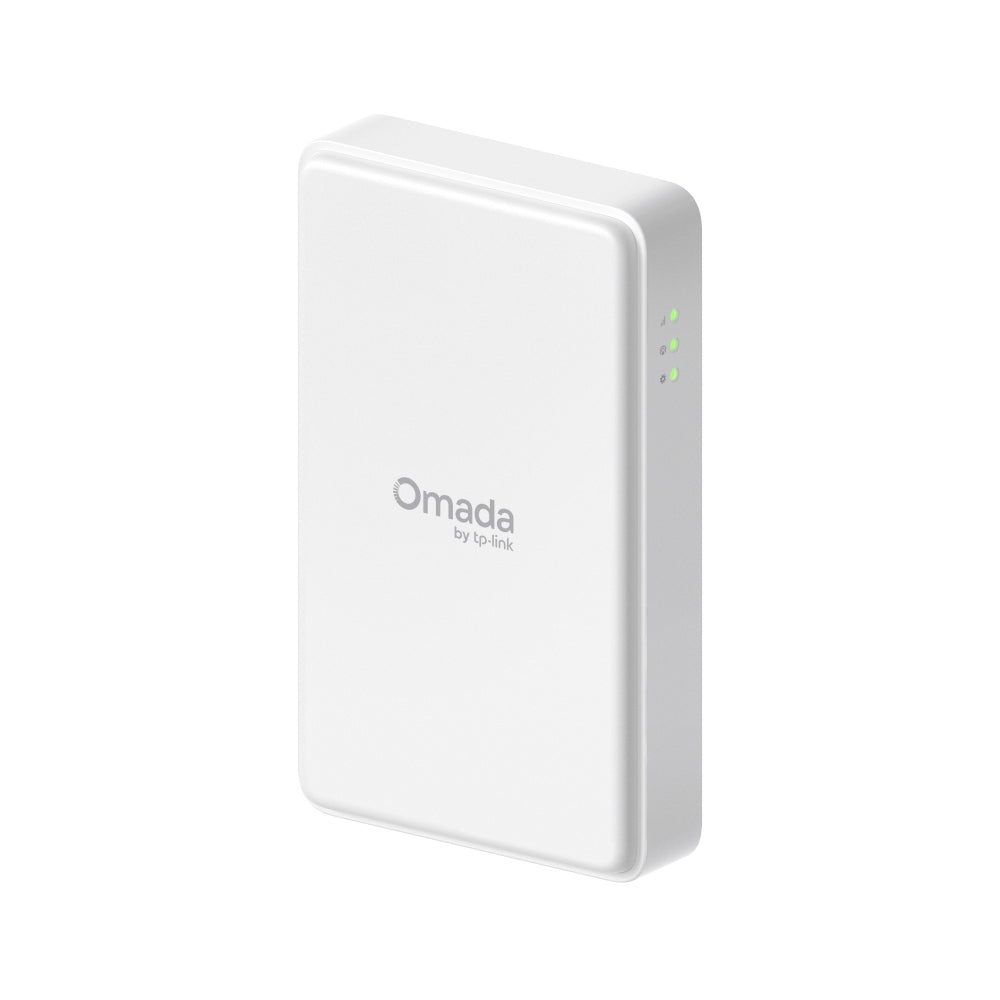

TP-Link ER701-5G-Outdoor Omada 5G Outdoor Gateway

Roll over image to zoom in Click on image to zoom

TP-Link ER701-5G-Outdoor Omada 5G Outdoor Gateway

Name: TP-Link ER701-5G-Outdoor Omada 5G Outdoor Gateway
Brand: TP-LINK
SKU: TL-ER701-5G-OUTDOOR
Price: 1699.0 NZD
Availability: OutOfStock

TP-LINKSKU: TL-ER701-5G-OUTDOOR

ER701-5G-Outdoor

Omada 5G Outdoor Gateway

5G NR up to 7.01 Gbps (SA)/4.5 Gbps (NSA)*
2× Nano SIM Ensures Business Continuity
1× 2.5G PoE In Port (PoE Adapter Included)
9× internal Cellular Antennas and 1× Internal Wi-Fi Antenna
App-Guided Antenna Alignment for Optimal 5G Performance
Omada SDN for One-Click Setup, Pole/Wall/Window Mounting
Centralised Cloud Management^Δ
IP66 Weatherproof

5G/4G/3G
Network Mode	• 5G NR:N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/ N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/150 0/1450/3700/3500 MHz)^§ • 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/26 00/900/800/850/700/1500 MHz)^§ 4G TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) • 3G WCDMA: B1/B5/B8 (2100/850/900 MHz)
Speed	5G NR Speed • SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps • NSA: Downlink: 4.5 Gbps, Uplink: 730 Mbps LTE Speed • Downlink: 1.6 Gbps, Uplink: 211 Mbps
SIM Type	Dual Nano SIM

SECURITY
DPI	Deep Packet Inspection
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering (only in Standalone Mode) • URL Filtering • Web Security (only in Standalone Mode)
ARP Inspection	• Sending GARP Packets • ARP Scanning (only in Standalone Mode) • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Interface	1×2.5G RJ45 Port
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) • 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	• 802.3at PoE: 42-57V 0.6A • Passive PoE: 48V 0.375A
Flash	4GB eMMC Flash
DRAM	2GB LPDDR4x
LED	System, Network Type, Signal Strength
Dimensions ( W x D x H )	7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm)
Antenna	• 9× internal Cellular antennas • 1× internal Wi-Fi antenna
SIM Slot	1×Dual Nano SIM slot
Mounting	Wall/Pole/Window Mounting
Max. Power Consumption	15.3W (802.3at PoE or Passive PoE)

PERFORMANCE
Concurrent Session	500, 000
New Sessions /Second	6,100

WIRELESS FEATURES
Wireless Speeds	2.4 GHz: 150 Mbps^†
Wireless	• 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps
Advanced Features	• Wireless Encryption: WPA/WPA2 Personal • SSID: 1 • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Automatic Channel Selection Algorithm • Transmit Power Control: Adjust transmit Power on dBm

BASIC FUNCTIONS
WAN Connection Type	5G/4G/3G
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
Stateful ACL	Yes
Quality of Service	Yes
Bridge VLAN	Yes
SMS	Receive / Send SMS
VLAN	802.1Q VLAN

Advanced Features
Bandwidth Control	IP-based Bandwidth Control
NAT	• Multi-Net NAT • Virtual Server • Port Triggering** • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Routing	• Static Routing • OSPF**
Session Limit	IP-based Session Limit

TRANSMISSION
NAT	• Multi-Net NAT • Virtual Server • Port Triggering (only in Standalone Mode) • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Routing	• Static Routing • OSPF (only in Standalone Mode)
Session Limit	IP-based Session Limit
Bandwidth Control	IP-based Bandwidth Control

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^△ • Hotspot (Local User / Voucher^△ / SMS^△/ Radius) • External Radius Sever • External Portal Sever • LDAP

Management Features
Omada App	Yes.
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller • Omada App
Cloud Access	Yes.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP
Certification	CE, NCC, BSMI, RoHS

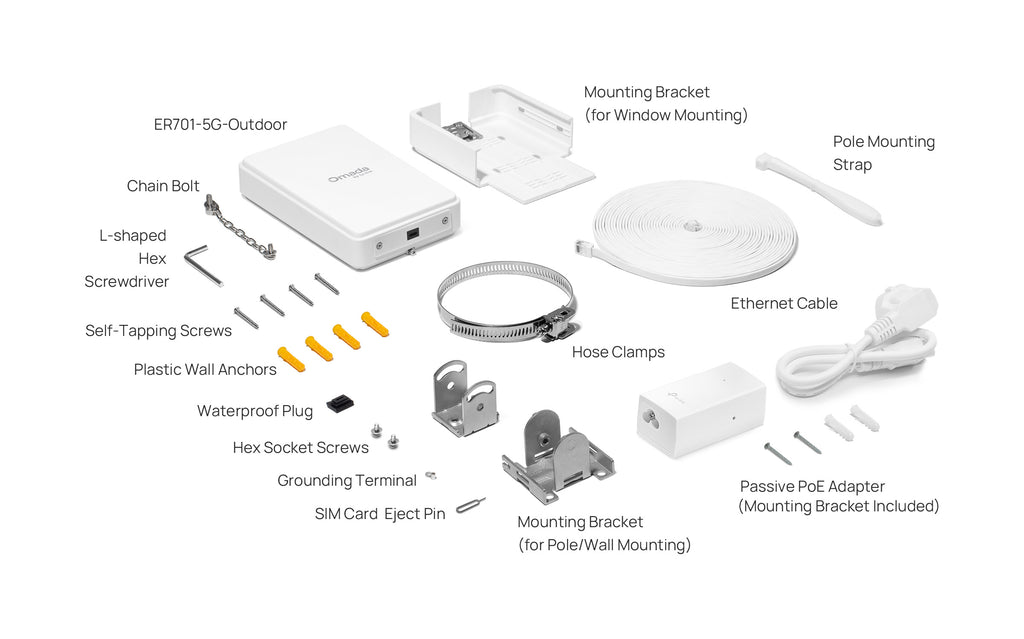

Package Content	• ER701-5G-Outdoor Gateway • Passive PoE Adapter • Mounting Kits • Waterproof kit • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 90% non-condensing • Surge Protection: 6 kV surge protection

For additional version information, please go to the support page.

*Actual 5G downlink speeds vary between buildings. Factors affecting 5G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.

**These features are supported only in Standalone Mode.

^ΔThese features are supported only in Controller Mode.

^†The Wi-Fi interface is used for local management purposes only.

^§N75/N76 and B32 only support downlink.
