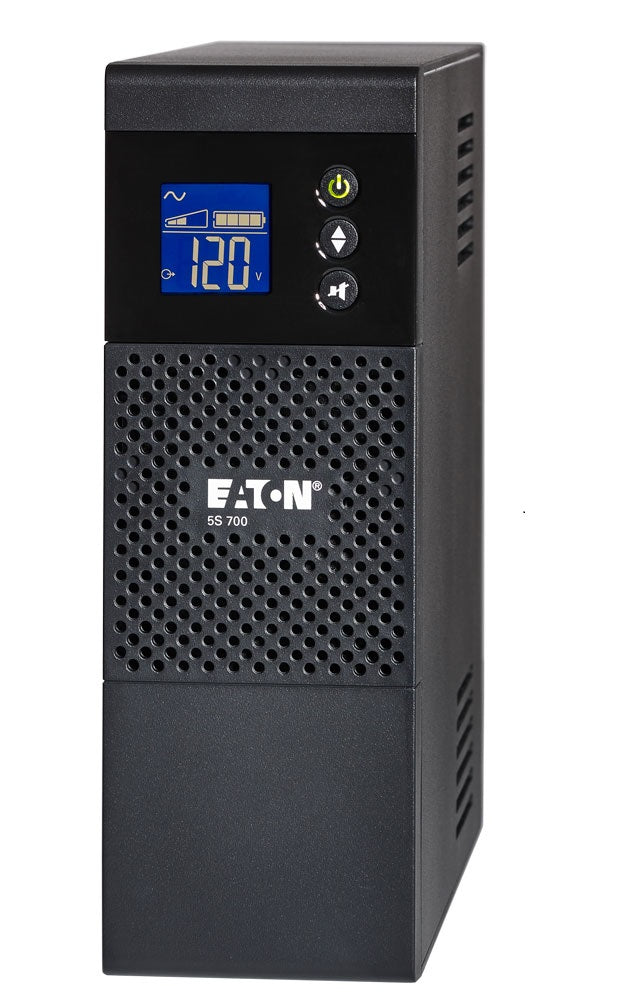

Eaton 5S 700VA/420W Line Interactive UPS LED
Ideal for protecting
•Workstations
•Business Telephony
•Network devices
•Point-of-sale equipment
The Eaton 5S UPS provides effective power protection, even in disturbed electrical environments. Voltage fluctuations are automatically corrected using an AVR device (booster/fader), without needing the batteries. The 5S not only provides a supply with battery backup to keep equipment operating during power cuts, but also provides effective protection against damaging surges.
Protecting networked equipment from 'back door' power surges coming through Ethernet, internet or telephone lines. The 5S's periodic automatic battery testing ensures early detection if a battery needs to be replaced. The easy-to-replace battery helps to extend the UPS service life. The 5S can be installed vertically over or under a desk, or horizontally under a screen. Its compact, slimline form factor even allows it to be easily integrated into environments with space constraints.
The 5S features an HID-compliant USB port, for automatic integration with common operating systems (Windows/ Mac OS/Linux). The 5S is also compatible with Eaton UPS Companion power management software. All models come bundled with a USB cable for PC connection. Reduce wasted energy consumption from standby power drain of connected peripheral equipment with ECO Control function (850-1600VA models)
Technology: Series 5
Rating: 700VA/420W
Voltage: 240 Vac
Backup time: Typical 4 min
Configuration: Tower
| Environmental Conditions |
| Sound Emission: |
40 dB(A)
|
| Temperature: |
40°C
|
| Interfaces/Ports |
| USB: |
Yes
|
| Management |
| Battery Management: |
Automatic battery test, deep-discharge protection, cold-start capable, replaceable batteries
|
| Miscellaneous |
| Certifications & Standards: |
- IEC/EN 62040-1
- IEC/EN 62040 -3
- CB
- CE
|
| Physical Characteristics |
| Colour: |
Black
|
| Depth: |
260 mm
|
| Form Factor: |
Tower
|
| Form Factor: |
Under Monitor
|
| Height: |
250 mm
|
| Weight (Approximate): |
5.98 kg
|
| Width: |
87 mm
|
| Power Description |
| Input Voltage: |
220 V AC
|
| Load Capacity (VA): |
700 VA
|
| Load Capacity (Watt): |
420 W
|
| Output Voltage: |
220 V AC
|
| Technical Information |
| Dataline Protection: |
RJ-11
|
| Dataline Protection: |
RJ-45
|
| Plug/Connector Type: |
Aust. 10A
|
| Receptacles: |
6 x Aust. 10A
|
| Warranty |
| Limited Warranty: |
2 Year
|
