Mercusys MB135-4G Wireless Dual Band Router

Name: Mercusys MB135-4G Wireless Dual Band Router
Brand: TP-LINK
SKU: MER-MB135-4G
Price: 149.0 NZD
Availability: OutOfStock

TP-LINKSKU: MER-MB135-4G

tpMB135-4G

AC1200 Wireless Dual Band 4G LTE Router

4G network – Share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests
Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.

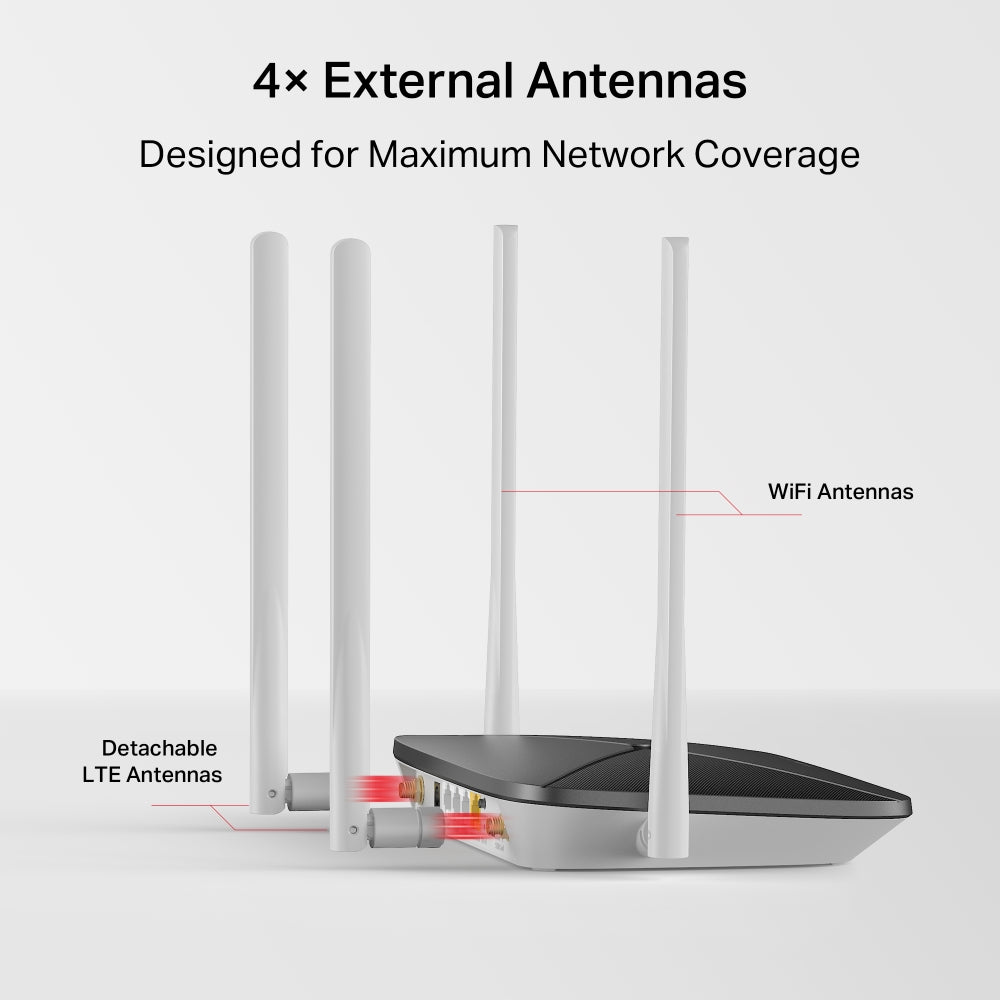

Maximum Network Coverage – Enjoy stable and efficient connections to every device thanks to the four external antennas
Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

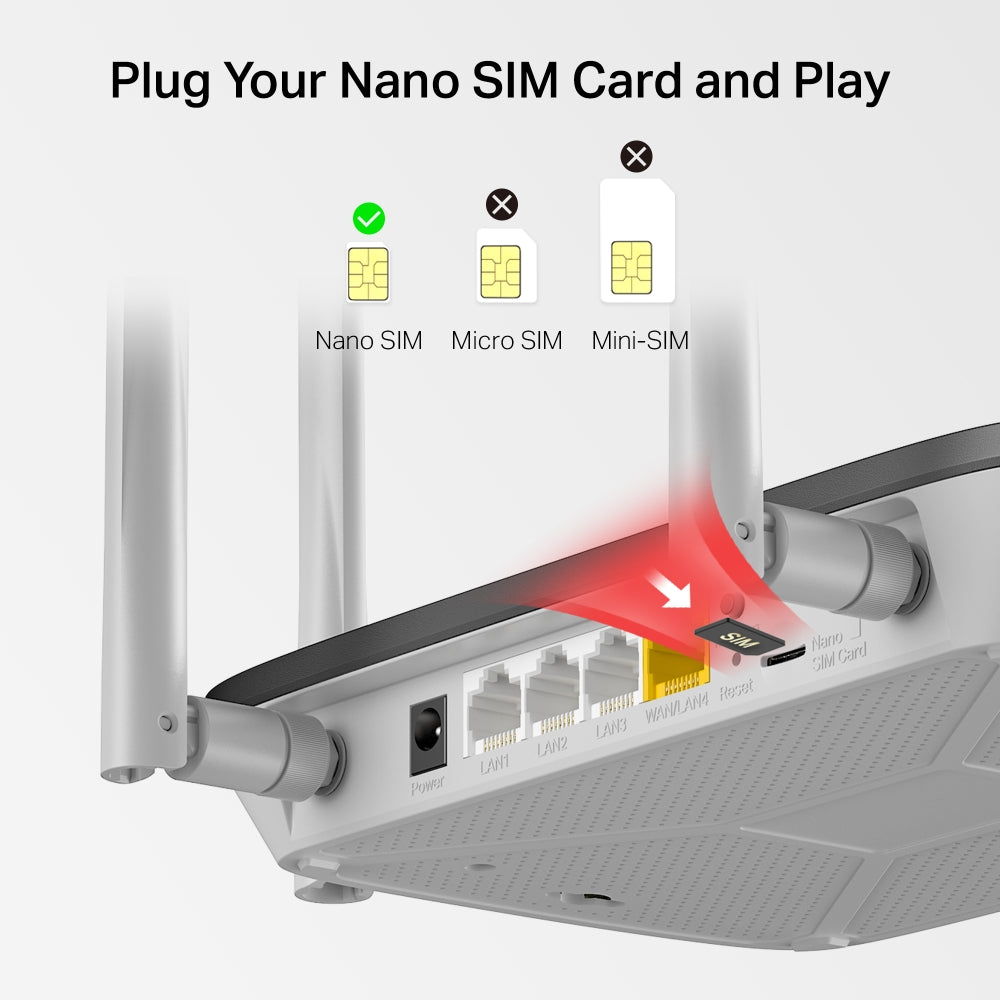

Plug Your Nano SIM Card and Play

Fully compatible with FDD-LTE and TDD-LTE for use with most service providers worldwide. Insert a nano SIM card and turn on the router to convert your 4G LTE network into WiFi and share it with multiple WiFi devices.

SPECIFICATIONS

Cellular Standards	Cat 4150/50 Mbps DL/UL
Cellular Bands	EU:FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)TDD-LTE: B38/B40 (2600/2300 MHz)HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
SIM	1× Nano SIM Card Slot

Wi-Fi Class	AC1200
Wi-Fi (2.4 GHz)	300 Mbps
Wi-Fi (5 GHz)	867 Mbps
Wireless Standards	IEEE 802.11ac/a/b/g/n
Max Channel Width	80 MHz
Reception Sensitivity	11g 6 Mbps: -95 dBm11g 54 Mbps: -77 dBm11n HT20 MCS7: -74 dBm11n HT40 MCS7: -71 dBm11a 6 Mbps: -92 dBm11a 54 Mbps: -75 dBm11ac VHT20 MCS8: -70 dBm11ac VHT40 MCS9: -65 dBm11ac VHT80 MCS9: -61 dBm
MAX Capacity	64
Recommended Clients Limit	32
Wireless Security	WPA-PSK / WPA2-PSK
Wireless Functions	Smart connectWPSWireless ScheduleWireless Clients Statistics

Dimensions	219 × 140 × 32 mm(8.62 × 5.51 × 1.26 in)

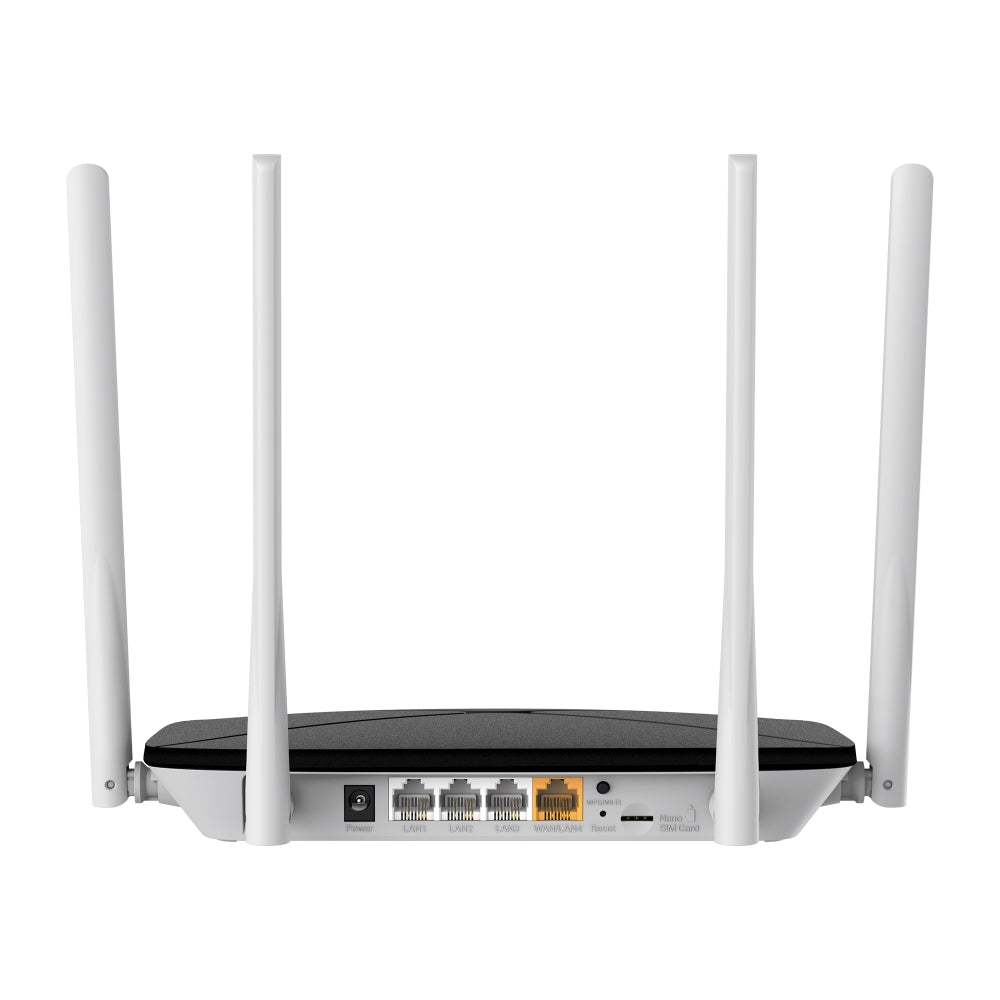

Interfaces	1× FE LAN/WAN Port3× FE LAN Ports1× Nano SIM Card Slot
Antenna	2 External Detachable 4G LTE Antennas2 External Wi-Fi Antennas
Button	1×WPS/Wi-Fi Button1×Reset Button
External Power Supply	12V/1A
Installation	Desktop
LED	1× POWER1× Internet1× LAN3× Signal
Retail Package Dimension	303 × 288 × 65
Units per Carton	10
Carton Dimension	590 × 315 × 340

Operation Mode	3G/4G RouterWireless Router
Cellular Mode	4G Preferred4G Only3G Only
Cellular APN	Data RoamingNetwork SearchProfile CreateAPN SettingsISP File UpgradePIN Management
WAN Mode	Dynamic IPStatic IPPPPoEPPTPL2TP
NAT Forwarding	ALGVirtual ServerPort TriggeringUPnPDMZ
Protocols	IPv4IPv6
Data Settings	Data StatisticsData Limit
Guest Network	2.4 GHz Guest Network5 GHz Guest Network
Parental Controls	Time ControlWebsite Filtering
DHCP	ServerDHCP Client ListAddress Reservation
DDNS	DynDNSNO-IP
SMS	InboxNew MessageOutboxDrafts
QoS	√
Security	IPv4 SPI FirewallDoS ProtectionService FilteringAccess ControlIP & MAC BindingIPv6 Firewall
ISP Feature	TR-069
System	Time SettingsLED ControlDiagnosticsFirmware UpgradeBackup&RestoreRebootAdministrationSystem LogCWMP SettingsSNMP SettingsTraffic Monitor
LED Management	LED ControlNight Mode
Device Management	MERCUSYS APPWeb GUI
Cloud	Firmware Upgrade over the CloudRemote Management
Language	EnglishGermanSpanishGreekFrenchItalianPolishIndonesianRussianThai

Certifications	CE
Network Services Enabled by Default	Web ServerManage and configure device through web (HTTP/HTTPS)• Port: 80/443 Protocol: TCPDHCP ServerIP address assignment (DHCP)• Port: 67 Protocol: UDPApp managementManage and configure device through app• Port: 20001 Protocol: TCP• Port: 20002 Protocol: UDP
Package Contents	AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)Power AdapterRJ45 Ethernet CableQuick Installation Guide
Environment	Operating Temperature: 0 °C~40 °C (32 °F~104 °F)Storage Temperature: -40 °C~60 °C (-40 °F~140 °F)Operating Humidity: 10%~90% Non-CondensingStorage Humidity: 5%~90% Non-Condensing
