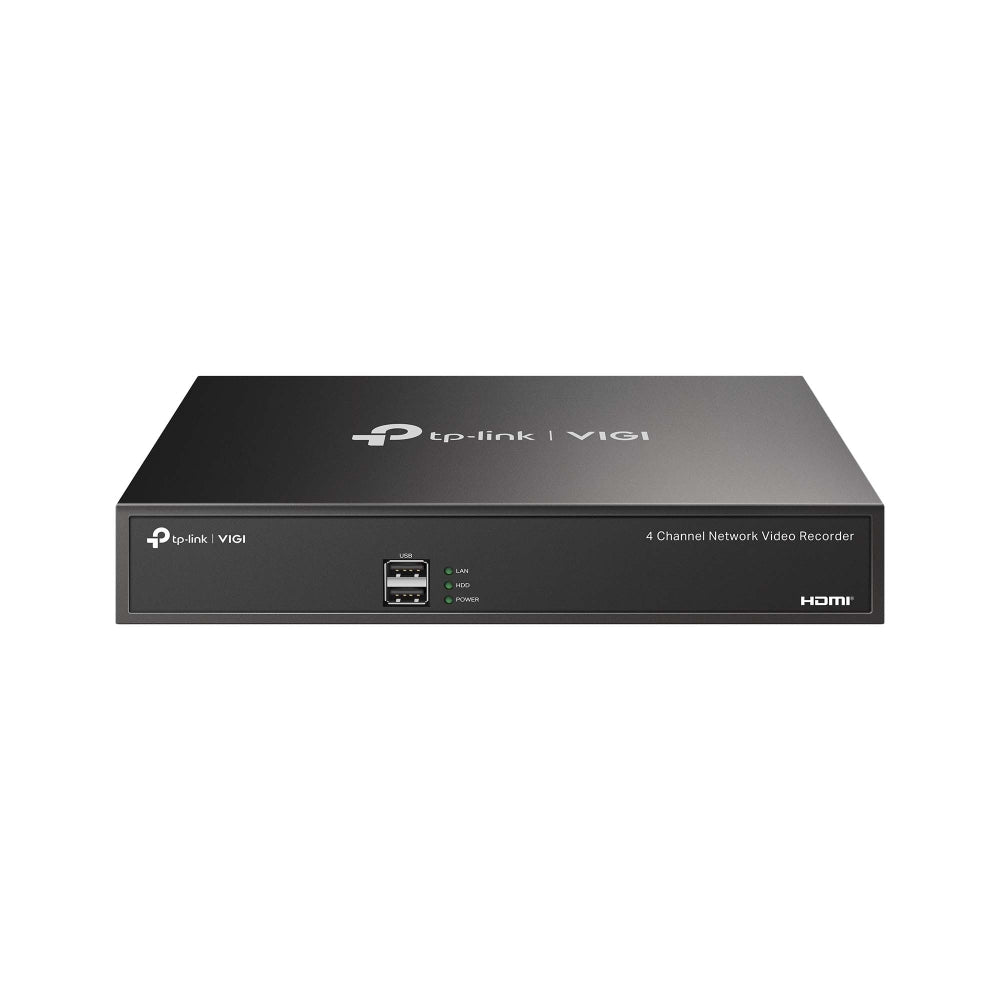

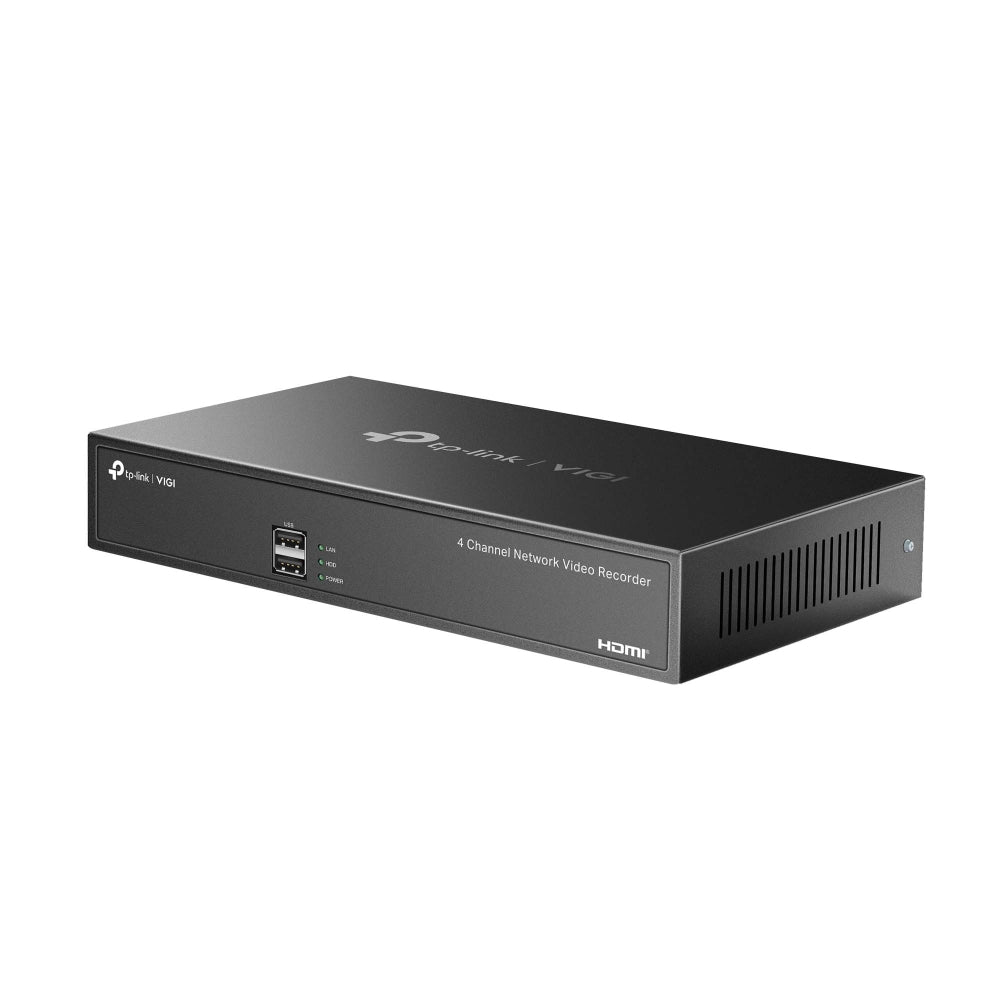

TP-Link VIGI NVR1004H, VIGI 4 Channel Network Video Recorder

Roll over image to zoom in Click on image to zoom

TP-Link VIGI NVR1004H, VIGI 4 Channel Network Video Recorder

TP-LINKSKU: TL-VIGINVR1004H

VIDEO AND AUDIO
IP Video Input	4-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback	4-Channel
Capability	2-ch @ 8MP, 4-ch @ 4MP

RECORD MANAGEMENT
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI

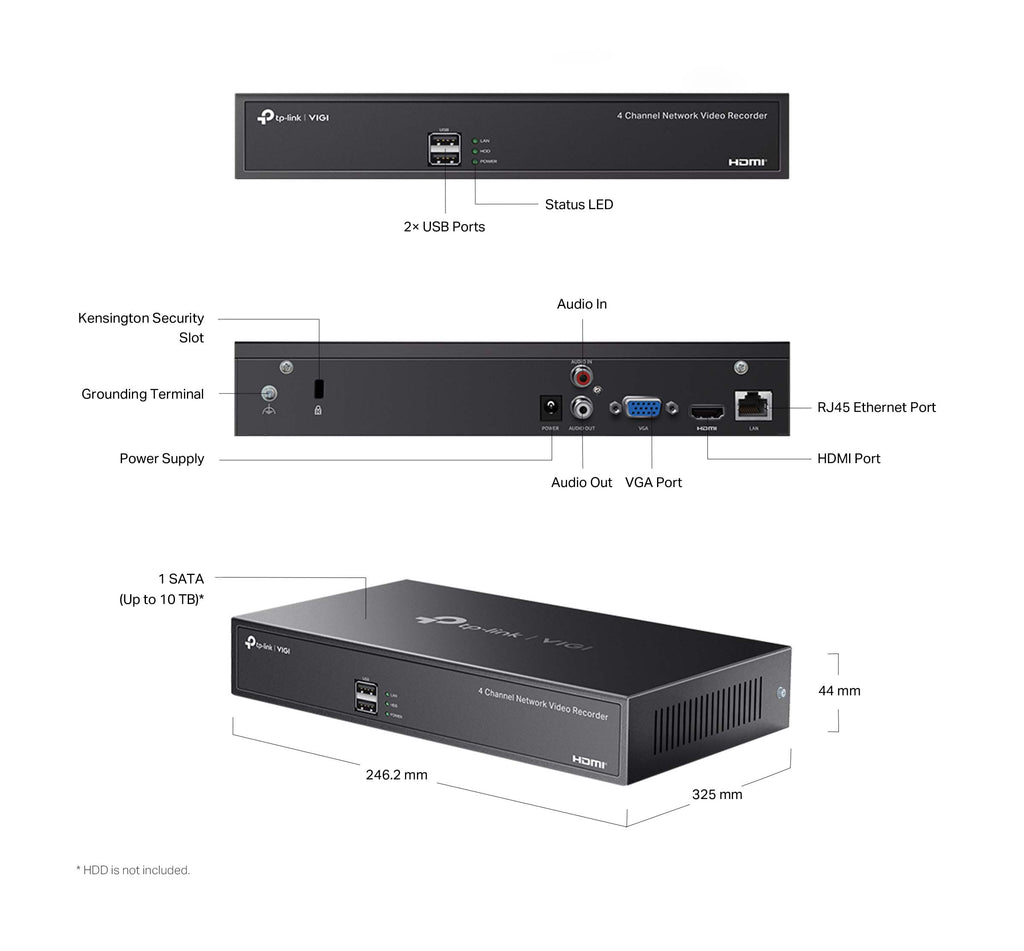

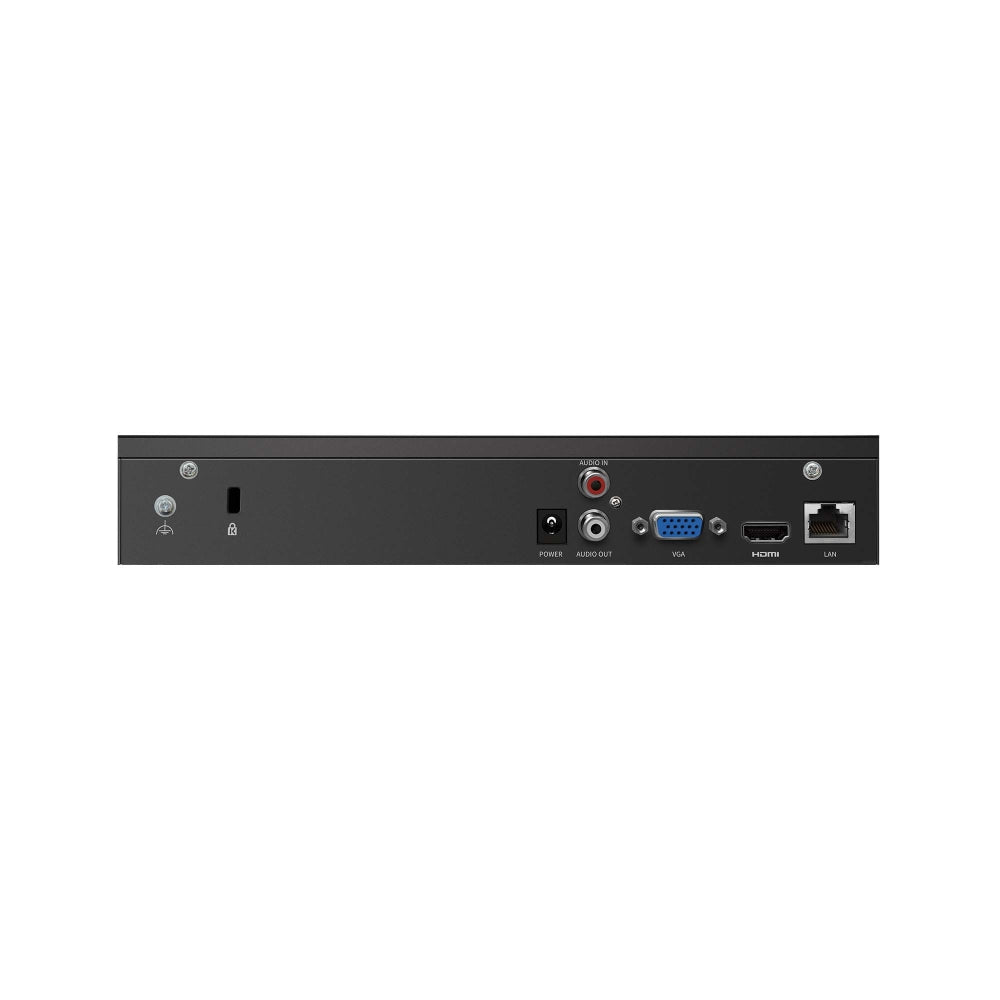

EXTERNAL INTERFACE
Network Interface	1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1

HARD DISK
SATA	1 SATA Interface
Capacity	Up to 10 TB Capacity for Each HDD*

ALARM
General Alarm	• Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Contents	• VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Rubber Feet • Quick Installation Guide
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	246.2 × 148.2 × 45 mm
External Power Supply	DC 12V/1.5A
Net Weight	0.59 kg
Gross Weight	0.95 kg
Power Consumption	4.25 W (Without Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

For additional version information, please go to the support page.

^†The number of simultaneously playable channels may be fewer than four, or none, if the total resolution exceeds 16MP.

*HDD is not included.

**The NVR's alarm function requires the use of a camera.
