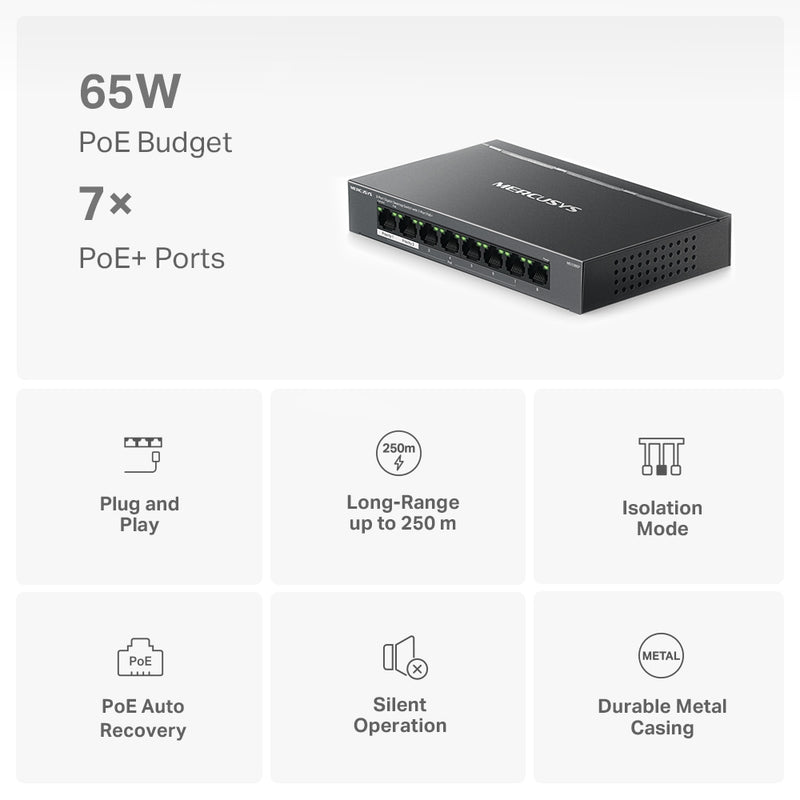

8-Port Gigabit Desktop Switch with 7-Port PoE+
-
Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports
-
Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable
-
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
-
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
-
Isolation Mode: One click to divide traffic for specific ports for stability and security
-
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
-
Durable Metal Casing: Allows for efficient heat dissipation and long network life
-
Plug and Play: Simple to use and saves time and effort
- Hardware
- Dimensions (W X D X H)
-
171*98*27 mm
- PoE Ports
-
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W
- External Power Supply
-
External Power Adapter (Output: 53.5V/1.31A)
- Standards and Protocols
-
IEEE 802.3x Flow Control
- Data Rates
-
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
- Jumbo Frame
-
15 KB
- Mac Address Table
-
8K
- Max Power Consumption
-
5.07W（220 V / 50 Hz, no PD connected）
77.33W（220 V / 50 Hz, with 65W PD connected）
- Max Heat Dissipation
-
17.238 BTH/h （no PD connected)
262.922 BTH/h（with 65W PD connected）
- Others
- Package Contents
-
• 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
• Power Adapter
• Quick Installation Guide
- Environment
-
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
