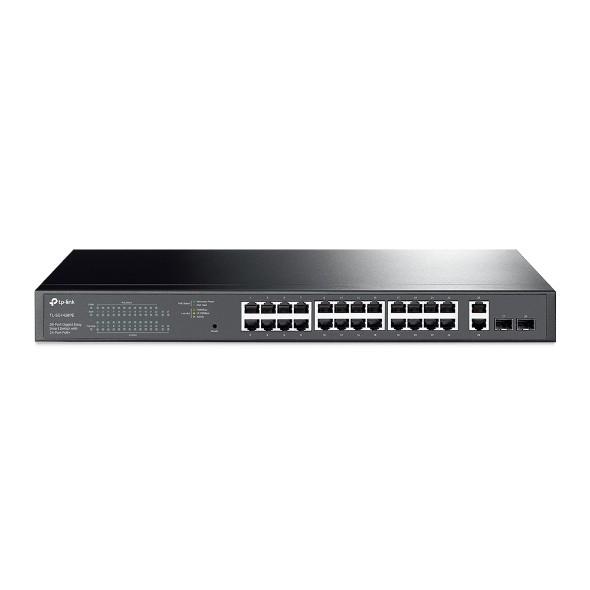

28-Port Gigabit Easy Smart Switch with 24-Port PoE+
- 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
- PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance
Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
| HARDWARE FEATURES |
|---|
| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface |
26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF |
| Fan Quantity |
2 Fans |
| Physical Security Lock |
Yes |
| Power Supply |
100-240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) |
Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W |
| Dimensions ( W x D x H ) |
17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
| Mounting |
Rack Mountable |
| Max Power Consumption |
27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation |
92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected) |
| PERFORMANCE |
|---|
| Switching Capacity |
56 Gbps |
| Packet Forwarding Rate |
41.7 Mbps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9 KB |
| SOFTWARE FEATURES |
|---|
| Quality of Service |
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control |
| L2 Features |
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery |
| VLAN |
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN |
| Management |
Web-Based GUI
Easy Smart Configuration Utility |
| Transmission Method |
Store-And-Forward |
| OTHERS |
|---|
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet |
| Environment |
Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing |
