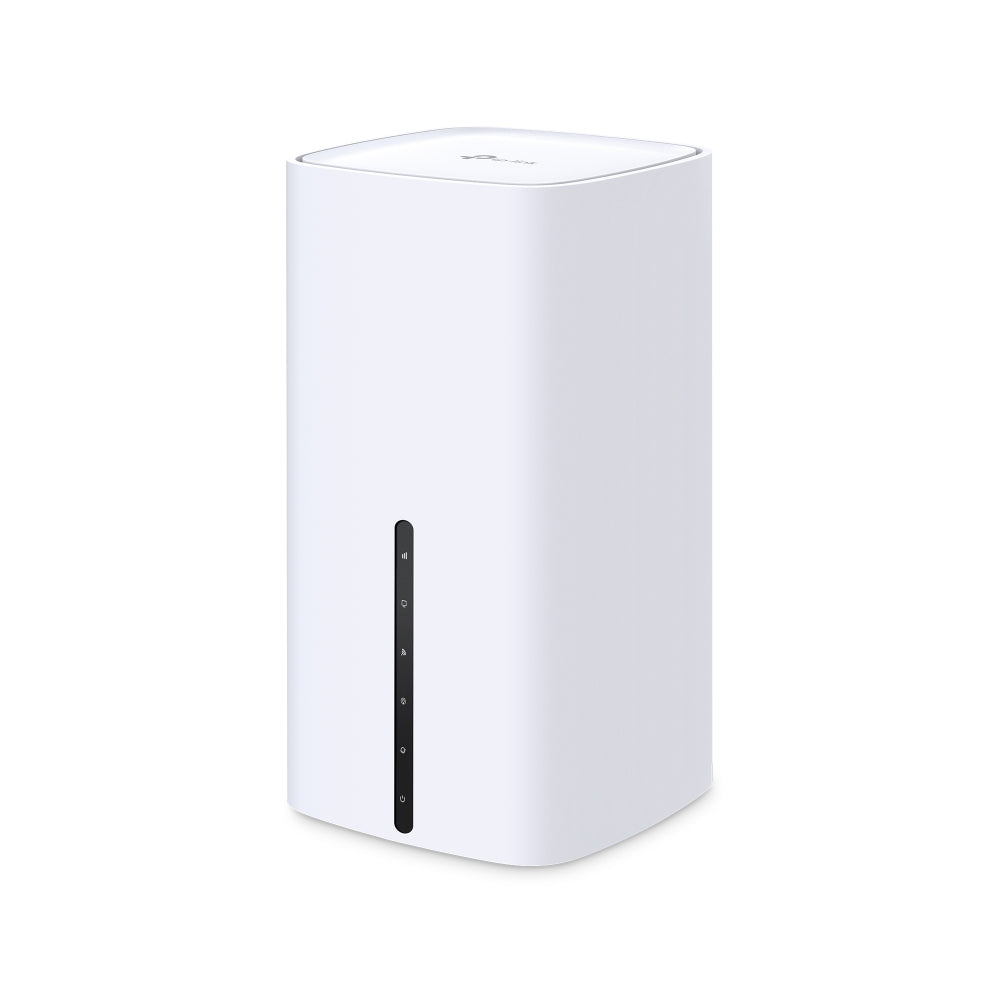

5G AX3600 Wireless Dual-Band 2.5 Gig Router
-
Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
-
AX3600 Dual-Band Wi-Fi 6 Speed - 2402 Mbps (5 GHz) + 1148 Mbps (2.4 GHz).
-
Plug & Play - Enjoy 5G network right after inserting a SIM card.
-
EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
-
2.5 Gbps WAN/LAN Port - The 2.5 Gbps WAN/LAN port enables NX600 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
Superior 5G – A Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX600 is backward compatible with 4G mode.**
Share 5G Speed with Reliable Wi-Fi
Thanks to cutting-edge 5G tech, NX600 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with Wi-Fi 6 technology, NX600 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX600 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

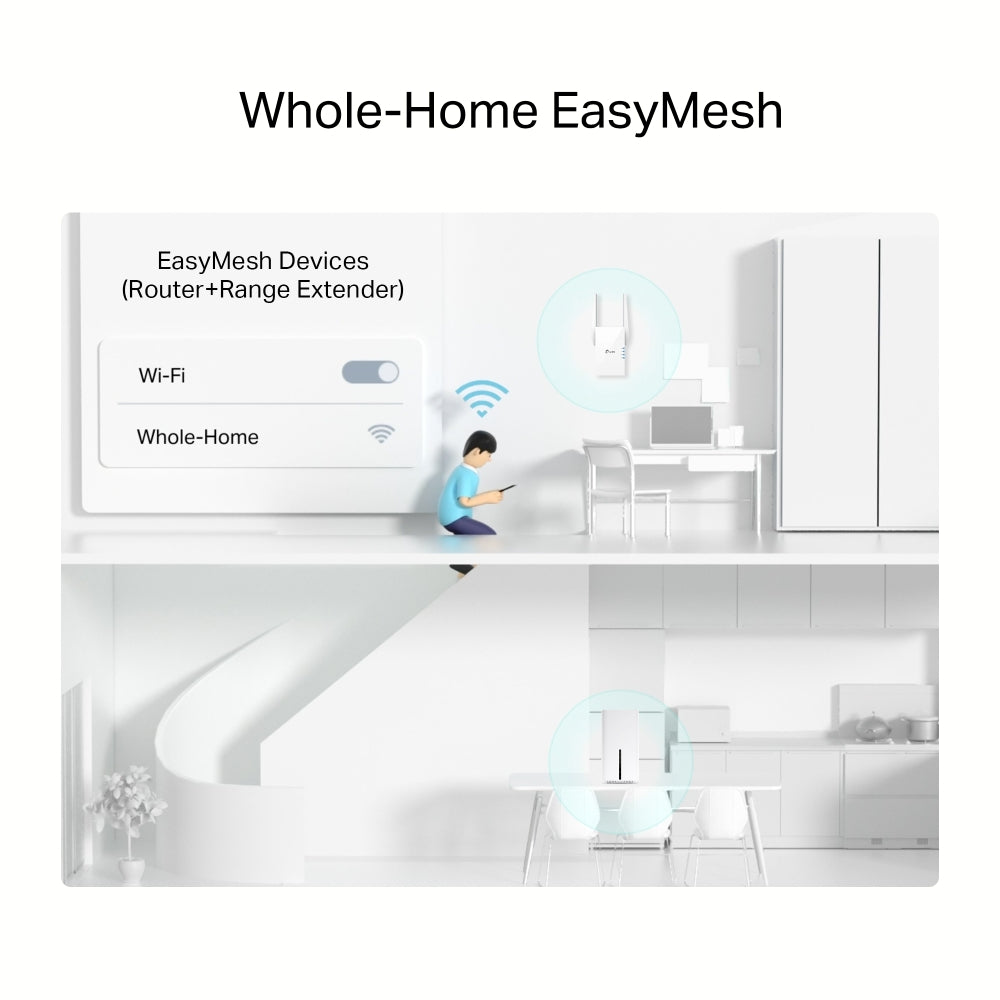

Flexibly Create Whole Home Mesh Wi-Fi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh Wi-Fi. No more searching for a stable connection.
Available WAN Connection Backup
A 2.5 Gbps port and 2 Gigabit ports enable NX600 to take full advantage of your broadband speed. As a traditional router, NX600 is compatible with cable, fiber, and DSL modems. When it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you. Furthermore, two external antenna ports allow external antenna access which can receive 5G/4G signals more effectively, resulting in improved 5G/4G performance..
Easy Setup and Use
Set up the Archer NX600 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
|

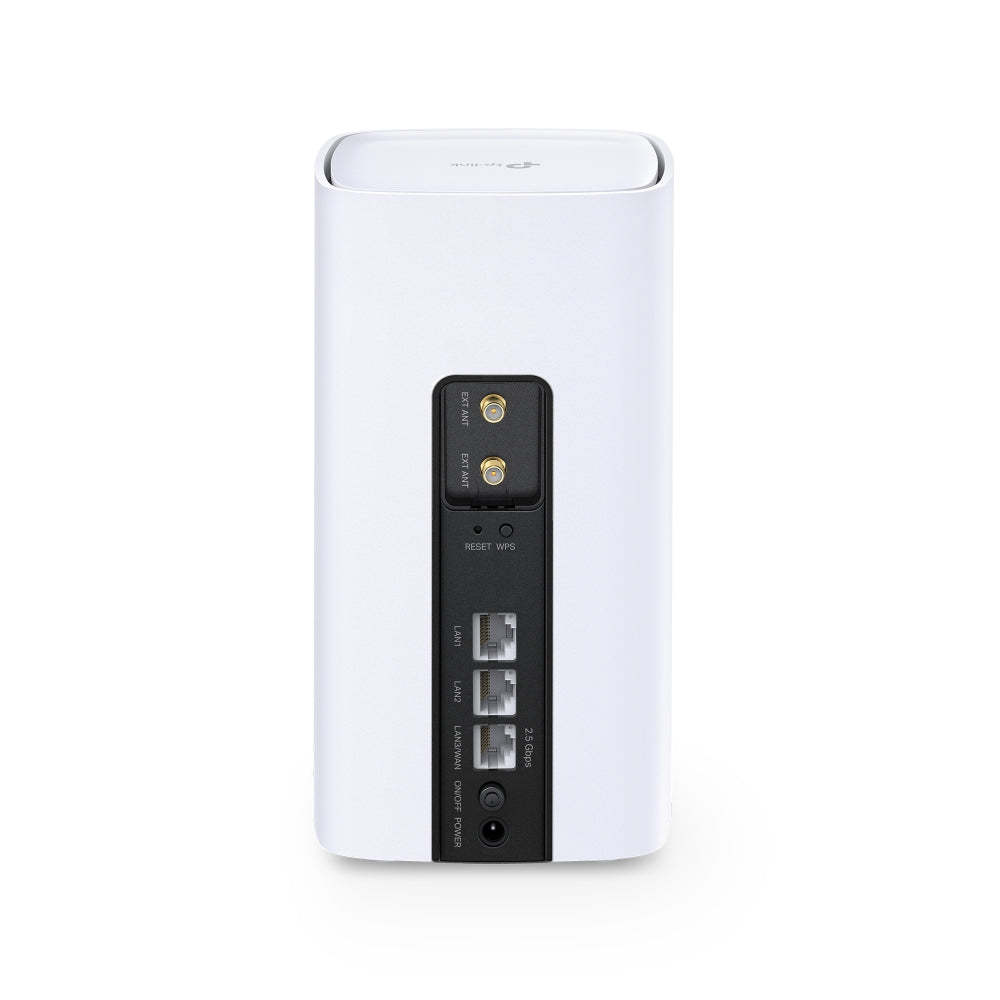

HARDWARE FEATURES
|
| Interface |
1 × 2.5 Gbps WAN/LAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × External SMA-F Antenna Interface |
| Button |
WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
| External Power Supply |
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A |
| Dimensions ( W x D x H ) |
3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm) |
| Antenna |
8 × 5G/LTE Internal Antennas
2 × Wi-Fi Internal Antennas |
|
WIRELESS FEATURES
|
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
1148 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz |
| Reception Sensitivity |
5GHz：
11a 54M：-80 dBm
11ax HE20：-68 dBm
11ax HE40：-65 dBm
11ax HE80：-62 dBm
11ac VHT20：-76 dBm
11ac VHT40：-72 dBm
11ac VHT80：-68 dBm
11n HT20：-79 dBm
11n HT40：-75 dBm
2.4GHz
11g 54M：-78 dBm
11ax HE20：-65 dBm
11ax HE40：-62 dBm
11ac VHT20：-73 dBm
11ac VHT40：-68 dBm
11n HT20：-75 dBm
11n HT40：-72 dBm |
| Wireless Functions |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics |
| WAN Failover |
Yes |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power |
<23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz) |
| Network Type |
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/ (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
|
SOFTWARE FEATURES
|
| Quality of Service |
Prioritizes network traffic by device or application |
| Security |
DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features |
TP-Link Cloud, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
TP-Link, DynDns, NO-IP |
| VPN |
PPTP VPN, IPSec VPN , OpenVPN |
| Access Control |
Parental Control, Local Management Control |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4 GHz Guest Network x 1
5 GHz Guest Network x 1 |
|
OTHERS
|
| Certification |
CE, RCM, RoHS |
| Package Content |
5G AX3600 Wireless Dual-Band Gigabit Router Archer NX600
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Nano SIM Card |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
