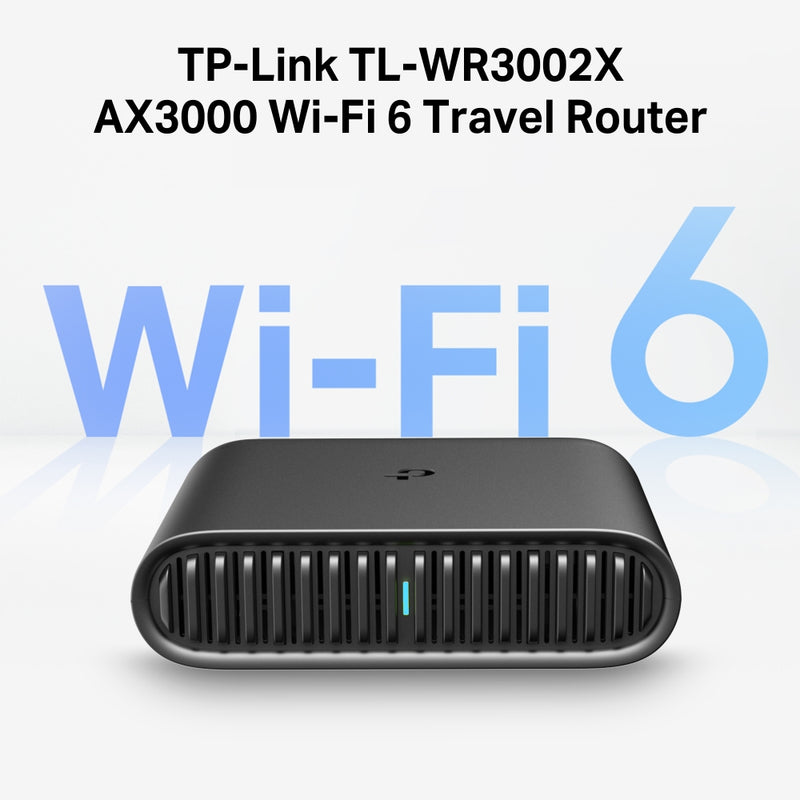

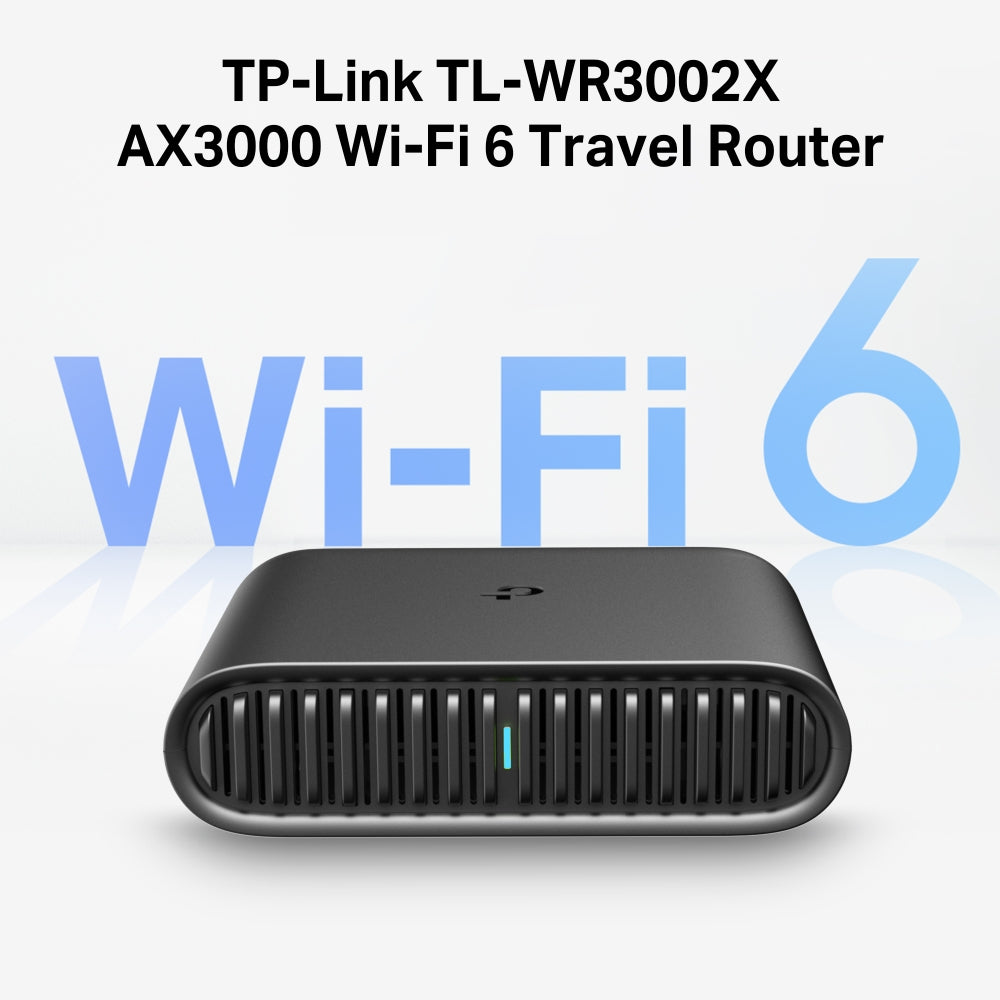

AX3000 Wi-Fi 6 Portable Router
-
AX3000 Dual-Band Wi-Fi 6 Travel Router: Merging Wi-Fi 6 Technology, TL-WR3002X delivers fast wireless speed (2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz) for uninterrupted video streaming, downloading, and online gaming all at the same time.†‡
-

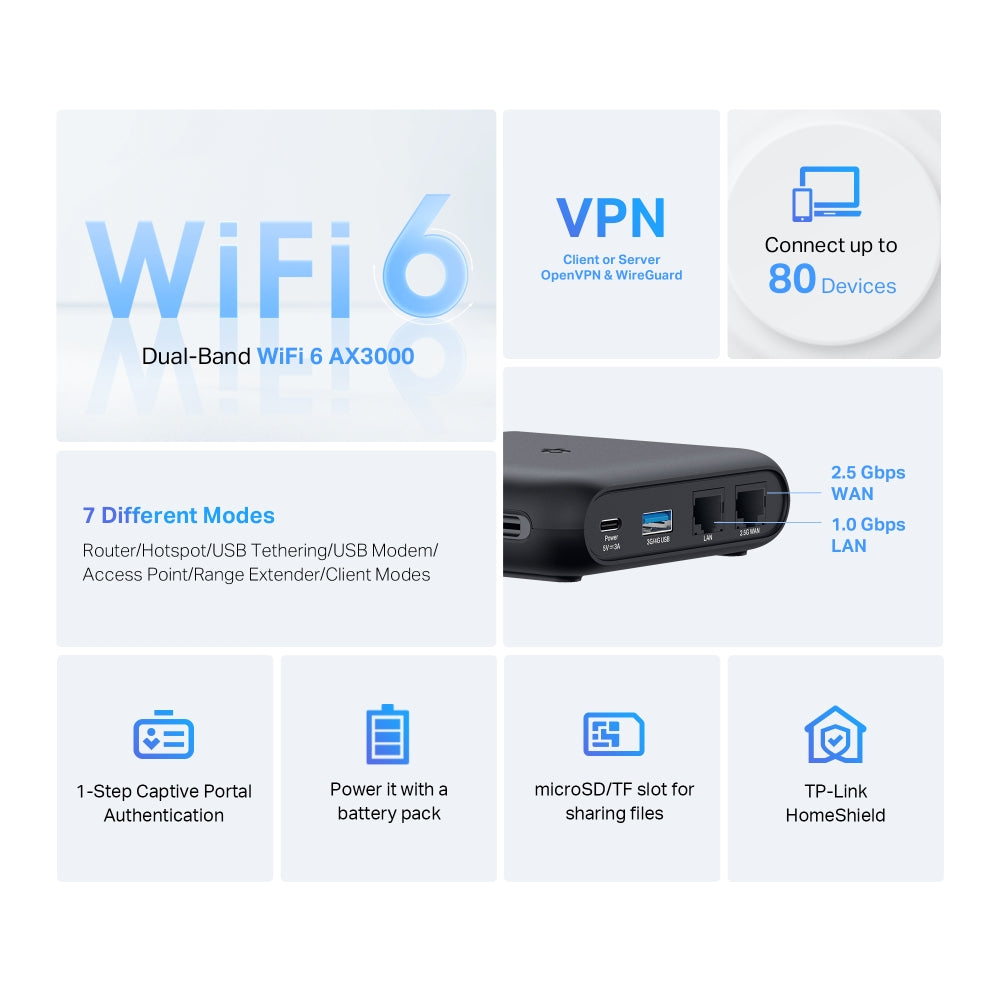

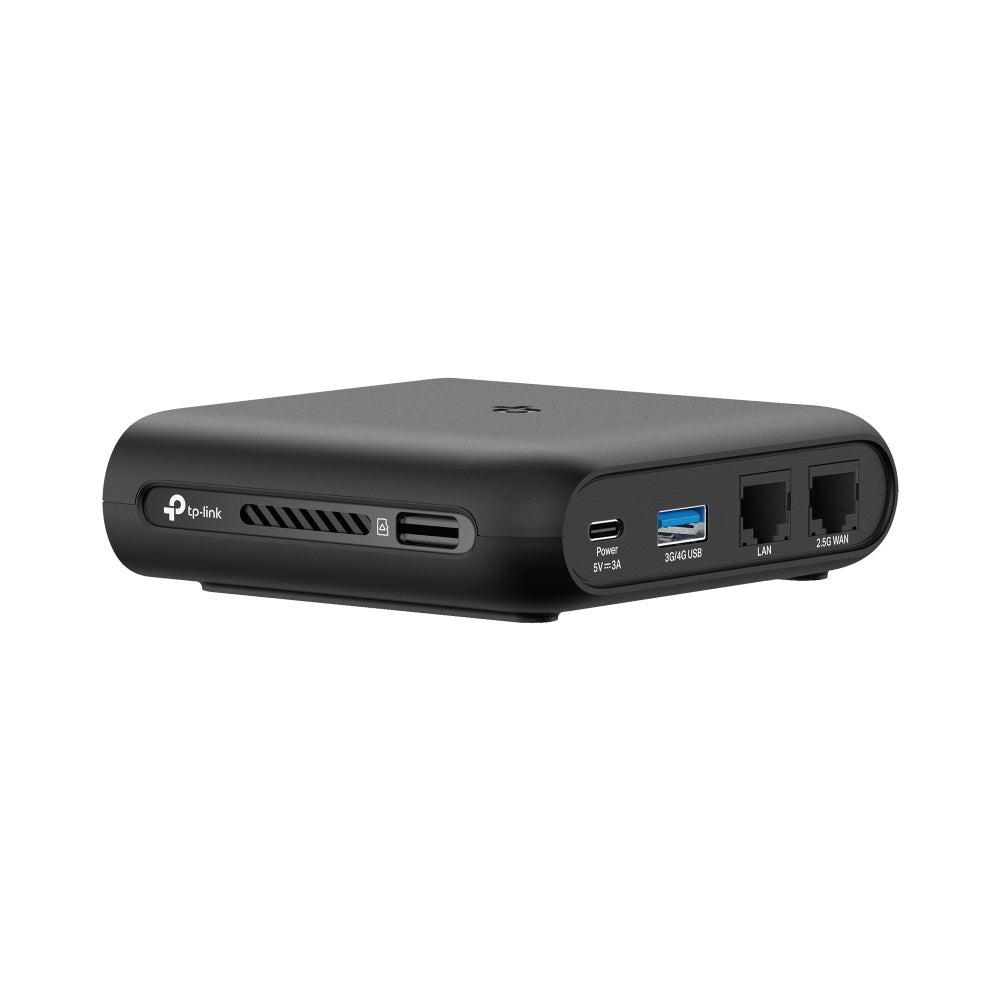

2.5G Multi-Gig Connectivity: 1× 2.5 Gbps WAN port + 1× Gigabit LAN port offer high-speed data transmissions.△
-

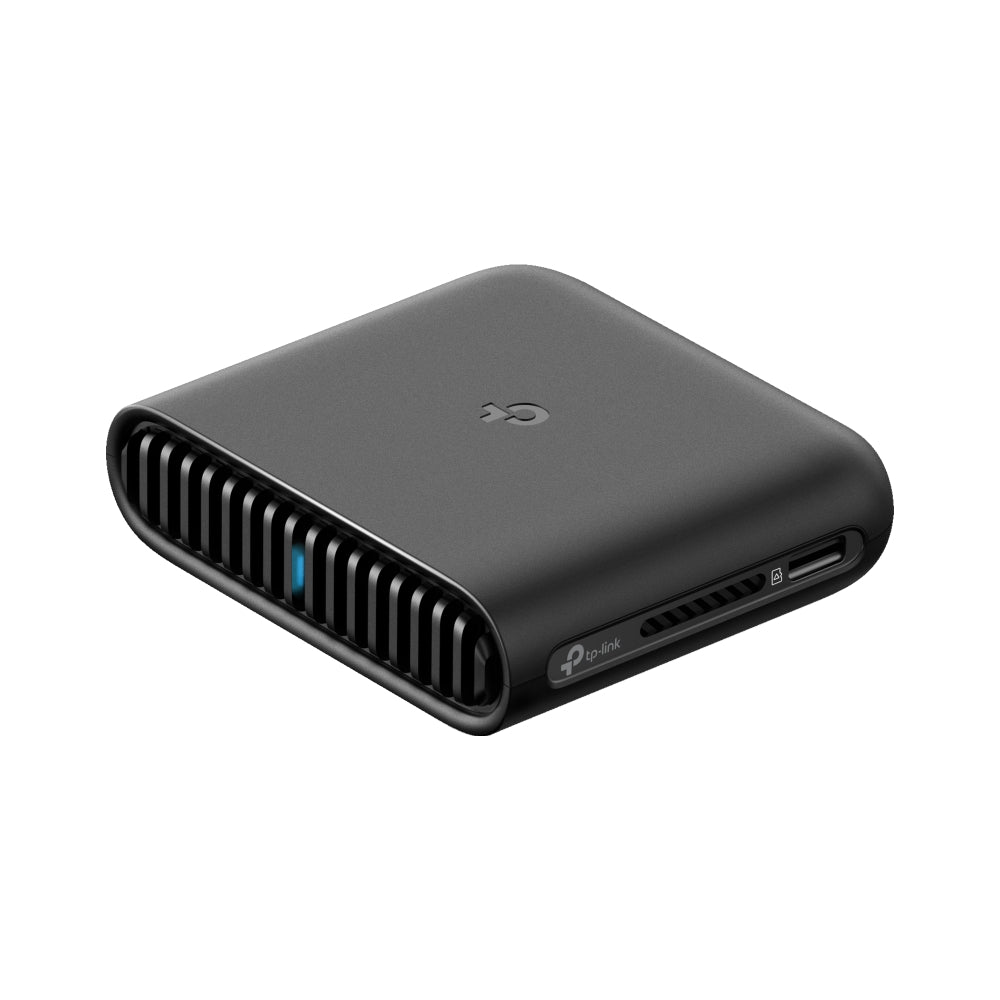

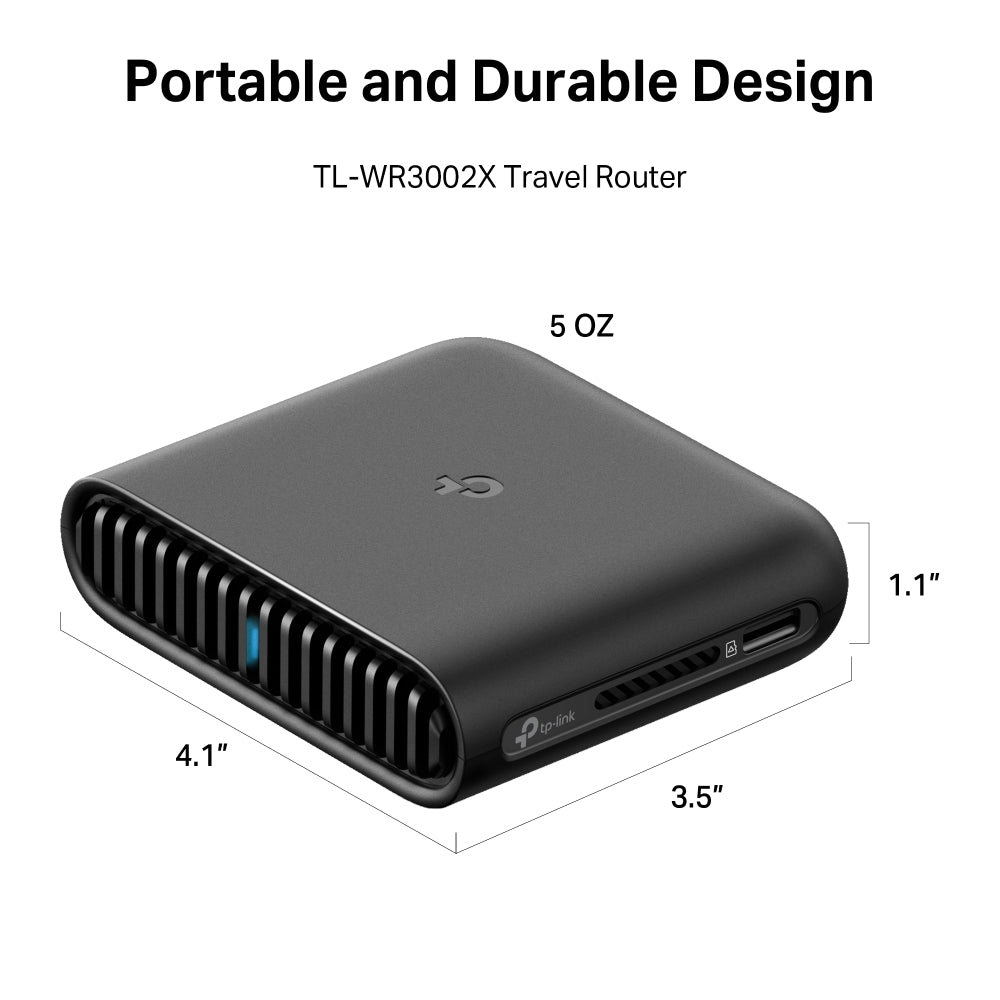

Portable and Durable Design: TL-WR3002X is a pocket-sized travel router compactly designed for your next trip or adventure. Its small size is designed for travel-friendly storage.
-
Enjoy Reliable Network Anywhere: Supporting multiple modes (Router / USB Tethering / 3G-4G USB Modem / Hotspot / Access Point / Range Extender / Client), TL-WR3002X allows you to create Wi-Fi in various scenarios at home, hotel rooms or on the road. **
-
Easily Access Your Files From Anywhere: By plugging an external USB hard disc or a TF card into the router, you can easily share files between connected devices.
-
24/7 Secure Surfing with VPN Encryption: Supporting OpenVPN and WireGuard®, TL-WR3002X can keep your network private and secure from anywhere in the world, whether you‘re working remotely abroad, or browsing on the public WiFi.
-
Power It with a Power Bank: With a Type-C interface, you can flexibly turn it into a mobile router with a power bank.
Wi-Fi That Goes Anywhere
The TL-WR3002X has multiple functional modes to get you connected no matter where you are. It also includes several features to keep you up and running.
Wi-Fi 6 Speeds Anywhere You Want Them
The TL-WR3002X delivers the speed and performance you need in a travel-ready size that goes wherever you do.

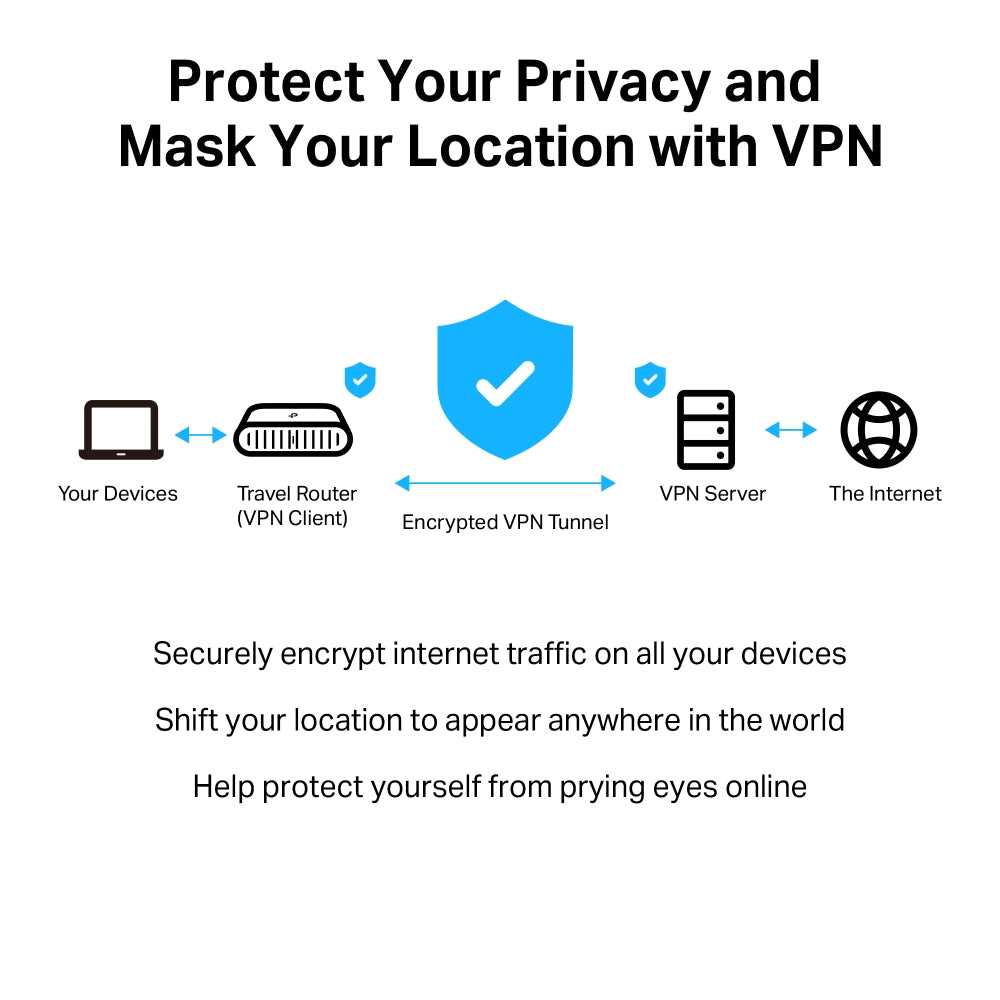

24/7 Secure Surfing with VPN Encryption
VPN Clients and Server Supported
Supporting OpenVPN, WireGuard®, PPTP, and L2TP VPN protocols, TL-WR3002X maintains your network’s privacy and security, whether working remotely or using public WiFi. It can simultaneously run a VPN and regular internet connection, offering protection and flexibility.
|
WIRELESS
|
| Standards and Protocols |
Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ac/ax 2.4 GHz |
| WiFi Speeds |
AX3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Capacity |
High Dual-Band
Allocate devices to different bands for optimal performance
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
USB Tethering Mode
3G/4G USB Modem Mode
Hotspot Mode (WISP Mode)
Access Point Mode
Range Extender Mode
Client Mode |
|
SECURITY
|
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server |
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• Wireguard VPN Serve |
| VPN Client |
Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• Wireguard VPN Client |
| WiFi Encryption |
WPA2-PSK
WPA3-Personal
WPA/WPA2-Enterprise |
|
HARDWARE
|
| Ethernet Ports |
2.5× Gigabit WAN Port
1× Gigabit LAN Port |
| USB Support |
1× USB 3.0 Port |
| Buttons |
WPS/Reset Button
ECO Switch |
| Power |
5V/3A，External DC power adapter |
|
SOFTWARE FEATURES
|
| Quality of Service |
QoS by Device |
| WAN Type |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Management Features |
Tether App
Webpage |
| DHCP |
DHCP Server
DHCP Client List
Address Reservation |
| Protocols |
IPv4
IPv6 |
|
OTHER
|
| Network Services Enabled by Default |
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP
|
| Certifications |
FCC, CE |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|
TEST DATA
|
| WiFi Transmission Power |
CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity |
2.4GHz
11b 1M:-96dBm
11n HT20M MCS7:-73dBm
11n HT40M MCS7:-70dBm
5GHz
11a 6M:-93dBm
11ax HE20M MCS11:-63dBm
11ax HE40M MCS11:-60dBm
11ax HE80M MCS11:-59dBm |
|
PHYSICAL
|
| Dimensions (W×D×H) |
4.1 × 3.6 × 1.2 in
(105 × 91.3 × 30 mm) |
| Package Content |
TL-WR3002X
Power Adapter
RJ45 Ethernet Cable
USB Cable
Quick Installation Guide
Wi-Fi Info card |
