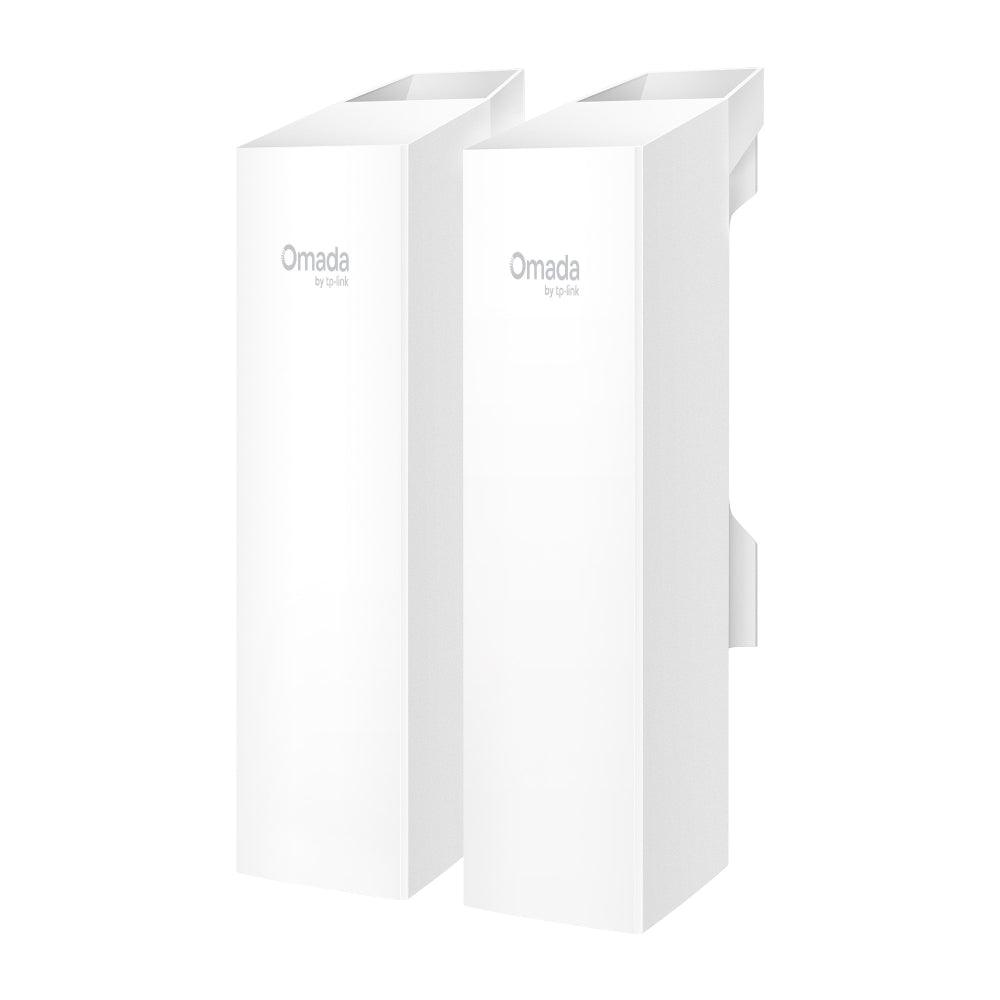

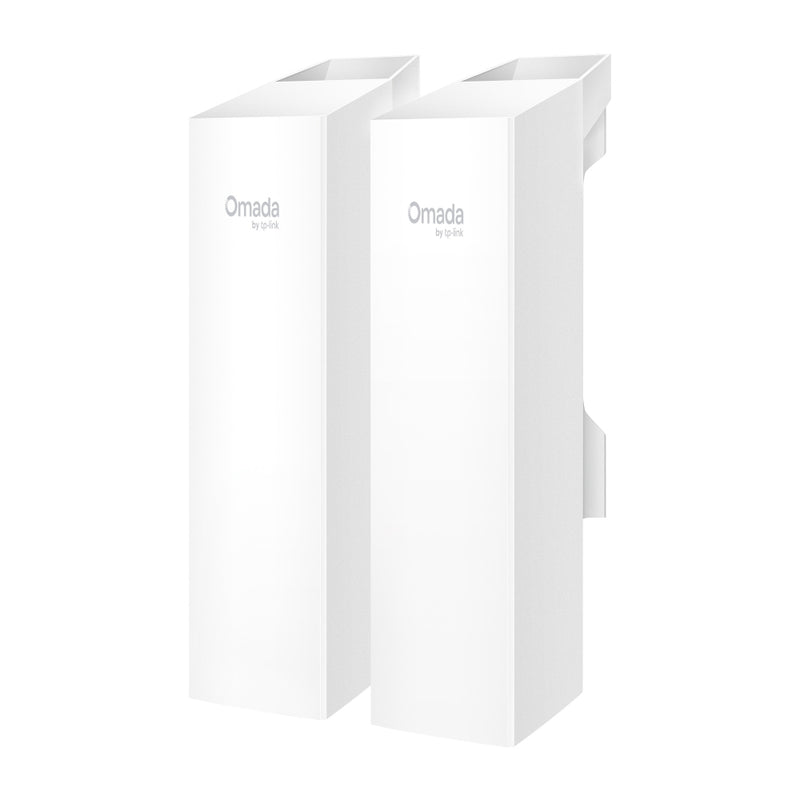

Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
· Up to 1640 ft (500 m) Wi-Fi transmission*
· Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
· Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
· App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
· Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
· 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.△
· Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.
· Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.
| HARDWARE FEATURES |

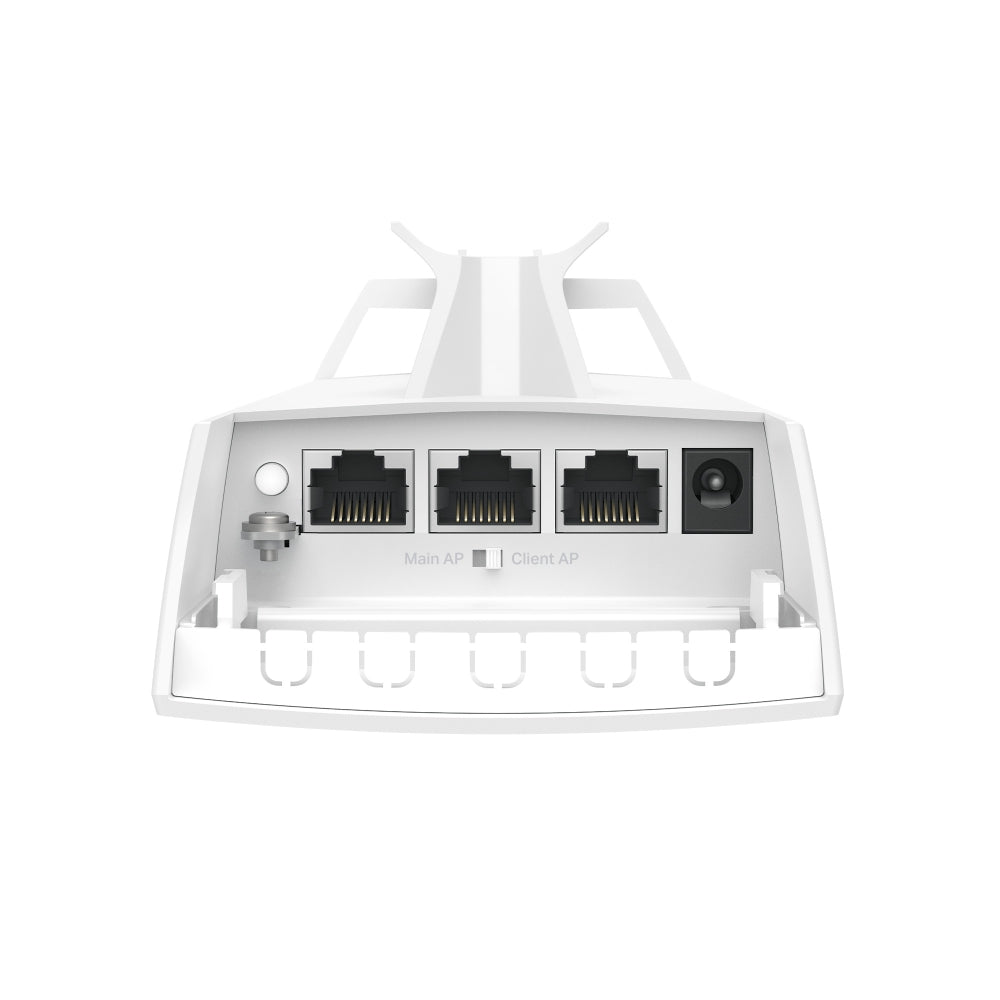

| Interface |
3x 10/100 Mbps Ethernet Ports |
| Button |
Reset |
| Power Supply |
12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE |
| Max. Power Consumption |
4.8 W |
| Dimensions ( W x D x H ) |
3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna |
Internal 2×2 Dual-polarized directional MIMO antennas
2.4 GHz: 8.0 dBi
Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure |
IP65 |

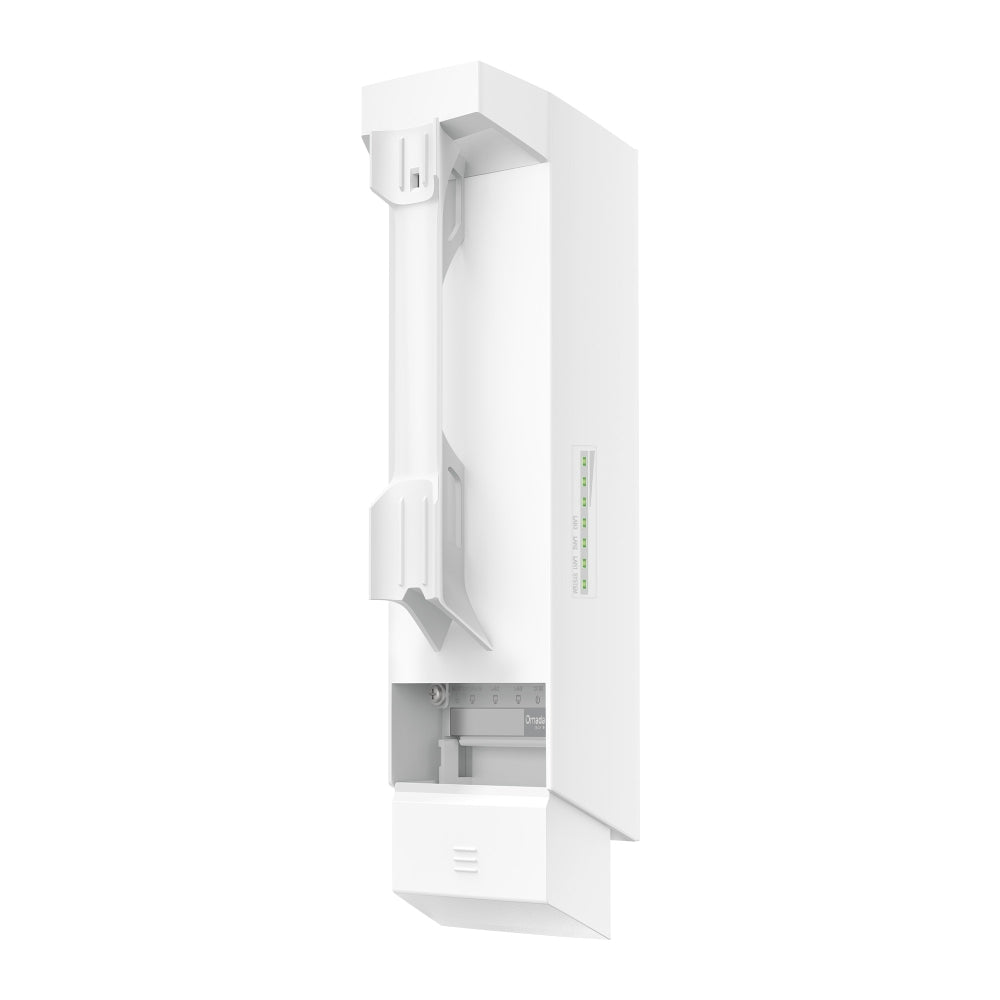

| Mounting |
Pole and wall mounting ( Pole accessories included) |
| WIRELESS FEATURES |
| Coverage |
500 m (0.31 mi)*
|
| Wireless Standards |
IEEE 802.11b/g/n |
| Frequency |
2.4 GHz |
| Signal Rate |
2.4 GHz: Up to 300 Mbps
|
| Wireless Functions |
• MIMO: 2.4G 2 × 2 MIMO
• Mesh
• Beamforming
• Channel: 1-11 (US); 1-13 (EU)
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Guest Network
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast |
| Wireless Security |
• VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption |
| Transmission Power |
• CE:
<20dBm (2.4 GHz, EIRP);
• FCC:
<22dBm (2.4 GHz) |
| Management Features |
| Omada App |
Yes |
| Restore & Backup |
Yes |
| Firmware update via Web |
Yes |
| NTP |
Yes |
| Centralized Management |
• Omada Hardware Controller
• Omada Software Controller
• Omada App
|
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| SNMP |
Yes |
| System Logging Local/Remote Syslog |
Yes |
| SSH |
Yes |
| Web-based Management |
Yes |
| OTHERS |
| Certification |
CE, FCC, RoHS |

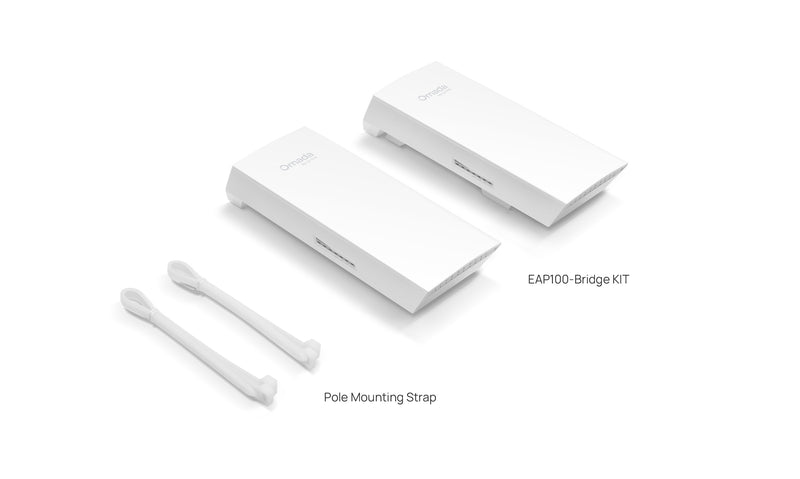

| Package Content |
• EAP100-Bridge KIT
• Installation Guide
• Pole Mounting Kit
|
| Environment |
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing |
