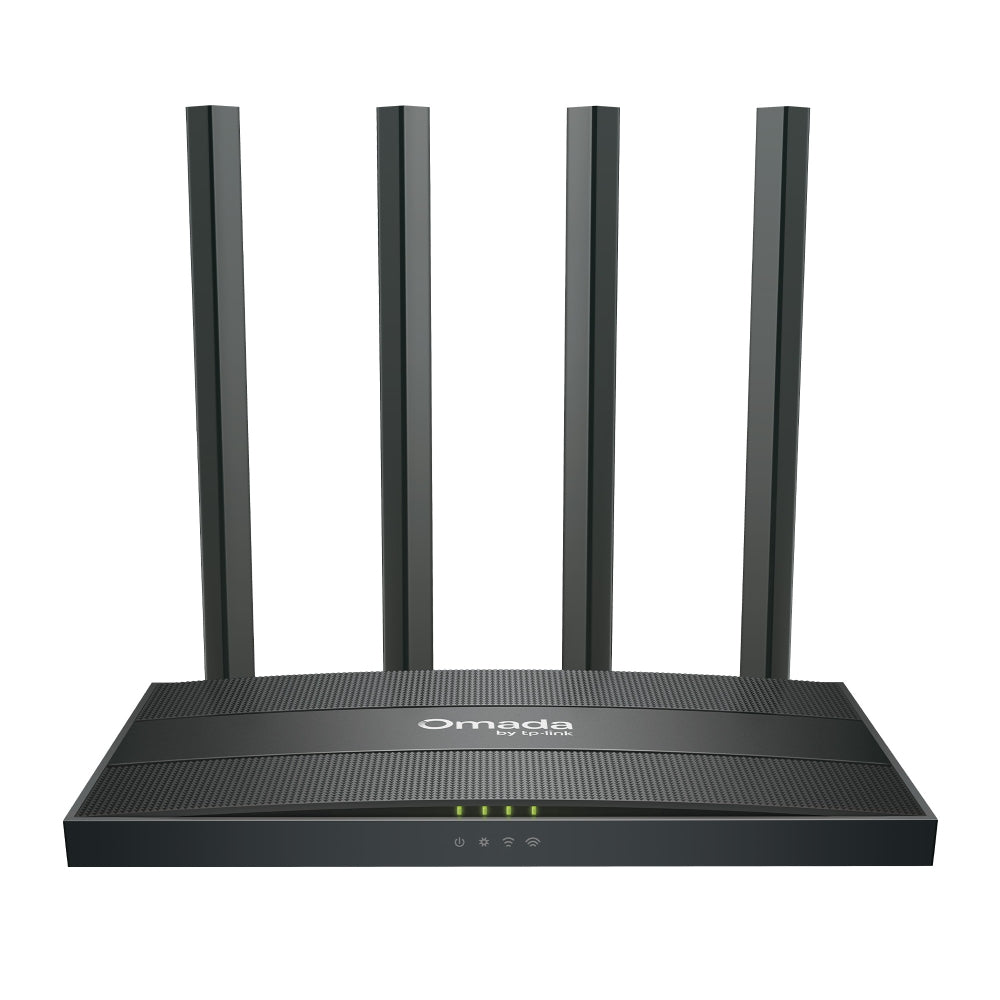

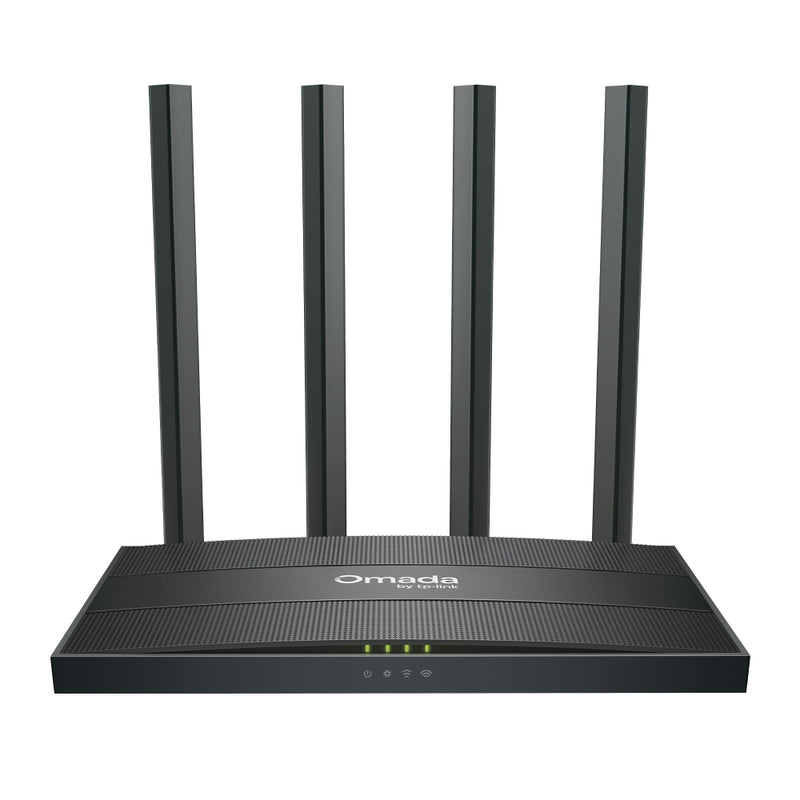

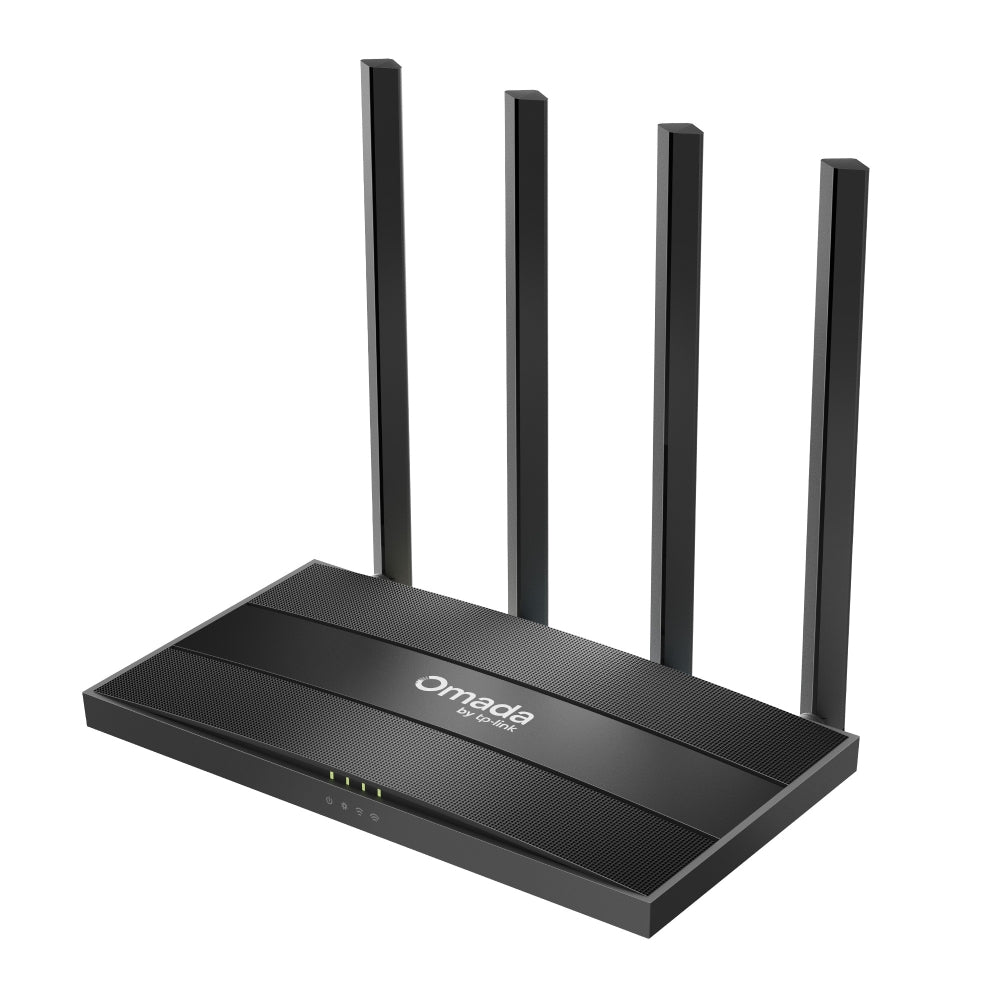

TP-Link ER605W Omada AC1200 Gigabit Wi-Fi Gateway

Roll over image to zoom in Click on image to zoom

TP-Link ER605W Omada AC1200 Gigabit Wi-Fi Gateway

TP-LINKSKU: TL-ER605W

Omada AC1200 Gigabit Wi-Fi Gateway

AC1200 Dual-Band Wi-Fi (867 Mbps on 5 G + 300 Mbps on 2.4 G)^*
5× Gigabit Ethernet Ports Provide High-Speed Connectivity
4× High-Gain External Antennas for Boosted Coverage
Load Balancing on up to 3× WAN Ports
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE^△ VPN
DoS Defense, IP/MAC/URL Filtering, and More Abundant Security Features
Centralised Cloud Management via Web and Omada App

Learn more about Omada Cloud SDN>

SECURITY
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering^△ • URL Filtering • Web Security^△
ARP Inspection	• Sending GARP Packets • ARP Scanning^△ • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES

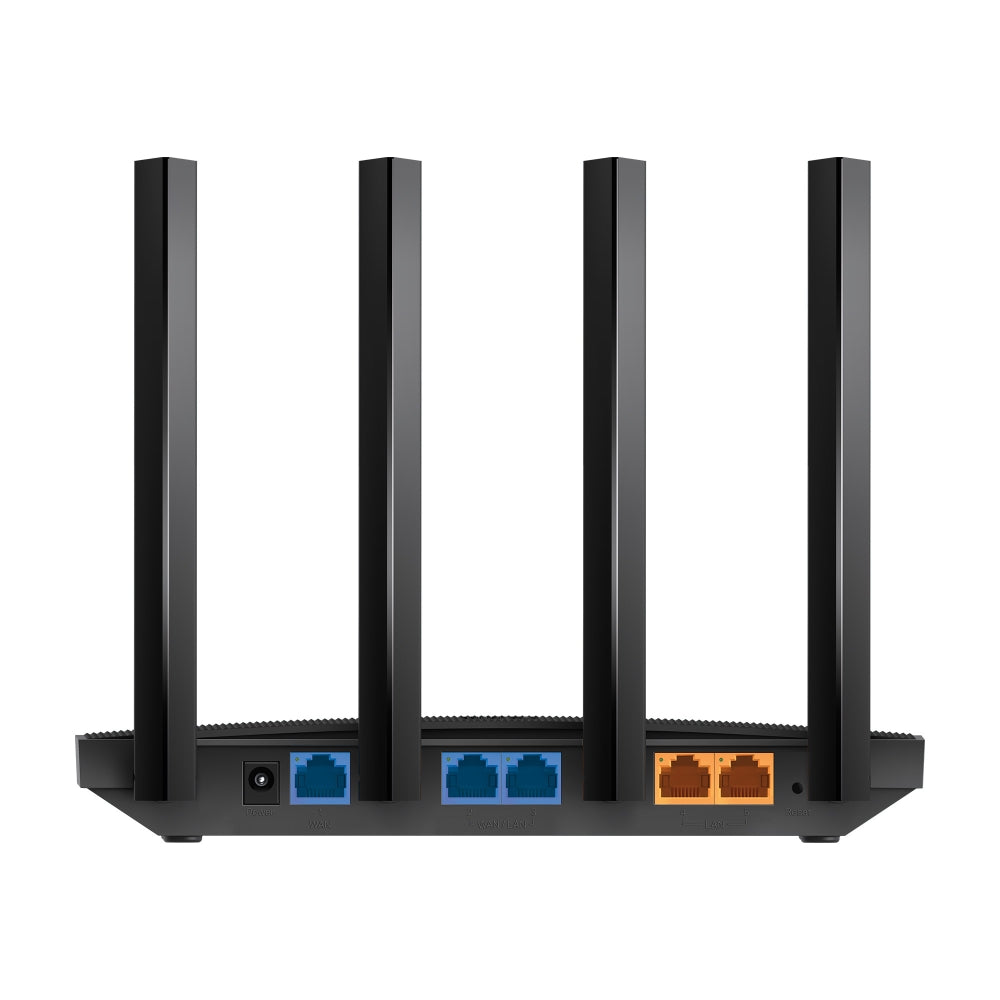

Interface	• 1× Gigabit WAN Port • 2× Gigabit WAN/LAN Ports • 2× Gigabit LAN Ports
Button	Reset Button
Power Supply	12V DC / 1A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 300 Mbps • 5 GHz: 867 Mbps
Flash	128 MB NAND
DRAM	256 MB DDR3
LED	• Power, SYS, 2.4G, 5G • WAN (1000/100/10M Link/Act), • WAN/LAN (1000/100/10M Link/Act) • LAN (1000/100/10M Link/Act)

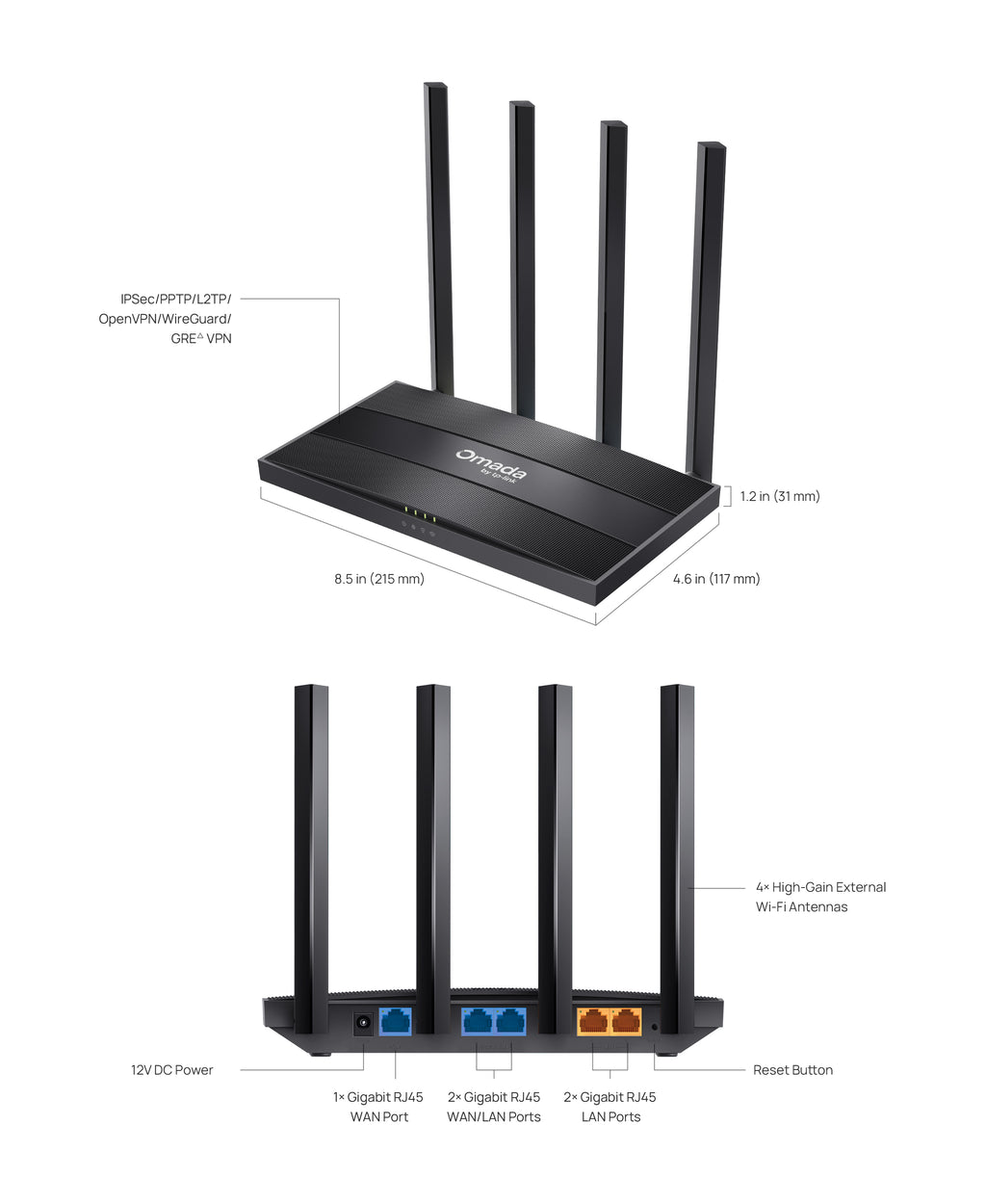

Dimensions ( W x D x H )	8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm)
Antenna	• 2.4 GHz: 2× 5 dBi non-detachable antennas • 5 GHz: 2× 5 dBi non-detachable antennas

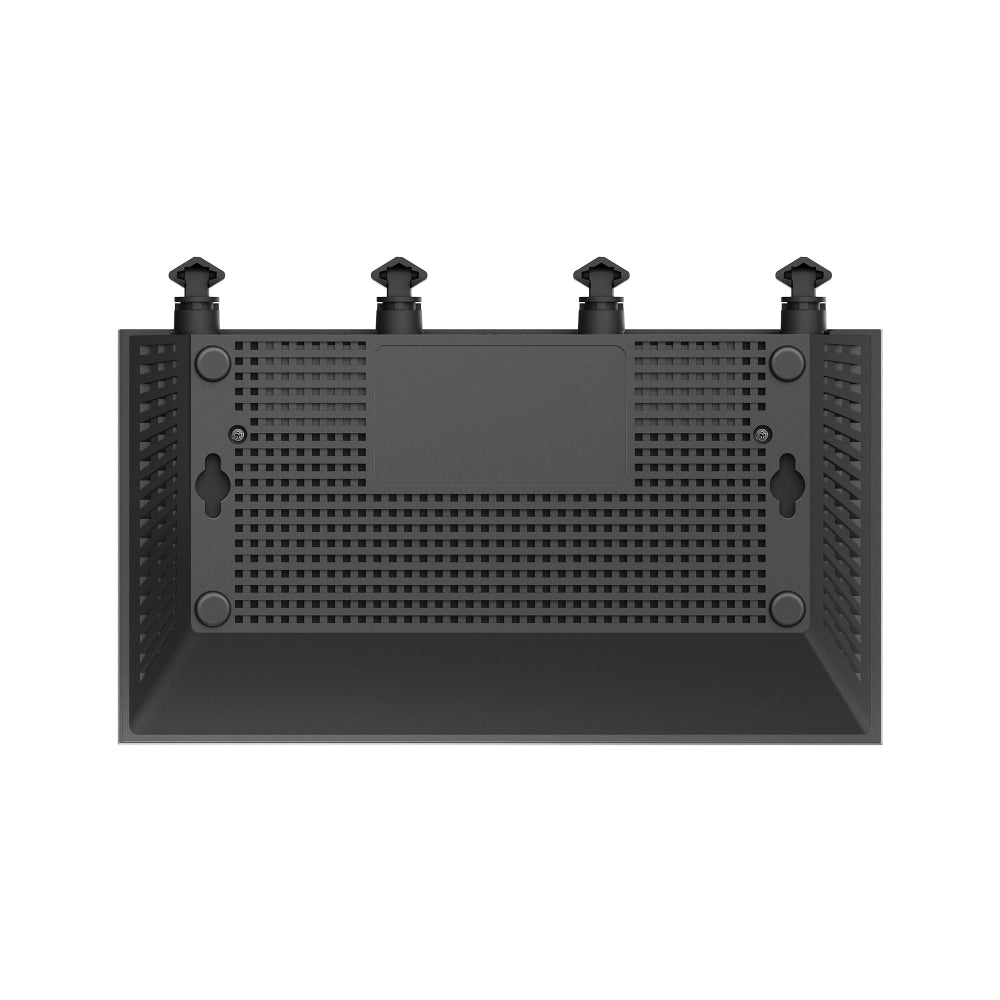

Mounting	Desktop/Wall-mounting
Max. Power Consumption	• EU: 9W • US: 10.3W

PERFORMANCE
GRE	• Unencrypted: 180.1 Mbps • Encrypted: 56.9 Mbps
WireGuard VPN	71.2 Mbps
Concurrent Session	50,000
New Sessions /Second	2,028
NAT (Static IP)	909.3Mbps/937.5 Mbps
NAT(DHCP)	938.3 Mbps /888.2 Mbps
NAT(PPPoE)	929.9 Mbps /929.2 Mbps
NAT (L2TP)	346.9 Mbps /337.6 Mbps
NAT (PPTP)	487.1 Mbps/454.3 Mbps
OpenVPN	16.8 Mbps
L2TP VPN Throughput	• Unencrypted: 400.3 Mbps • Encrypted: 127.5 Mbps
PPTP VPN Throughput	• Unencrypted: 523.6 Mbps • Encrypted: 52.7 Mbps
66 Byte Packet Forwarding Rate	1,453,489 pps /1,453,489 pps
1,518 Byte Packet forwarding rate	81,275 pps / 81,275 pps

WIRELESS FEATURES

Advanced Features

• Multiple SSIDs: 16 in total (8 per radio)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Automatic Channel Selection Algorithm
• Transmit Power Control: Adjust transmit Power on dBm
• Beamforming
• Rate Limit: Based on SSID/Client
• Load Balance
• Band Steering
• RADIUS Accounting
• Reboot Schedule
• MAC Authentication
• Wireless Schedule
• Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP • OSPF
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering^△ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-Based Session Limit

VPN
GRE	Only in Standalone Mode
IPsec VPN	• 6 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec • Failover • IKE v1/v2 • MD5, SHA1, SHA-256, SHA2-384 and SHA2-512 Authentication • Algorithm NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (6) 6 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server L2TP VPN Client (6) 6 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server OpenVPN Client (3) • 18 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	Yes

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password^§ • Hotspot (Local User / Voucher^§ / SMS^§ / Radius^§) • External Radius Sever • External Portal Sever^§ • LDAP

Management Features
Omada App	Yes.
Centralized Management	• Omada App • Omada Hardware Controller • Omada Software Controller
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • Diagnostics (Ping & Traceroute)^△ • NTP Synchronize^△ • Port Mirroring • Syslog Support
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS

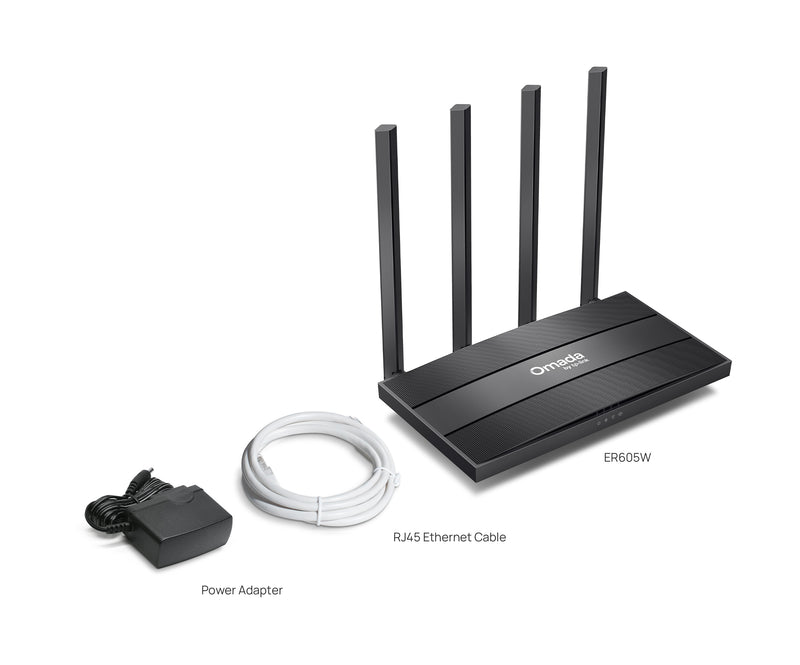

Package Content	• ER605W • Power Adapter • Ethernet Cable • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing

For additional version information, please go to the support page.

^*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network.

^△These features are supported only in Standalone Mode.

^§These features are supported only in Controller Mode.
