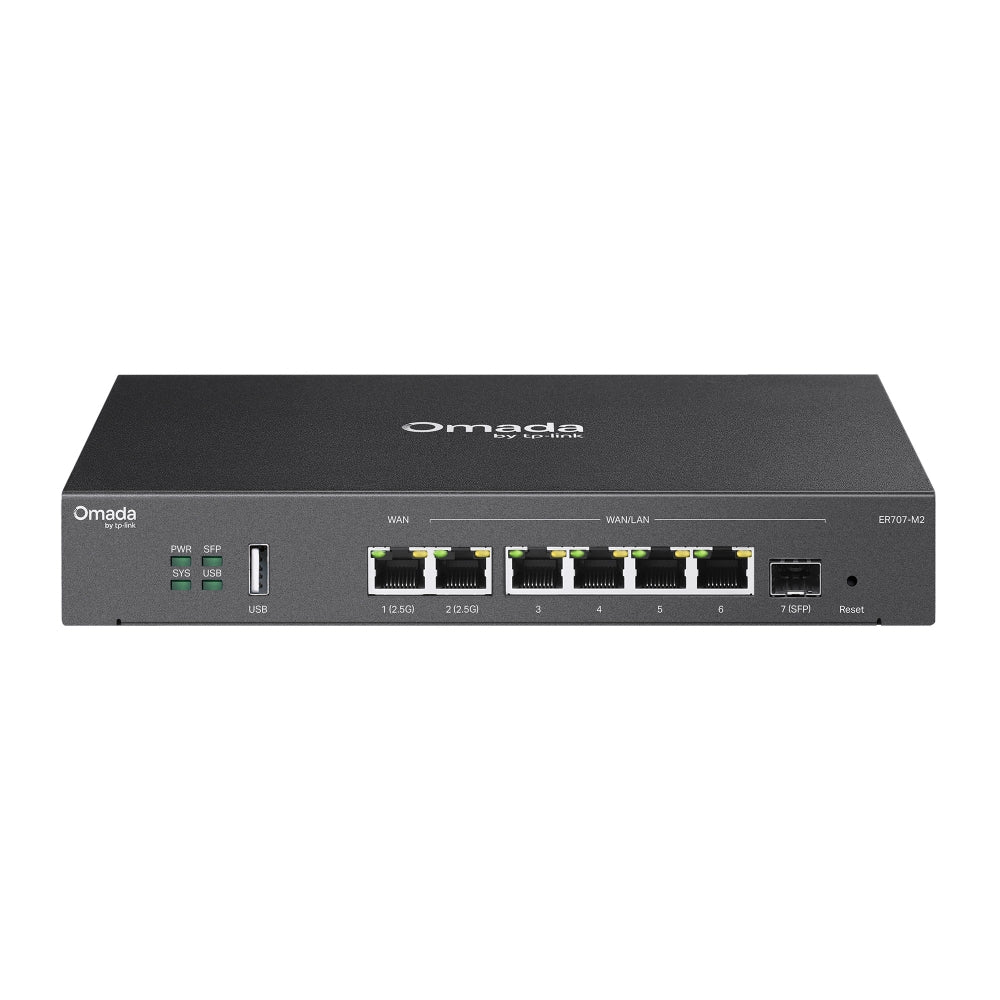

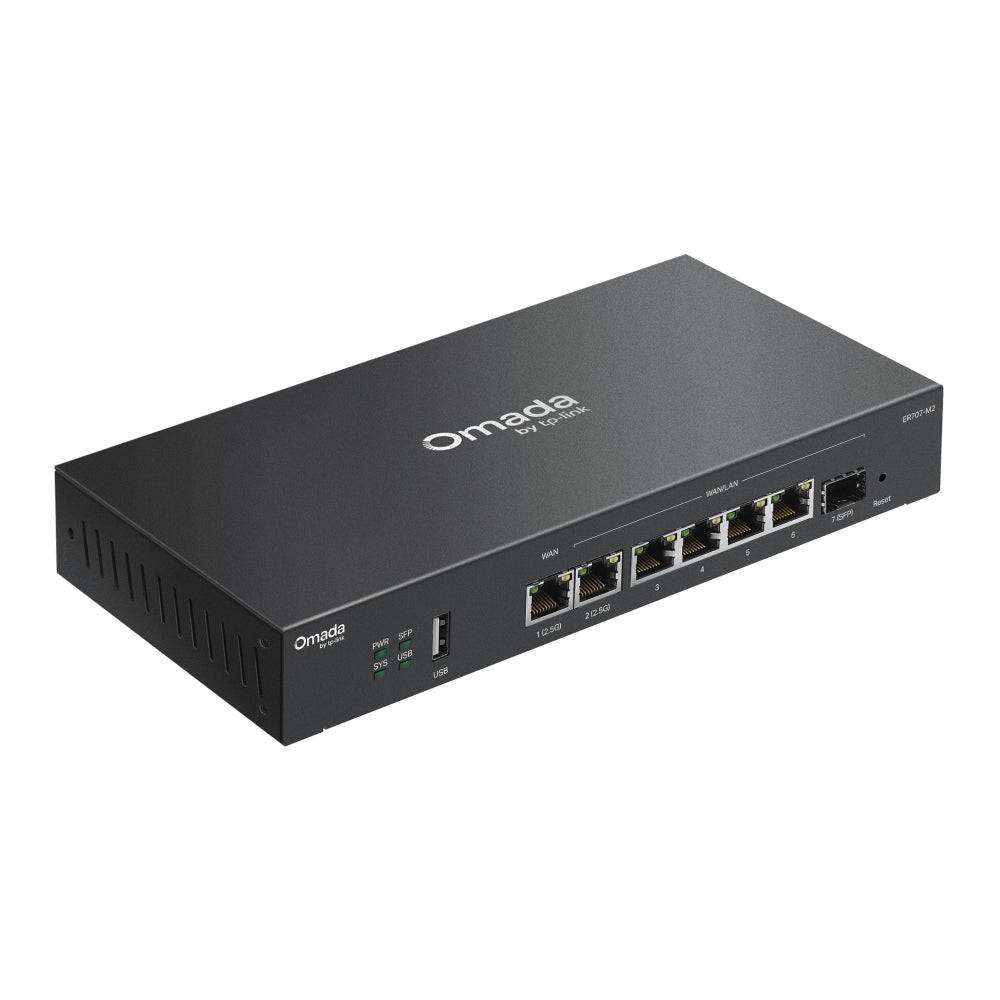

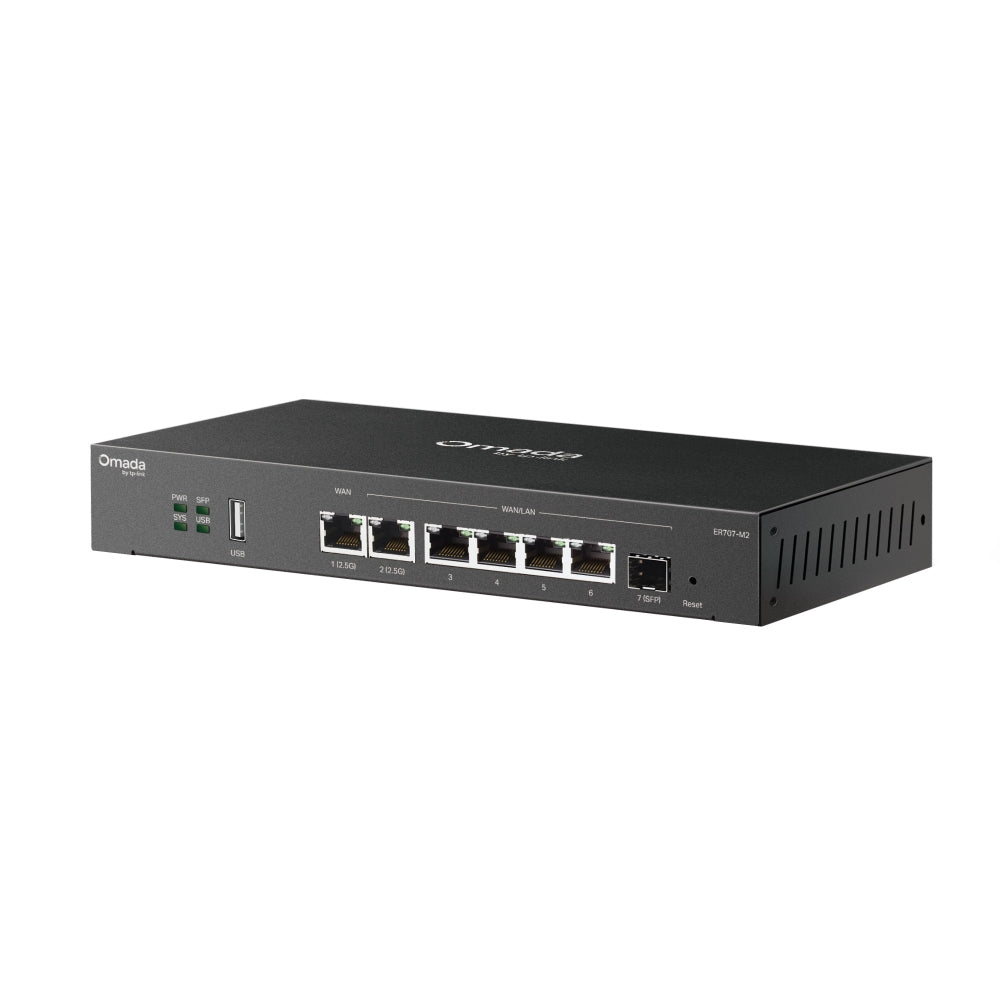

TP LINK ER707-M2 Omada Multi-Gigabit VPN Gateway

TP-LinkSKU: TL-ER707-M2

2× 2.5 Gbps RJ45 ports (1× WAN, 1× WAN/LAN)
5× Gigabit WAN/LAN ports (1× SFP, 4× RJ45)
Load Balancing on up to 6 WAN ports increases the utilisation rate of multi-line broadband
1× USB port (Supports USB storage, and LTE backup with LTE dongle)
High-security SSL/IPSec/GRE/WireGuard/PPTP/L2TP VPN & OpenVPN
Centralised cloud management via the web or the Omada app
DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
Rackmount, Desktop, or Wall Mount

SECURITY
DPI	Deep Packet Inspection Support 2421 type Applications
IDS/IPS	Signature-based IPS/IDS threat detection
Access Control	• Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN
DNS Proxy	DNSSEC, DoH, DoT, DNS Override
Filtering	• Web Group Filtering • URL Categories and URLs Filtering • Web Security
ARP Inspection	• Sending GARP Packets • ARP Scanning • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
CPU	Dual-core ARMv8
Interface	• 1× 2.5G RJ45 WAN Port • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports LTE backup with LTE dongle, and USB Storage)
Fan Quantity	Fanless
Button	Reset Button

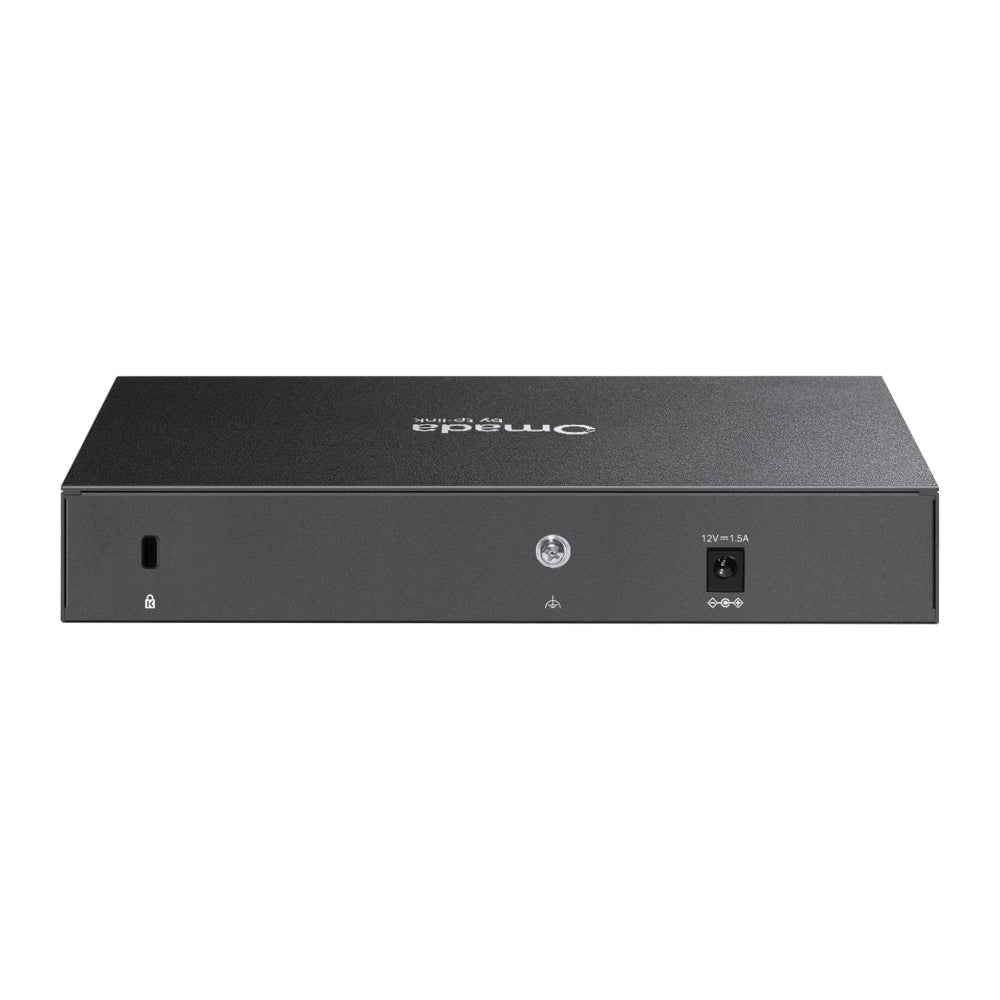

Power Supply	12V/1.5A Adapter
Flash	128 MB NAND
DRAM	1 GB DDR4
LED	PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Weight	0.886 kg
Dimensions (W × D × H)	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Desktop/Wall Mount/Rackmount
Max. Power Consumption	14.2 W (with USB 2.0 connected) 7.1 W (without USB 2.0 connected)

PERFORMANCE
IPS Throughput	TCP: 1552 Mbps UDP: 1206 Mbps
DPI Throughput	TCP: 1823 Mbps UDP: 1272 Mbps
GRE	Unencrypted: 951 Mbps Encrypted: 609 Mbps
WireGuard VPN Throughput	343 Mbps
Concurrent Session	500,000
New Sessions / Second	6,000
NAT (Static IP)	2365.17 Mbps / 2364.45 Mbps
NAT (DHCP)	2364.45 Mbps / 2366.04 Mbps
NAT (PPPoE)	2347.14 Mbps / 2348.29 Mbps
NAT (L2TP)	1308.86 Mbps / 974.10 Mbps
NAT (PPTP)	1236.27 Mbps / 1280.99 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps
OpenVPN	135.0 Mbps
L2TP VPN Throughput	• Unencrypted: 1243.7 Mbps • Encrypted: 561.0 Mbps
SSL VPN Throughput	132.24 Mbps
66 Byte Packet Forwarding Rate	Upload: 3,471,004 pps Download: 3,298,939 pps
1,518 Byte Packet Forwarding Rate	Upload: 202,666 pps Download: 202,348 pps

BASIC FUNCTIONS
LAN DNS	√
WAN Connection Type	• IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6to4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone	Modify WAN/LAN MAC Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
