Omada 8-Port Gigabit Industrial Easy Managed Switch
- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
| HARDWARE FEATURES |
| Interface |
• 6× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP/RJ45 Combo Slots
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity |
Fanless |
| Installation |
• DIN-rail mounting
• Wall mounting |

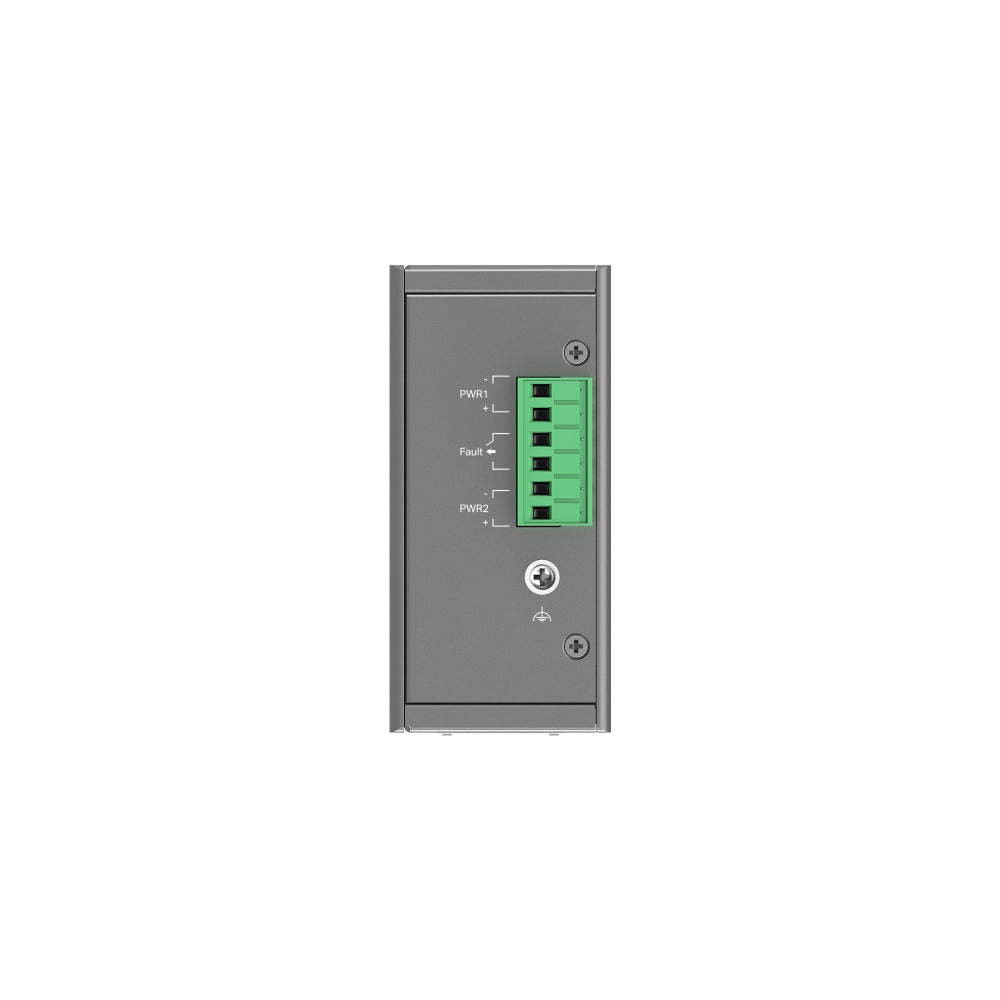

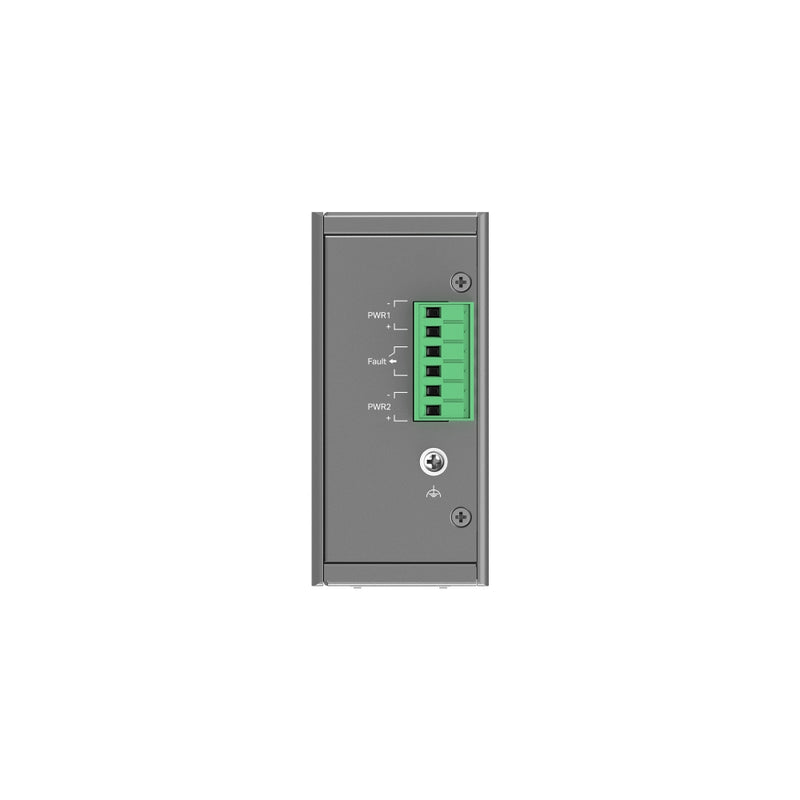

| Power Supply |
9.6-60V 1+1 Redundant DC Power Input |
| Dimensions ( W x D x H ) |
5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
| Surge Protection |
• ±6 kV in common mode for Ethernet ports
• ±4 kV in common mode for DC power input ports |
| PERFORMANCE |
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4 Mbit |
| Jumbo Frame |
15 KB |
| SOFTWARE FEATURES |
| Quality of Service |
• 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features |
• Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w) |
| L2 Multicast |
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN |
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method |
Store-And-Forward |
| Management Features |
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
|
| OTHERS |
| Certification |
FCC, CE, RoHS |

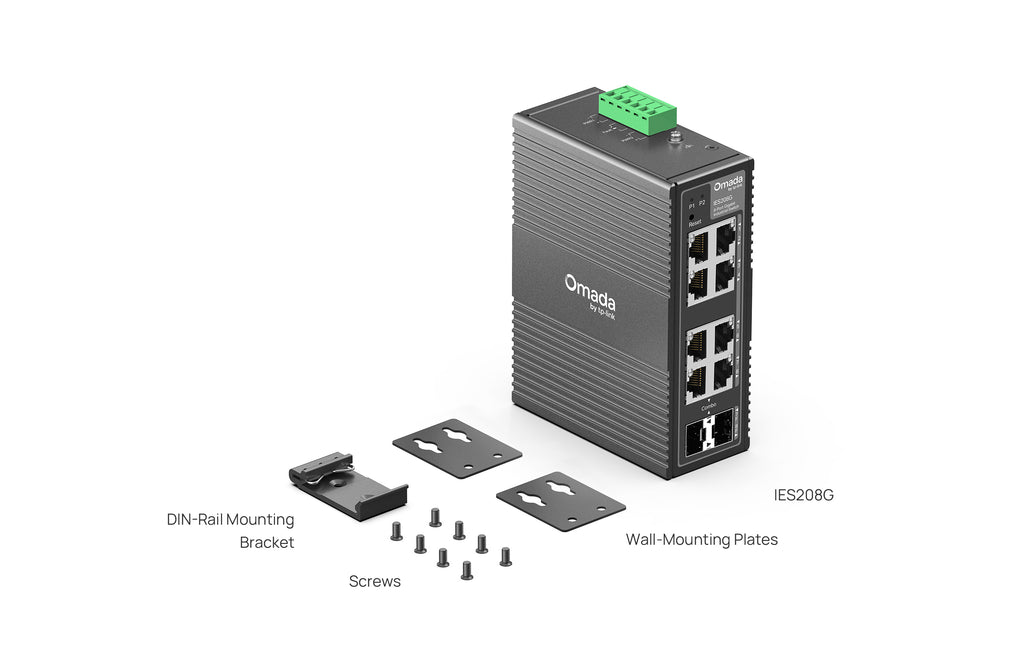

| Package Content |
• IES208G
• DIN-Rail Mounting Bracket
• Wall-Mounting Plates
• Installation Guide |
| Environment |
• Operating Temperature: -40℃~75℃ (-40℉~167℉)
• Storage Temperature: -40℃~85℃ (-40℉~185℉)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing |
