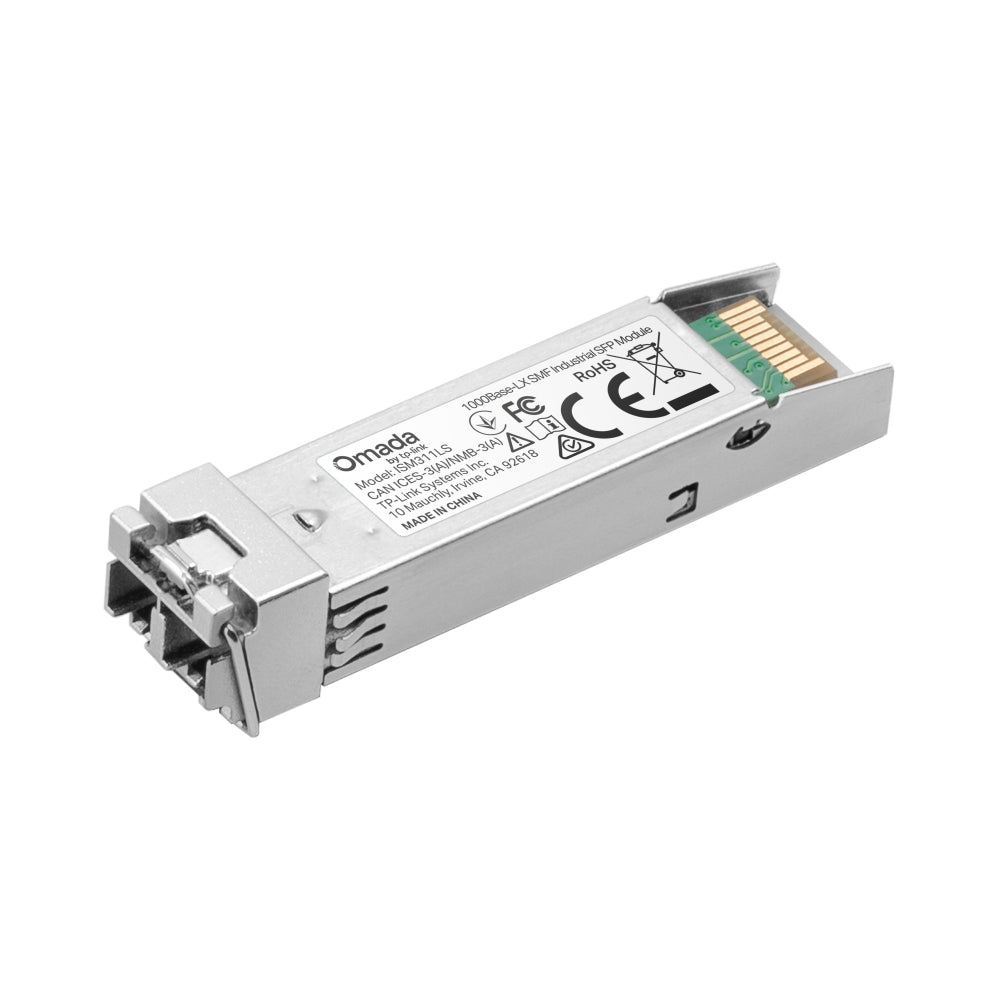

1000Base-LX SMF Industrial SFP Module
- Single-mode SFP LC Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Industrial Product Operating Temperature Range: -40-85°C
What This Product Does
ISM311LS is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LS can extend the distance to 20km. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| Transceiver |
| Standards and Protocols |
IEEE 802.3z,TCP/IP |
| Wave Length |
1310 nm |
| Power Supply |
3.3V |
| Fiber Type |
9/125 µm Single-mode |
| Max. Cable Length |
20 km |
| Data Rate |
1.25 Gbps |
| Connector |
LC Duplex |
| Regulatory Compliance |
FCC, CE |
| Environment |
• Operating Temperature: -40˚C~ 85˚C (-40˚F~ 185˚F)
• Storage Temperature: -40℃~85℃ (-40˚F~ 185˚F)
• Operating Humidity: 5%~85% non-condensing
• Storage Humidity: 5%~85% non-condensing |
| HARDWARE FEATURES |
| DDM |
Yes |
| SFP-MSA |
Yes |
| Hot Swappable |
Yes |
| Dimensions ( W x D x H ) |
2.2*0.5* 0.4 in (56.4*13.4*11.0 mm) |
| Package Content |
| Package Content |
• ISM311LS
• Installation Guide |
