• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 2 km

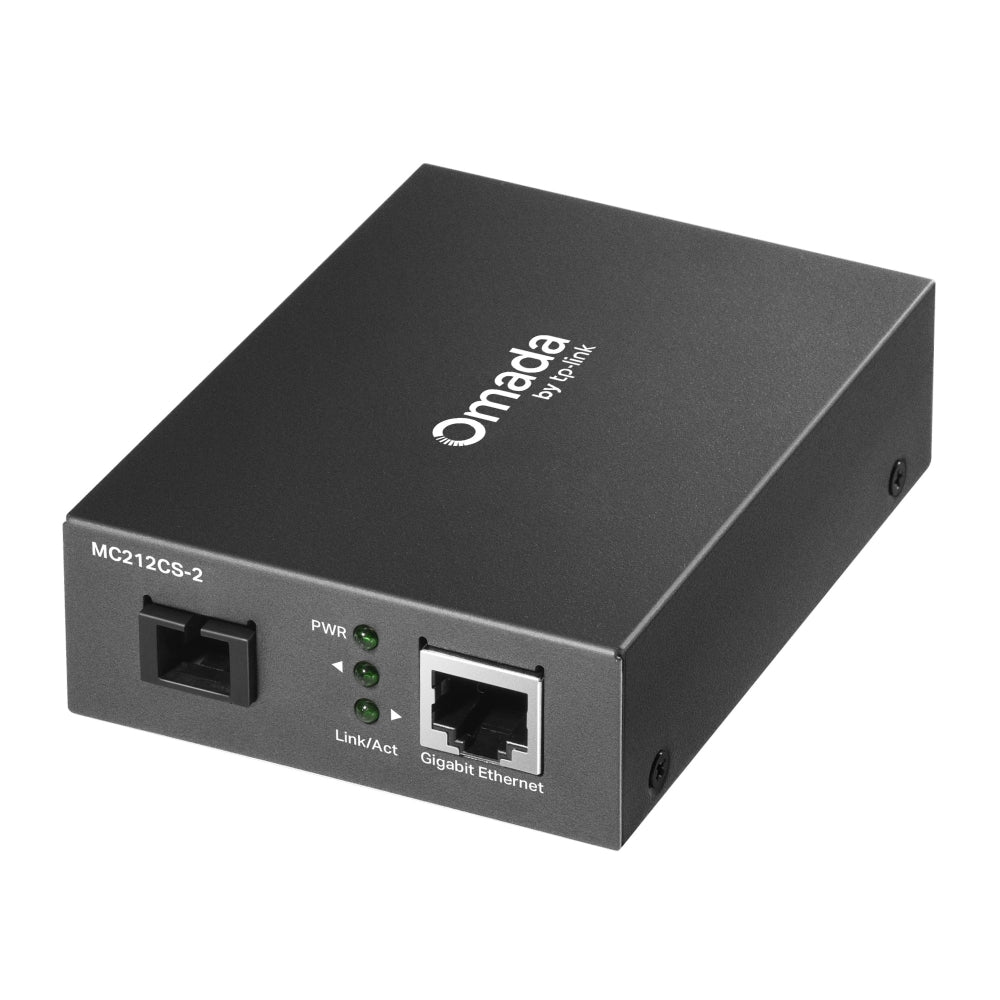

MC212CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
| NETWORK |
| Standards and Protocols |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| HARDWARE FEATURES |
| Interface |
• 1× Gigabit SC/UPC Fiber Port
• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Power Supply |
External Power Adapter: 9 V/0.6 A |
| LED |
PWR, Link/Act |
| Wave Length |
1310 nm TX, 1550 nm RX |
| Dimensions ( W x D x H ) |
94.5x73x27 mm (37.2x28.7x10.6 in) |
| ENVIRONMENT |
| Operating Temperature |
-5˚C to 50˚C (23˚F to 122˚F) |
| Storage Temperature |
-40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity |
10% to 90% RH non-condensing |
| Storage Humidity |
5% to 90% RH non-condensing |
| OTHERS |
| Package Content |
• Media Converter MC212CS-2
• Power Adapter
• Installation Guide |
