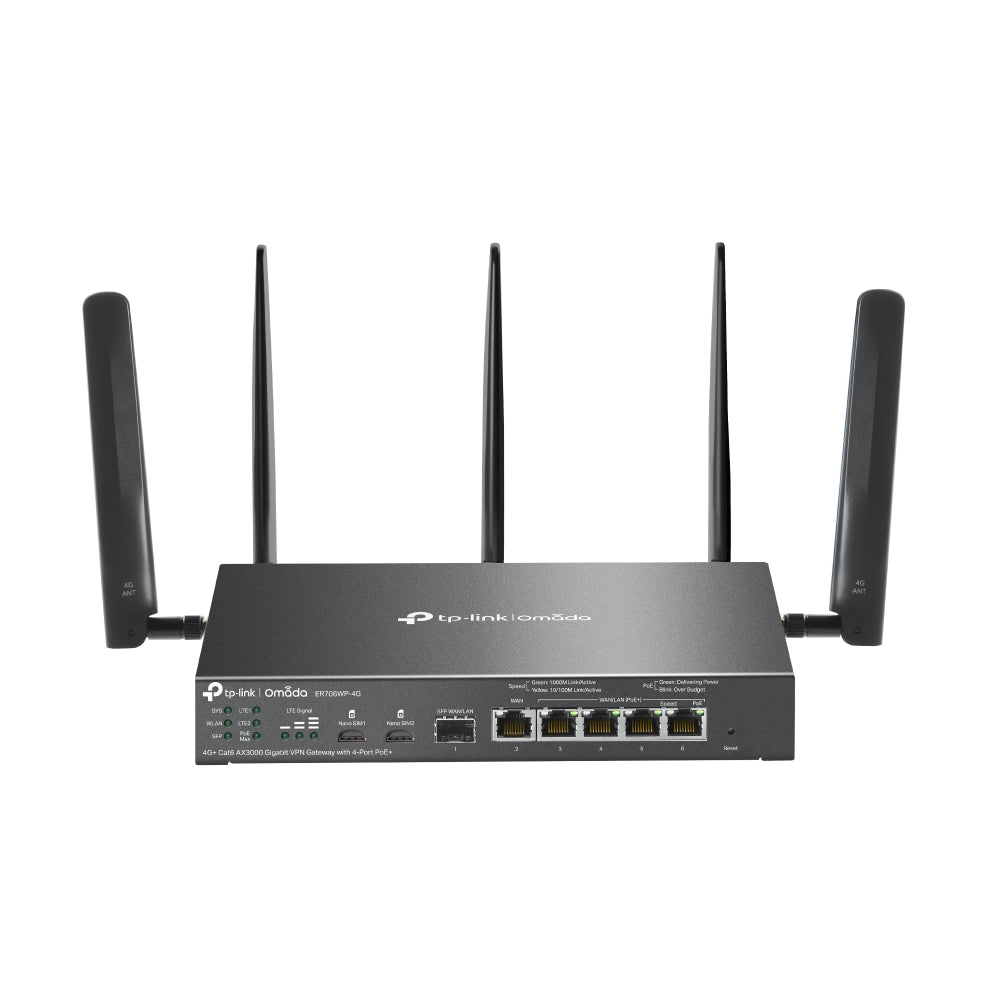

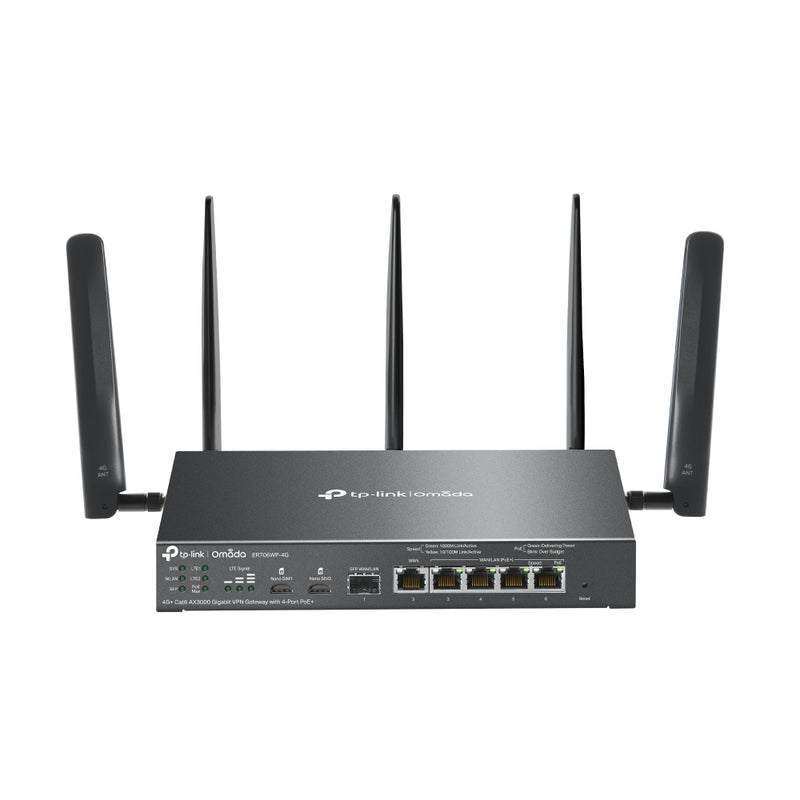

Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+
-
Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US).
-
AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz***
-
5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
-
5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
-
Centralised Management: Cloud access and the Omada app for easy management.
-
Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*△
-
High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.
SPECIFICATIONS
| 4G |
| Network Type |
LTE Band of EU:
• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/
900/800/700/1450 MHz)
• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation of EU:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41 |
| SIM Type |
2× Nano SIM Card( (4G+ Cat6) |
| Frequency |
• Downlink: 300 Mbps;
• Uplink: 50 Mbps |
| SECURITY |
| DPI |
Application control via DPI / Updated app library |
| IDS/IPS |
Signature-based IPS/IDS threat detection |
| Access Control |
Source/Destination IP Based Access Control |
| Filtering |
• Web Group Filtering†
• URL Filtering
• Web Security†
|
| ARP Inspection |
• Sending GARP Packets
• ARP Scanning†
• IP-MAC Binding |
| Attack Defense |
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN |
| HARDWARE FEATURES |
| Interface |
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button |
Reset Button |
| Power Supply |
4 Ports PoE+ Output, 45 W PoE Budget |
| Wi-Fi Frequency & Signal Rate |
• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160) |
| Flash |
256 MB NAND |
| DRAM |
512 MB DDR4 |
| LED |
SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE) |
| Dimensions ( W x D x H ) |
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
|

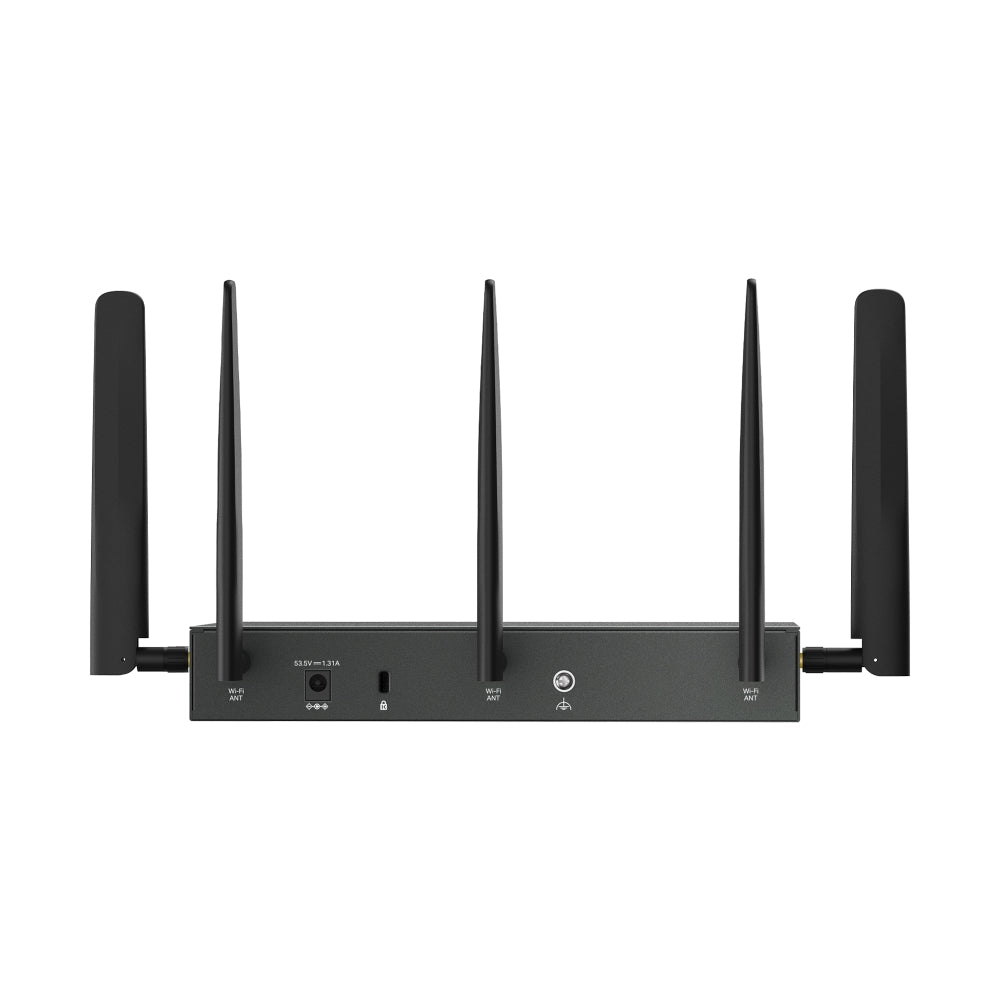

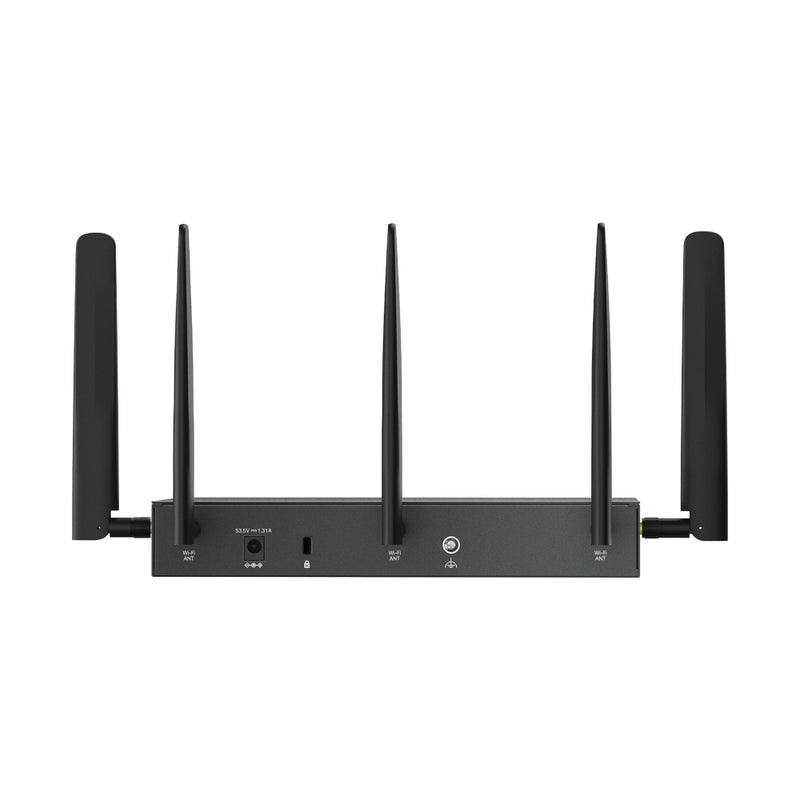

| Antenna |
• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas |

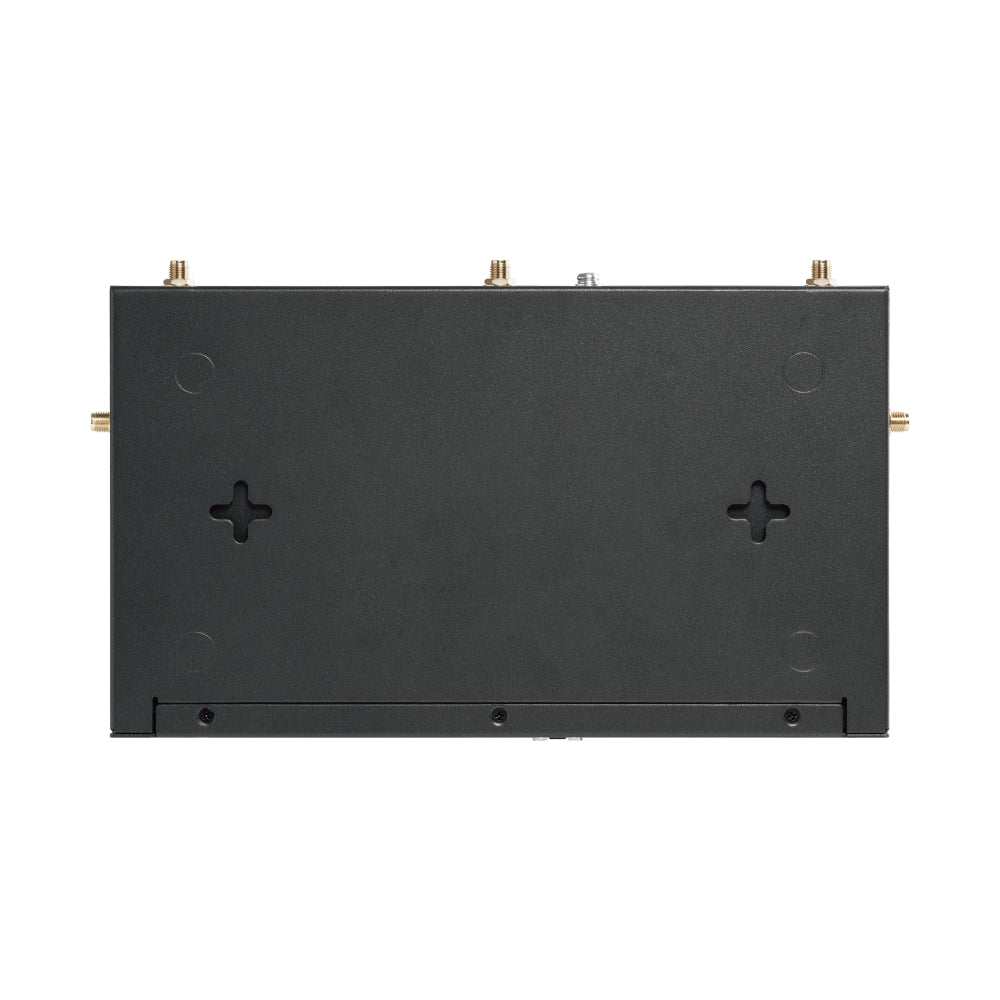

| Mounting |
Desktop/Wall-Mounting/Rackmount |
| Max. Power Consumption |
64.9W with PoE Max; 19.8W without PoE |
| PERFORMANCE |
| IPS Throughput |
• TCP: 229 Mbps
• UDP: 188 Mbps
|
| DPI Throughput |
• TCP: 933 Mbps
• UDP: 927 Mbps |
| GRE |
• Unencrypted: 545.3Mbps
• Encrypted: 282.6Mbps |
| WireGuard VPN |
387.7Mbps |
| Concurrent Session |
150,000 |
| New Sessions /Second |
5,100 |
| NAT (Static IP) |
947.1Mbps / 940.1Mbps |
| NAT(DHCP) |
949.2Mbps / 941.1Mbps |
| NAT(PPPoE) |
942.6Mbps / 941.1Mbps |
| NAT (L2TP) |
875.4Mbps / 892.0Mbps |
| NAT (PPTP) |
881.2Mbps / 895.8Mbps |
| IPsec VPN Throughput |
• ESP-SHA1-AES256: 652.2Mbps
• ESP-SHA256-AES256: 654.4Mbps
• ESP-SHA384-AES256: 646.5Mbps
• ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN |
115.5Mbps |
| L2TP VPN Throughput |
• Unencrypted: 990.0Mbps
• Encrypted: 475.0Mbps |
| PPTP VPN Throughput |
• Unencrypted: 1177.9Mbps
• Encrypted: 177.4Mbps |
| SSL VPN Throughput |
122.5Mbps |
| 66 Byte Packet Forwarding Rate |
1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate |
81274 pps / 91275 pps |
|
WIRELESS FEATURES
|
| Advanced Features |
• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network |
Support |
| BASIC FUNCTIONS |
| WAN Connection Type |
• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP |
| MAC Clone |
Modify WAN Address |
| DHCP |
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP |
| SMS |
Receive / Send SMS |
| IPv6 |
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN |
802.1Q VLAN |
| IPTV |
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features |
| Access Control |
IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing |
• Static Routing
• Policy Routing
• RIP†
• OSPF†
|
| Bandwidth Control |
IP-Based Bandwidth Control
|
| Load Balance |
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection |
| NAT |
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering†
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP |
| Session Limit |
IP-Based Session Limit |
| VPN |
| GRE |
Only in Standalone Mode |
| SSL VPN |
50 Tunnels |
| IPsec VPN |
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS) |
| PPTP VPN |
• PPTP VPN Server
• PPTP VPN Client (10)△
• 50 Tunnels
• PPTP with MPPE Encryption |
| L2TP VPN |
• L2TP VPN Server
• L2TP VPN Client (10)△
• 50 Tunnels
• L2TP over IPSec |
| OpenVPN |
• OpenVPN Server
• OpenVPN Client (5)△
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode |
| WireGuard VPN |
• 20 Tunnels |
| AUTHENTICATION |
| Web Authentication |
• No Authentication
• Simple Password§
• Hotspot (Local User / Voucher§ / SMS§ / Radius§)
• External Radius Sever
• External Portal Sever§
• LDAP |
| Management Features |
| Omada App |
Yes. |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
|
| Cloud Access |
Yes. |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance |
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)†
• NTP Synchronize†
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support |
| Zero-Touch Provisioning |
Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features |
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Content |
• ER706WP-4G
• Power Adapter
• Quick Installation Guide |
| System Requirements |
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux |
| Environment |
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing |
