Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, no configuration required
Integrated power supply
Durable metal casing
What This Product Does

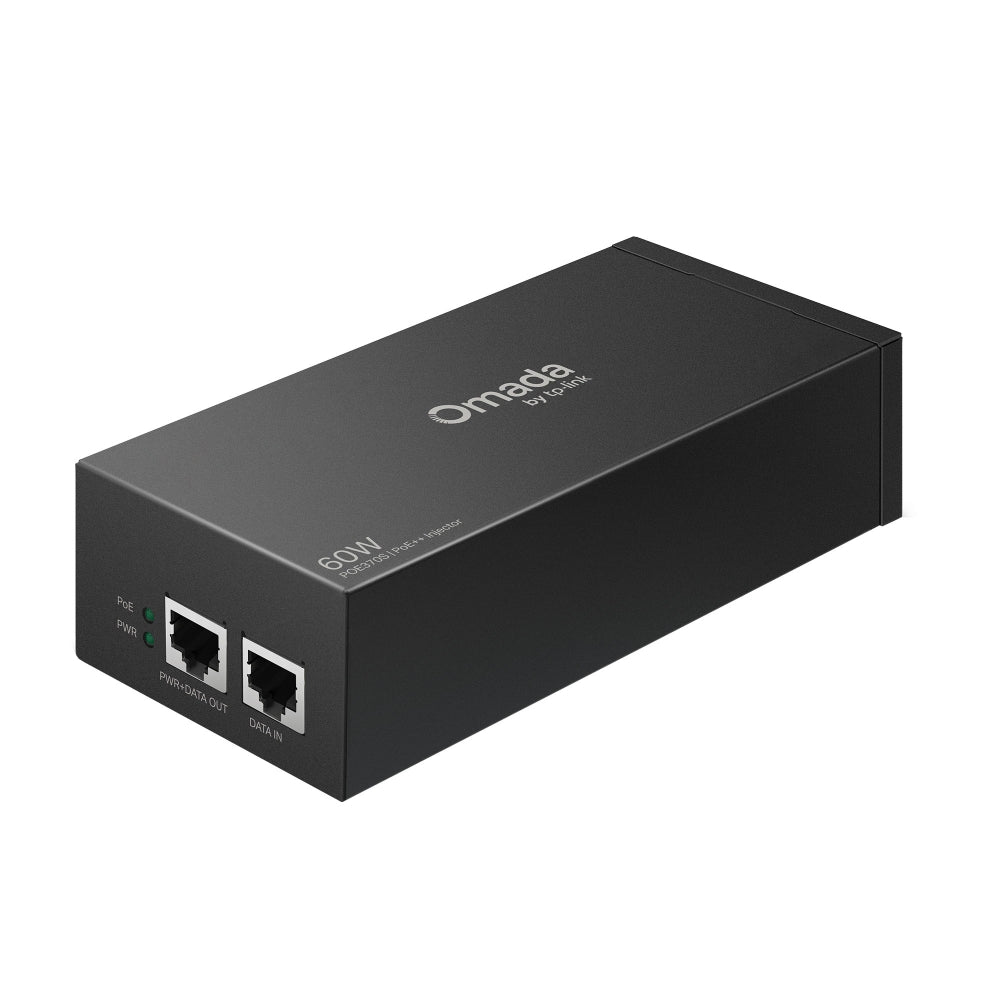

The Omada PoE++ Injector POE370S fully complies with IEEE 802.3af/at/bt (type 3) standards with up to 60 W power supply.* It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
• 10Base-T/100Base-TX: UTP category 5 cable or above (maximum 100 m) • 1000Base-T/2.5GBase-T: UTP category 5e cable or above (maximum 100 m) • 5GBase-T: UTP category 5e cable or above (maximum 100 m) • 10GBase-T: UTP category 6 cable or above (maximum 50 m) STP category 6a cable or above (maximum 90 m)
Max. Power Consumption
60 W
LED

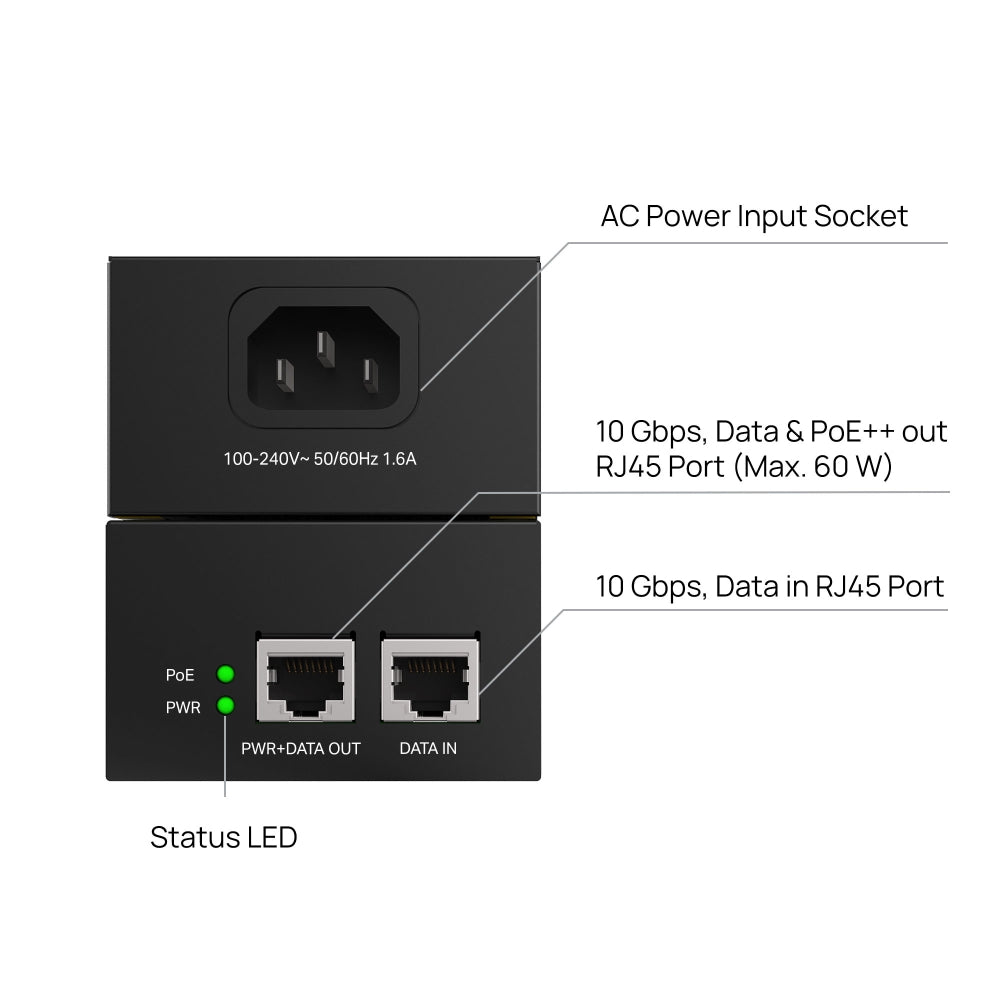

PWR, PoE
Dimensions ( W x D x H )
154.7 × 70 × 42 mm (6.09 × 2.76 × 1.65 in)
OTHERS
Certification
FCC, CE
Package Content
• POE370S • Power Cord • Installation Guide
Environment
• Operating Temperature: -5°C to 45°C (23°F to 113°F)ether • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing
