• 54V passive PoE supported
• Convenient wall-mount design
• Auto-determine the necessary power requirements
• 2.5Gbps/1000Mbps/100Mbps/10Mbps speed support
• Plug-and-Play, requires no configuration
• Maximum power up to 30W

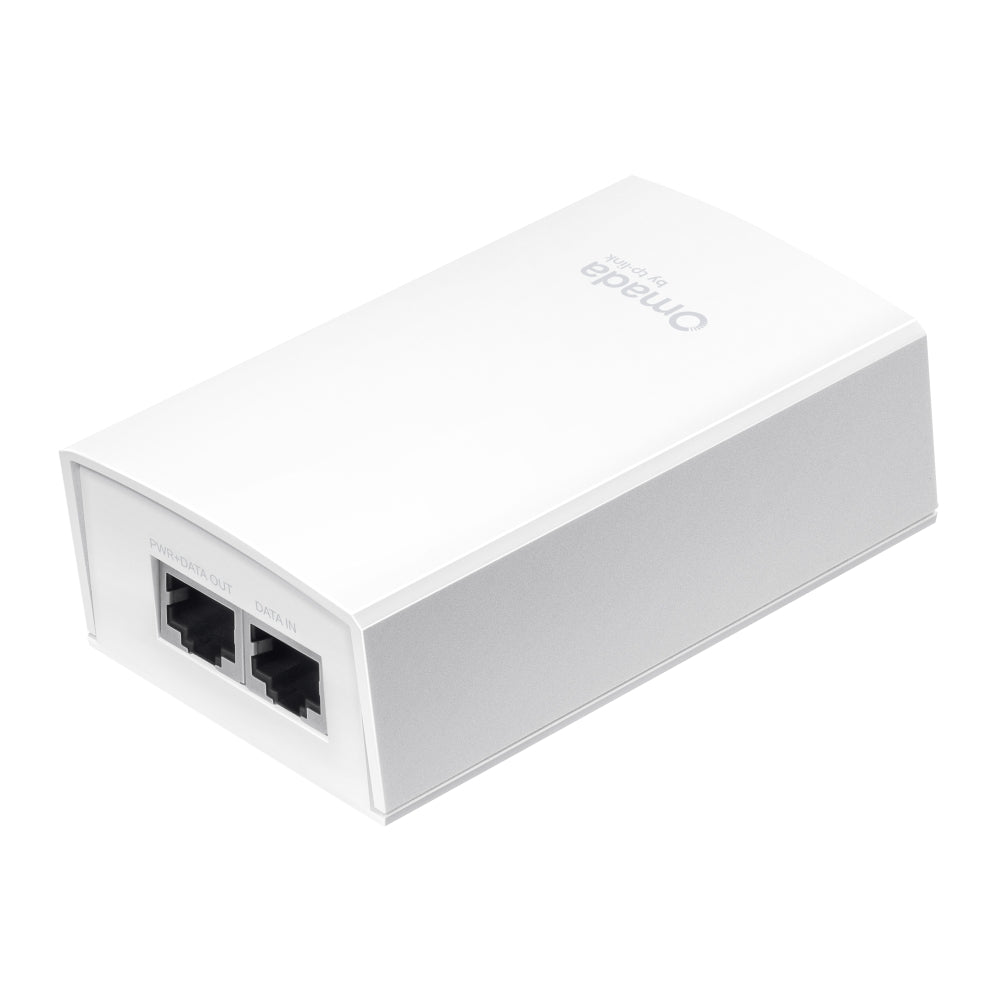

The passive PoE adapter POE5430G-M2 can be used to simultaneously supply power and transmit data to a passive PoE device.
| HARDWARE FEATURES |
| Interface |

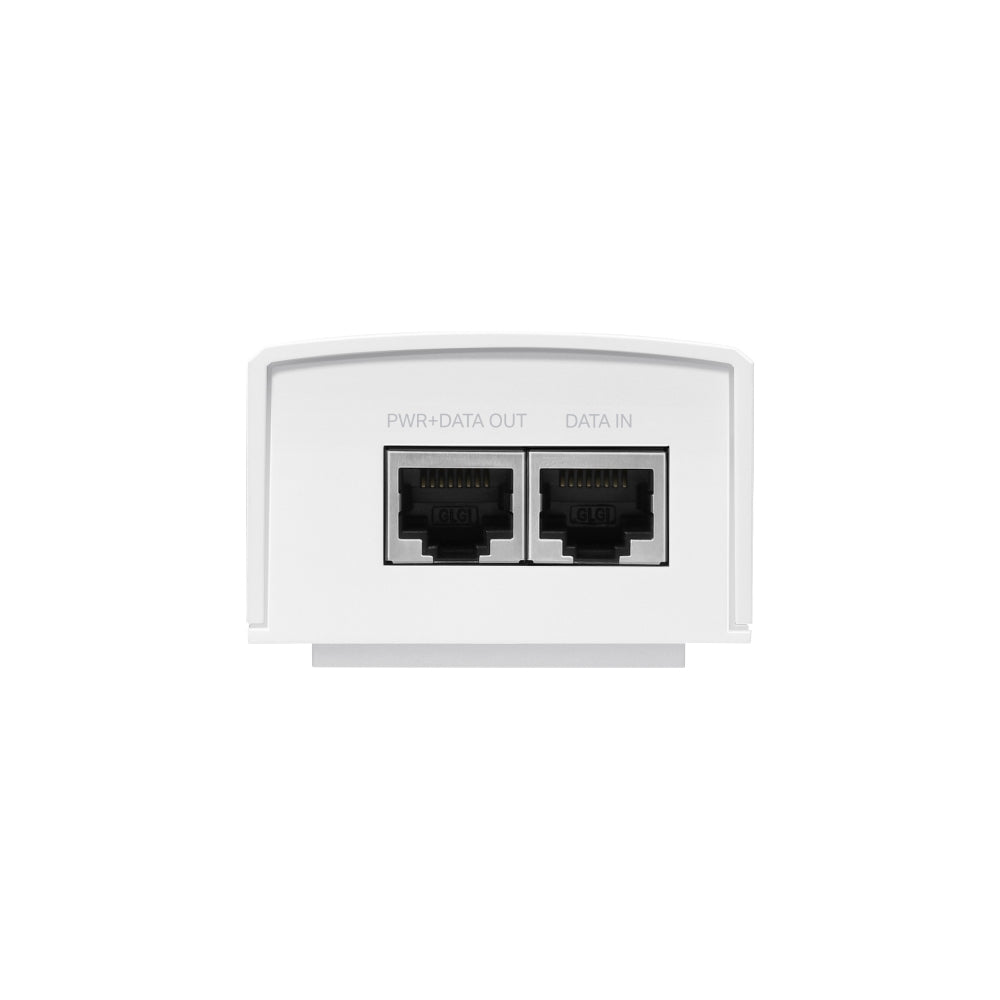

• 10/100/1000/2500 Mbps Auto-Negotiation RJ45 DATA IN port
• 10/100/1000/2500 Mbps Auto-Negotiation RJ45 PWR+DATA OUT port |
| Power Supply |
54V/0.56A |
| LED |
PWR |
| Dimensions ( W x D x H ) |
4.33x2.24x1.42 in（110x57x36 mm ） |
| OTHERS |
| Certification |
CE, FCC, BSMI, UL, KC |
| Package Content |
• POE5430G-M2
• Power Cord
• Installation Guide |
| Environment |
• Operating Temperature: -5℃~40℃ (23℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
