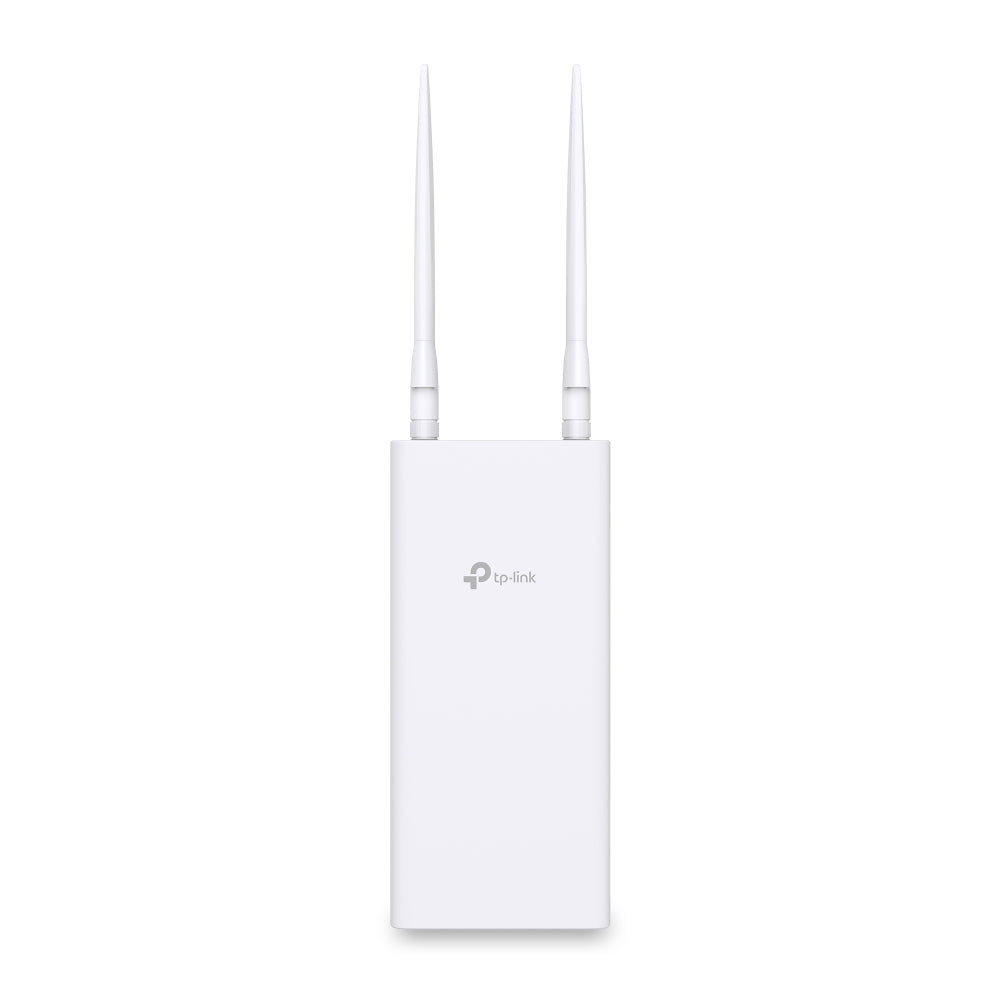

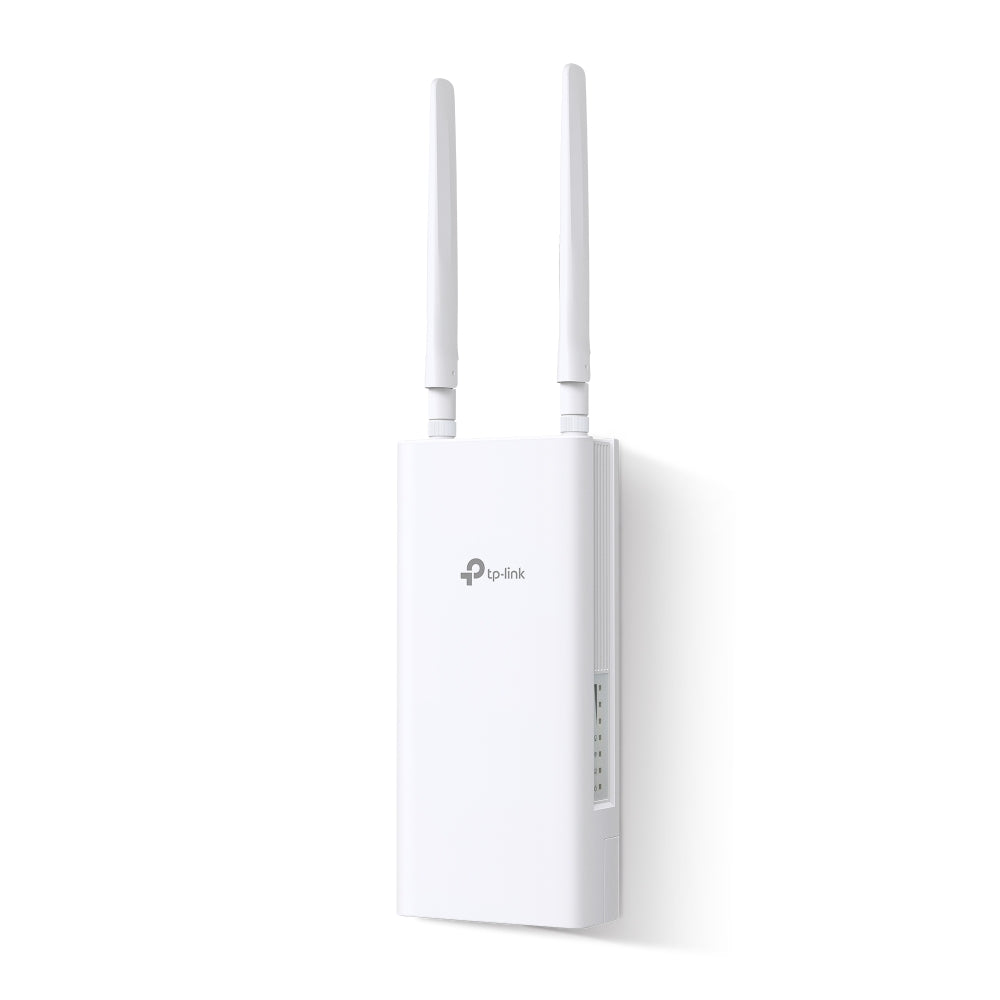

TP-Link TL-MR100-Outdoor, 4G 300 Mbps Wi-Fi Outdoor Router

Roll over image to zoom in Click on image to zoom

TP-Link TL-MR100-Outdoor, 4G 300 Mbps Wi-Fi Outdoor Router

TP-LINKSKU: TL-MR100-OUTDOOR

4G 300 Mbps Wi-Fi Outdoor Router

4G LTE and Fast Wi-Fi Speed : supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .*

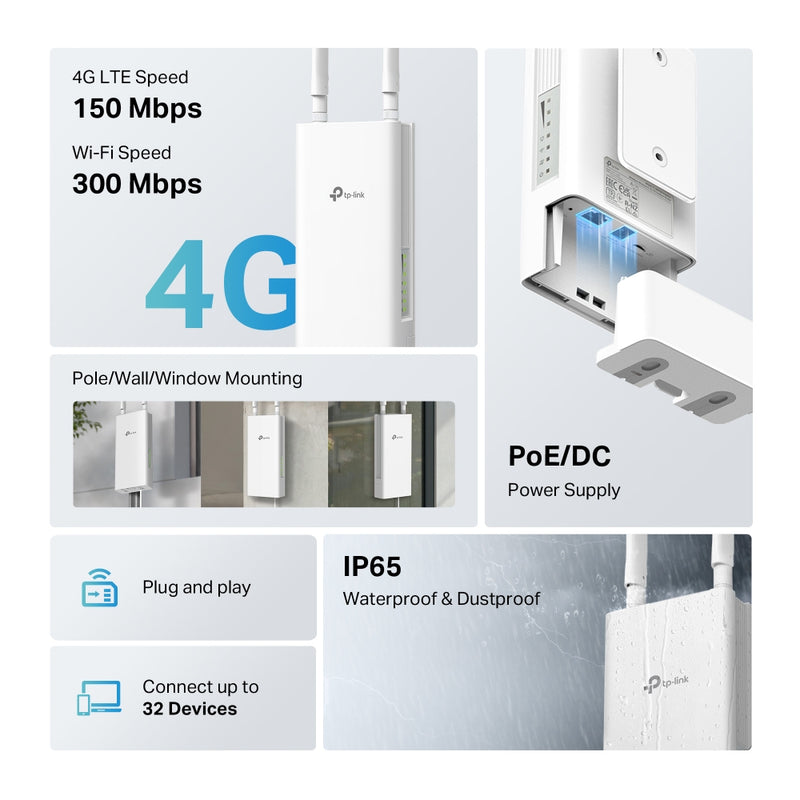

Durable Outdoor Enclosure: Robust outdoor connectivity and reliability with IP65 weatherproof protection** and ±6kV lightning protection & ±15kV ESD protection^§.

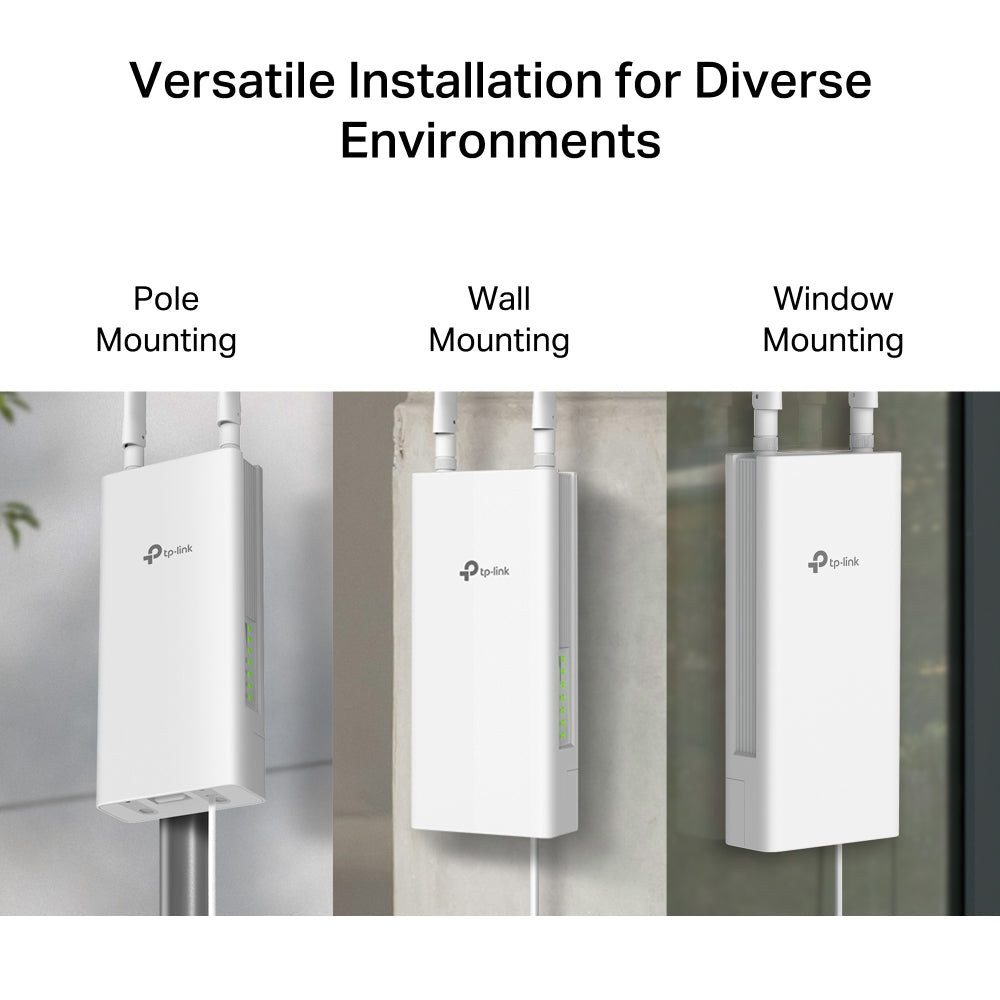

Multiple Mounting Installation: Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.

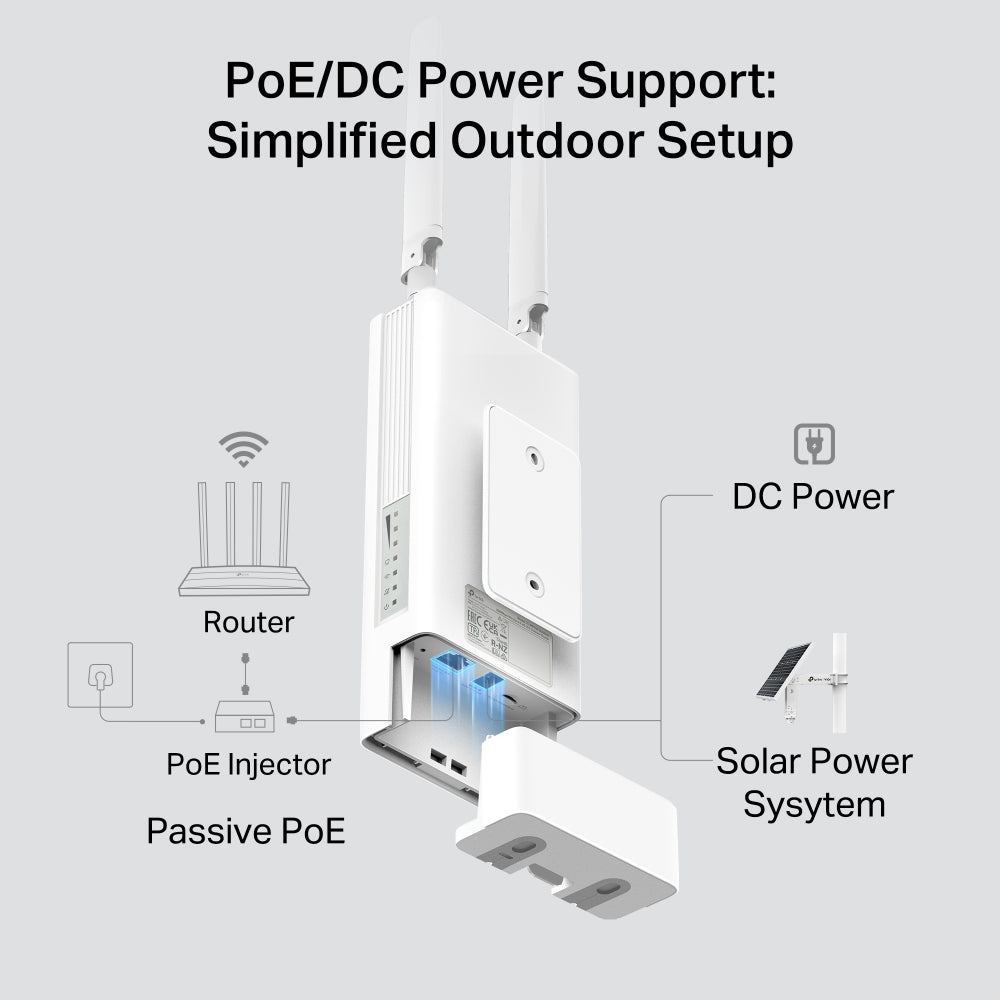

PoE/DC Power Supply: Supports 802.3af/802.3at PoE and passive PoE, enabling easy deployment.
Plug and Play: Plug in a SIM card to get instant internet access anywhere.
Simplified Setup: Easily set up and manage your network with the Tether app.

4G
Network Type	4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Speed	Download Speed 150 Mbps Upload Speed 50 Mbps
SIM Type	1×Nano SIM Card

HARDWARE

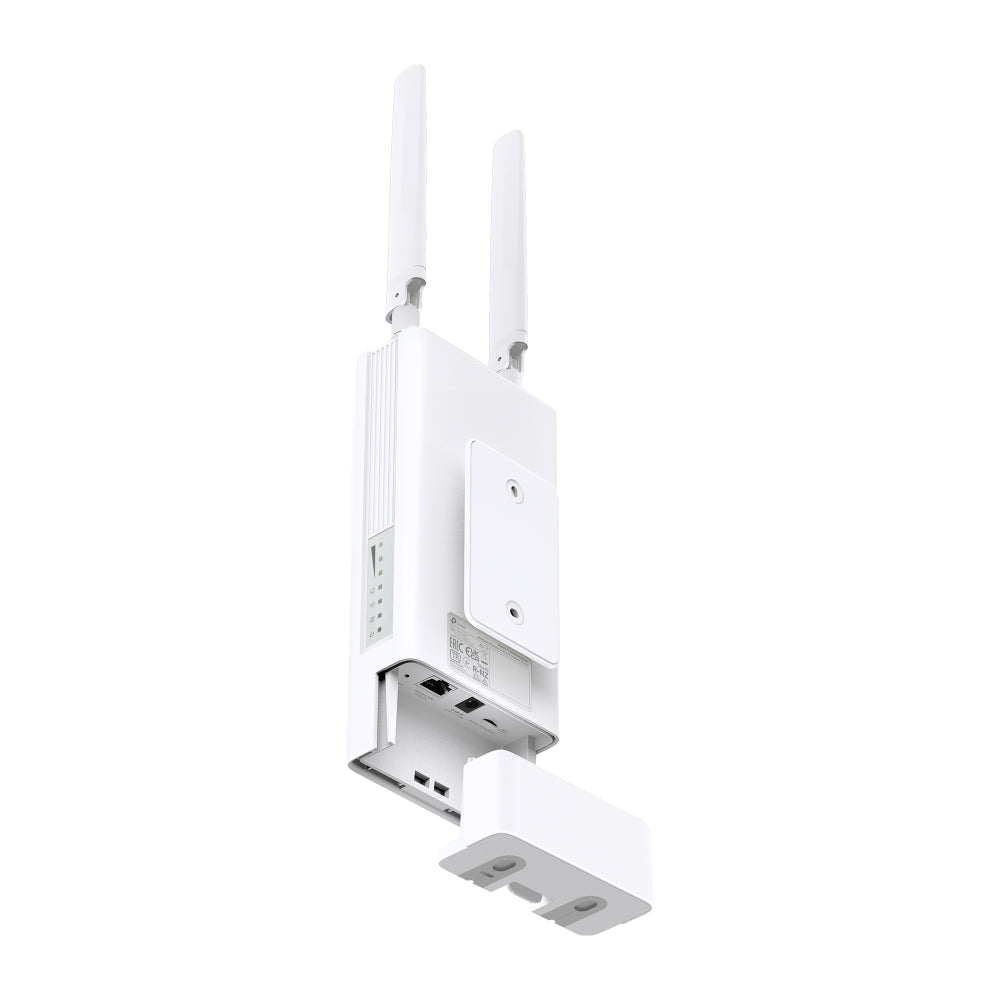

Interface	1× 100 Mbps WAN/LAN Port (PoE In) 1× Nano SIM Card Slot 1 × DC Port
Buttons	1× Reset Button
Power	12V/1A DC 24V/0.5A Passive PoE 44-57V/0.35A 802.3af
Dimensions (W x D x H)	8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)
Antennas	2 × Detachable LTE Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Signal Rate	300 Mbps
Reception Sensitivity	11g 54M: -74 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

SOFTWARE FEATURES
Security	DoS, IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes	3G/4G Router, Wireless Router
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features	Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
Protocols	IPv4, IPv6
Guest Network	2.4 GHz guest network
Administration	Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP DNS • Port: 53 Protocol: TCP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20002 Protocol: TCP CWMP CPE WAN Management Protocol • Port: 7547 Protocol: TCP

OTHERS
Package Content	1× TL-MR100-Outdoor Unit 1× 10-meter RJ45 Ethernet Cable 1× PoE Adapter 1× AC Power Cord 1× Quick Installation Guide Window/Pole/Wall Mounting Kits
Requirements	Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version
Certifications	CE, RoHS
Environment	Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH

For additional version information, please go to the support page.
