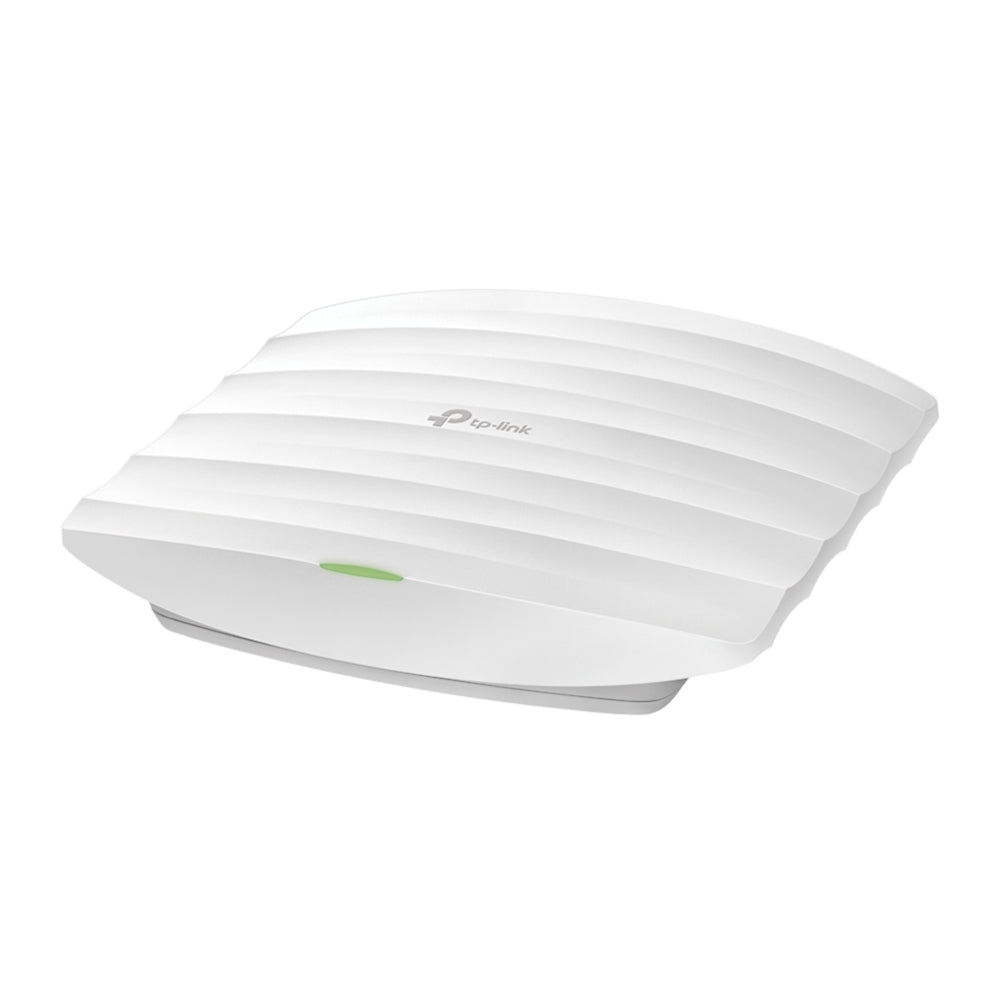

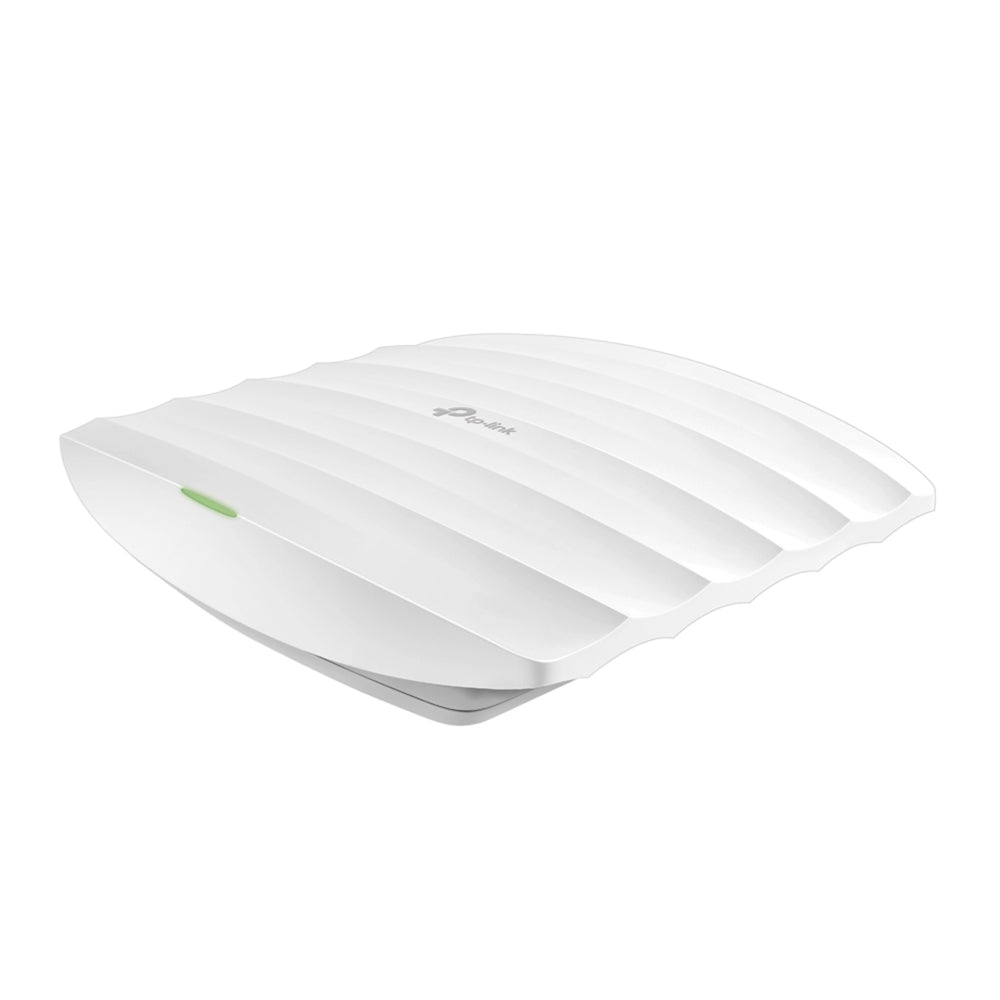

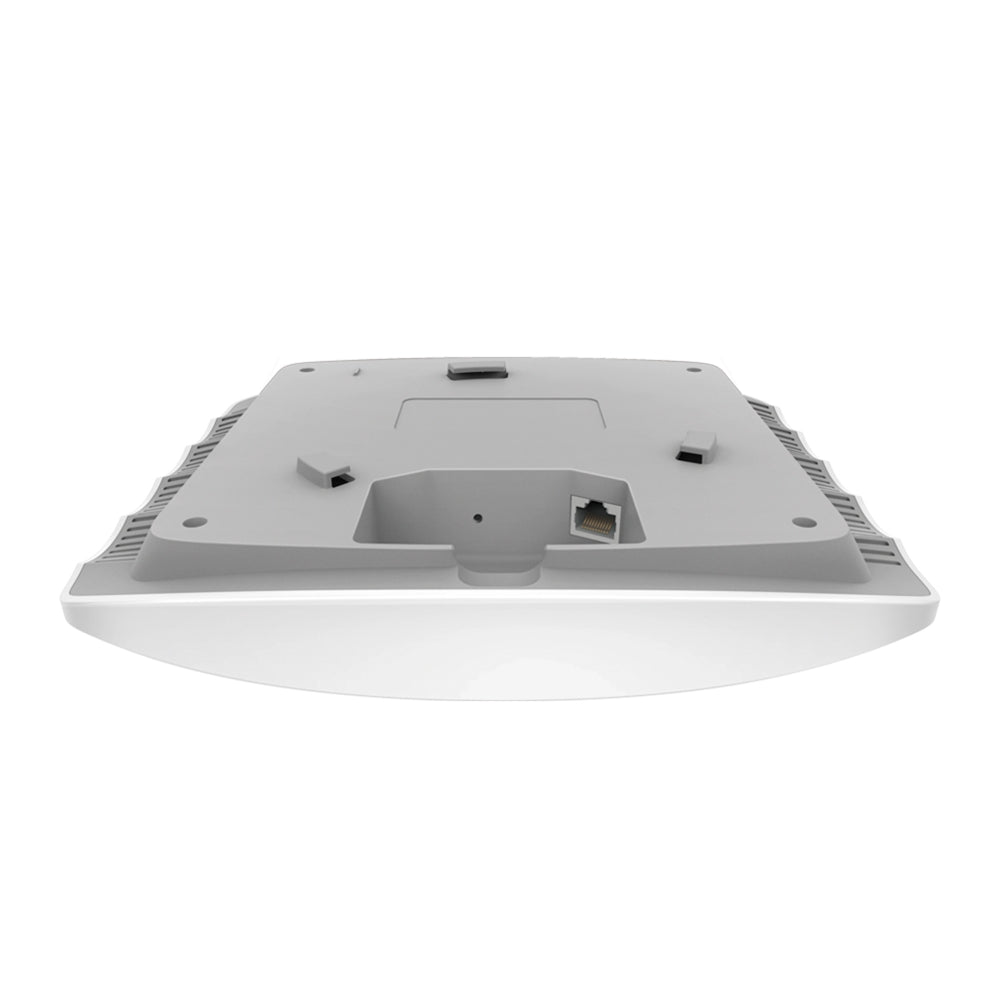

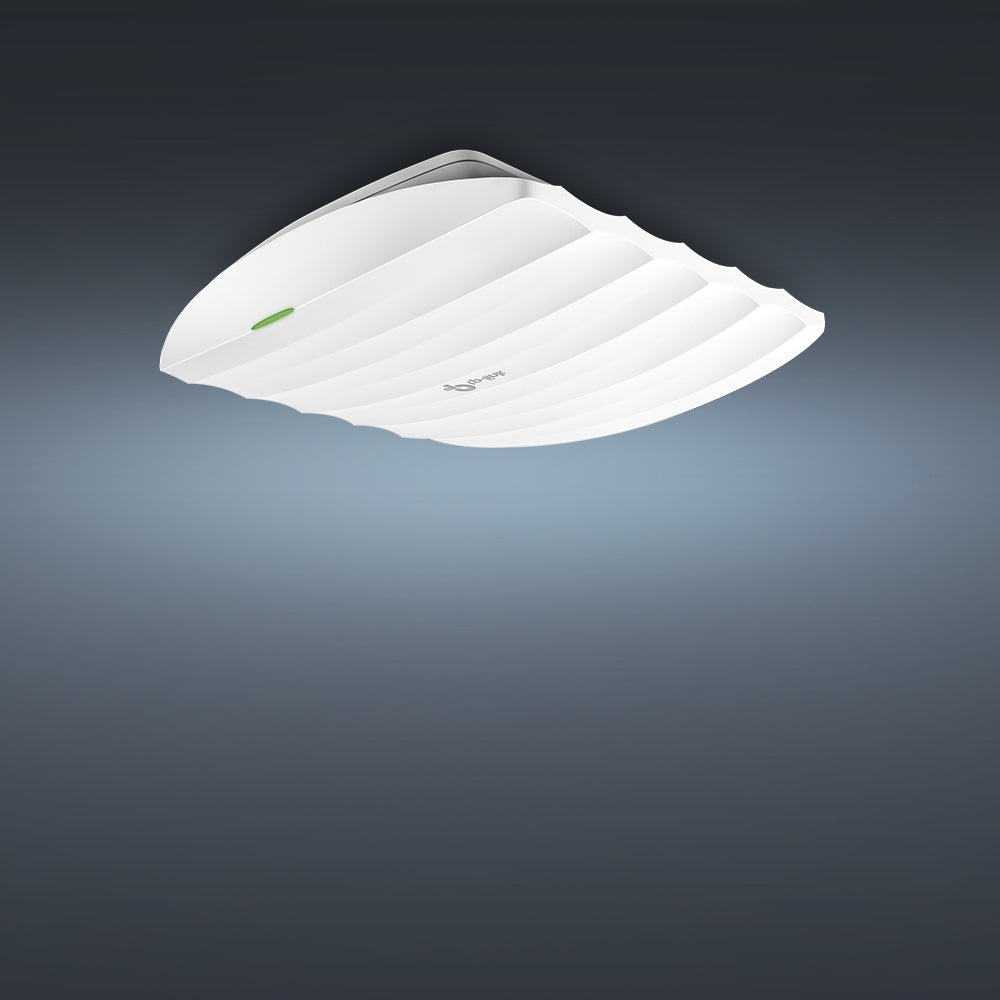

300Mbps Wireless N Ceiling Mount Access Point
-
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralised Cloud Management, and Intelligent Monitoring.
-
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
-
PoE Support: Supports Passive PoE (PoE adapter included) for convenient deployment.
-
Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
-
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
-
Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
-
Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
|
HARDWARE FEATURES
|
| Interface |
Fast Ethernet (RJ-45) Port *1（Support Passive PoE） |
| Button |
Reset |
| Power Supply |
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption |
2.8W |
| Dimensions ( W x D x H ) |
7.5×6.7×1.2 in (189.5×170.5×29.7mm) |
| Antenna |
Internal 2* 4dBi Omni |
| Mounting |
Ceiling /Wall Mounting (Kits included) |
|
WIRELESS FEATURES
|
| Coverage |
60㎡(650ft²)§
|
| Concurrent Clients |
100+**
|
| Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency |
2.4-2.4835GHz |
| Signal Rate |
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity |
300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER |
| Wireless Functions |
Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power |
CE:
≤19dBm(EIRP)
FCC:
≤21dBm |
|
Management Features
|
| Omada App |
Yes |
| Centralized Management |
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access |
Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1,v2c |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
|
OTHERS
|
| Certification |
CE, FCC, RoHS |
| Package Content |

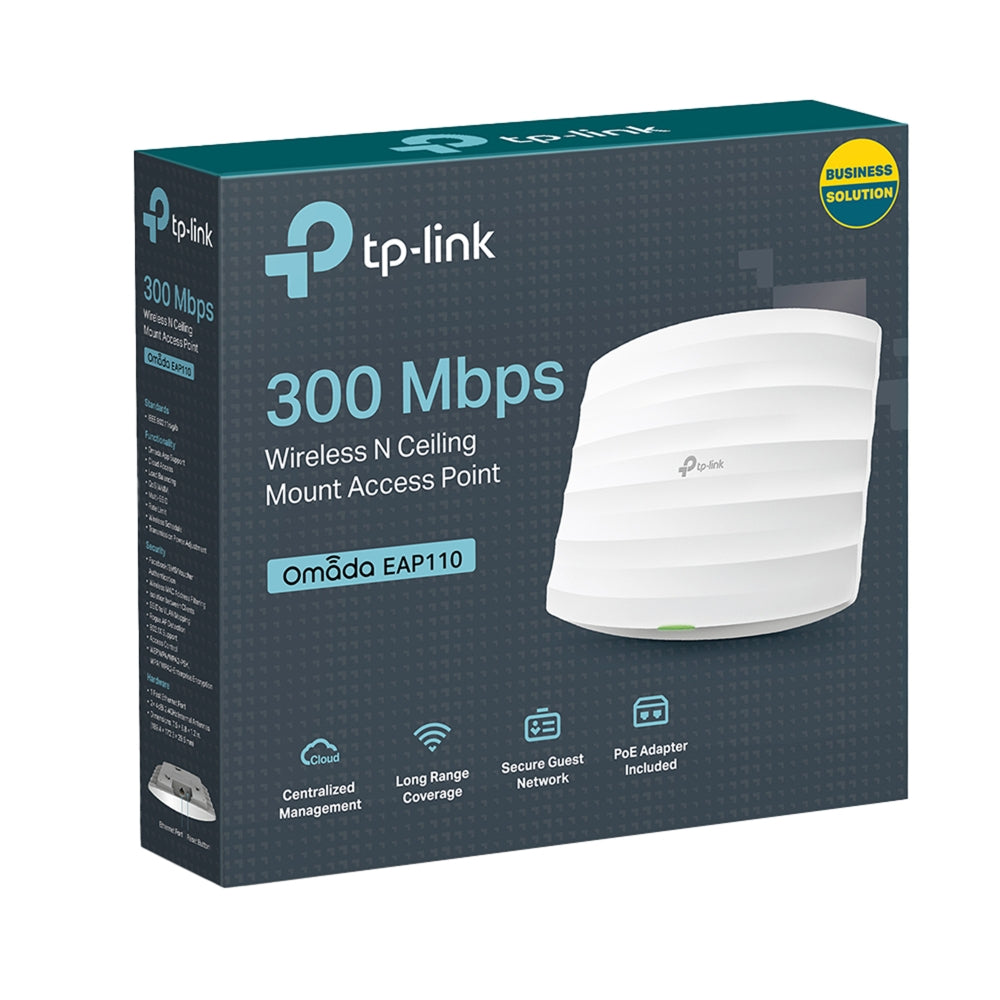

300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Installation Guide |
| System Requirements |
Microsoft Windows 10/8/7/Vista/XP |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Warranty |
Limited 5-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
