Antec Constellation C8 Full-View E-ATX 440mm GPU PC Case
FULL-VIEW PC CASE
Seamless edge on front & side panel
The front and left panel employ a unique 45° beveling technique that breaks the barrier between the two pieces of glass. The extremely fine edge of the glass joint enhances the uninterrupted, panoramic, and ultra-transparent visual experience of the 270° view, allowing comprehensive showcase of high-end PC components and dazzling lighting effects.
AIRFLOW
Vertical Cooling
Can accommodate three 120mm/140mm or two 160mm fans
each on top and bottom for efficient GPU cooling.

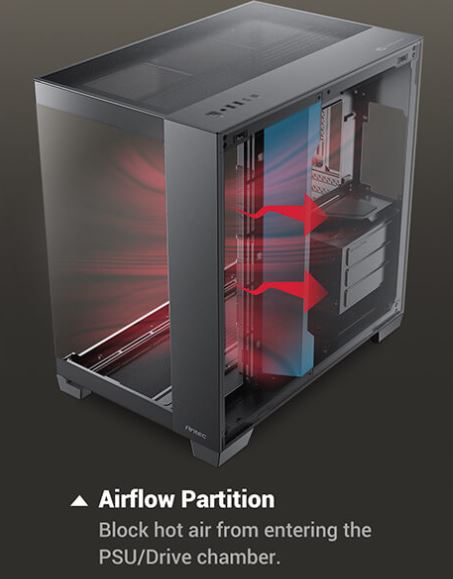

Dual Chamber

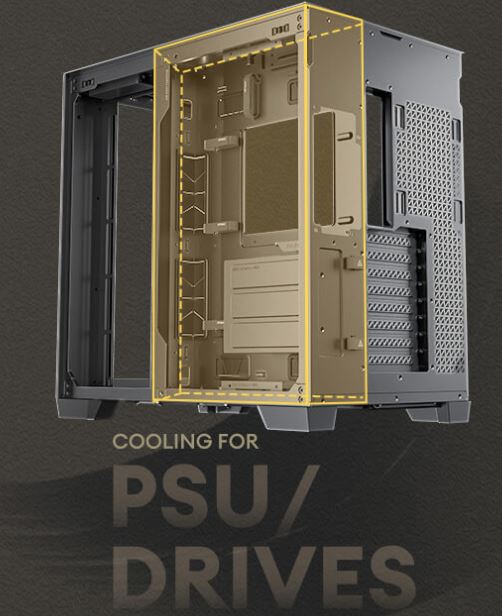

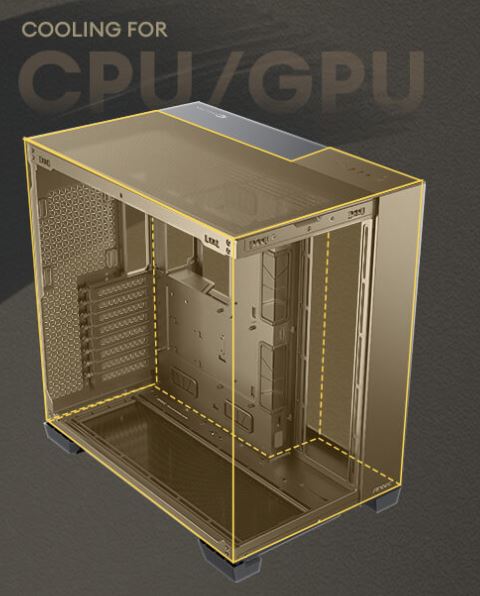

Independent cooling for CPU/GPU on the left side & PSU/Drives on the right side
EXTREMELY COOL
Best Cooling Design
Supports 360mm radiators on top, bottom, and side simultaneously for liquid cooling.
Cavernous space for extreme liquid cooling
Top, bottom and right side all support THICK 360mm radiators, providing ultra cooling capability and efficiency.
COOLING COMPATIBILITY
- Up to 10 fans simultaneously.
- Supports 2 x 160mm fans on top / 2 x 160mm fans on bottom / 1 x 140mm fan at rear
THREE-WAY FAN BRACKET
Bottom fan configuration
Comes with interchangeable fan brackets to cater to fans of different sizes.
DUSTPROOF DESIGN
Air intake and dust filter
- TOP | Full mesh panel
- RIGHT SIDE | Full mesh panel
- Bottom | Full-sized pull-out dust filter
IMPRESSIVE STRUCTURE
0.8mm + 1.0mm thick steel & Tool-Free design
The ultra robust 0.8mm & 1mm steel brings unwavering protection, and the tool-free quick-release panels on the front, top and sides make the assembly and cleaning of components simplified than ever.
BUILT FOR BUILDERS
Graphics cards installation
- Provides ample width to perfectly support wider RTX40 series GPU.
- Supports vertical GPU riser brackets after removal.
- Features 8 reusable PCIe slot covers.
POWERFUL COMPATIBILITY
POWER SUPPLY INSTALLATION
- Stylish PSU bracket with rubber pad to prevent scratch
- Vast room to house power supplies up to 210mm in length
- Support side-interface power supplies
EVERYTHING ORGANIZED
Cable Management
- Interior velcro strap x 4
- Rear velcro strap x 2
- Cable routing rubber grommet x 6
I/O Panel
- Mainstream Type-C (10Gbps) port for high-speed transmission
- Dust plugs for dust prevention
- Mic/Audio 2-in-1 port
STORAGE COMPATIBILITY
Modular Drive Trays
Supports up to 6 drives: 2 x 3.5" HDD & 4 x 2.5" SSD
CASE COMPATIBILITY
Extensive Interior
-
Motherboard support E-ATX ( ≤ 280mm), ATX, Micro-ATX, ITX
-
CPU cooler max height ≤ 175mm
-
GPU max length ≤ 440mm
-
Power Supply max length ≤ 210mm
SPECIFICATIONS
| Main Spec |
| Dimensions |
464 x 303 x 476mm (DWH) |
| Form Factor |
Full Tower |
| Materials |
Steel + Plastic + Glass |
| Mainboard Support |
E-ATX (280mm), ATX, M-ATX, ITX |
| Front Access & Controls |
Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack |
| Side Panel |
4mm Tempered Glass |
|
| Drive Bays |
| Expansion Slots |
8 |
| 3.5" /2.5" |
2/0 |
| 2.5" |
4 |
|
| Fan Support |
| Top |
3 x 120 / 3 x 140 / 2 x 160mm |
| Side |
3 x 120 / 2 x 140mm |
| Bottom |
3 x 120 / 3 x 140 / 2 x 160mm |
| Rear |
120 / 140mm |
|
| Radiator Support |
| Top |
120 / 140 / 240 / 280 / 360mm |
| Side |
120 / 140 / 240 / 280 / 360mm |
| Bottom |
120 / 140 / 240 / 280 / 360mm |
| Rear |
120mm |
|
| Clearance |
| Max GPU Length |
≤ 440mm |
| Max CPU Cooler Height |
≤ 175mm |
| Max PSU Length |
≤ 210mm (without cable) |
|
| Miscellaneous |
| Dust Filter |
Bottom |
| Net Weight |
10.48kg |
| Gross Weight |
13.47kg |
| Warranty |
2 Years |
|
