CX200M RGB ELITE /CX200M RGB ELITE WHITE
MINI-TOWER GAMING CASE
CX200M ARGB (Pre-installed 2 x 120mm ARGB fans on top & 1 x 120mm ARGB fan in rear)

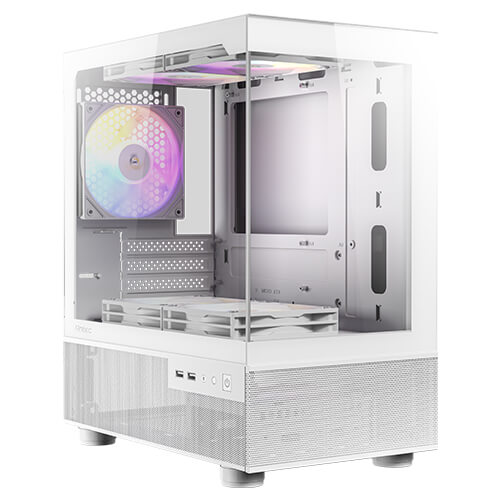

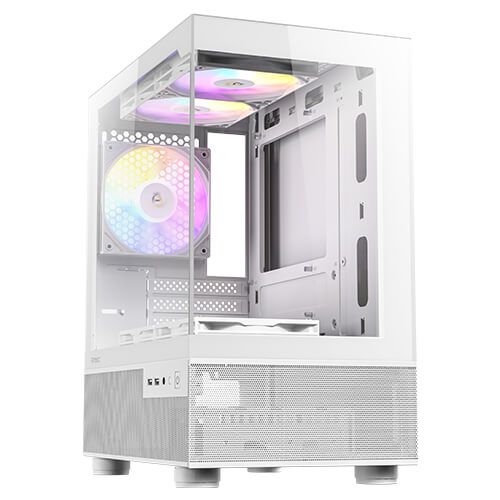

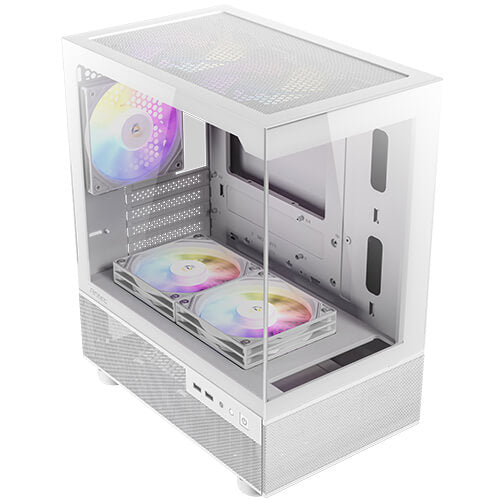

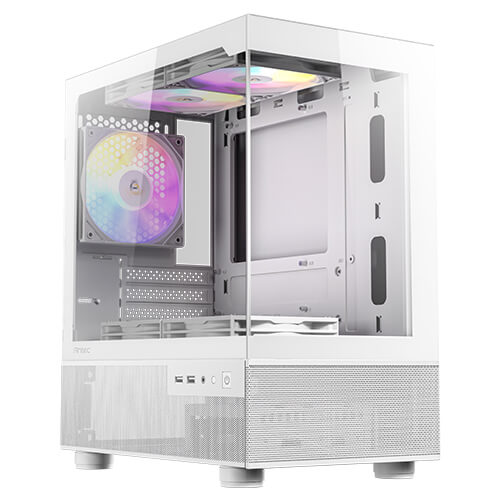

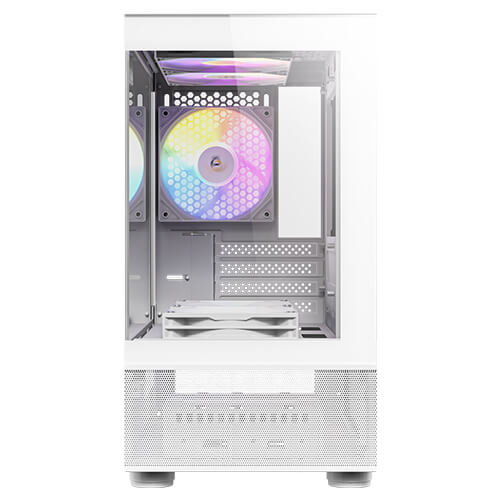

Panoramic 270° View
Standing out with its full-view design on the seamless left and front panel, CX200M RGB ELITE is the ideal enclosure for your M-ATX setup.
The non-drilled steel-tempered glass offers an unobstructed view of your hardware, creating a stunning showcase for your components.
Tool-Free Access
on the Front
Front panel is easily removable after removing the side panel, making assembly and maintenance as simplified as you can imagine.

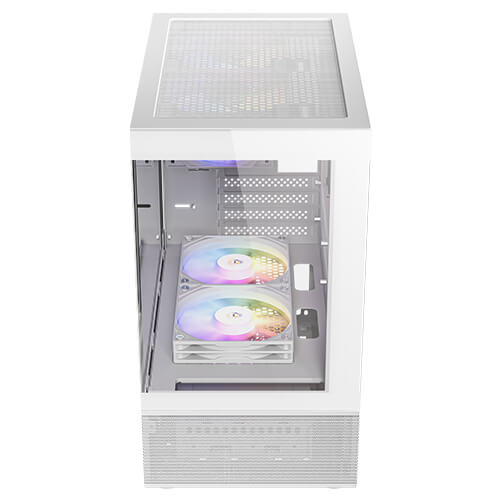

Vertical Cooling
A large amount of air is taken in through the front + side mesh and the bottom to facilitate heat dissipation to protect hardware from overheating.

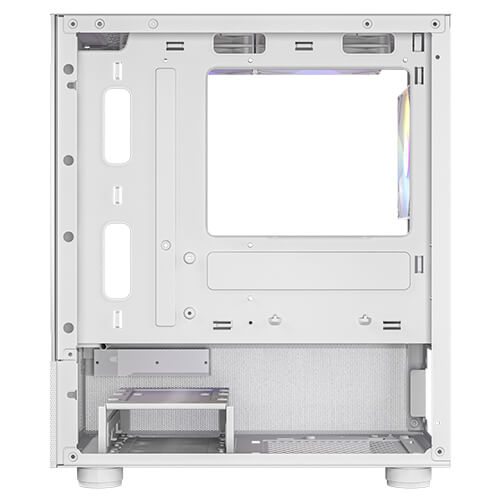

Neat Build
within Reach
23mm space for cable management
ensures your PC build looks neat.
SPECIFICATIONS
| Dimensions |
350 x 210 x 392mm (DWH) |
| Form Factor |
Mini Tower |
| Materials |
Steel |
| Mainboard Support |
Micro-ATX , ITX |
| Front Access & Controls |
Power, LED On/Off button (CX200M RGB ELITE) or LED Control Button(CX200M ARGB), 2 x USB3.0 , Headphone/Mic Combo Jack |
| Side Panel |
Tempered Glass Side Panel |
|
| Drive Bays |
| Expansion Slots |
4 |
| 3.5" /2.5" |
2/1 |
| 2.5" |
1 |
|
| Fan |
| Top |
2 x 120mm / 2 x 140mm |
| Power Supply Shroud |
2 x 120mm |
| Rear |
120mm |
| Included Fan(s) |
2 x 120mm fixed mode RGB fans on top +
2 x 120mm fixed mode RGB reverse fans on PSU shroud +
1 x 120mm fixed mode RGB fan in rear
Pre-installed 2 x 120mm ARGB fans on top & 1 x 120mm ARGB fan in rear (CX200M ARGB) |
|
| Clearance |
| Max GPU Length |
≤ 330mm |
| Max CPU Cooler Height |
≤ 164mm |
| Max PSU Length |
(Include cable) ≤ 185mm |
|
| Miscellaneous |
| Dust Filter |
Top / Bottom |
| Net Weight |
4.43kg (CX200M RGB Elite)
4.20 Kg (CX200M ARGB) |
| Gross Weight |
5.13 kg (CX200M RGB Elite)
4.85 Kg (CX200M ARGB) |
| Warranty |
1 Year |
|
|
|
