BE5000 Ceiling Mount Wi-Fi 7 Access Point

TP-LINKSKU: TL-EAP727

EAP727

5-Stream Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.
1× 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.
Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply (not included) for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralised cloud management, PPSK, multiple portals, mesh, and seamless roaming.
More Connections and Wider Coverage: Supports 510+ concurrent connections and covers up to 2,000 ft² (185 m²) for reliable and extensive wireless connectivity.

HARDWARE FEATURES
Interface	1× 2.5 Gbps Ethernet Port
Button	Reset
Power Supply	• 802.3at PoE • 12V/1.5A DC Note：DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
Weight	0.47 kg (1.04 lb)
Dimensions ( W x D x H )	6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna	• 2.4 GHz: 2 × 4 dBi • 5 GHz: 3 × 6 dBi
Bluetooth	1 × 4 dBi (peak gain), internal antenna

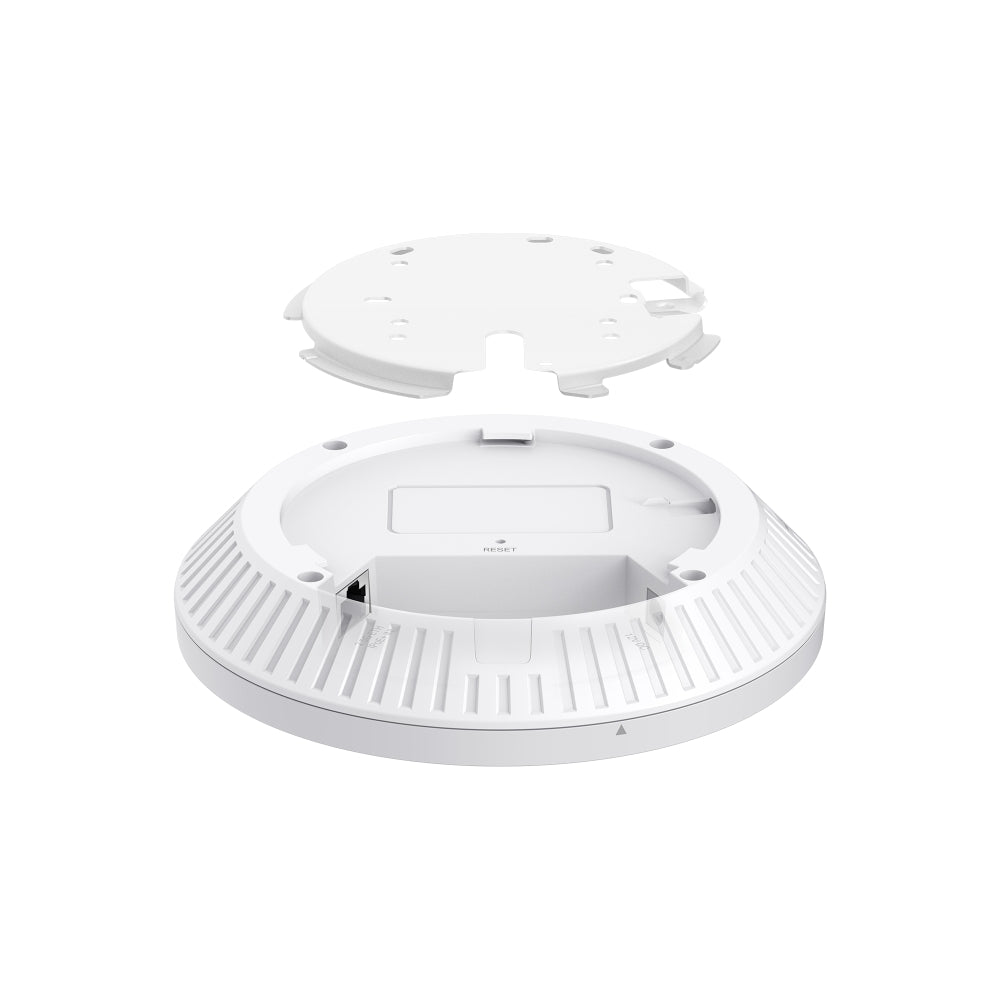

Mounting	• Ceiling/Wall/Junction Box Mounting (Kits included) • T-Bar Mounting (Kits included)
Max. Power Consumption	• 15.6 W (PoE) • 14.1 W (DC)

Management Features
Omada App	Yes (Omada App V5.0 and above)
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes

WIRELESS FEATURES
Coverage	2,000 ft² (185 m²)*
Concurrent Clients	510+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz and 5 GHz
Signal Rate	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions	• MLO^‡ • 4K-QAM^‡ • Seamless Roaming • 160 MHz Bandwidth^‡ • Mesh^§ • OFDMA^‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • Radius Accounting • MAC Authentication
Wireless Security	• Captive Portal Authentication^§ • Access Control • MAC Filter • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	7-20 dBm (2.4 GHz, EIRP) 9-24 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 9-30 dBm (5 GHz, U-NII-2C, EIRP)

OTHERS
Certification	FCC/CE/VCCI/JRF/ICES
Package Content	• EAP727 • Installation Guide • Mounting Kit
Environment	• Operating Temperature: 0℃ to +40℃ (32℉ to +104℉) • Storage Temperature : -40℃ to +70℃ (-40℉ to +158℉) • Operating Humidity: 10% to 90% (non-condensing) • Storage Humidity: 5% to 90% (non-condensing) • Storage Altitude: up to + 2000 m (6561 feet) • Operating Altitude: up to + 2000 m (6561 feet)
