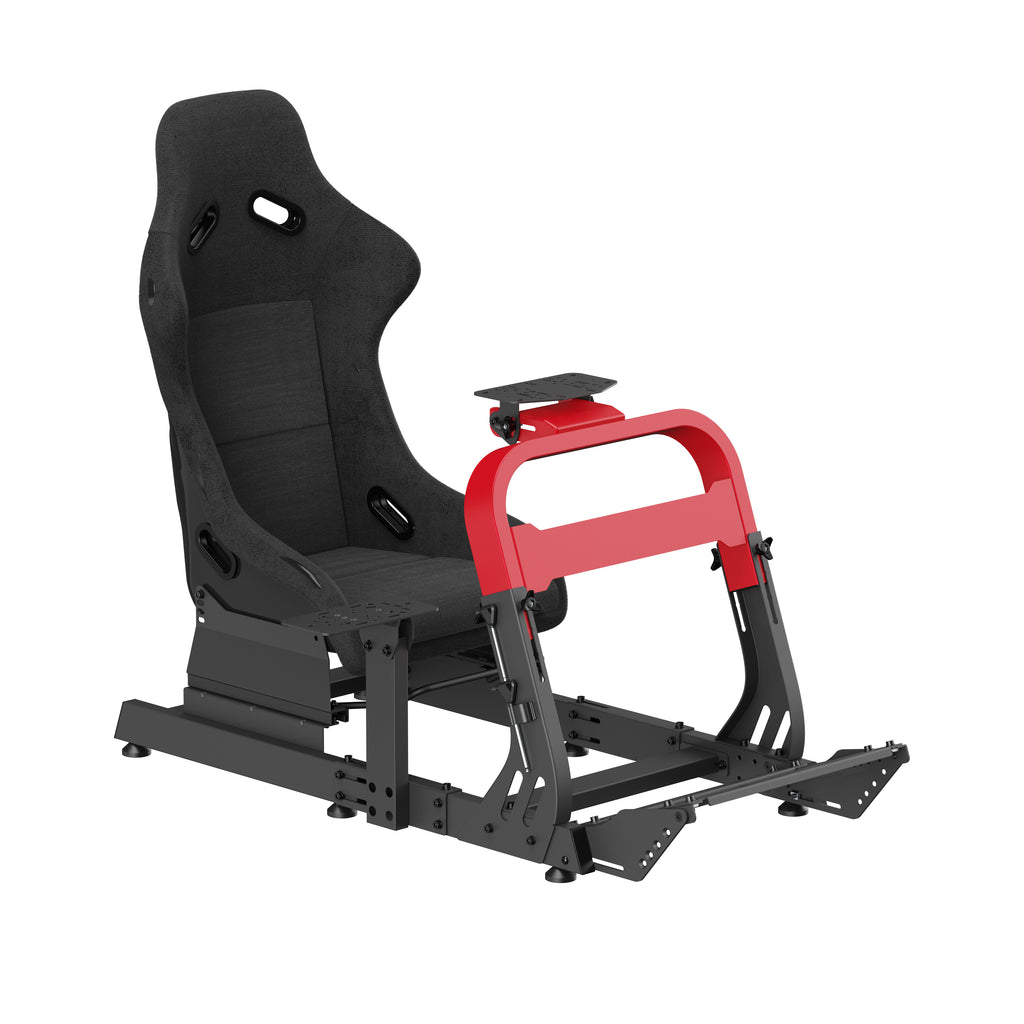

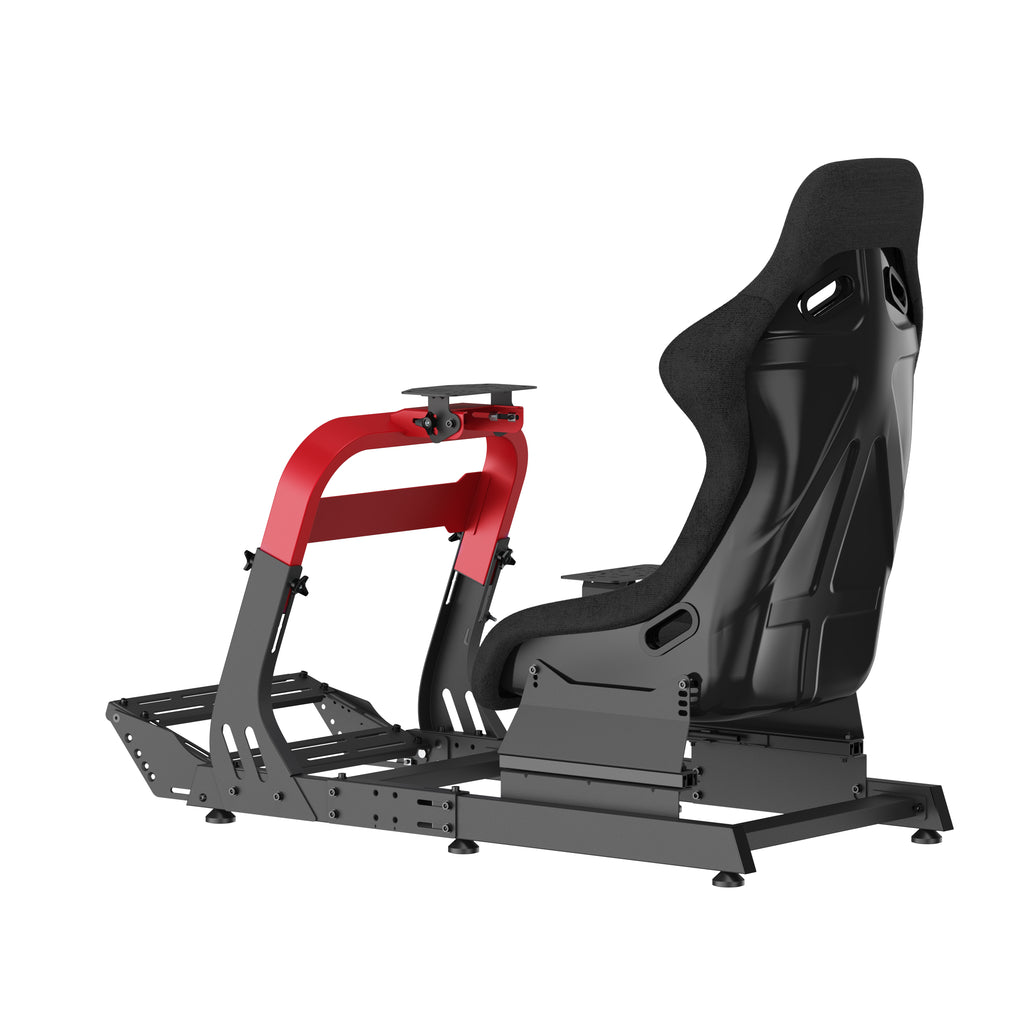

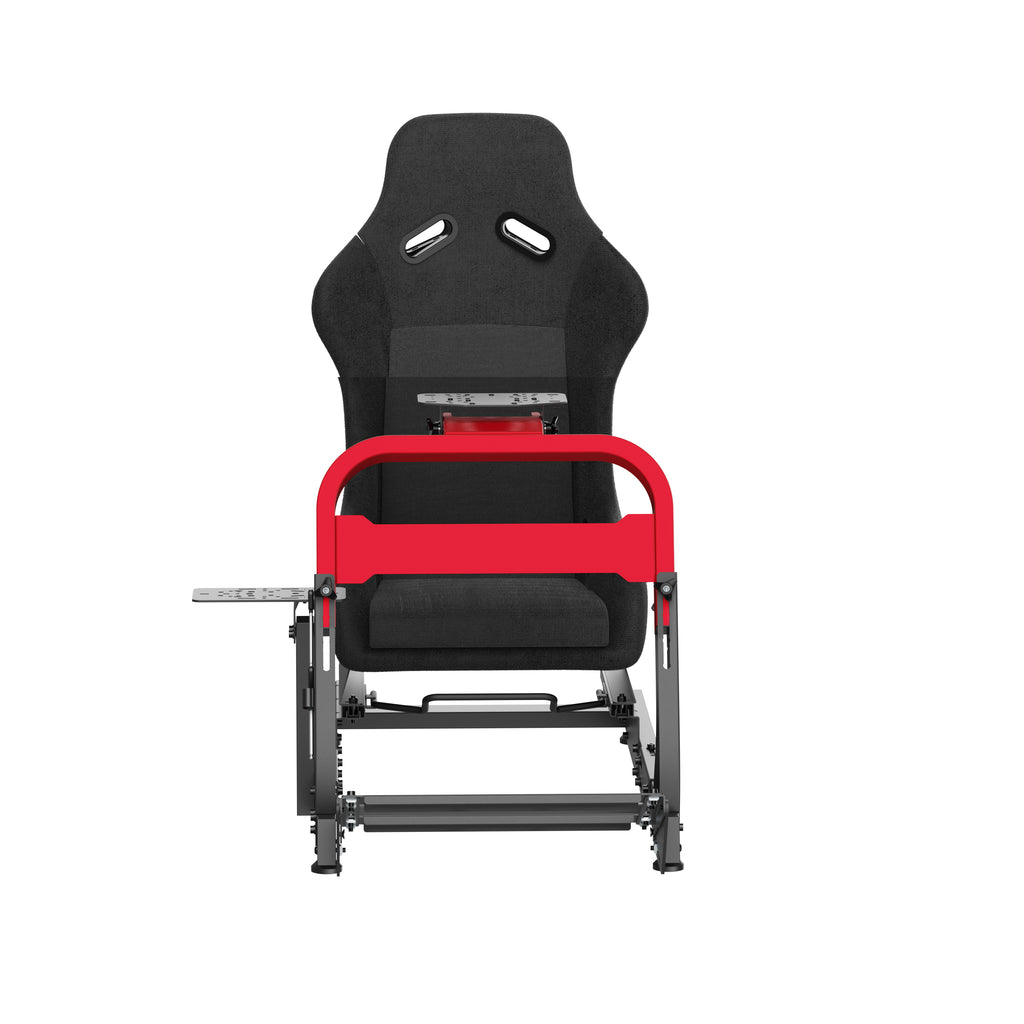

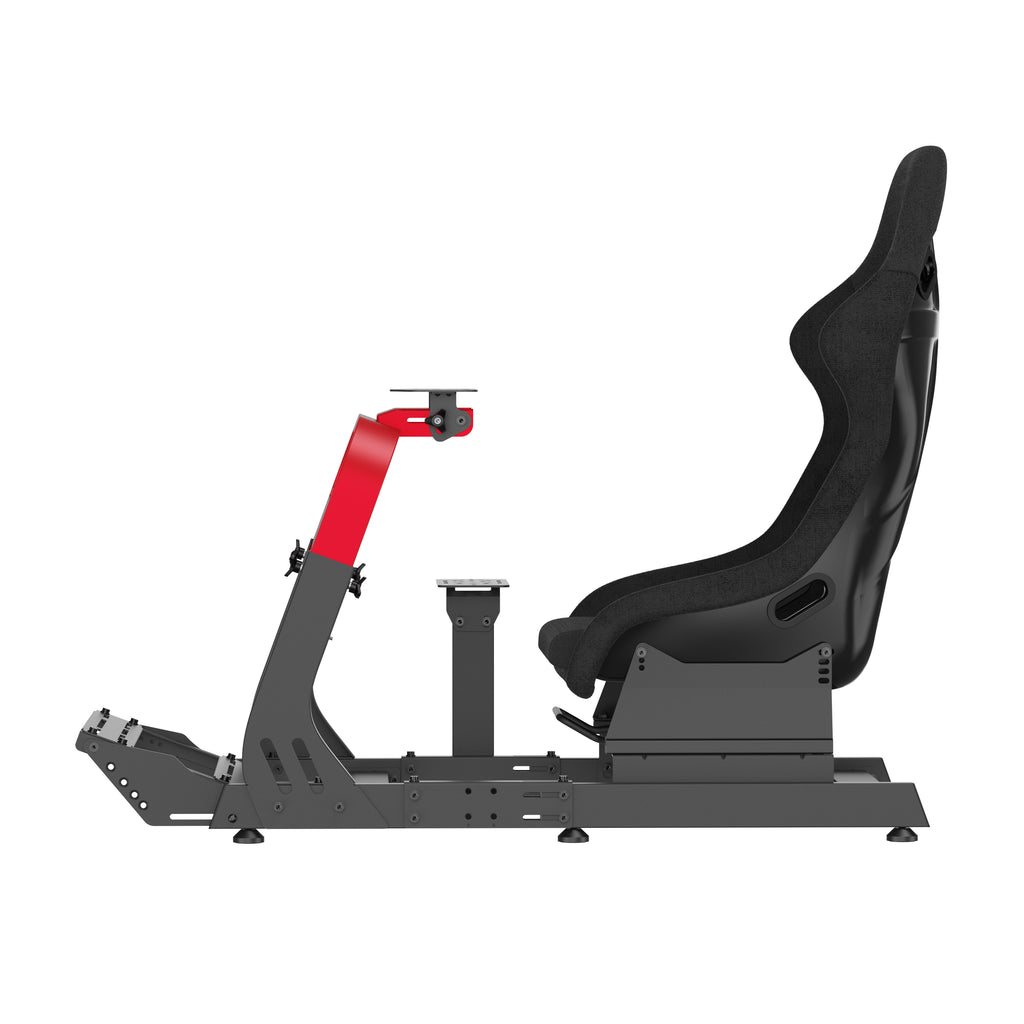

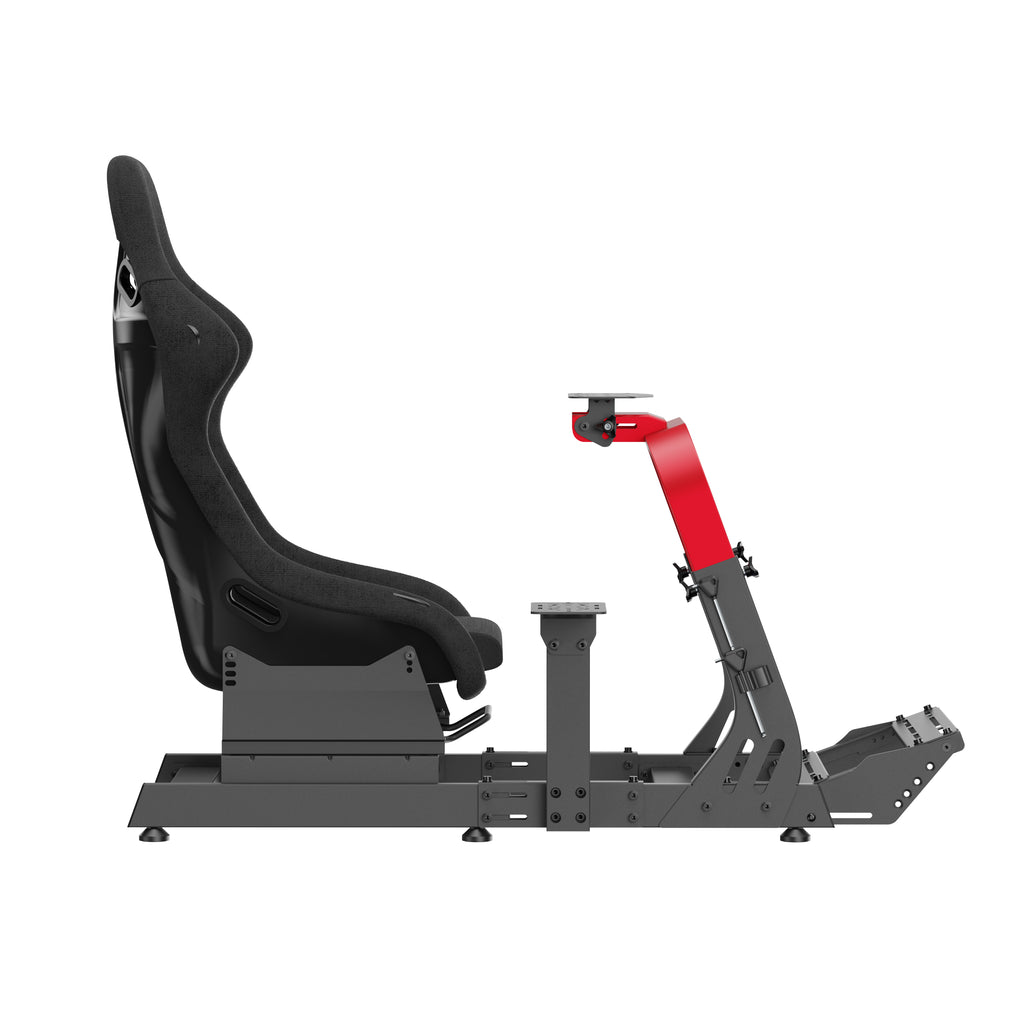

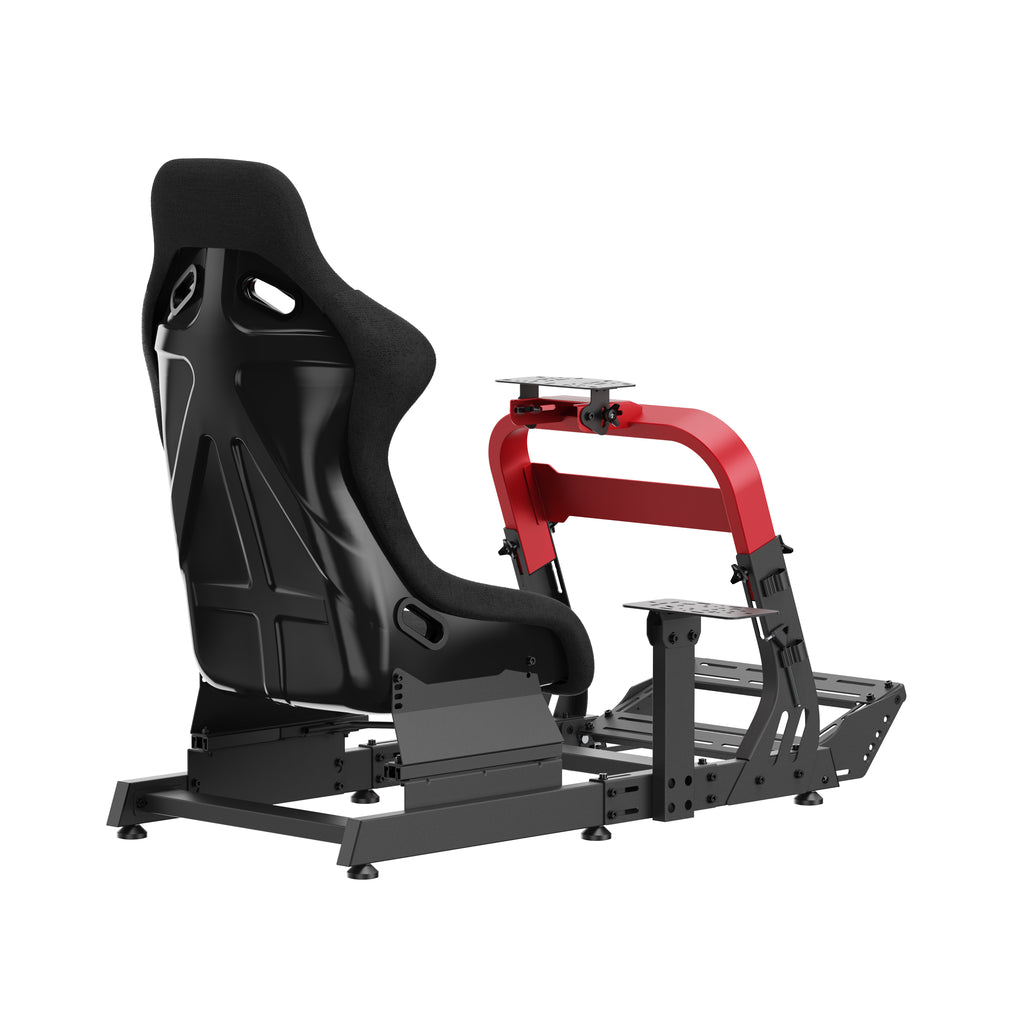

Building upon the proven LRS18-BS02, our new cockpit redefines structural integrity and operational precision. The core is built with a 30x70mm square tube frame, specifically engineered to handle the full force of Direct Drive wheels up to 27Nm and heavy-duty pedal forces. Designed for the entire spectrum of sim racers—from pro esports athletes to commercial training centers—it features a fiberglass bucket seat with suede fabric cover. This combination ensures long-term user comfort and superior durability, while the cockpit offers wider, smoother adjustment for rapid configuration changes across multiple user profiles. Invest in reliability and unmatched control. This cockpit is built to perform, built to guarantee victory, and built to differentiate your commercial offering.
FEATURES
-
Sturdy Steel Construction: provides a solid and long-lasting performance
-
Adjustable Gear Shifter Mount(Holder): can be mounted for left or right side use
-
Adjustable Pedal Mount(Plate): enables tilting and forward-back location conforming to your body for optimum support
-
Adjustable Fiberglass Bucket Seat: glides forward & back and reclines to offer the key element of the ideal driving position over long gaming hours
-
Adjustable Steering Wheel Plate: adjusts up/down & forward/back
-
Pre-drilled Mounting Points: compatible with most wheels, gear shifters and pedals including Logitech, Fanatec, Thrustmaster and more
SPECIFICATIONS
| Product Category: |
Racing Simulator Cockpit |
| Rank: |
Premium |
| Dimensions: |
785x1365x1107mm (30.9"x53.7"x43.6") |
| Weight Capacity: |
130kg (286lbs ) |
| Frame Type: |
Fixed Frame |
| Frame Material: |
Steel |
| Frame Surface Finish: |
Powder Coating |
| Frame Color: |
Fine Texture Black & Fine Texture Red |
| Seat Type: |
Fiberglass Bucket Seat with Suede Fabric Cover |
| Seat Width: |
460mm (18.1") |
| Seat Gliding Track: |
220mm (8.7") |
| Seat Height Range: |
25mm (0.98") |
| Seat Back Tilt Range: |
+6°~-6° |
| Steering Wheel Panel Tilt Range: |
+24°~-12° |
| Pedal Panel Tilt Range: |
0°/5°/10°/15°/20° |
| Cable Management: |
Yes |
| Accessory Kit Package: |
Normal/Ziplock Polybag,Compartment Polybag |
| Silk Screen: |
Can be silkscreen printed |
| Fit Driver Height: |
1.3m~2.1m (4.3ft~6.9ft) |
| Fit Max Torque: |
27N·m (27N·m) |
