Deepcool Castle 240EX A-RGB V2 AIO Liquid Cooler
CASTLE 240EX A-RGB

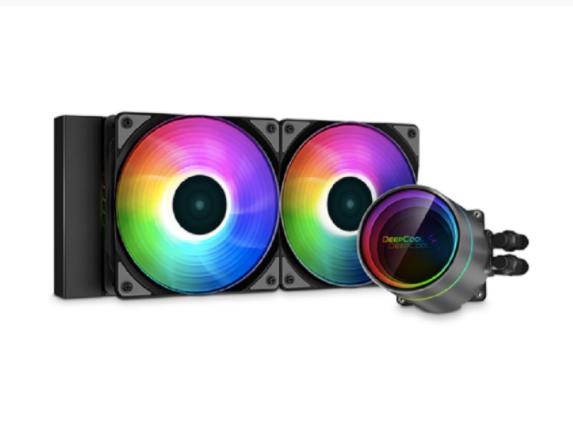

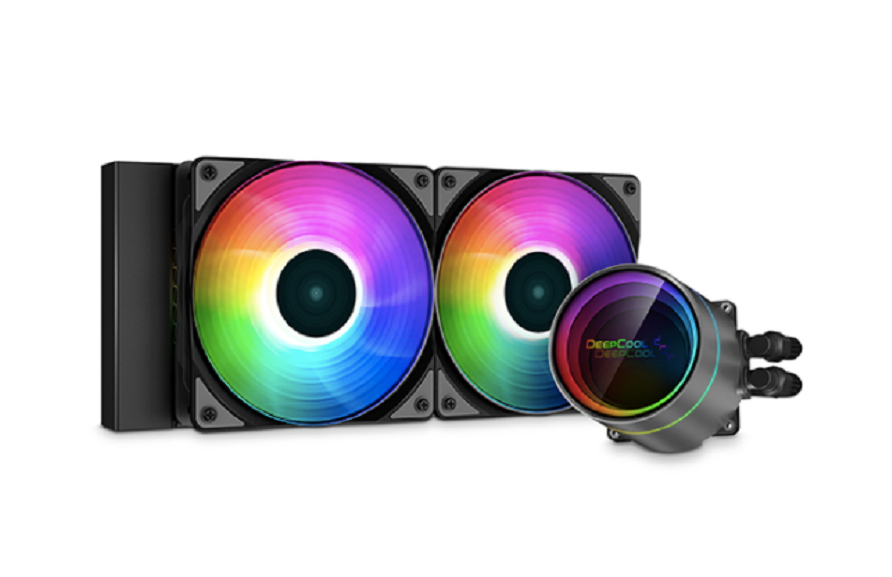

The DeepCool CASTLE 240EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.
The DeepCool CASTLE 240EX A-RGB AIO liquid CPU cooler delivers fantastic RGB lighting with two DeepCool CF120 A-RGB PWM fans and our iconic infinity mirror in a 240mm radiator.
BETTER BY DESIGN
―

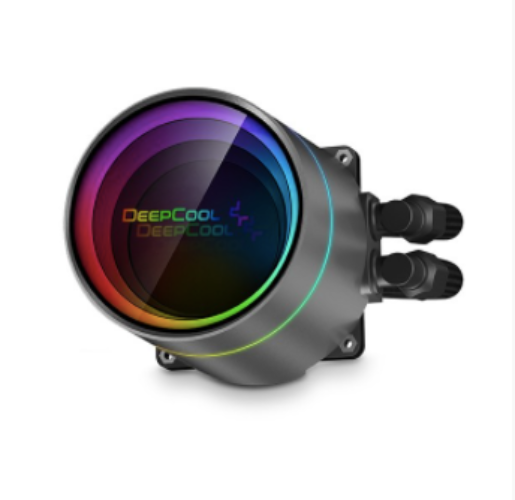

The iconic DeepCool Castle EX infinity mirror pump design with a new twist. See the new DeepCool logo on an enlarged mirror chip for a new instant classic.
EFFICIENT COOLING
―
Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.
POWERFUL AND QUIET
―
A stronger 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.
MORE SURFACE AREA
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.
Application For
Intel
LGA2066/2011-v3/2011/1200/1151/1150/1155/1366
AMD
TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
| Net Weight |
1380 g |
| Radiator Dimensions |
282×120×27 mm |
| Radiator Material |
Aluminum |
| Tube length |
380 mm |
| Pump Dimensions |
86 ×75×71 mm |
| Pump Speed |
2550 RPM±10% |
| Pump Noise |
17.8 dB(A) |
| Pump Connector |
3-pin |
| Pump Rated Voltage |
12 VDC |
| Pump Rated Current |
0.2 A |
| Pump Power Consumption |
2.4 W |
| Fan Dimensions |
120×120×25 mm |
| Fan Speed |
500~1800 RPM±10% |
| Fan Airflow |
69.34 CFM |
| Fan Air Pressure |
2.42 mmAq |
| Fan Noise |
≤30 dB(A) |
| Fan Connector |
4-pin PWM |
| Bearing Type |
Hydro Bearing |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.17 A |
| Fan Power Consumption |
2.04 W |
| LED Type |
Addressable RGB LED |
| LED Connector |
3-pin(+5V-D-G) |
| LED Rated Voltage |
5 VDC |
| LED Power Consumption |
2.25 W（PUMP）/ 4.4 W（FAN×2） |
| EAN |
6933412727262 |
| P/N |
DP-GS-H12W-CSL240EX-AR |
