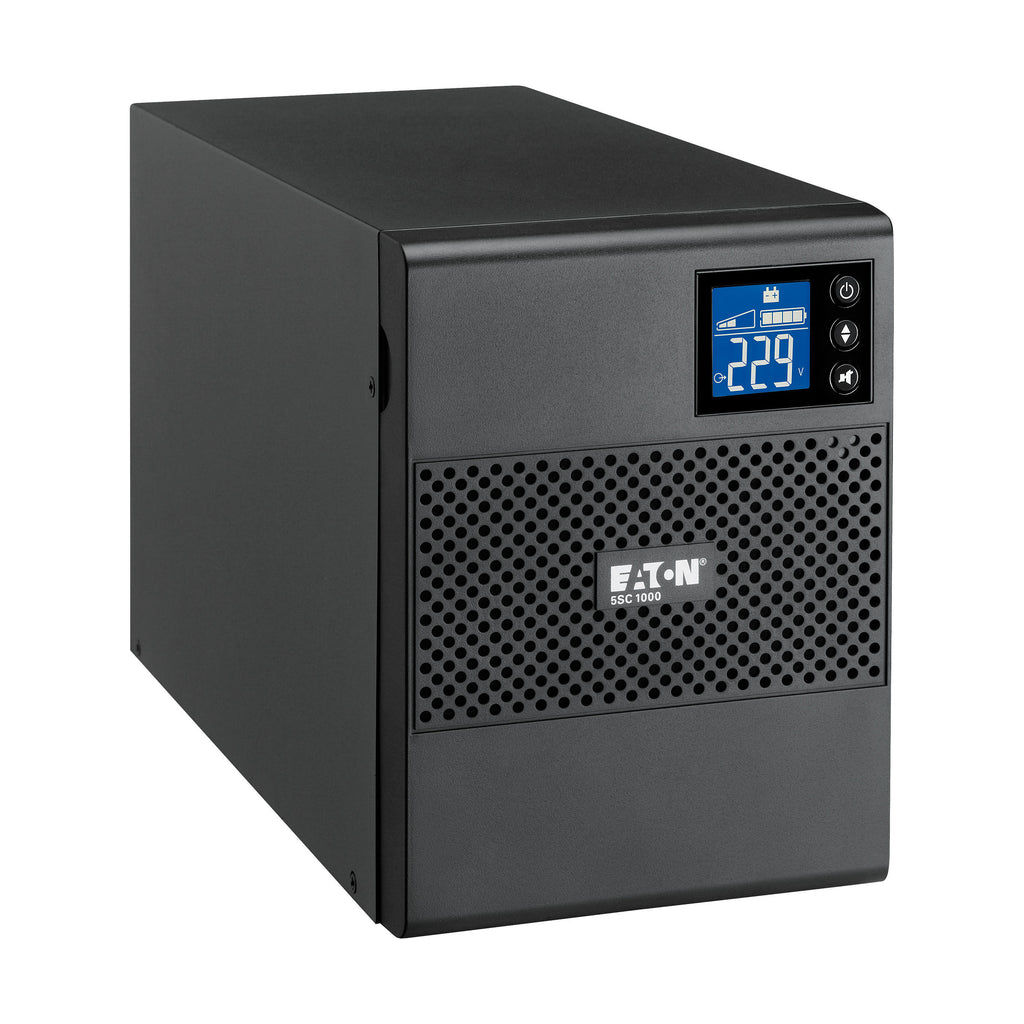

Eaton 5SC 750VA / 525W Mini Tower UPS, 6 x IEC Sockets
The Eaton 5SC pure sine wave UPS provides high-quality output voltage for wider compatibility with today’s active power factor corrected (PFC) power supplies in sensitive IT equipment. Without the use of its batteries, the 5SC UPS corrects a wide range of input voltage variations through continuous voltage regulation. The LCD interface provides clear status of key parameters and allows configuration for output voltage, the audible alarm and power input sensitivity.
Applications: High-end desktop computers, gaming PCs, networking devices, kiosks, entertainment systems, point-of-sale (POS) equipment, network-attached storage (NAS), servers.

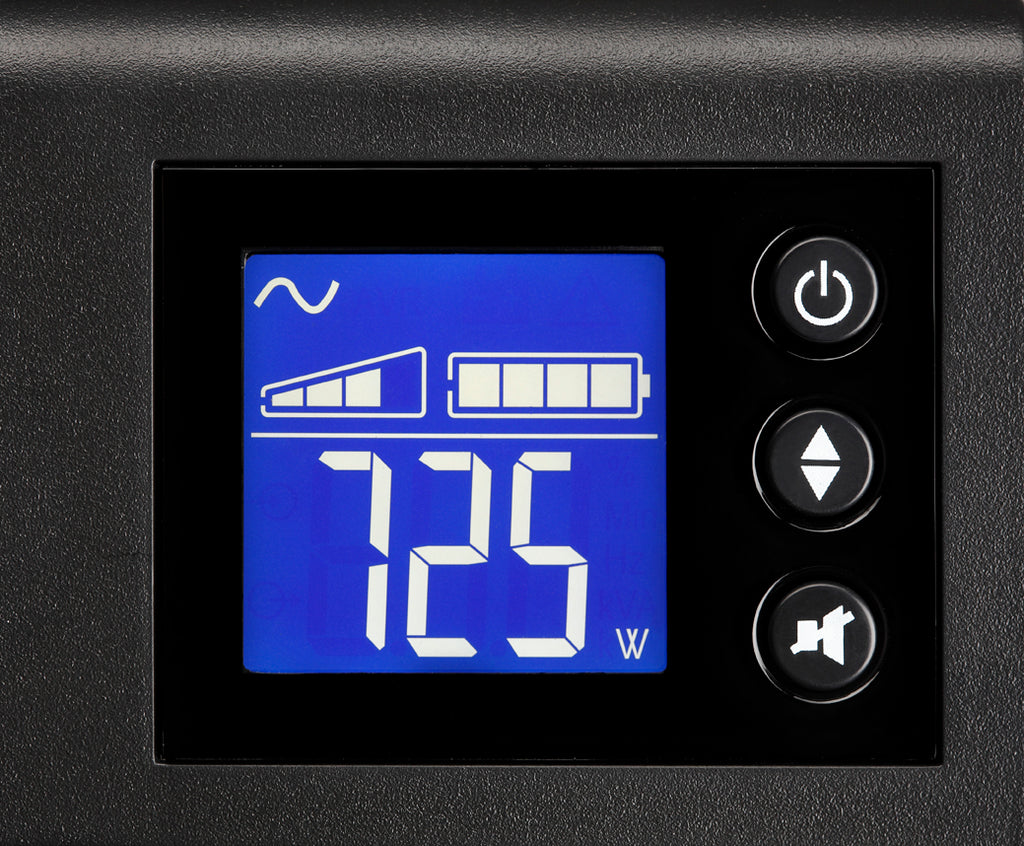

LCD interface
The LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Essential configuration capabilities are also offered for output voltage, audible alarm and sensitivity.
Wide communication capabilities
The 5SC offers USB and serial connectivity. USB port is HID compliant for automatic integration into Windows, Mac OS and Linux. A slot for an optional network management card is available on rack and R/T models. Eaton’s Intelligent Power® Software Suite ensures compatibility with all major OS including virtualization software.
Flexibility
Eaton 5SC is available in multiple form factors. Tower models for easy integration in space constraints environment. Rack models to fit into short depth enclosures down to 500mm, 2 post racks or wall-mount. R/T models authorizes either tower or rack installation.
GENERAL SPECIFICATIONS
PRODUCT LENGTH/DEPTH 150 mm
COMPLIANCES CE Marked TUV
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
EAC
cTUVus
BATTERY
BATTERY TYPE Lead-acid maintenance-free (replaceable)
RUNTIME GRAPH View runtime graph
BATTERY REPLACEMENT User replaceable
BATTERY MANAGEMENT
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
BATTERY RATING 12 V / 7 Ah
EXTENDED BATTERY CAPABILITY No
ELECTRICAL OUTPUT
OUTPUT VOLTAGE RANGE 230 V (+6%/-10%)
OUTPUT WAVEFORM Sine wave
OUTPUT NOMINAL VOLTAGE 230V default (220/230/240V)
TOPOLOGY Line-interactive
ELECTRICAL INPUT
INPUT NOMINAL VOLTAGE 230V default (220/230/240V)
NOMINAL FREQUENCY 50-60 Hz
INPUT VOLTAGE RANGE 184-276 V
INPUT FREQUENCY RANGE 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
COMMUNICATIONS

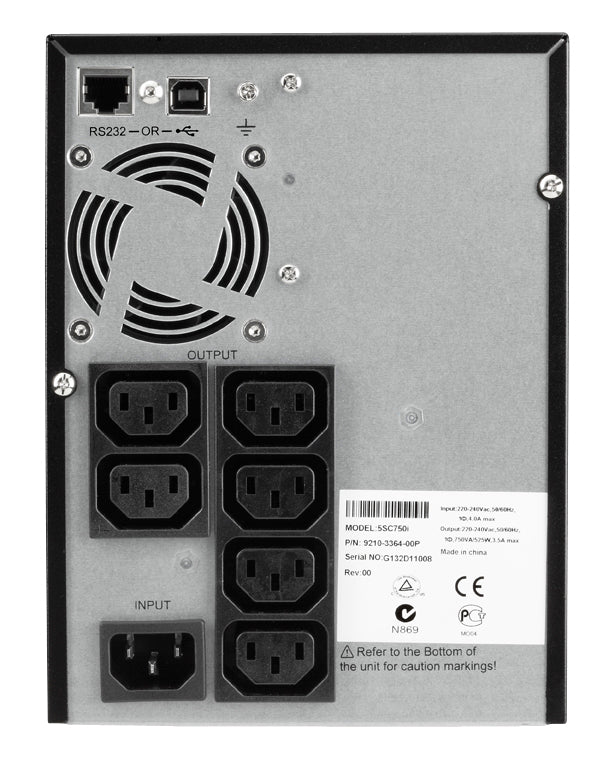

COMMUNICATION USB port (HID compliant) Serial port (RS232)
USER INTERFACE LCD Display
POTENTIAL FREE SWITCH CONTACT No
SOFTWARE COMPATIBILITY Eaton Intelligent Power Protector
ENVIRONMENTAL
NOISE LEVEL <40 dB at 1 meter
TEMPERATURE RANGE 0-90% non-condensing
RELATIVE HUMIDITY 0-90% non-condensing
ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE Free standing model
PACKAGE CONTENTS
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
AUTO SHUTDOWN FUNCTION Yes
