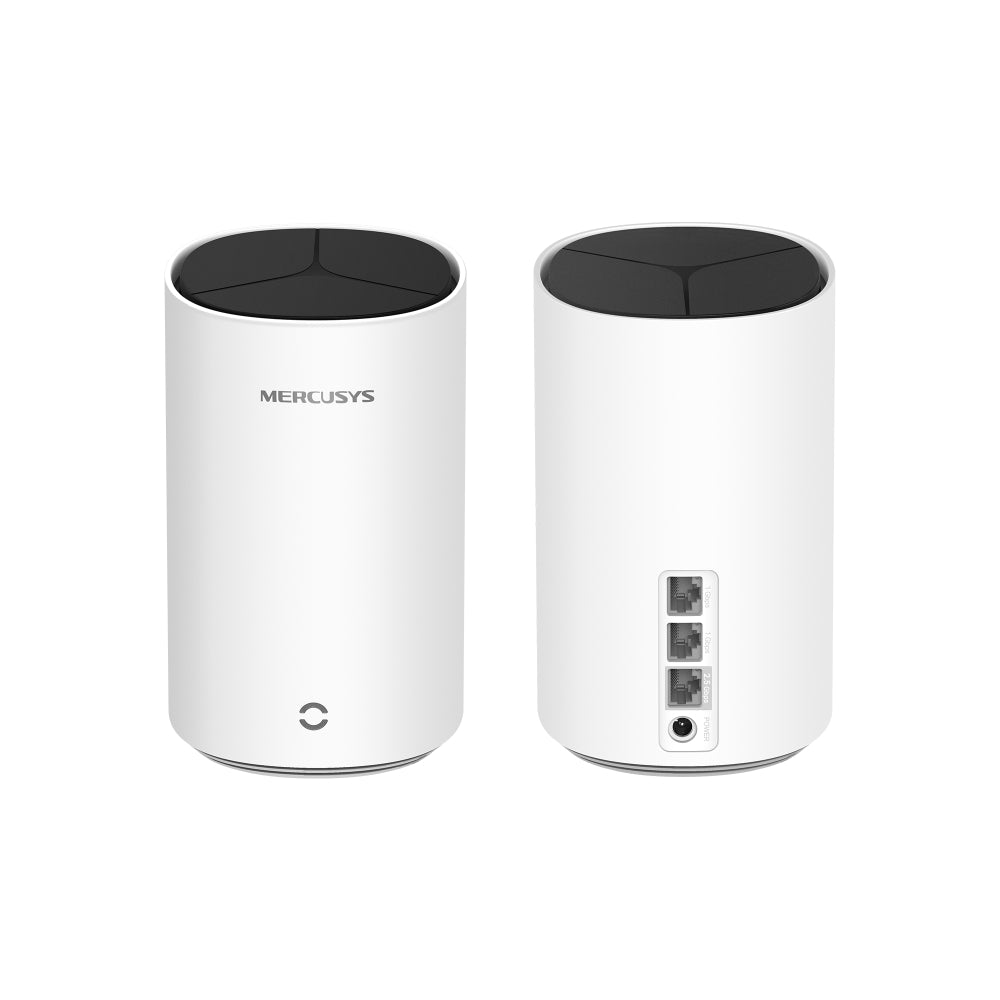

Halo E85X
AX3000 Whole Home Mesh Wi-Fi 6 System
-

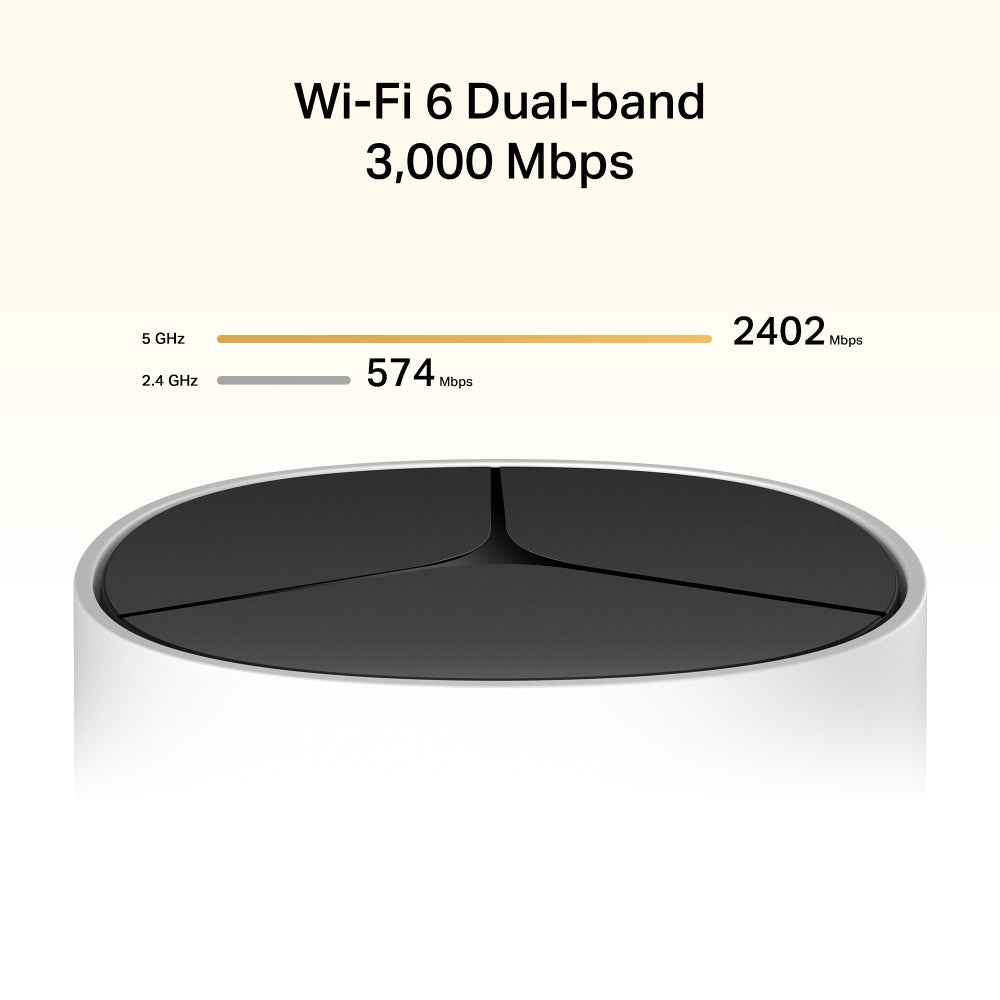

Dual Band Wi-Fi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
-
Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified Wi-Fi name and password.
-

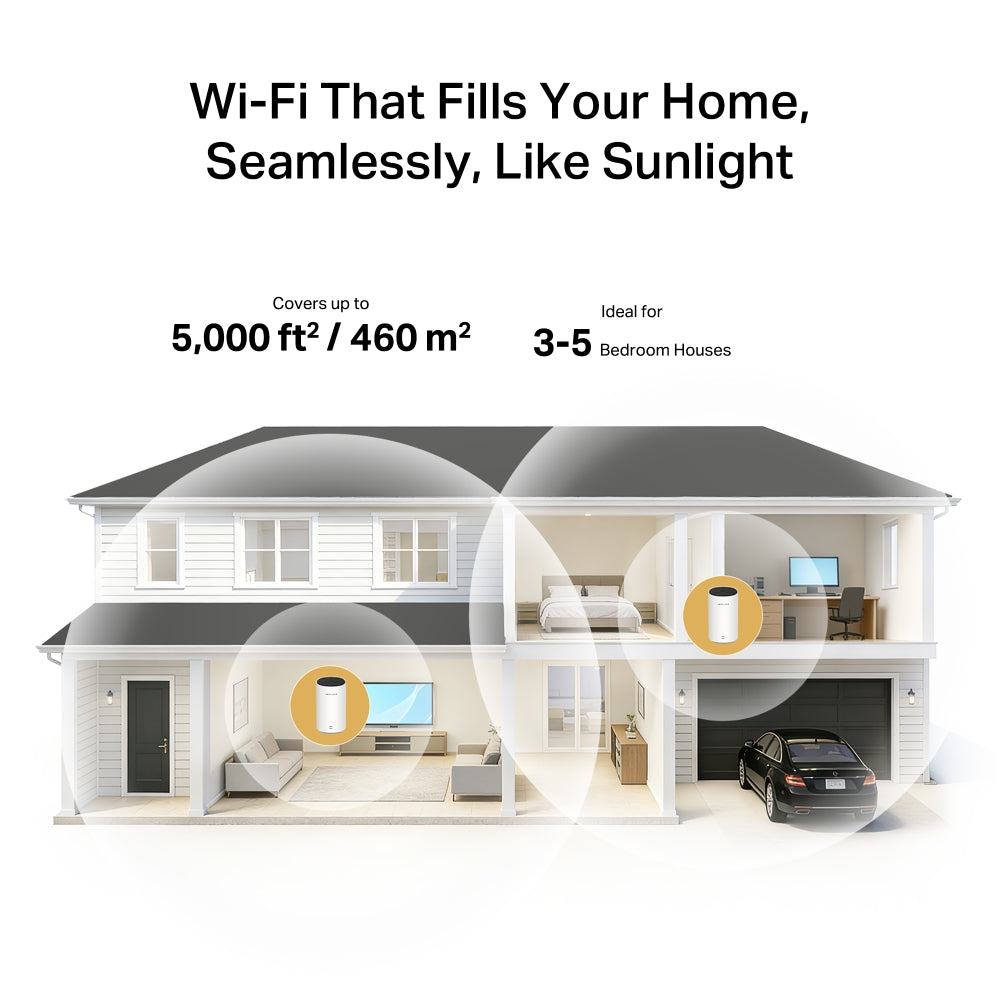

Whole Home Coverage – Blanket up to 5,000 ft²/460 m² (ideal for 3-5 bedroom houses) with high-speed Wi-Fi, eliminating Wi-Fi dead zones at your home.
-
Connect over 150 Devices – Provide fast and stable connections over 150 devices.
-

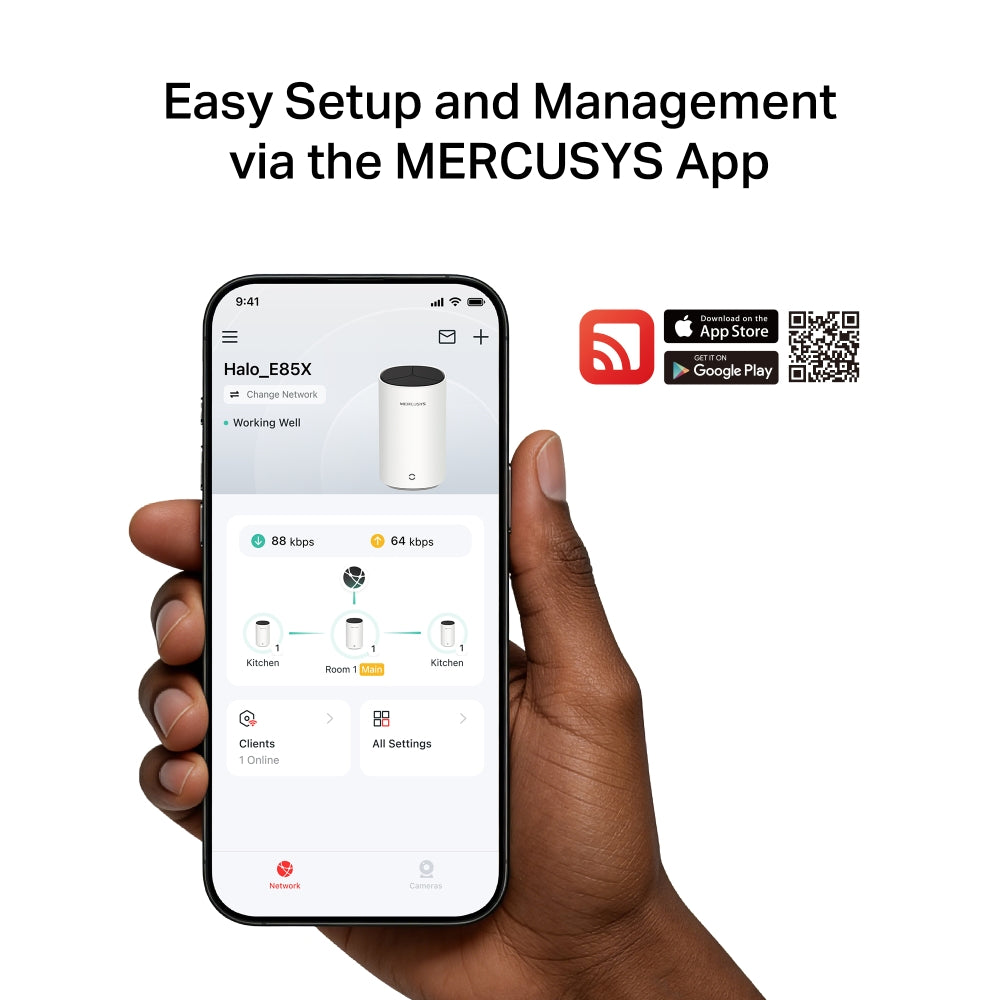

Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your Wi-Fi. You can also manage your kids’ online time and contents.
-

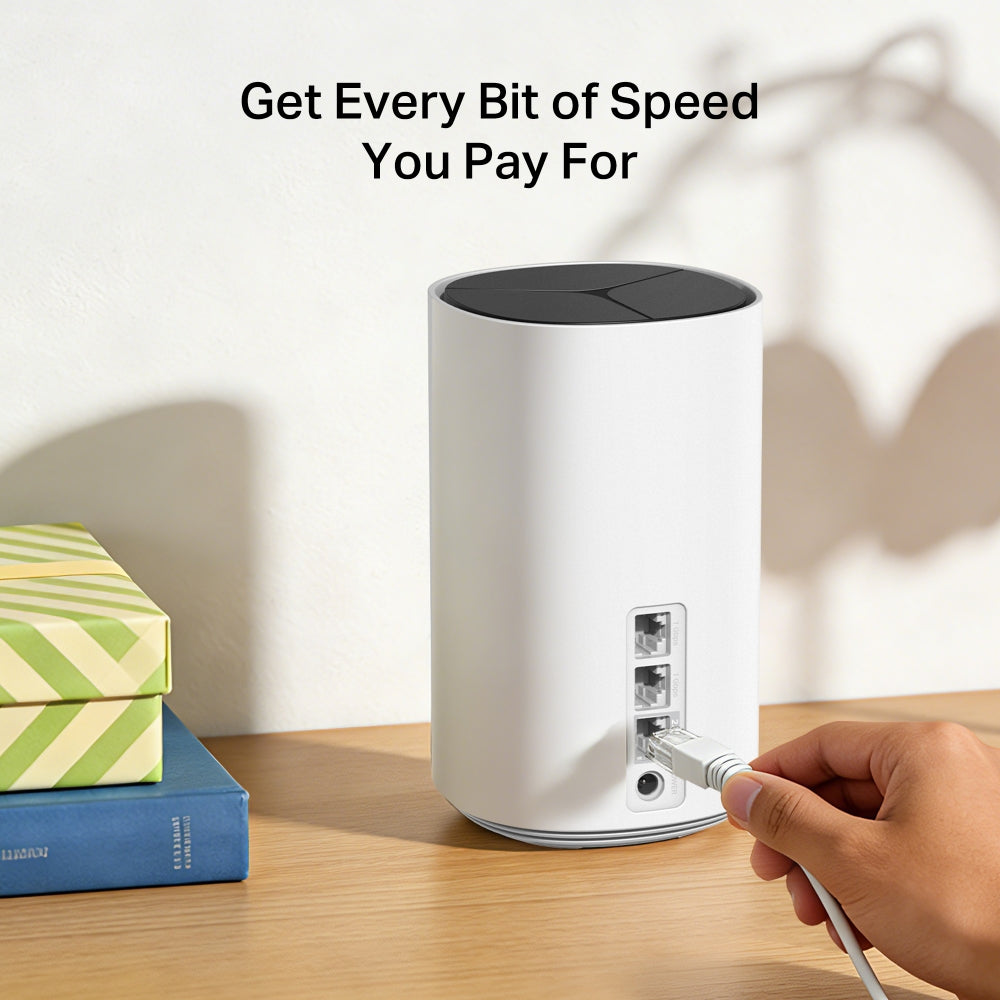

2.5 Gbps Multi-Gig Port – 1× 2.5 Gbps and 2× Gigabit ports per Halo E85X unit for lightning-fast wired connections.
*Please note that the Halo H series and S series cannot work together. Halo E85X is compatible with other units from the Halo E & Halo H series to form a Mesh network.
Specifications:
| Wireless Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
|
| Signal Rate |
2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
|
| Reception Sensitivity |
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm
11AX HE20 MCS0:-96.5dBm
11AX HE20 MCS11:-65dBm
11AX HE40 MCS0:-93.5dBm
11AX HE40 MCS11:-63dBm
5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11AX HE20 MCS11:-66dBm
11AX HE40 MCS11:-63dBm
11AX HE80 MCS11:-61dBm
|
| Transmission Power |
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
|
| Wireless Security |
WPA-PSK/WPA2-PSK/WPA3
|
| Mesh protocol |
802.11k/v/r
|
| Operation Modes |
Router, Access Point
|
| Quality of Service |
WMM
|
| WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
|
| Management |
Local Management, Remote Management, Multi-Managers
|
| DHCP |
Server, Client
|
| Firewall Security |
SPI Firewall
|
| Protocols |
Supports IPv4 and IPv6
|
| Guest Network |
2.4 GHz Guest Network,
5 GHz Guest Network
|
| Dimensions (W X D X H) |
100 × 100 × 167.65 mm (3.9 × 3.9 × 6.6 in)
|
| Interfaces |
Halo E85X: 1× 2.5 Gbps Port + 2× 1 Gbps Ports
(WAN/LAN auto-sensing)
|
| Button |
Reset button
|
| Power Consumption |
• Power consumption in networked standby: _4.62_ W
• Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: _6.68_ W.
• The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: _20__minutes
• How to activate and deactivate wireless network: Enter the webpage of product through wired connecting. The wireless function can be turn on/off via ‘Advanced -> System -> Wi-Fi Network Enable Checkbox’
|
| Network Services Enabled by Default |
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443; Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67; Protocol: UD
DNS
DNS
• Port: 53; Protocol: TCP & UDP
App management
Manage and configure device through app
• Port: 20001; Protocol: TCP
• Port: 20002; Protocol: UDP
|
| Package Contents |

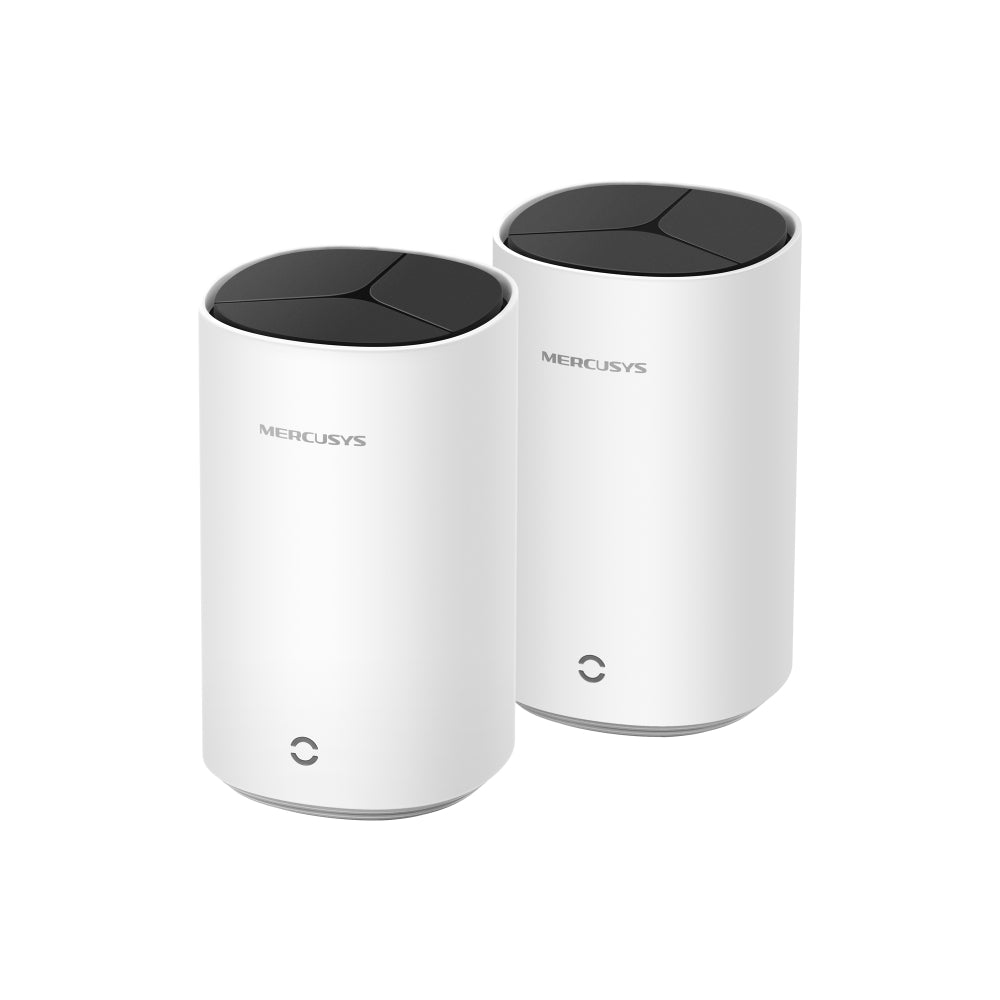

2-pack
2× Halo E85X Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide
|
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
|
