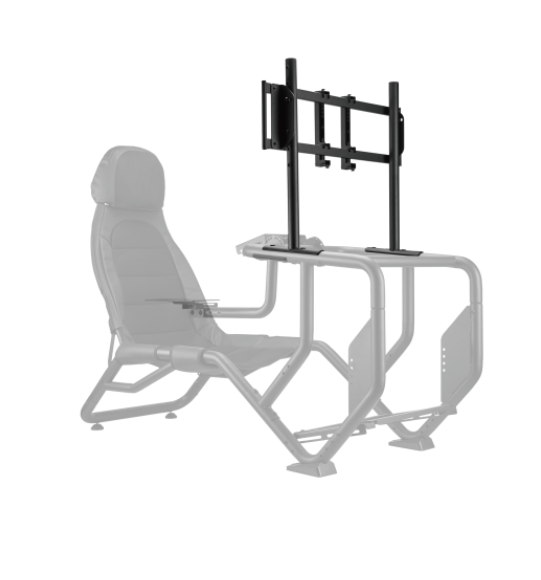

The monitor mount is an essential component of the complete sim racing cockpit system. LRS14-SR01 perfectly fits LRS14 Series and supports most 32" to 55" screens. The mount offers multiple height adjustments from 315mm to 515mm (12.4" to 20.3"), flexibly meeting different user needs.
FEATURES
-
Sturdy Steel Construction: provides a solid and long-lasting performance
-
Height Adjustable: for an optimal viewing position
SPECIFICATIONS
| Product Category: |
Monitor Mount for Cockpit |
| Rank: |
Standard |
| Material: |
Steel |
| Metal Sheet Thickness: |
Bracket Arm THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet) |
| Surface Finish: |
Powder Coating |
| Color: |
Fine Texture Black |
| Color (Accessory): |
Fine Texture Black |

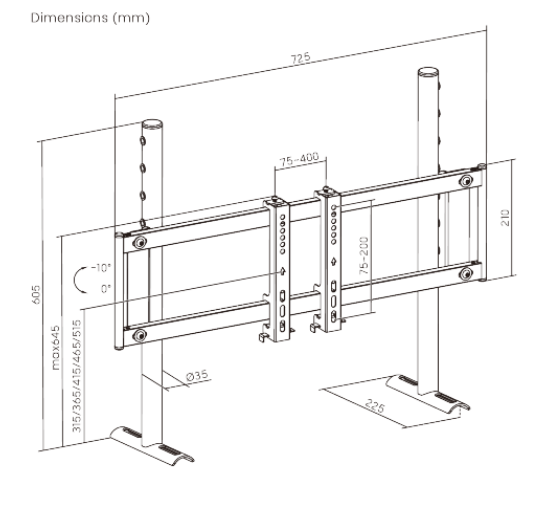

| Dimensions: |
725x225x645mm (28.5"x8.9"x25.4") |
| Column Size(Main Column/Extension Column): |
φ35x1.5mm (φ1.4"x0.059") |
| Fit Screen Size: |
32"-55" |
| VESA Compatible: |
75x75,100x100,200x100,200x200,300x200,400x200 |
| TV Weight Capacity: |
30kg (66lbs) |
| Strength Tested: |
2 Times Approved |
| Screen Quantity: |
1 |
| Tilt Range: |
0°~-10° |
| TV Height Adjustable: |
Yes |
| Height Range: |
315mm/365mm/415mm/465mm/515mm (12.4"/14.4"/16.3"/18.3"/20.3") |
| Cable Management: |
No |
| Base Type: |
Bolt-Down Base |
| Accessory Kit Package: |
Normal/Ziplock Polybag,Compartment Polybag |
| Direction Indicator: |
Yes |
| Silk Screen: |
Can be silkscreen printed |
