Description

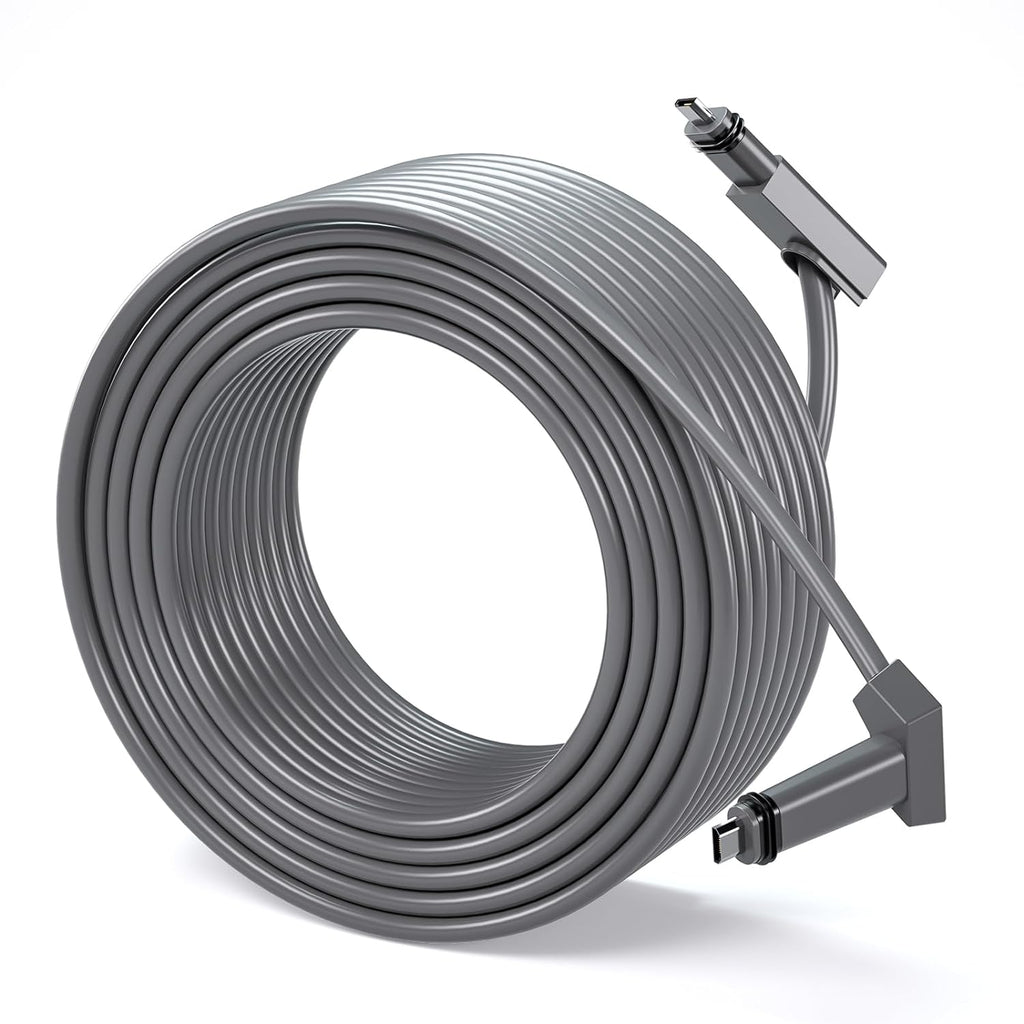

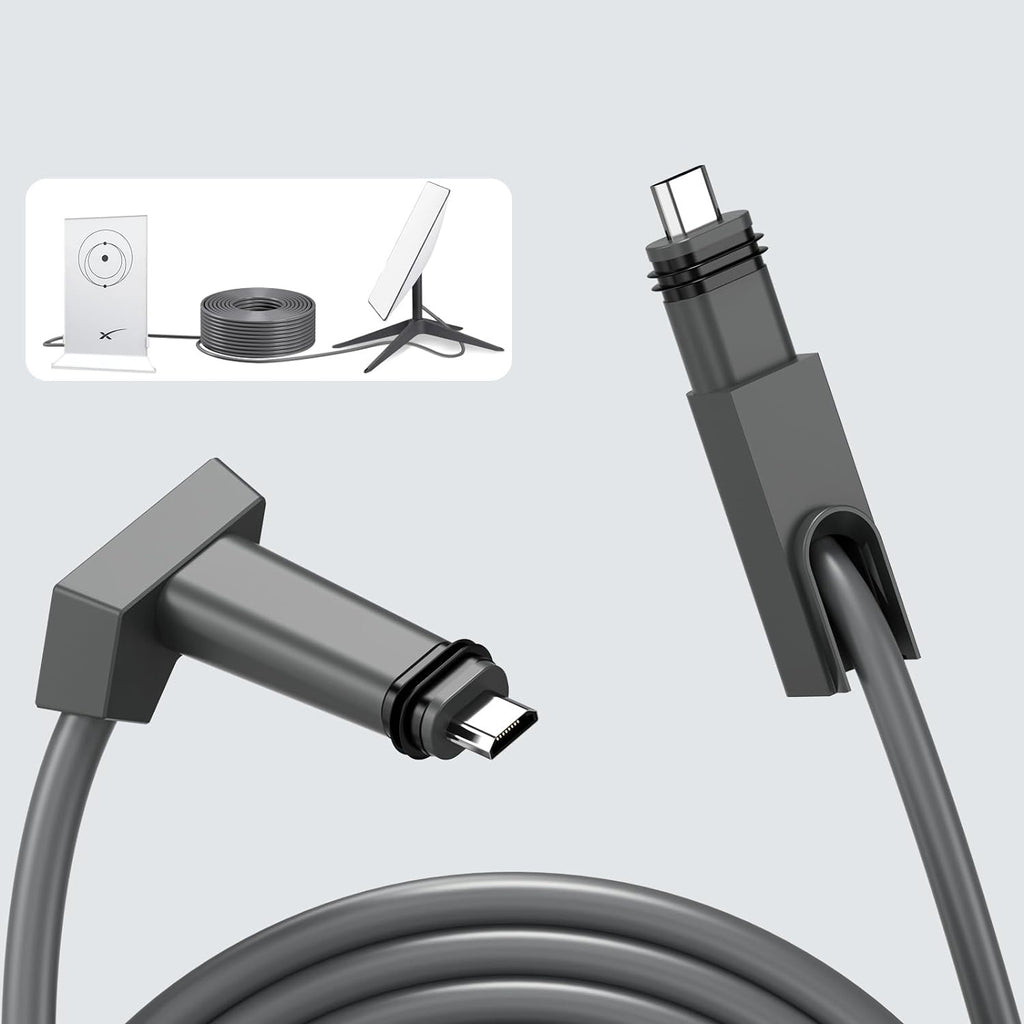

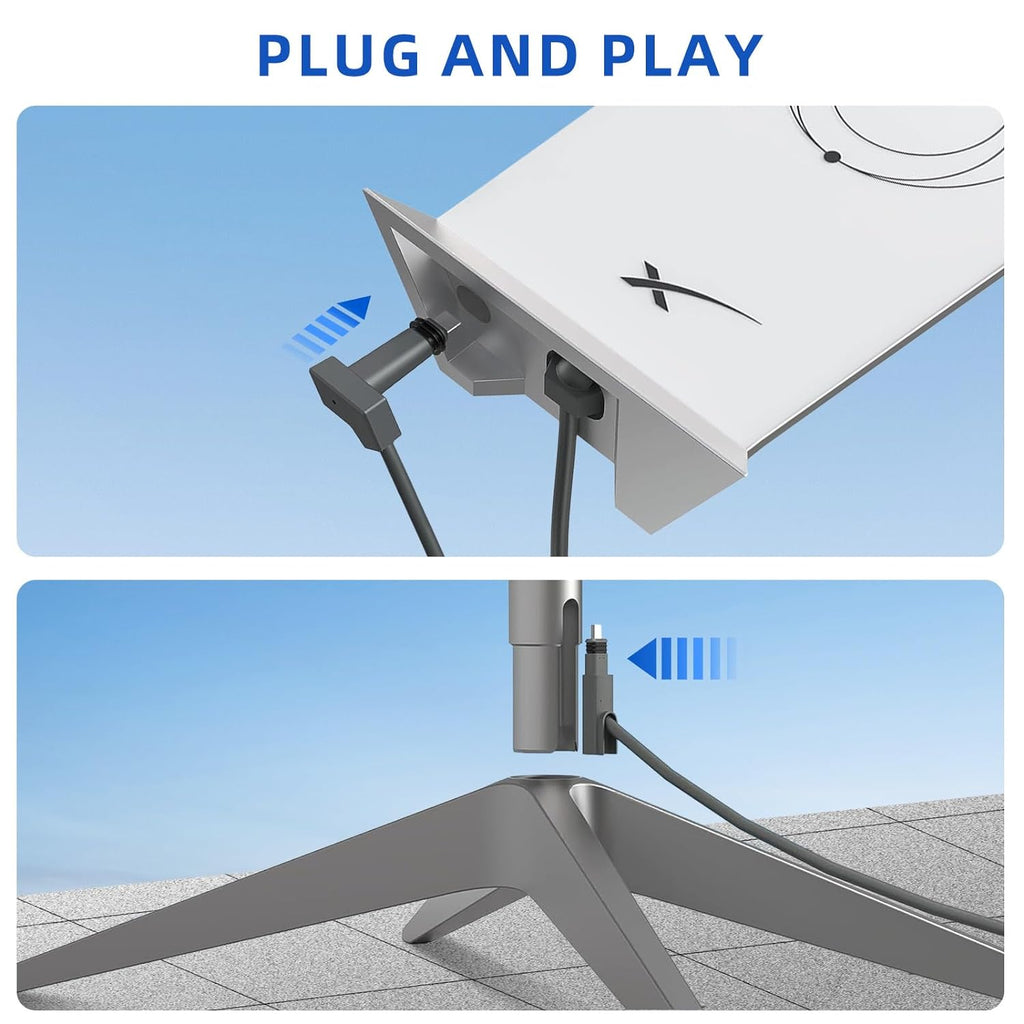

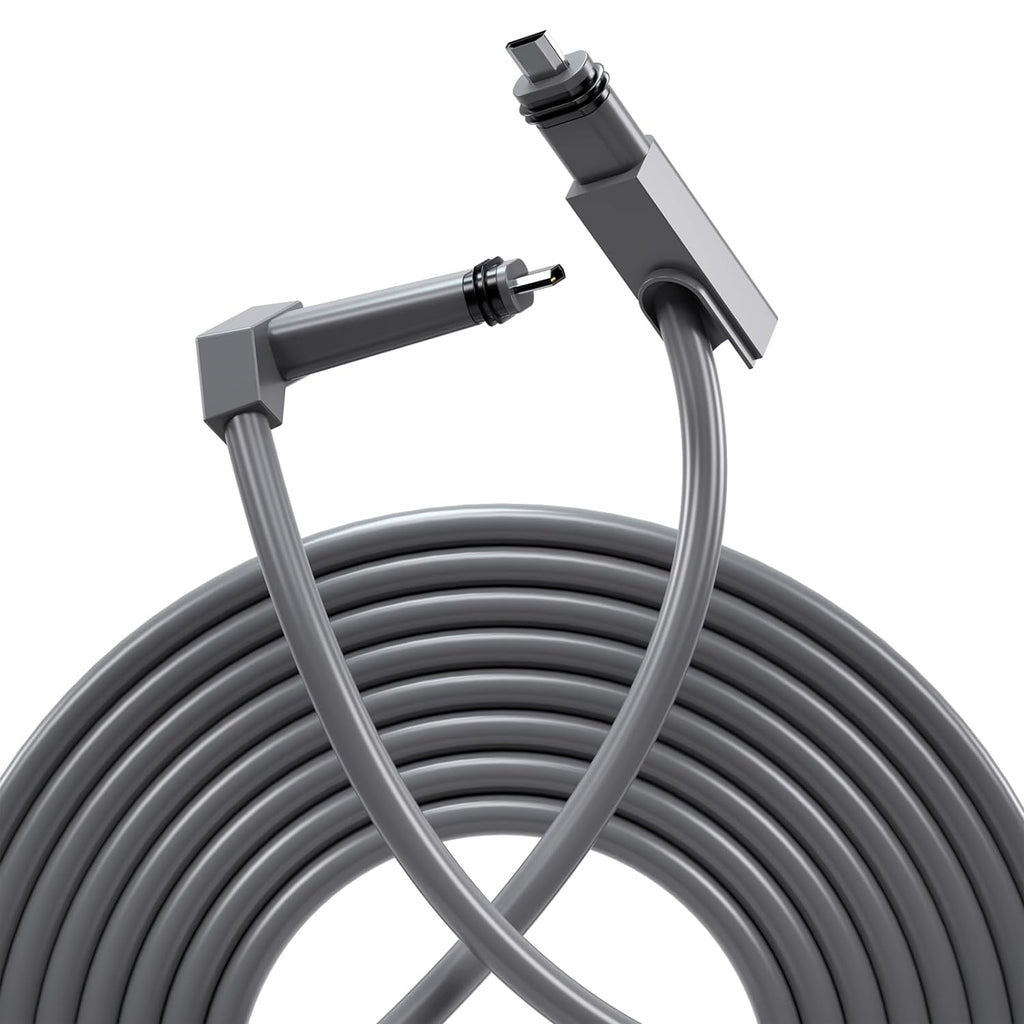

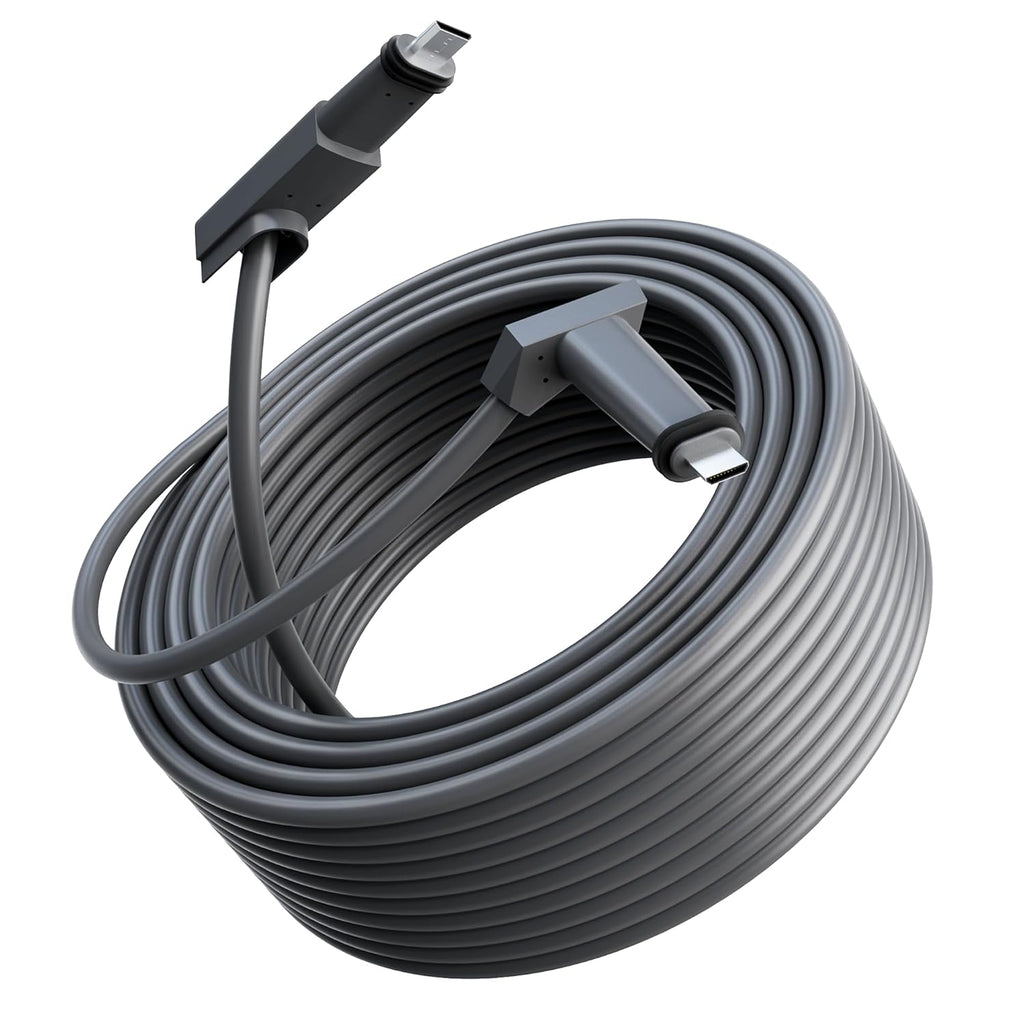

GEN2/V2 Replacement cable
Specifications: CAT5E FTP 7/0.2+Mylar+Aluminum foil+Multi-strand TC ground wire+PVC finished replacement cable (24AWG)
Function: Stable transmission - produced according to the original product standards, 1000Mbps; the connecting cable contains 8 copper wires + ground wire*1, and the cable is waterproof and rainproof.
| Wire characteristics |
|
|||||||||||
| Cable type | Shielded Outdoor-rated CAT5E FTP Cable | |||||||||||
| Number of pairs | 4 pairs (4P) | |||||||||||
| Number of wires | 8 wires (4 twisted pairs) | |||||||||||
| Wire type | Stranded (7/0.20 mm, 7 strands) | |||||||||||
| Wire gauge size | 24AWG | |||||||||||
| Internal characteristics | ||||||||||||
| Internal jacket material | Shielded | |||||||||||
| Color combinations | ||||||||||||
| Pair 1 | BLUE & BLUE/WHITE | |||||||||||
| Pair 2 | ORANGE & ORANGE/WHITE | |||||||||||
| Pair 3 | GREEN & GREEN/WHITE | |||||||||||
| Pair 4 | BROWN & BROWN/WHITE | |||||||||||
| Shield Type | Overall foil (AL/MYLAR, AL face inside) + 7/0.20T drain wire | |||||||||||
| External characteristics | ||||||||||||
| External jacket designation | PVC (flame retardant, VW-1) | |||||||||||
| External jacket material | PVC | |||||||||||
| Average min. thickness | 0.75 mm (REF) | |||||||||||
| Min. thickness | ≈0.75 mm | |||||||||||
| Average cable diameter | 6.30 ± 0.20 mm | |||||||||||
| Jacket color | Grey (GREY) | |||||||||||
| Cable length | 10, 15, 23, 30, 46m | |||||||||||
| RJ45 connectory type | RJ45 with weatherproof couplers | |||||||||||
| Outdoor? | Yes | |||||||||||
| Electrical characteristics | ||||||||||||
| Voltage rating | 30V | |||||||||||
| Temperature rating | 60°C (some ref 80°C) | |||||||||||
| Characteristic impedance (Zo) | 100 ± 15 Ω (1-100 MHz, typical Cat5e) | |||||||||||
| Conductive resistance | ≤89 Ω/km at 20°C (conductor resistance) | |||||||||||
| DC Resistance capacitance unbalance | ≤89 Ω/km at 20°C | |||||||||||
| Pair-to-Ground capacitance unbalance | ≤330 pF/100m (max) | |||||||||||
| Mutual capacitance | ≤5.6 nF/100m (56 pF/m) | |||||||||||
| Dielectric strength | AC 500V / 1 sec MIN (or higher, spark test 1500V) | |||||||||||
| Nominal Velocity of propagation (NVP) | ≈65-70% (typical for HDPE) | |||||||||||
| Power Over Ethernet (PoE) | Supported (PoE/PoE+ compatible, as Cat5e FTP) | |||||||||||
| Transmission characteristics | ||||||||||||
| Transmission speed | 10/100/1000 Mbps (1 Gbps) | |||||||||||
| Bandwidth | 350 MHz (Cat5e standard) | |||||||||||
| Link max. distance | 100 m | |||||||||||
| Channel max. distance | 100 m | |||||||||||
| Certifications and standards | ||||||||||||
| International standards | Yes (meets TIA/EIA-568, ISO/IEC 11801 Cat5e) | |||||||||||
| UL certificate | Yes (AWM 2725, E473610) | |||||||||||
| ETL certificate | / | |||||||||||
| Miscellaneous | ||||||||||||
| Color | Grey | |||||||||||
| Warranty | one year | |||||||||||
