TP Link AC600 Dual Band Wi-Fi PCI Express Adapter
AC600 Wireless Dual Band PCI Express Adapter
- AC600 Dual Band WiFi – Make full use of your network with Wi-Fi speeds up to 600 Mbps (433 Mbps on the 5 GHz band and 200 Mbps on the 2.4 GHz band)
- MU-MIMO Supported – Boost network throughput and efficiency when working with a compatible MU-MIMO router
- Broad Wireless Range – Connect to your Wi-Fi in more parts of your home with a powerful signal-boosting high-gain antenna
- WPA3 Supported – Improve cybersecurity with more secure and individualized protection
- Low-Profile and Full-Height Brackets - Customized options give you the flexibility to find a bracket that perfectly fits your board design
Upgrade Your Desktop with Advanced AC WiFi
AC600 Wireless Dual Band PCI Express Adapter
WiFi for All Your Online Needs
Archer T2E provides your PC with WiFi capability and receives WiFi signals on two separate bands. It can even work as a WiFi hotspot, sharing internet with other WiFi devices. Choose 2.4 GHz for browsing, email and social media, or switch to 5 GHz for gaming and streaming.
Broader Coverage with High-Gain Antenna
Powerful signal-boosting high-gain antenna significantly extends your existing WiFi reception, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.
Improved Security with WPA3
The latest WiFi security protocols bring new capabilities to improve cybersecurity, safeguarding your home WiFi. It provides more secure and individualized encryption for personal password safety and enhanced protection against brute-force attacks.

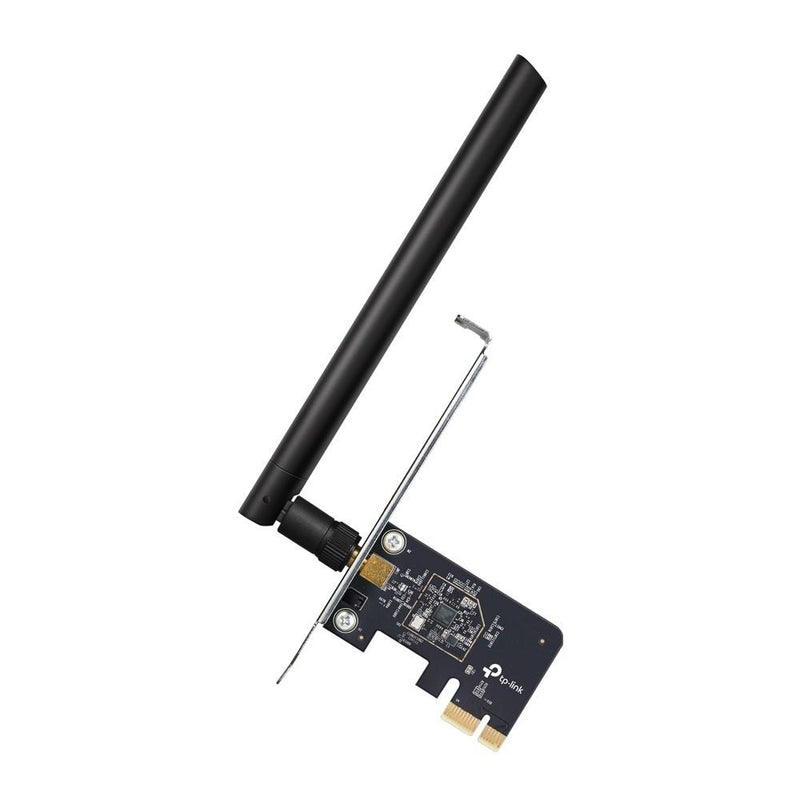

Adjustable,
Multi-Directional Antenna
Adjust the antenna to the perfect position to suit any environment. Replace the detachable antenna with a diverse range of indoor or directional antennae to further enhance your wireless coverage.
| HARDWARE FEATURES |
|---|
| Interface |
PCI Express |
| Dimensions |
4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm) |
| Antenna |
1 Detachable External Antenna |
| WIRELESS FEATURES |
|---|
| Wireless Standards |
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate |
5 GHz:
11ac: Up to 433 Mbps(dynamic)
11n: Up to 200 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 200 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity |
5GHz:
11ac HT80:-59.0dBm
11n HT40:-68.0dBm
11a 54Mbps:-73.0dBm
11a 6Mbps:-90.0dBm
2.4GHz:
11n HT40:-70dBm
11g 54Mbps:-75dBm
11b 11Mbps:-87dBm |
| Transmit Power |
5GHz:18dBm(FCC)/23dBm(CE)(EIRP)
2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP) |
| Wireless Modes |
Infrastructure mode |
| Wireless Security |
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS |
|---|
| Certification |
FCC, CE, RoHS |
| Package Contents |
AC600 Wireless Dual Band PCI Express Adapter
Archer T2E
Low-Profile Bracket
Quick Installation Guide
Resource CD |
| System Requirements |
Windows 10 |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
*Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Corporation Limited. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright ©2020 TP-Link Corporation Limited. All rights reserved. †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and the number of connected devices is not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.
*Use of MU-MIMO and WPA3 requires both the AP and system to support the corresponding features.
*Functionality of Archer T5E may be restricted on some computing systems and platforms. Please try to update the device’s driver for feature compatibility.
