Robust Parental Controls

Block inappropriate content and restrict time spent online

Built-In Antivirus

Protect all connected devices in your home from online threats

Quality of Service

Prioritize devices and applications for faster performance when needed

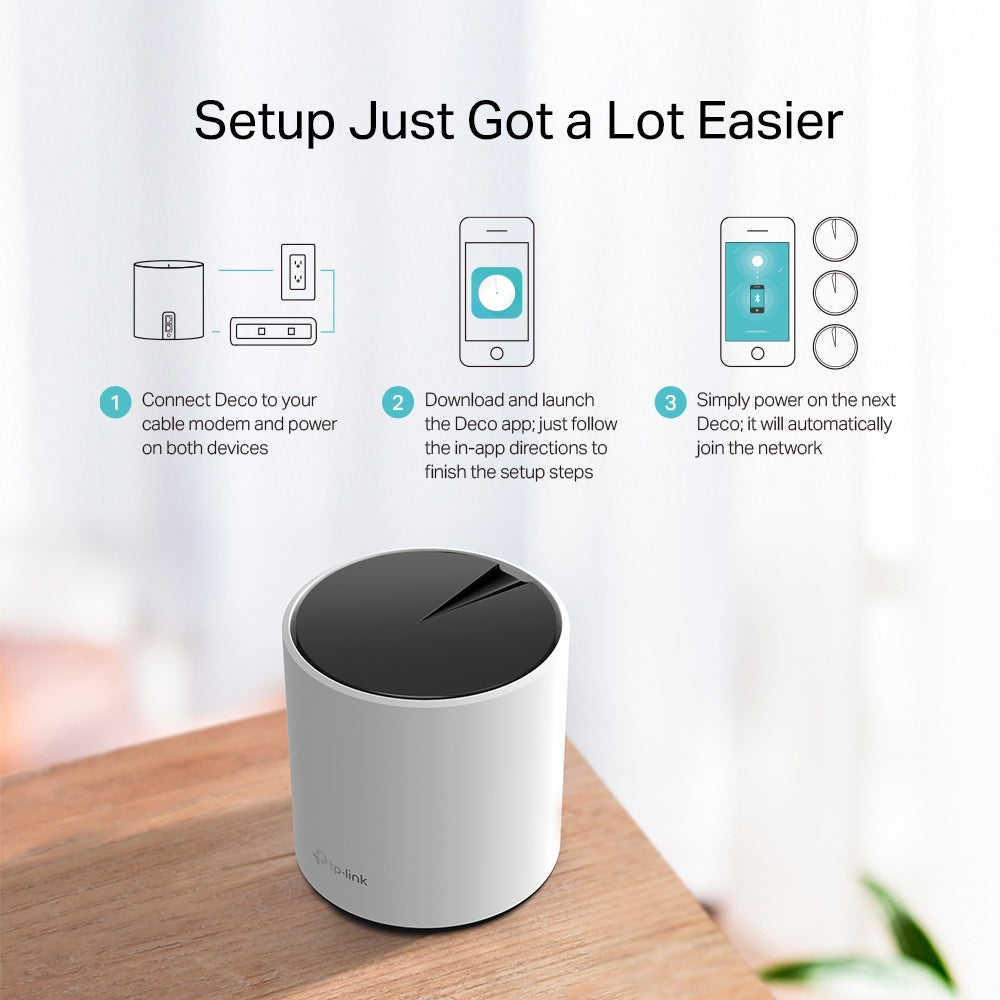

Setup Just Got a Lot Easier

Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.

•

  1 Connect Deco to your cable modem and power on both devices


•

  2 Download and launch the Deco app; just follow the in-app directions to finish the setup steps


•

  3 Follow in-app instructions to configure your Deco system.

Wi-Fi Made Easy

•

  Easy Management

  Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.


•

  Voice Control

  Pair with Alexa to control Deco X25 with simple voice commands. Enjoy the convenient life.




•

  All Decos Work Together

  Deco X20 is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.

  ^△Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features.

  ^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

  ^‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device

  ^§HomeCare^TM Pro is available for free for the first few months after subscription. Please check: www.tp-link.com/homecare for more information.

  WIRELESS
  Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
  WiFi Speeds	AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)

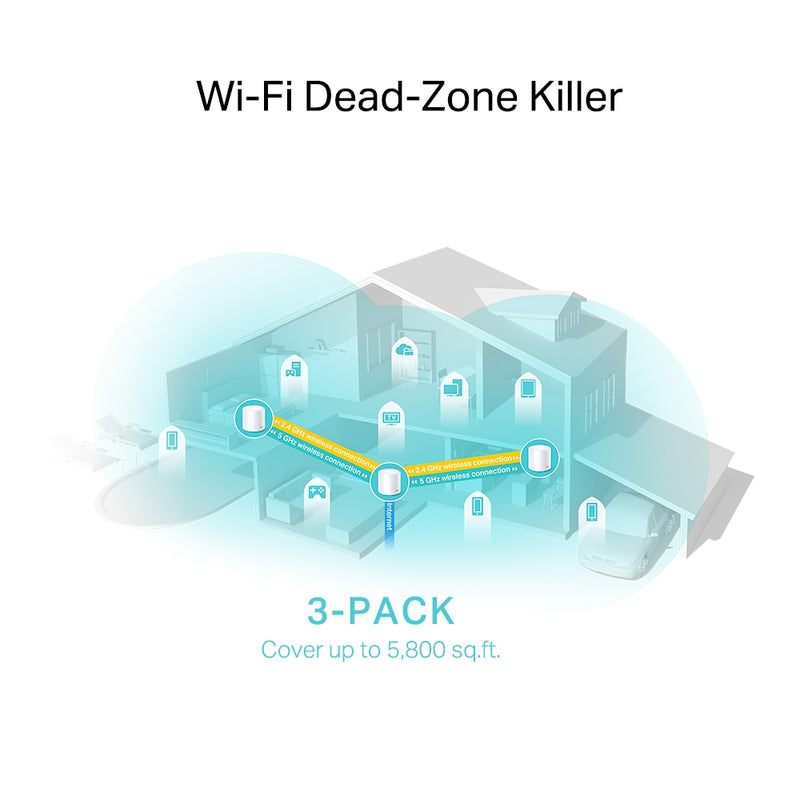

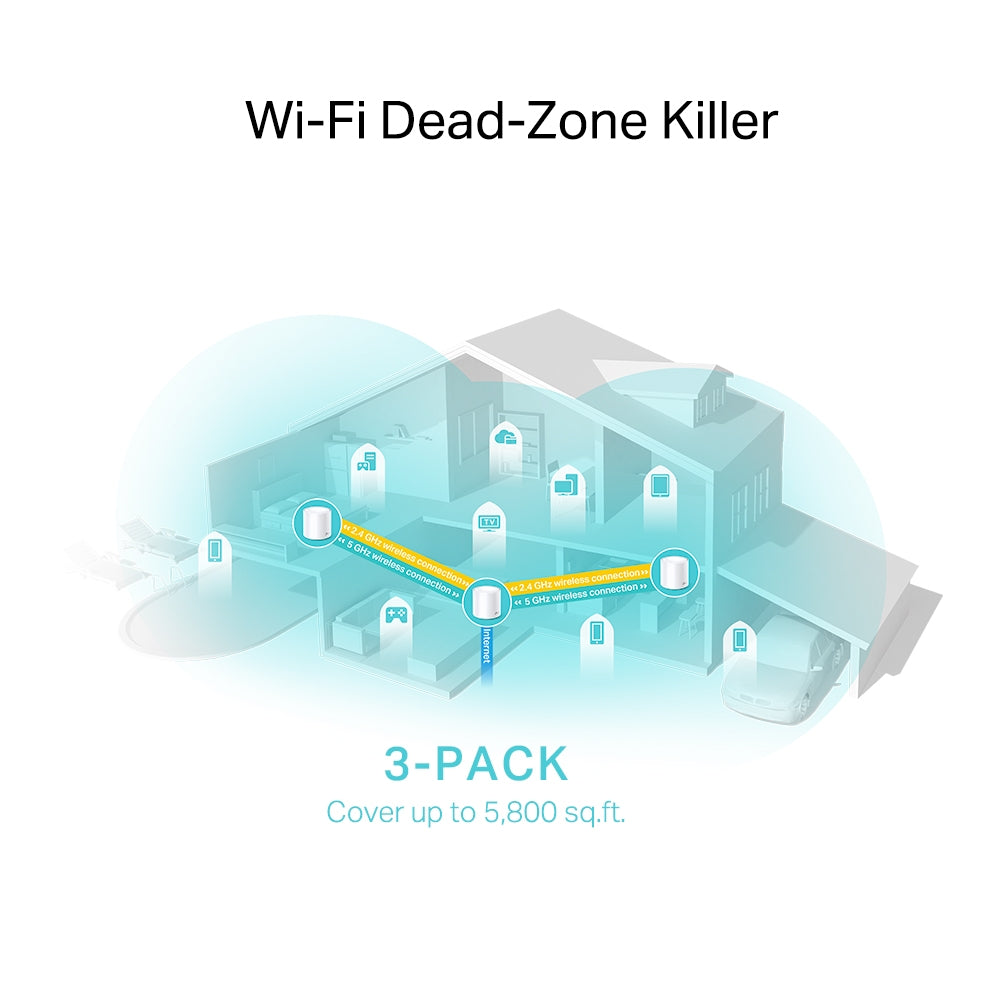

  WiFi Range	4-6 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 4× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
  WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Silmultaneously communicates with multiple MU-MIMO clients OFDMA Silmultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
  Working Modes	Router Mode Access Point Mode

  HARDWARE
  Processor	1 GHz Quad-Core CPU
  Ethernet Ports	2× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing
  Buttons	Reset Button
  Power	12 V ⎓ 1.5 A

  SECURITY
  WiFi Encryption	WPA WPA2 WPA3
  Network Security	SPI Firewall Access Control HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log
  Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

  SOFTWARE
  Protocols	IPv4 IPv6
  Service Kits	HomCare™ Learn More>
  Parental Controls	HomeCare™ Parental Controls Custom Profiles Content Filtering URL FIltering Time Limit Time Schedule (Bed Time) Log Insight Usage Monitor Monthly Reports
  WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
  Quality of Service	HomeCare™ QoS QoS by Device QoS by Application
  Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
  NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
  IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
  DHCP	Address Reservation DHCP Client List Server
  DDNS	TP-Link
  Management	Deco App

  PHYSICAL
  Dimensions (W×D×H)	4.33 × 4.33 × 4.99 in (110 × 110 × 114 mm)
  Package Contents	Deco X25 (3-pack) 3 Deco X25 units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide

  OTHERS
  System Requirements	Android 4.4 or later iOS 9.0 or later
  Certifications	CE, EAC, FCC, IC, RoHS, RCM
  Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

  TEST DATA
  WiFi Transmission Power	CE: <20d Bm(2.4 GHz) <30 dBm(5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm(5 GHz)

  For additional version information, please go to the support page.
