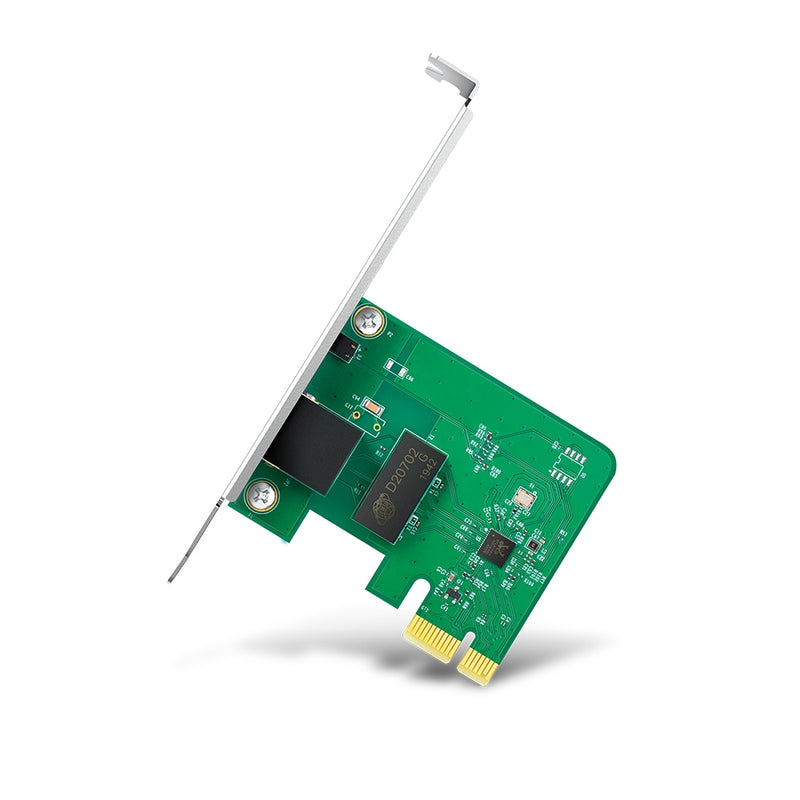

Gigabit PCI Express Network Adapter
- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN
| HARDWARE FEATURES |
| Interface |
PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) |
| LED |
Status |
| Wireless Standards |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
| Data Rates |
10/100/1000Mbps for Half-Duplex mode,
20/200/2000Mbps for Full-Duplex mode |
| Dimensions |
3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm) |
| Flow Control |
IEEE 802.3x Flow Control (Full-Duplex) |
| OTHERS |
| Certification |
FCC, CE, RoHS, BSMI, VCCI |
| Package Contents |
Gigabit PCI Express Network Adapter TG-3468
Quick Installation Guide
Resource CD
Low-profile Bracket |
| System Requirements |
Windows 10/8.1/8/7 |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
†Maximum wired data throughput rates are the physical rates derived from IEEE Standard 802.3 specifications. Actual wired data throughput is not guaranteed and will vary as a result of environmental factors, Ethernet cable class, and computer performance.
‡Use of Wake on LAN requires your mainboard to also support the corresponding feature
§Use of Flow Control requires devices to also support the corresponding feature
△To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of the supported OS in the download center at tp-link.com/download-center
