AC1200 Wireless VDSL/ADSL Modem Router
- Parental Controls: manage responsible internet access for your children
- Guest Network|: provides separate access for guests while securing the home network
- Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
- Quality of Service: prioritizes network traffic by device or application
- IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
- IPv6: compatible with IPv6 (Internet Protocol version 6)
- Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)
| HARDWARE FEATURES |
| Interface |
3 10/100 RJ45 LAN Ports
1 10/100 RJ45 LAN/WAN Port
1 RJ11 Port |
| Button |
WPS Button
Power On/Off Button
Reset Button |
| Power Supply |
12V/1A |
| VDSL2 Standards |
ITU G.993.2, Up to 17a pro¬le (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP) |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Dimensions ( W x D x H ) |
385*290*76mm |
| Antenna Type |

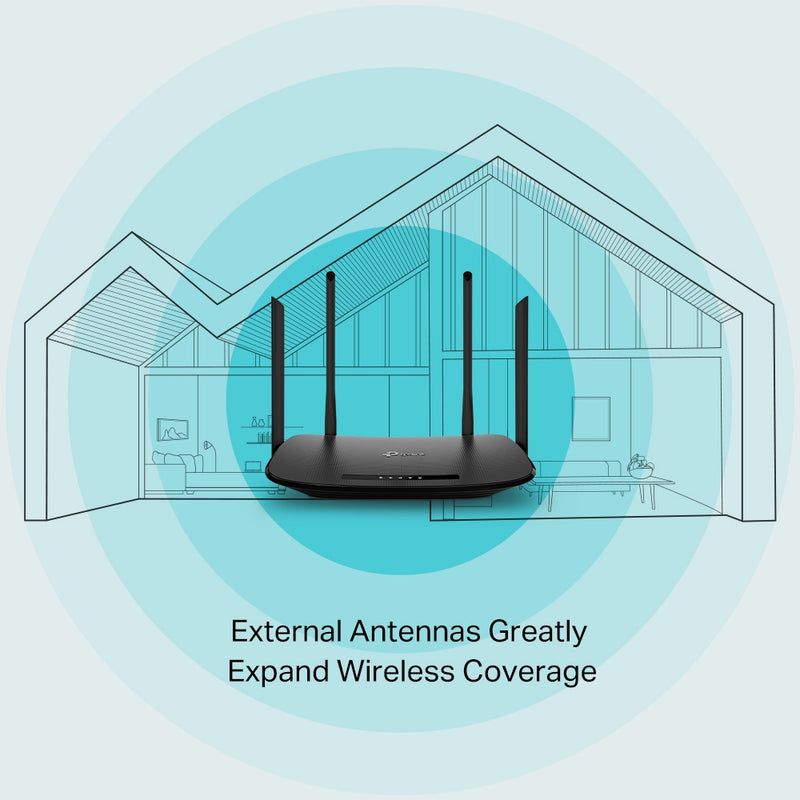

4 fixed external antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz |
| Wireless Speeds |
867Mbps at 5GHz
300Mbps at 2.4GHz |
| Transmit Power |
2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP) |
| Wireless Functions |
Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, QSS(WPS) |
| SOFTWARE FEATURES |
| Quality of Service |
ATM QoS, Bandwidth Control |
| Security |
NAT Firewall, Access Control, IP and MAC Address Binding |
| Operating Modes |
VDSL/ADSL Modem Router, Wireless Router |
| Management |
Web Based Con¬guration(HTTP), Remote management,
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
Upgrade, Diagnostic Tools |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding |
Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| Protocols |
Supports IPv4 and IPv6 |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
|
| Advanced Functions |
Parental Control, Network Address Translation(NAT),
Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,
DDNS, IGMP V1/V2/V3
|
| Guest Network |
2.4GHz guest network, 5GHz guest network |
| OTHERS |
| Certification |
CE, RoHS, RCM |
| Package Contents |
· AC1200 Wireless VDSL/ADSL Modem Router Archer VR300
· External Splitter
· RJ11 DSL Cable
· RJ45 Ethernet Cable
· Power Adapter
· Quick Installation Guide
|
| System Requirements |
· Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
· Subscription with an Internet Service Provider (for Internet access)
|
| Environment |
· Operating Temperature: 0℃~40℃ (32℉ ~104℉)
· Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
· Operating Humidity: 10%~90% non-condensing
· Storage Humidity: 5%~90% non-condensing
|
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
