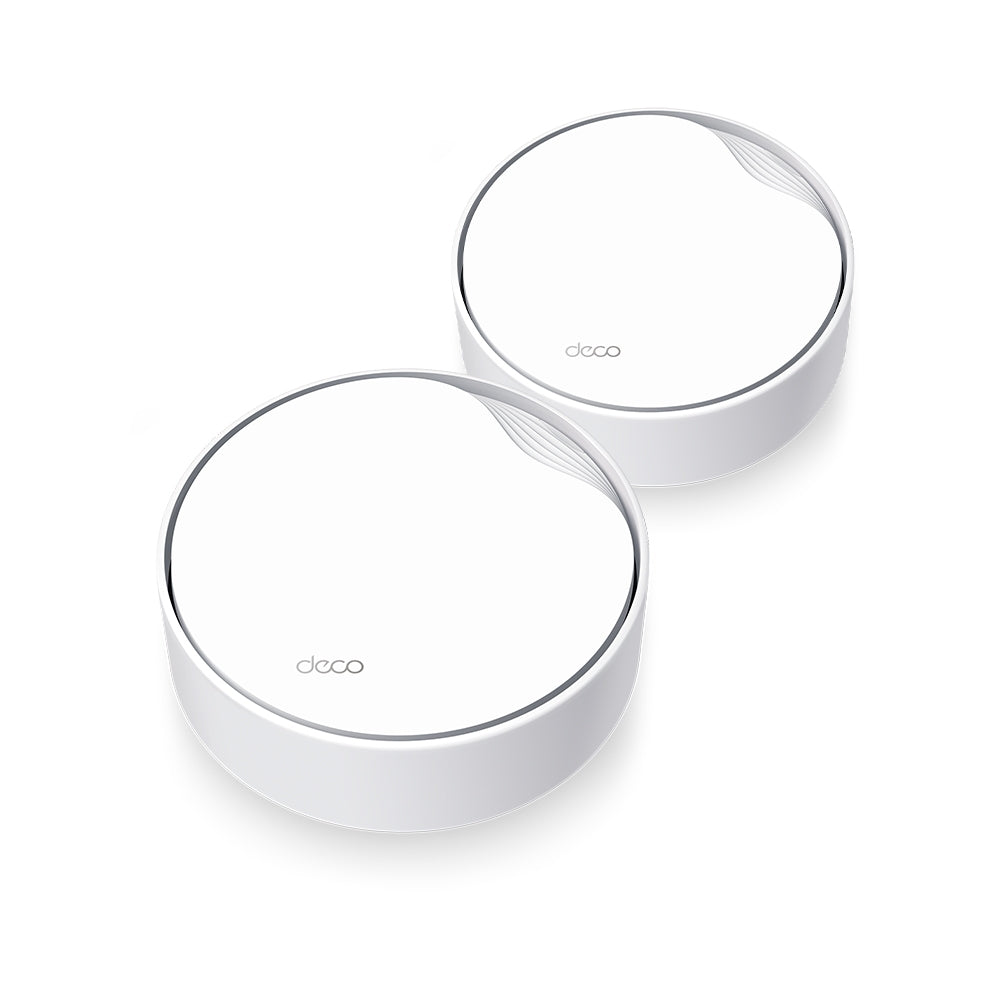

AX3000 Whole Home Mesh WiFi 6 System with PoE
- AX3000 Dual-Band WiFi – 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†

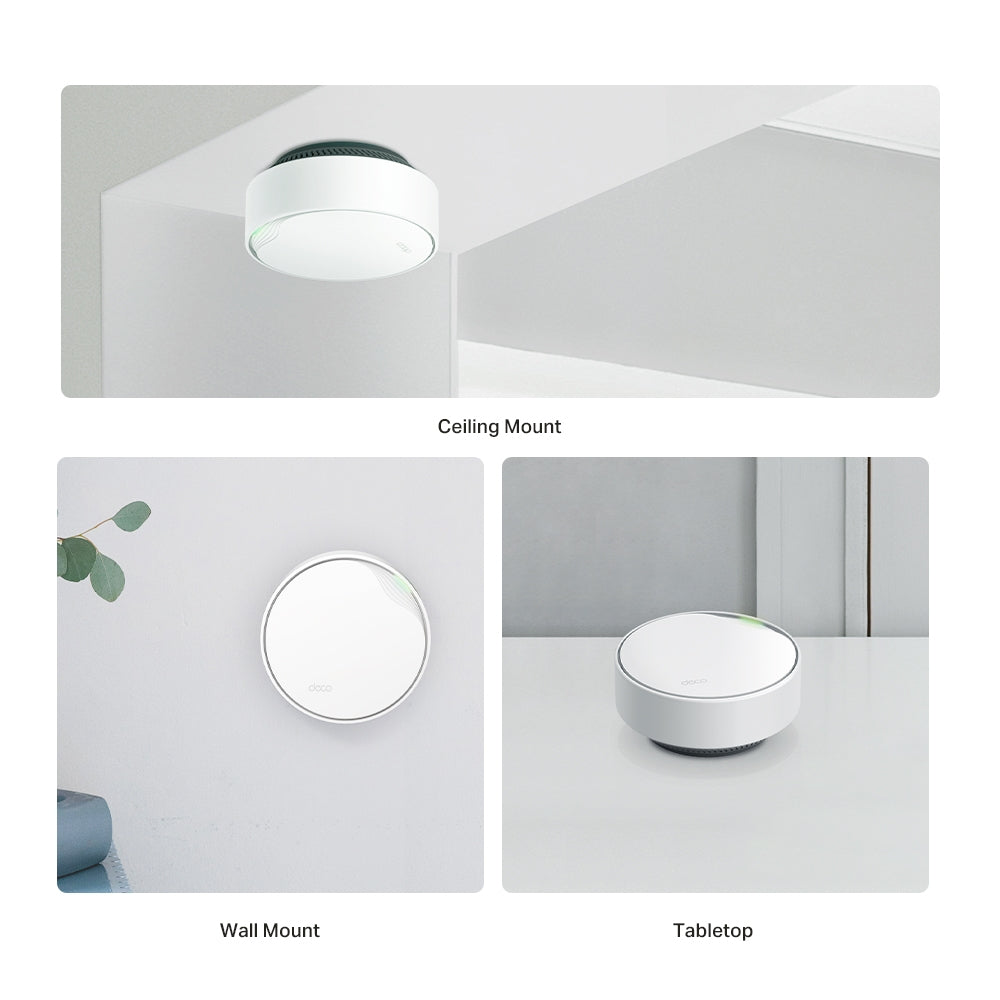

- Multiple Installation Options – Place it on a tabletop or install it on a ceiling or wall with the adaptive accessories.

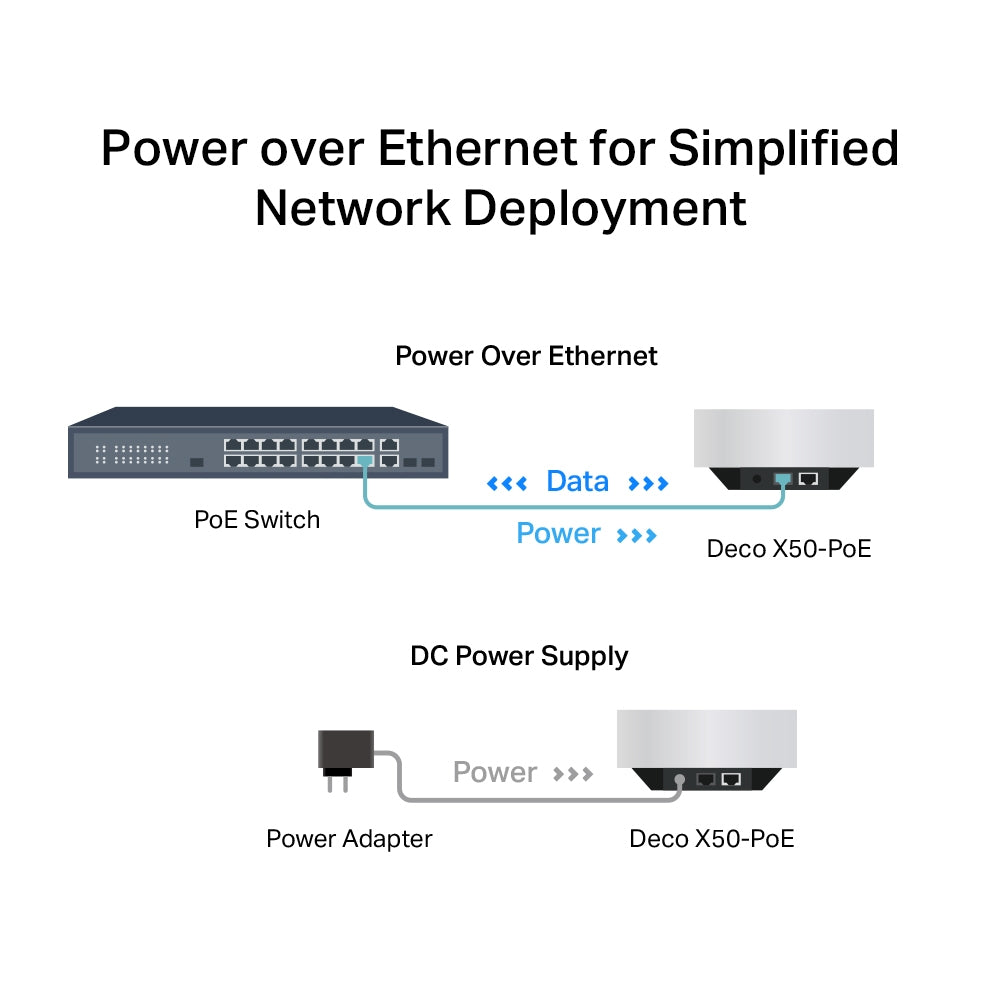

- PoE Supported – Power over Ethernet for simplified network deployment.

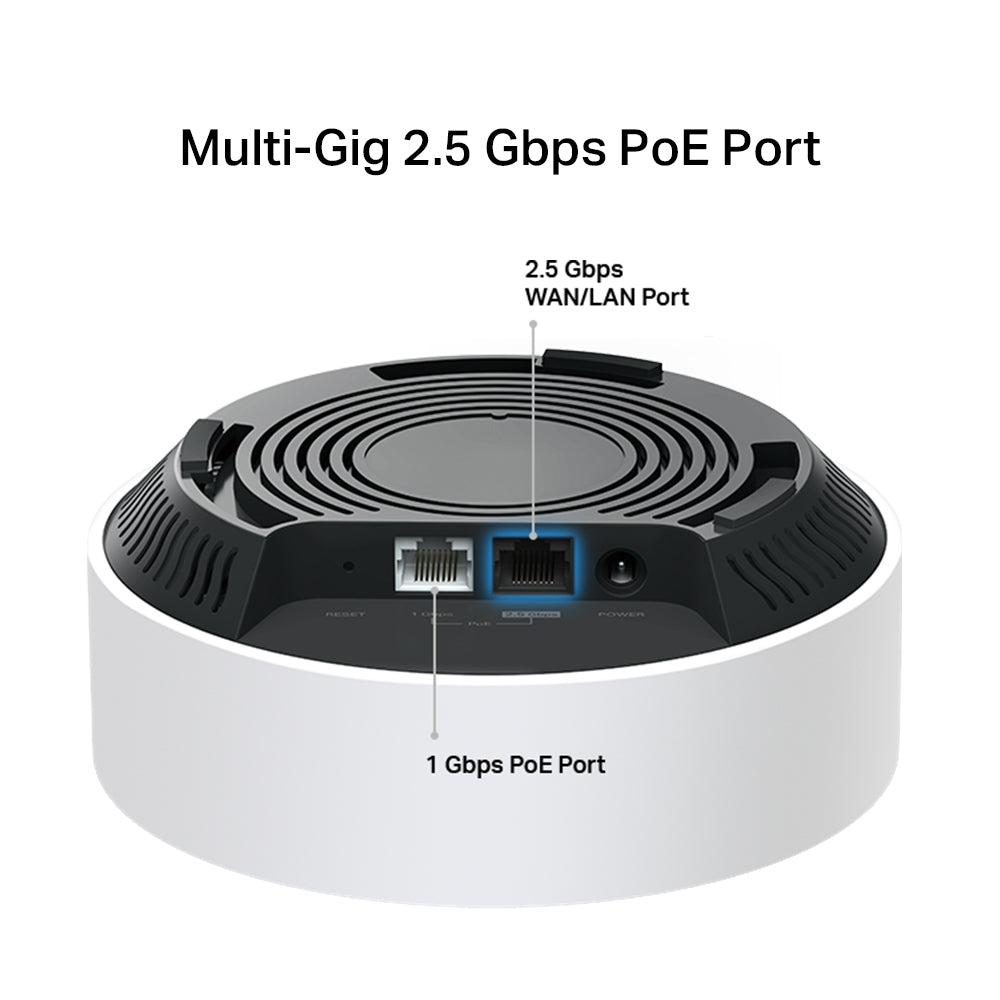

- Multi-Gig 2.5 Gbps Wired Network – 1× 2.5 Gbps port + 1× Gigabit Port.§
- Seamless AI-Driven Mesh – Intelligently learns your network environment to provide the ideal WiFi unique to your home.‡
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.
- Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step.
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

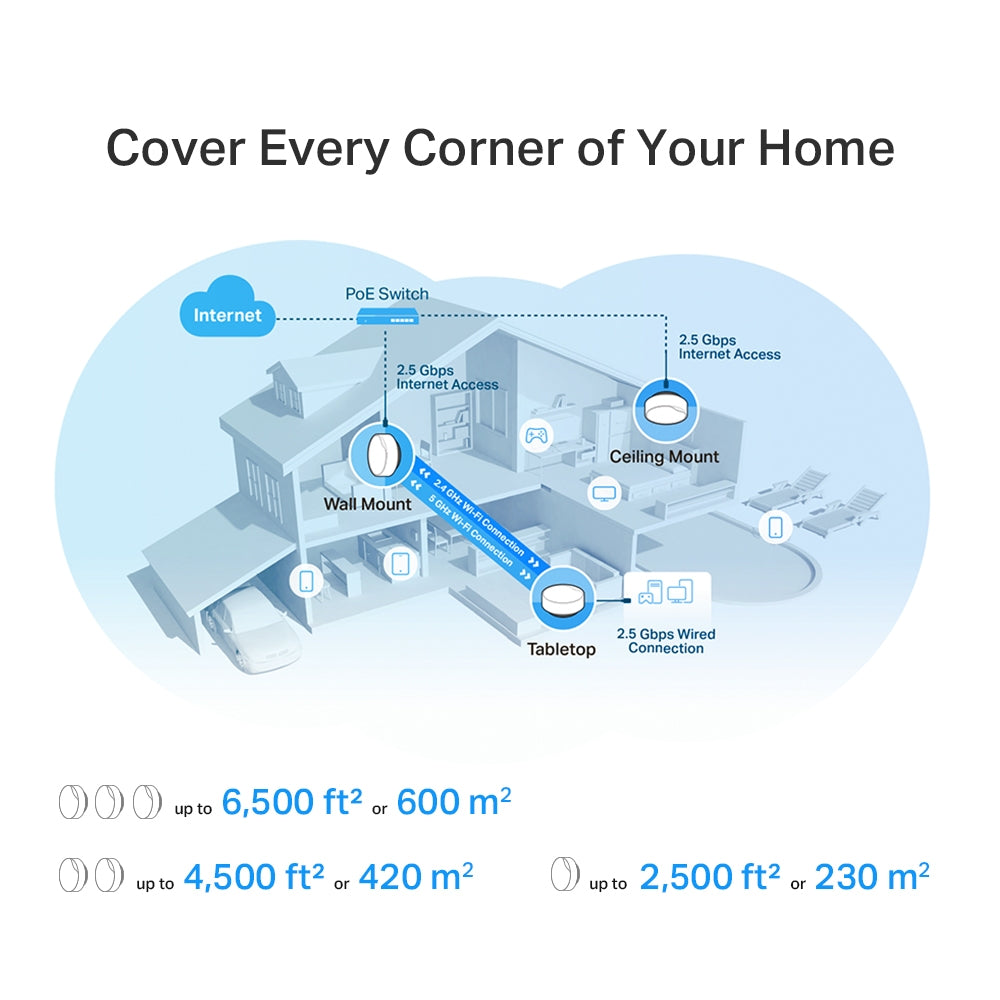

4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
4× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Distribute devices to different bands for optimal performance
Simultaneously communicates with multiple MU-MIMO clients
Simultaneously communicates with multiple WiFi 6 clients
More than enough bandwidth for connected devices
|Working Modes||Router Mode
Access Point Mode
|Power Supply||• 802.3at PoE
• 12V DC
(EU Version: 12V/1.2A DC. US Version: 12V/1.5A DC).
Note: DC adapter is included in the package
|Ethernet Ports||1× 2.5 Gbps port + 1× Gigabit port
*Per Deco Unit
Supports WAN/LAN auto-sensing
|Network Security||SPI Firewall
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
|Guest Network||1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
HomeShield Parental Controls
Professional Content Filter Library
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
|WAN Types||Dynamic IP
|Quality of Service||
QoS by Device
|Cloud Service||OTA Firmware Upgrade
|NAT Forwarding||Port Forwarding
DHCP Client List
|WiFi Transmission Power||CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
|Dimensions (W×D×H)||6.1 × 6.1 × 2.7 in
(154× 154 × 68.6 mm)
Deco X50-PoE (2-pack)
2× Deco X50-PoE units
1× RJ45 Ethernet cable
2× Power adapters

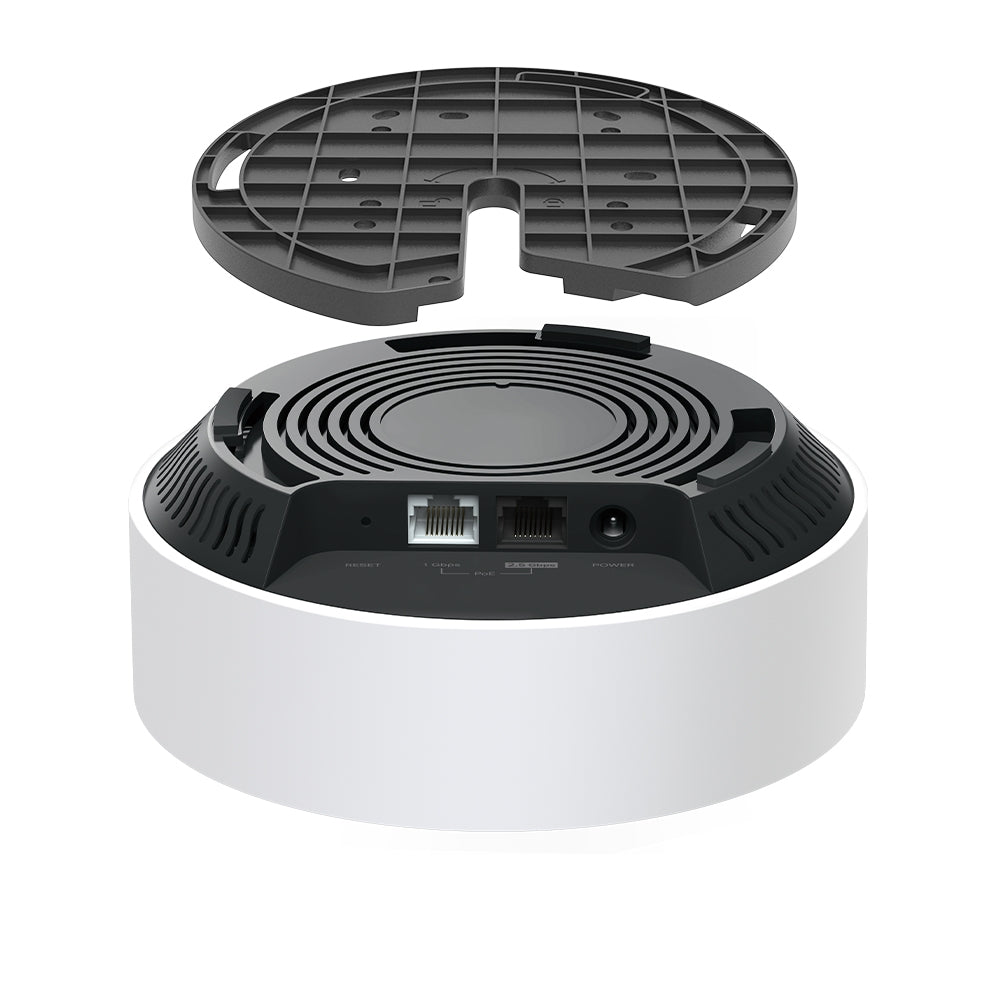

Ceiling/Wall Mounting Kits
Quick Installation Guide
|System Requirements||Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
|Certifications||CE, FCC, RoHS|
|Environment||Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.
△Use of WiFi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, HE160 and BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
**Google and Google Home are trademarks of Google LLC.
§2.5 Gbps internet speeds require compatible service plans and equipment. 2.5 Gbps and 1 Gbps ports cannot be concurrently configured as WAN ports.
