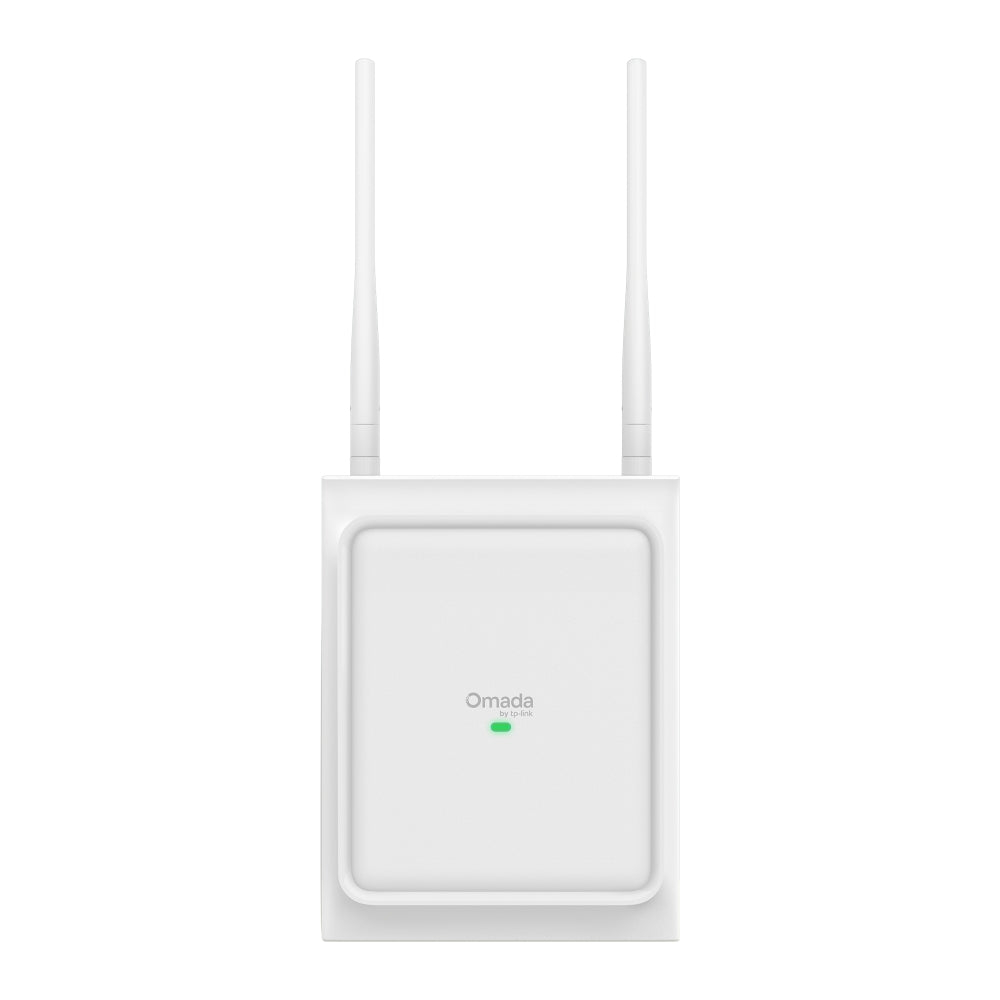

TP-Link EAP725-Outdoor, Omada BE3600 Indoor/Outdoor Wi-Fi 7 Access Point with Directional/Omnidirectional Antennas

Roll over image to zoom in Click on image to zoom

TP-Link EAP725-Outdoor, Omada BE3600 Indoor/Outdoor Wi-Fi 7 Access Point with Directional/Omnidirectional Antennas

Name: TP-Link EAP725-Outdoor, Omada BE3600 Indoor/Outdoor Wi-Fi 7 Access Point with Directional/Omnidirectional Antennas
Brand: TP-LINK
SKU: TL-EAP725-OUTDOOR
Price: 429.0 NZD
Availability: InStock

TP-LINKSKU: TL-EAP725-OUTDOOR

EAP725-OutdooR

Omada BE3600 Indoor/Outdoor Wi-Fi 7 Access Point with Directional/Omnidirectional Antennas

Switchable Directional and Omnidirectional Antennas: Supports focused point coverage or wide-area outdoor coverage by switching antenna modes on software.**
Plug & Play Automatic Antenna Detection: Automatically detects when external antennas are installed and adjusts the coverage pattern accordingly.
4-Stream Outdoor Wi-Fi 7: Delivers high-speed outdoor connectivity up to 3.6 Gbps.^†
True Dual-Band Coverage: 300 m²omnidirectional and 510 m² directional recommended coverage.^§
1× 2.5G PoE Port: Flexible PoE deployment reduces costs by delivering power and data over a single Ethernet cable.
Outdoor-Ready Durability: Features an IP66-rated weatherproof enclosure and 6kV lightning protection.
Quick and Easy Setup: Features wall/pole mounting withOmada SDN for one-click setup.
Advanced Features: Centralised management, mesh, and seamless roaming.

SPECIFICATIONS

HARDWARE FEATURES
Interface	1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45)
Button	Reset
Power Supply	802.3at PoE
Max. Power Consumption	18.4W (for PoE+)
Dimensions ( W x D x H )	8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm)
Antenna	• 2.4 GHz: 2 × 4.5 dBi, external omnidirectional antennas 2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°) • 5 GHz: 2 × 5.3 dBi, external omnidirectional antennas 2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°) Note: The gains above are the single-antenna peak gains.
Bluetooth	BLE 5.2
Weatherproof Enclosure	IP66
Mounting	Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/g/b/n/ac/ax/be
Frequency	2.4 GHz, 5 GHz
Signal Rate	688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions	• 4k-QAM • OFDMA • Multiple SSIDs: 16 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MLO • Omada Mesh^§ • Seamless Roaming(802.11k/v/r)^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission Power	• CE: (EIRP) 2.4 GHz: 20 dBm 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C • FCC: (Conducted Power) 2.4 GHz: 25 dBm 5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
Certification	CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI
Package Content	• Access Point EAP725-Outdoor • Waterproof Kit • Mounting Kit • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: -30 to 70 ℃ (-22 to 158 ℉) • Storage Temperature: -40 to 70 ℃ (-40 to 158 ℉) • Operating Humidity: 10 to 90% RH non-condensing • Storage Humidity: 5 to 90% RH non-condensing
Weight	Main Unit: 1.33 kg
