| Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function |
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 20km (12.4 miles) |
| Ports |
1 100M dual SC/UPC port
1 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length |
1310nm |
| Network Media 10BASE-T |
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T |
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX |
Single-mode Fiber |
| LED Indicators |
PWR, Link/Act |
| Dimensions (W*D*H) |
3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm) |
| Power Supply |
External power supply |
| Max Power Consumption |
2.4W |
| Safety & Emission |
FCC, CE, RoHS |
| Package Contents |

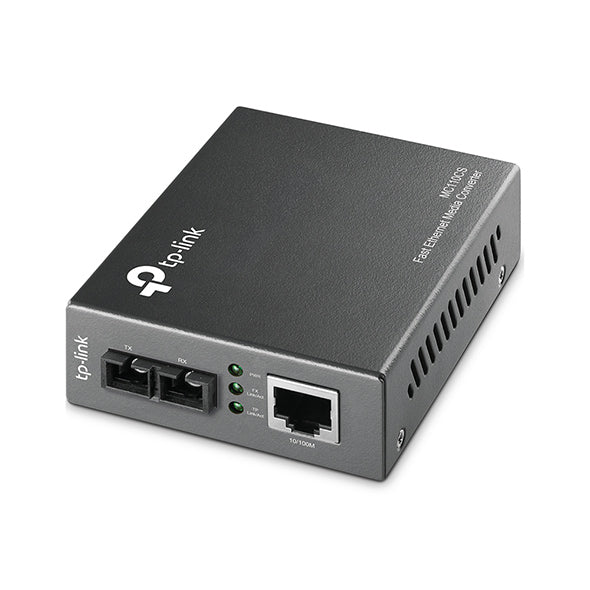

• Media Converter MC110CS
• Power Adapter
• Installation Guide |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
