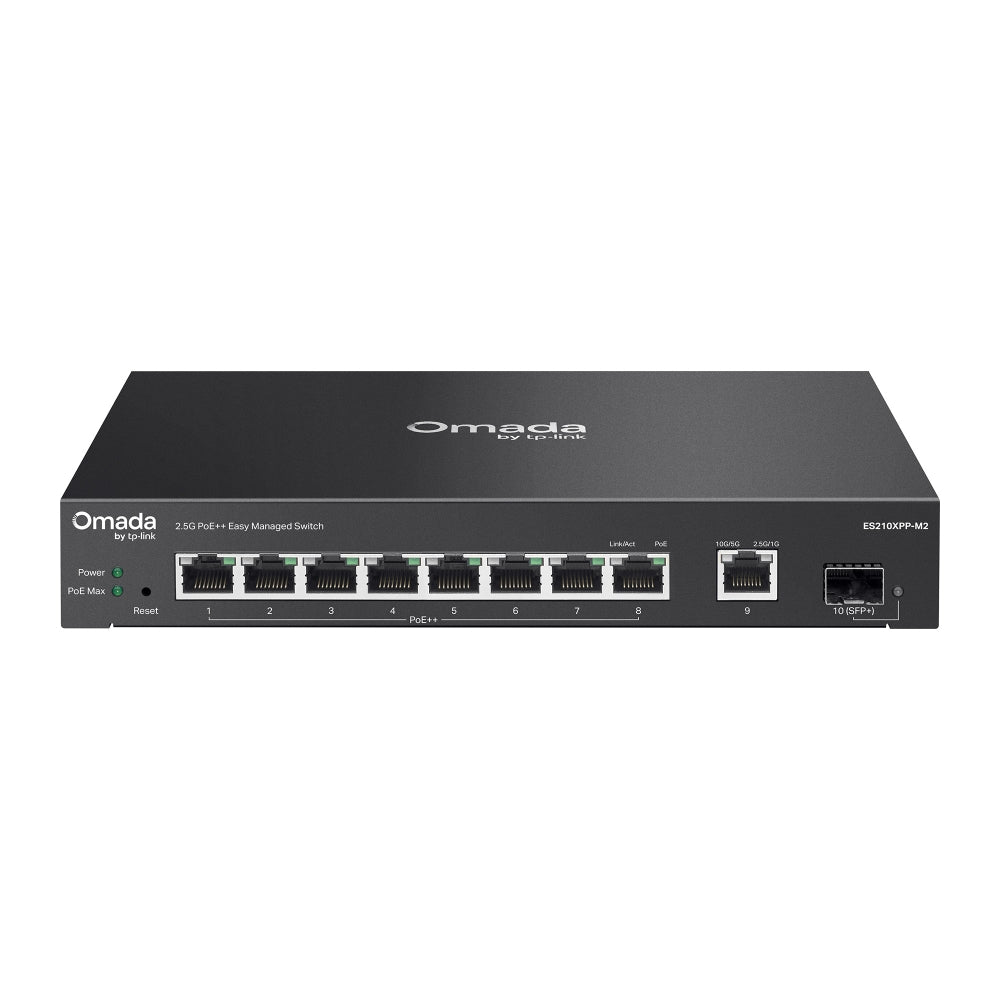

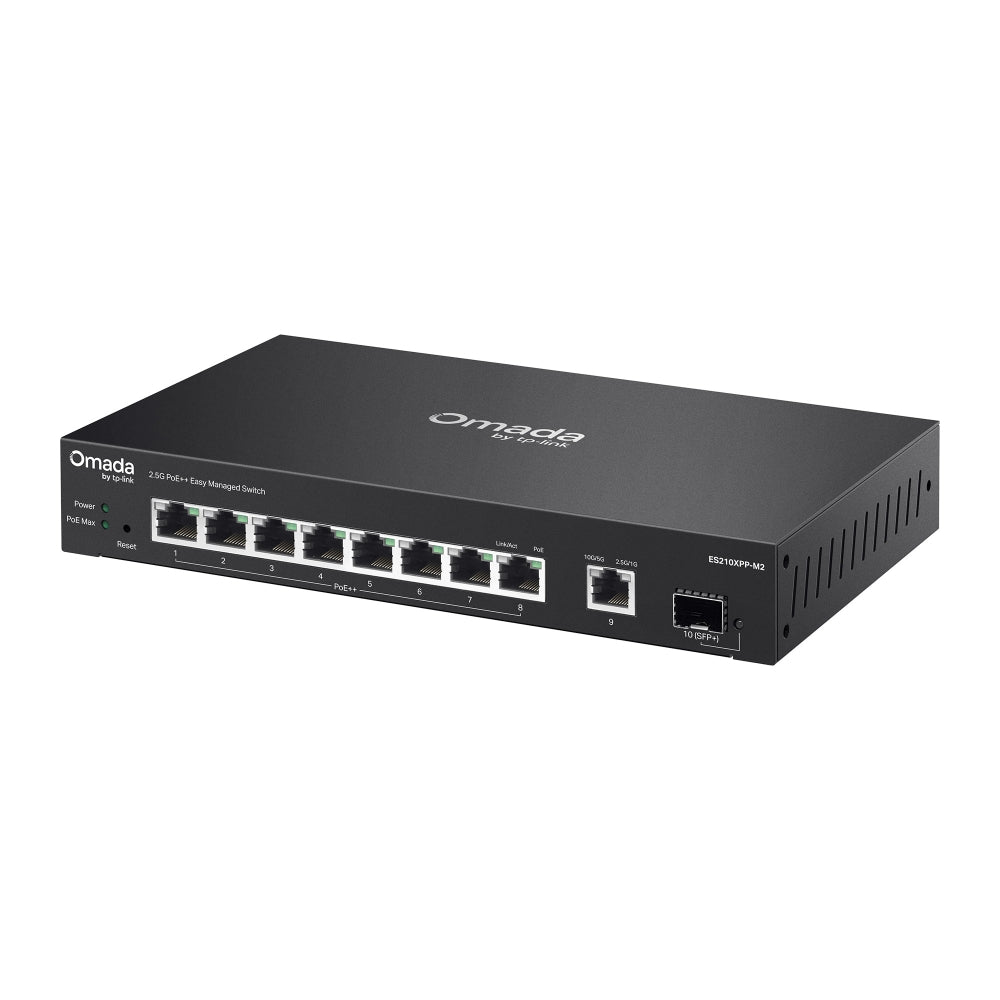

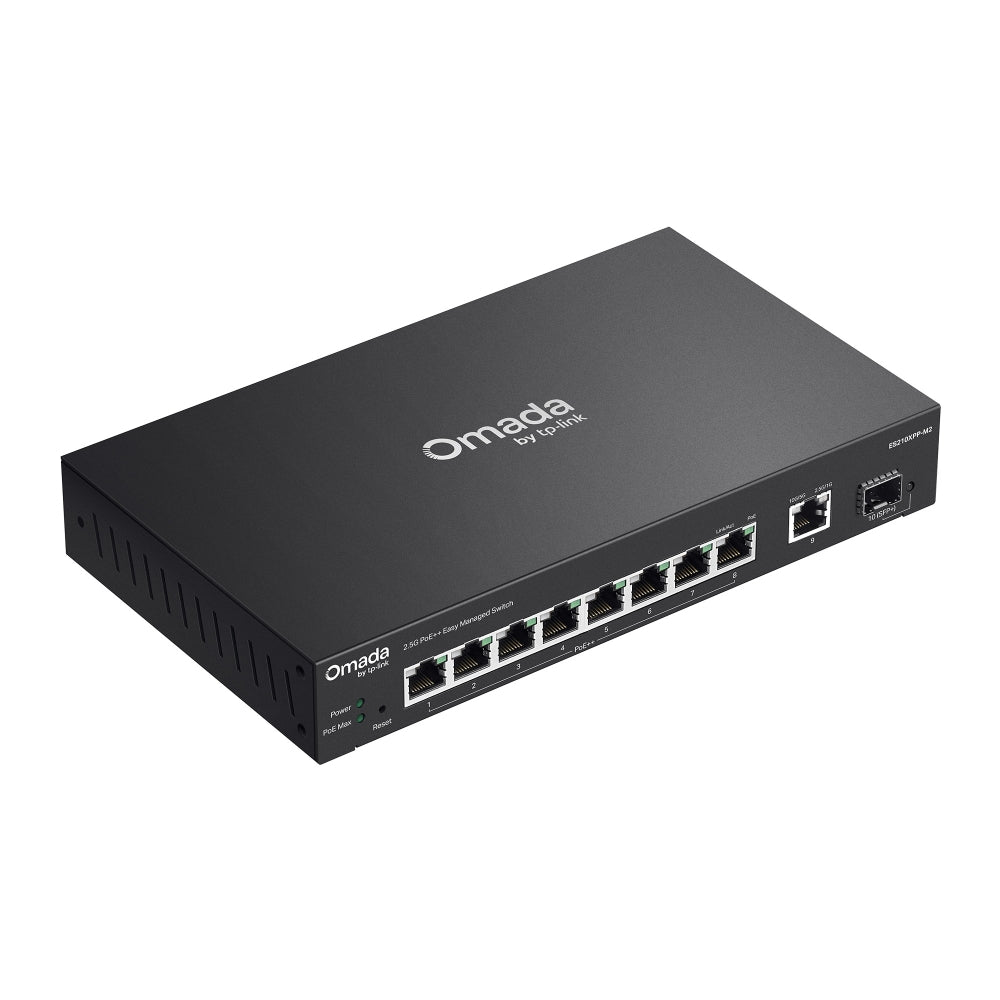

TP Link Omada ES210XPP-M2 Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++

Roll over image to zoom in Click on image to zoom

TP Link Omada ES210XPP-M2 Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++

Name: TP Link Omada ES210XPP-M2 Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++
Brand: TP-Link
SKU: TL-ES210XPP-M2
Price: 499.0 NZD
Availability: OutOfStock

TP-LinkSKU: TL-ES210XPP-M2

ES210XPP-M2

Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++

8× 2.5 Gbps RJ45 ports (8× 802.3af/at/bt-compliant PoE++)
1× 10 Gbps RJ45 Port, 1× 10 Gbps SFP+ Slot
200W PoE budget, with up to 90W for each PoE port*
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app
Automatic Loop Prevention, VLAN, Port Isolation, QoS, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

HARDWARE FEATURES
Interface	• 8× 2.5 Gbps RJ45 Ports (8× 802.3af/at/bt-compliant PoE++) • 1× 10 Gbps RJ45 Port • 1× 10 Gbps SFP+ Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless

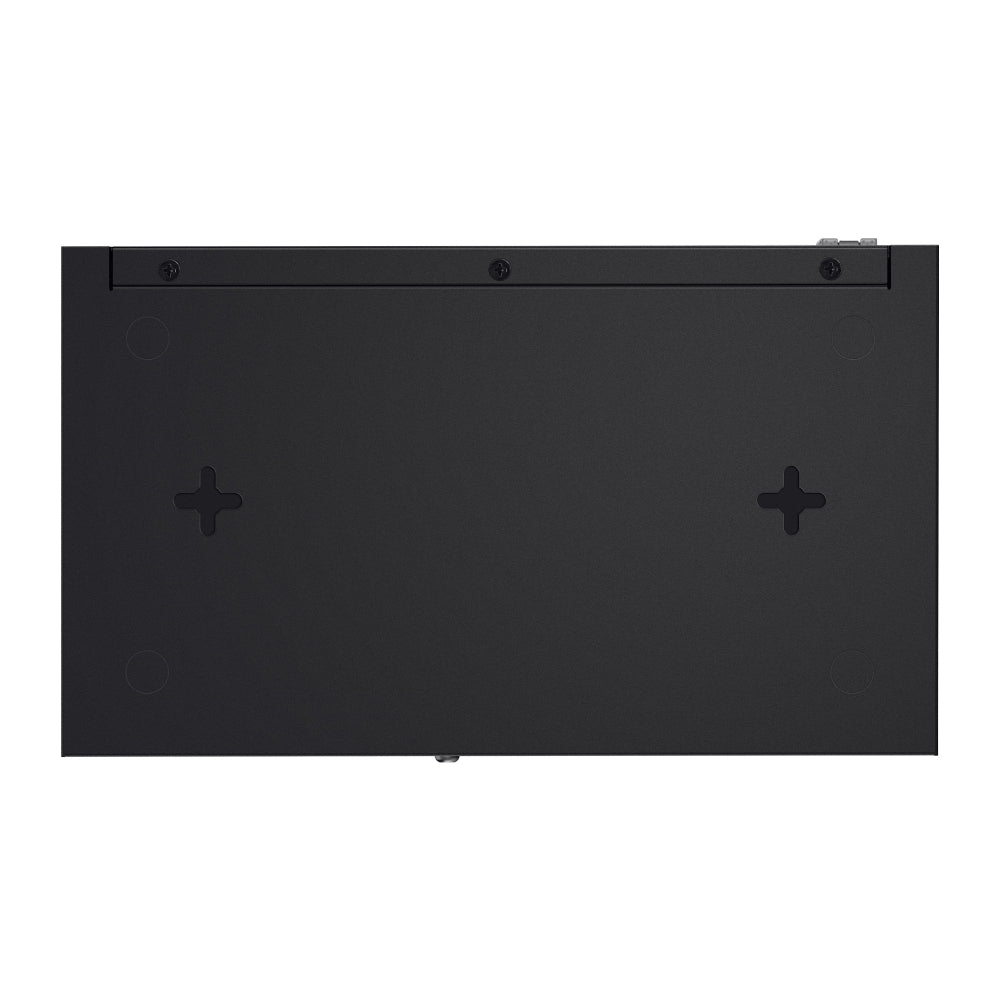

Installation	• Desktop • Wall Mount

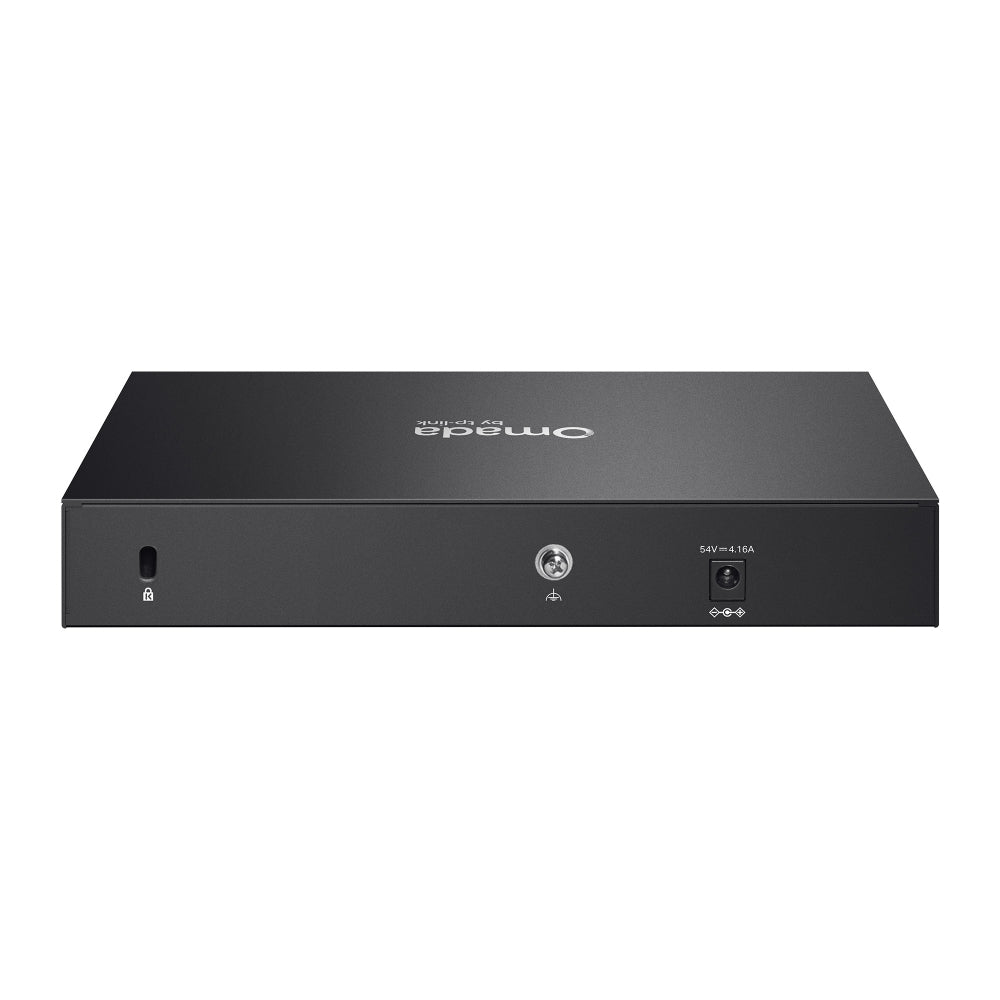

Physical Security Lock	√
Power Supply	AC/DC Adapter (Input: 100-240V AC; Output: 54V DC/4.16A)
PoE Ports (RJ45)	• Standard: 802.3af/at/bt PoE++ compliant • PoE Ports: 8 Ports • PoE Budget: 200W available for all PoE++ ports, 90W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery^‡
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm)
Surge Protection	±6 kV

PERFORMANCE
Packet Buffer Memory	5 Mbit
Jumbo Frame	10 KB
Switching Capacity	80 Gbps
Packet Forwarding Rate	59.52 Mpps
MAC Address Table	16K

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 6 aggregation groups and up to 4 ports per group • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE
Package Content	• ES210XPP-M2 • Power Adapter • Power Cord • Mounting Feet • Installation Guide
Environment	• Operating Temperature: -10℃~40℃ (14℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
