Omada 5 GHz 867 Mbps Scalable Central Hub for Long-Range Indoor/Outdoor Connectivity
Supports up to 32 Flex Bridges via TDMA: Enables scalable multipoint networks across multiple buildings or remote endpoints.
120° Wide Beamwidth for Multipoint Hub Deployment: Deliver extensive, high-quality wireless coverage for wide-area deployments.
3.1 mi (5 km) Long-Range 5 GHz Connectivity: Delivers dependable 867 Mbps speeds via powerful 16 dBi dual-polarised directional antennas.
DIP Switches for Simple Pairing: Reduces configuration and deployment complexity.

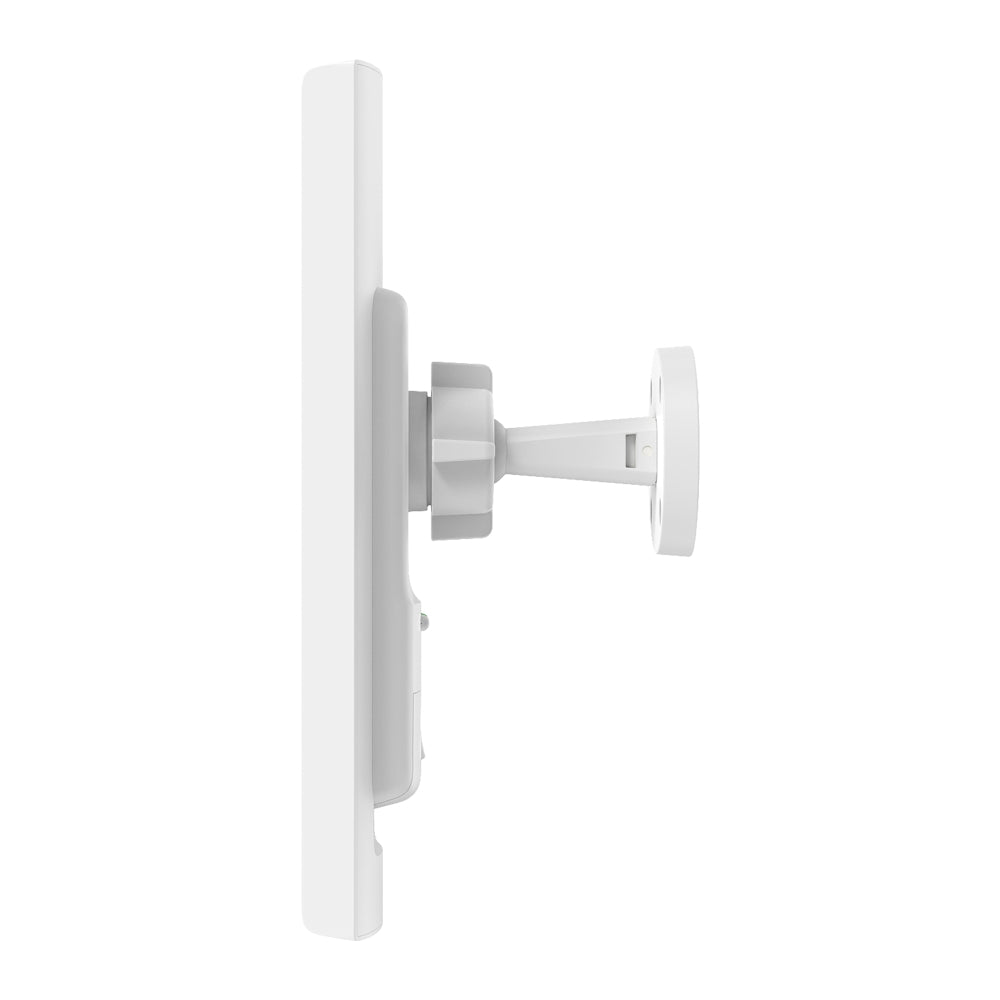

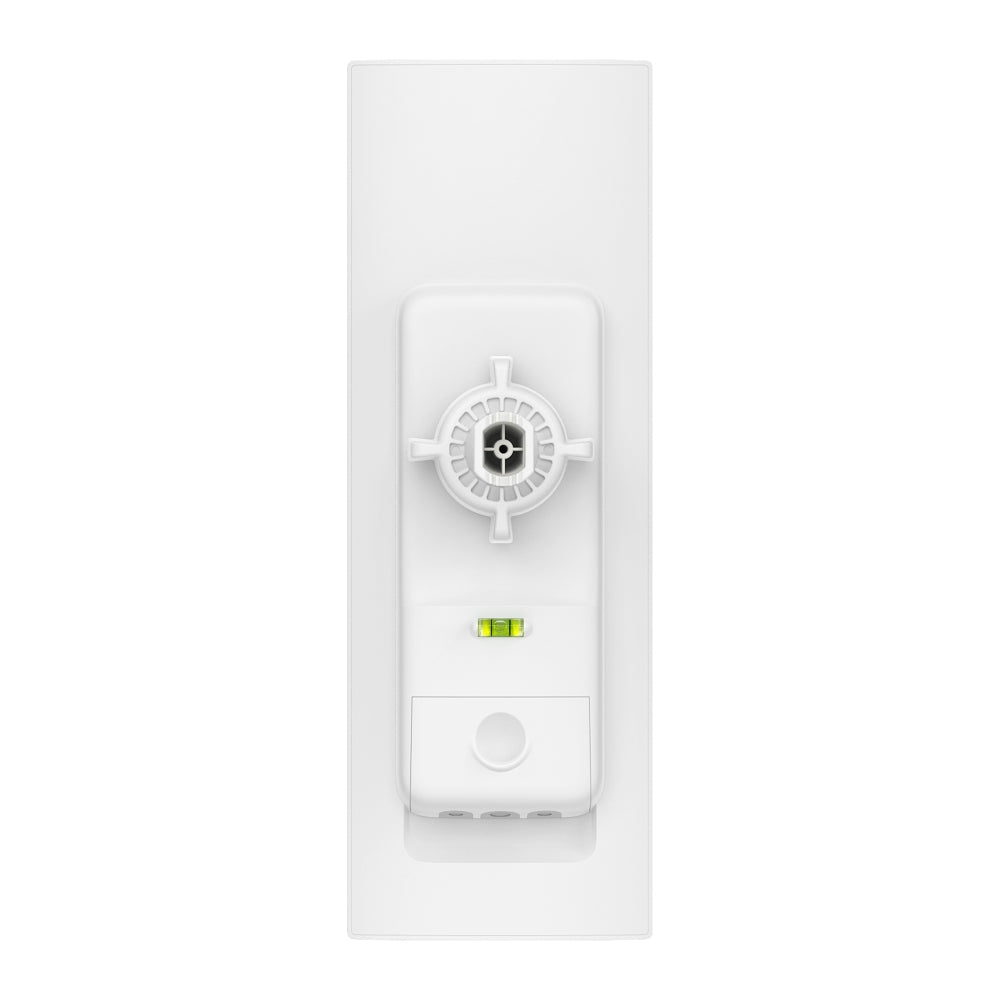

Easy & Versatile Installation: Supports wall or pole installations, with a built-in bubble level and a ball-joint mount for accurate adjustment.
Designed for Outdoor Durability & Reliability: Features an IP66 weatherproof enclosure, 6kV lightning protection, and an operating range of -40 °C to +70 °C.
App-Guided Alignment: Visual alignment guidance and instant speed testing simplify long distance setups and verify performance.
Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE (adapter included), and 12V DC.
Remote Monitoring with Standalone & SDN Management: Standalone mode or Omada SDN mode enables remote centralised management via Web UI or app.

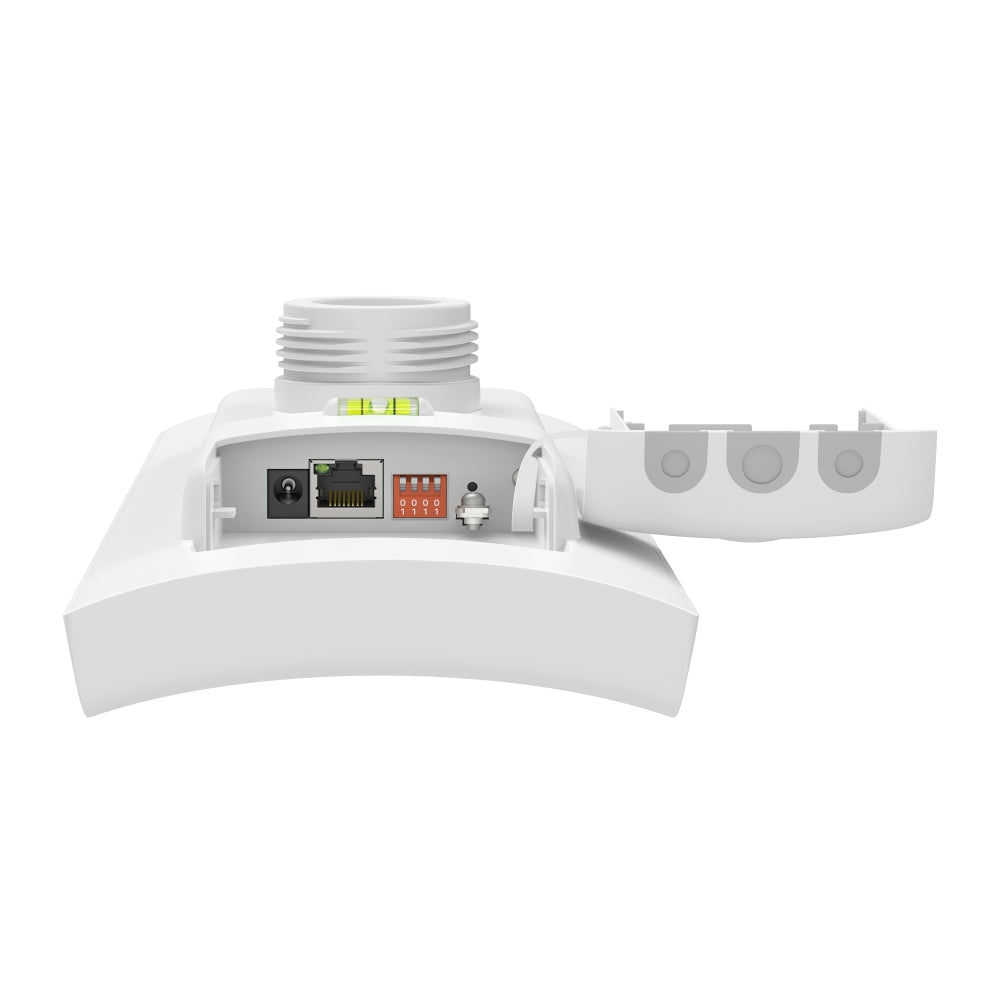

HARDWARE FEATURES
Interface
1× Gigabit Ethernet Port
Button
Reset
DIP Switch
Pairing Code Switch
Power Supply
• 12V DC/1A • 802.3af PoE • 24V Passive PoE (Passive PoE Adapter Included - For Dry Indoor Use Only)
