TX301
PCIe 3.1 Slot to 5 Gigabit Network Adapter
5 Gigabit Ethernet Upgrade — Up to 5× faster than standard Gigabit Ethernet for faster downloads, smoother gaming, and high-speed NAS access.
PCIe 3.1 Interface — Delivers a stable internal connection for reliable high-speed wired performance.
Multi-Speed Compatibility — Supports 5G / 2.5G / 1G / 100M / 10M networks for flexible use with different routers, switches, and network environments.
Smooth Gaming & Streaming — Helps reduce lag and buffering for gaming, 4K streaming, video calls, and online work.

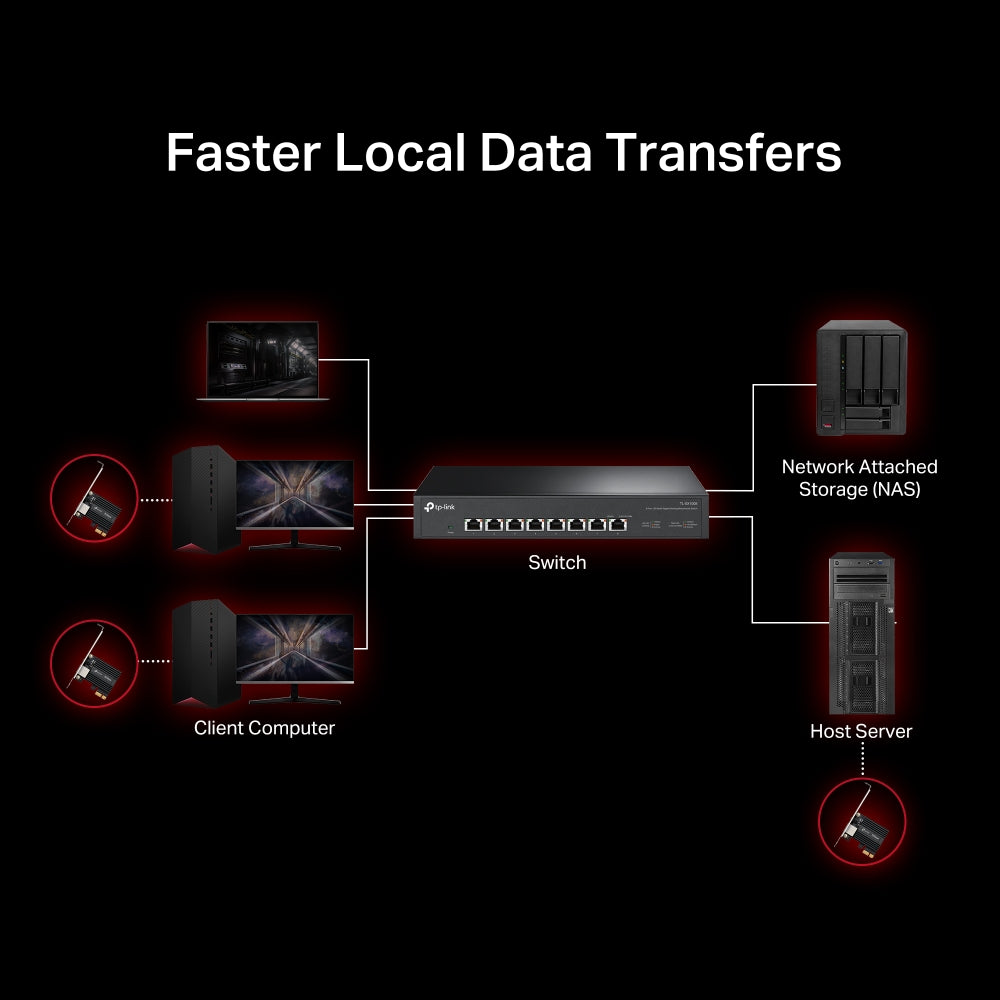

Fast Local Data Transfer — Speeds up file transfers between PCs, NAS devices, and home servers.
AIFlow App Prioritisation — Prioritises key apps like gaming, streaming, or conferencing for smoother network performance.

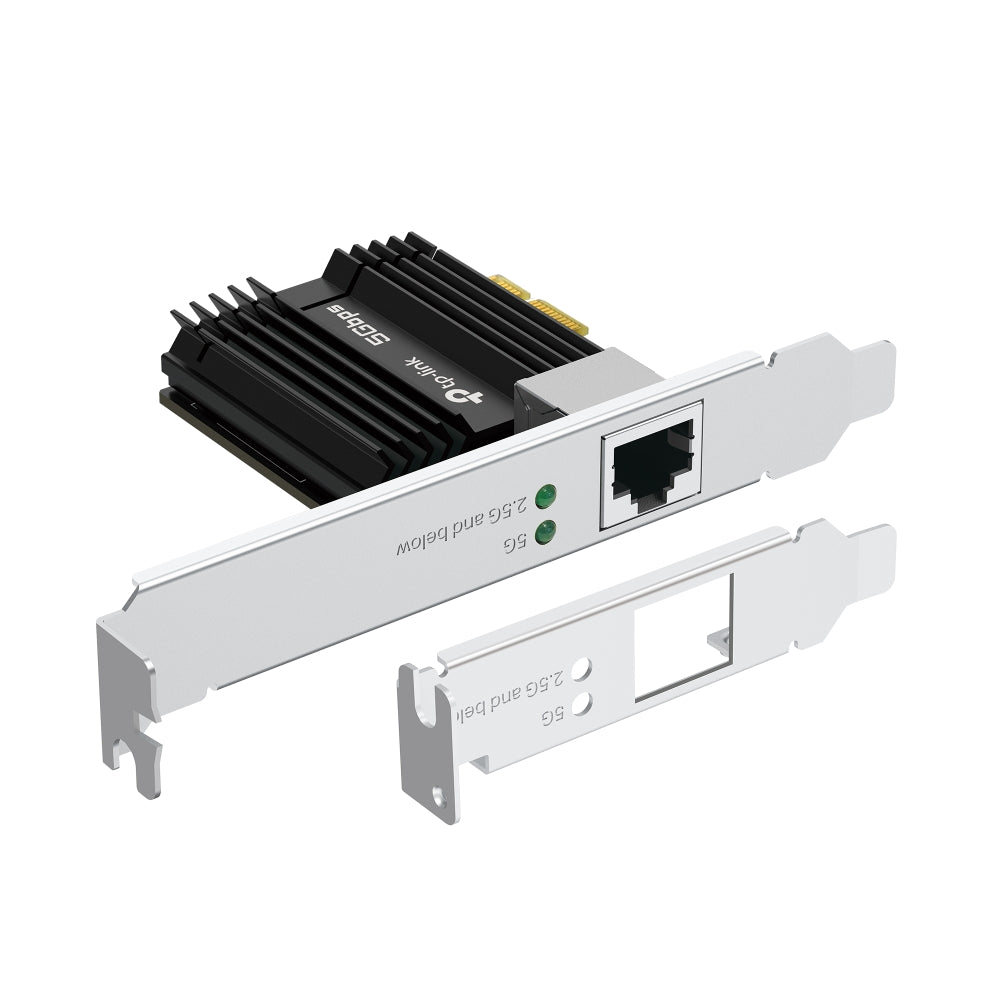

Easy Installation — Includes plug-and-play setup, standard and low-profile brackets, and a 1.5 m Cat6A cable.
Wake-on-LAN Support — Allows remote device wake-up for easier network management.
|
HARDWARE FEATURES
|
| Standards and Protocols |
IEEE802.3, IEEE802.3bz, IEEE802.3ab, IEEE802.3u, IEEE802.3x |
| Interface |
1× PCI Express 3.1 x1, 1× RJ45 Ethernet Port |
| Network Media |
5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX/10BASE-Te |
| LED |
5G ×1,
2.5G-and-below ×1 |
| Data Rates |
5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, 10 Mbps |
| Dimensions ( W x D x H ) |
120.8 × 78.5 × 21.5 mm (4.8 × 3.1 × 0.8 in) |
| Flow Control |
802.3x |
|
OTHERS
|
| Certification |
FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| Package Content |
5 Gigabit PCIe Network Adapter (TX301)
Standard/Low-Profile Brackets
Quick Installation Guide
1.5m CAT6A Ethernet Cable |
| System Requirements |
Windows 11/10, Windows Server 2016/2019/2022/2025, Linux‡ |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
